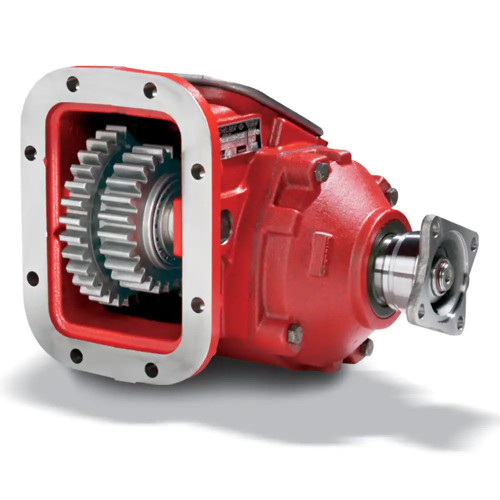

The Chelsea 885XGAKP-A4XV is an 885 Series Power Take-Off assembly built for heavy-duty vocational applications on transmissions with an 8-bolt PTO aperture. Shift type is hydraulic PowerShift. The output shaft is a 1-1/2"-10T spline with a 1410 series companion flange. Intermittent torque rating for the 885 Series reaches up to 500 lb-ft (678 Nm); check application pages for your actual torque requirement. Shaft power output is rated at 48 HP at 500 RPM and 95 HP at 1000 RPM. Compatible transmission manufacturers include Eaton/Fuller, Allison, Volvo/Mack, and other 8-bolt-aperture units. Call us to confirm proper fit for your application.
Features
Hydraulic PowerShift (PowerShift) shift type for on-the-go engagement
8-bolt mounting for compatibility with Eaton/Fuller, Allison, Volvo/Mack, and other 8-bolt-aperture transmissions
1-1/2"-10T spline output shaft with 1410 series companion flange
Intermittent torque capacity up to 500 lb-ft (678 Nm) per series rating - verify actual rating on application pages
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Rugged cast iron housing with pressure lubrication available
Tech Specs
- Intermittent Torque: Up to 500 lb-ft (678 Nm) - Check Application Pages for Actual Torque Ratings
- Shift Type: Hydraulic PowerShift
- Output Power: 56+ HP (51+ kW)
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Series Companion Flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP at 500 RPM, 95 HP at 1000 RPM (36 kW at 500 RPM, 71 kW at 1000 RPM)
- Compatible Transmission Manufacturers: Eaton/Fuller, Allison, Volvo/Mack, Other 8-Bolt Aperture
- Pressure Lubrication: Available
- Continuous Operation: Yes, with 30% de-rating
