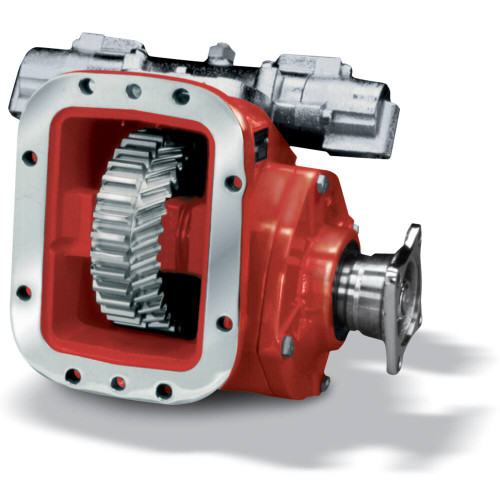

The Chelsea 880XQAHX-A3AF or 880XQAHXA3AF is an 8-bolt power take-off assembly with lever mechanical shift, designed for Volvo/Mack, Allison, Eaton/Fuller, and other transmission applications. The output shaft runs a 1-1/2"-10T spline with a 1410 companion flange. Shaft power is rated at 48 HP (36 kW) at 500 RPM and 95 HP (71 kW) at 1,000 RPM, with intermittent torque capacity up to 500 lb-ft (678 Nm) - check application pages for actual torque ratings for your specific installation. The cast iron housing accepts dual-pump mounting, putting a pump on each end of the PTO. Simple backlash adjustment speeds installation. Call us to confirm proper fit for your application.
Features
8-bolt mounting configuration
Lever mechanical shift type
Output shaft: 1-1/2" - 10T spline with 1410 companion flange
Dual-pump output allows a pump on each end of the PTO
Shaft power: 48 HP at 500 RPM / 95 HP at 1,000 RPM
Intermittent torque rated up to 500 lb-ft (678 Nm) - verify actual rating on application page
Tech Specs
- INTERMITTENT TORQUE: Up to 500 lb-ft (678 Nm) - Check Application Pages for Actual Torque Ratings
- TRANSMISSION MANUFACTURER: Volvo/Mack, Allison, Eaton/Fuller, Other
- SHIFT TYPE: Lever Mechanical
- OUTPUT POWER: 56+ HP (51+ kW)
- OUTPUT SHAFT TYPE: 1-1/2" - 10 Tooth Spline with 1410 Companion Flange
- MOUNTING TYPE: 8-Bolt
- SHAFT POWER: 500 RPM: 48 HP (36 kW) / 1,000 RPM: 95 HP (71 kW)
Additional Information
