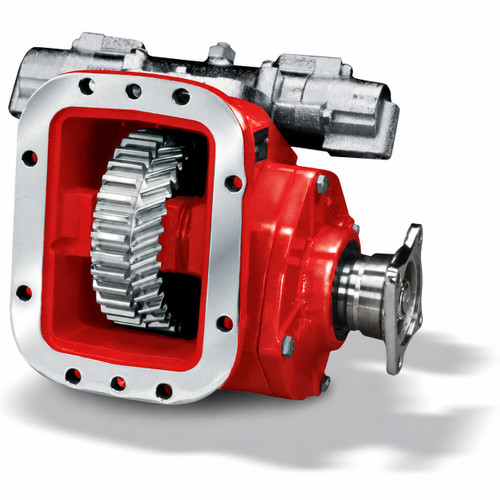

The Chelsea 880 Series Power Take-Off Assembly, part number 880XRAHX-V3GS or 880XRAHXV3GS, is an 8-bolt unit with lever mechanical shift and a 1-1/2"-10T spline output shaft fitted with a 1410 companion flange. Intermittent torque rating reaches 500 lb-ft (678 Nm), and shaft power output is 48 HP at 500 RPM or 95 HP at 1,000 RPM. The dual-pump output design allows a hydraulic pump to be mounted on each end of the PTO simultaneously. Compatible transmission manufacturers include Volvo/Mack, Allison, and Eaton/Fuller platforms. Cast iron housing and a simple backlash adjustment keep installation time down. Call us to confirm proper fit for your application.
Features
8-bolt mounting configuration
Lever mechanical shift type
1-1/2"-10T spline output shaft with 1410 companion flange
Dual-pump output for simultaneous pump mounting on both ends
Intermittent torque rating: 500 lb-ft (678 Nm)
Shaft power: 48 HP at 500 RPM / 95 HP at 1,000 RPM
Cast iron housing with simple backlash adjustment
Tech Specs
- Intermittent Torque: 500 lb-ft (678 Nm) - Check application pages for actual torque ratings
- Transmission Compatibility: Volvo/Mack, Allison, Eaton/Fuller
- Shift Type: Lever Mechanical
- Mounting Type: 8-Bolt
- Output Shaft Type: 1-1/2" - 10-Tooth Spline with 1410 Companion Flange
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 48 HP (36 kW) at 500 RPM / 95 HP (71 kW) at 1,000 RPM
