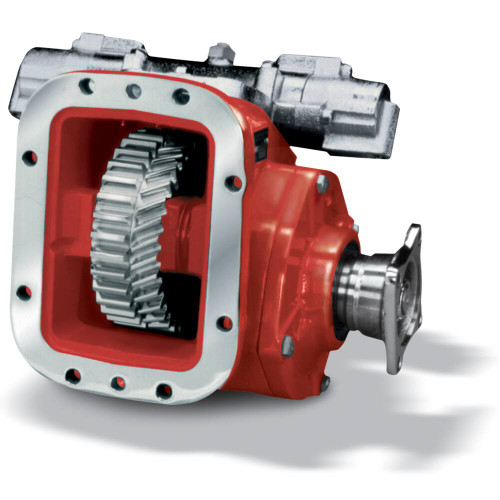

The Chelsea 880 Series Power Take-Off, part number 880XTDUX-Y5XV or 880XTDUXY5XV, is an 8-bolt PTO designed for heavy-duty, high-torque applications on manual transmissions from Volvo/Mack, Allison, Eaton/Fuller, and other manufacturers. It uses a lever mechanical shift and delivers a 1-1/2" 10-spline output shaft with a 1410 companion flange. The 880 Series is rated for up to 500 lb-ft (678 Nm) intermittent torque, with shaft power reaching 95 HP (71 kW) at 1,000 RPM. Constant mesh input gears and tapered cone bearings support high and low speed operation across demanding service environments including fire trucks, bulk haulers, oil field equipment, aerial units, and large-capacity recovery trucks. A genuine Chelsea part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
8-bolt mounting fits most manual transmissions including Volvo/Mack, Allison, and Eaton/Fuller applications
Lever mechanical shift with optional air control shift available
1-1/2" 10-spline output shaft with 1410 series companion flange
Intermittent torque rating up to 500 lb-ft (678 Nm); check application pages for actual torque ratings
Shaft power: 48 HP (36 kW) at 500 RPM, 95 HP (71 kW) at 1,000 RPM
Dual-pump output allows mounting a hydraulic pump on each end of the PTO
Removable shift cover simplifies backlash adjustment during installation
Tech Specs
- INTERMITTENT TORQUE: 500 lb-ft / 678 Nm (Check Application Pages for Actual Torque Ratings)
- TRANSMISSION MANUFACTURER: Volvo/Mack, Allison, Eaton/Fuller, Other
- SHIFT TYPE: Lever Mechanical
- OUTPUT POWER: 56+ HP / 51+ kW
- OUTPUT SHAFT TYPE: 1-1/2" - 10T Spline with 1410 Companion Flange
- MOUNTING TYPE: 8-Bolt
- SHAFT POWER: 48 HP (36 kW) at 500 RPM; 95 HP (71 kW) at 1,000 RPM
- CONTINUOUS OPERATION: Yes, with 30% de-rating
