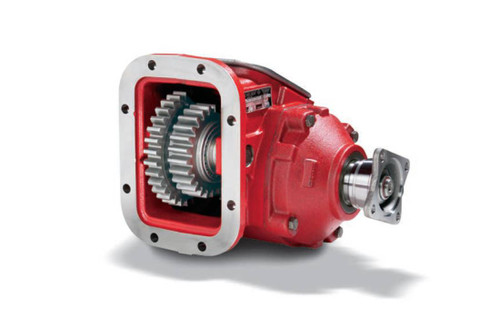

The Chelsea 885 Series Power Take-Off Assembly, part number 885XJAHX-A3XS or 885XJAHXA3XS, is a hydraulic PowerShift PTO built for heavy-duty vocational truck applications on transmissions with an 8-bolt PTO aperture. Compatible transmission manufacturers include Eaton/Fuller, Allison, Volvo/Mack, and other 8-bolt applications. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange, and the unit delivers 56+ HP output power. Shaft power is rated at 48 HP at 500 RPM and 95 HP at 1,000 RPM. Intermittent torque is rated up to 500 lb-ft (678 Nm); check application pages for actual torque ratings specific to your installation. The cast iron housing and heavy-duty ball bearings on the output shaft are standard 885 Series construction. Call us to confirm proper fit for your transmission and application.
Features
Hydraulic PowerShift (air PowerShift) engagement
8-bolt mounting for compatibility with Eaton/Fuller, Allison, Volvo/Mack, and other 8-bolt transmissions
1-1/2"-10T spline output shaft with 1410 companion flange
Intermittent torque up to 500 lb-ft (678 Nm); check application pages for actual ratings
95 HP at 1,000 RPM shaft power; 48 HP at 500 RPM
Rugged cast iron housing with pressure lubrication available
Tech Specs
- Intermittent Torque: Up to 500 lb-ft (Check Application Pages for Actual Torque Ratings) / 678 Nm
- Shift Type: Hydraulic PowerShift
- Output Power: 56+ HP / 51+ kW
- Shaft Power: 48 HP at 500 RPM / 95 HP at 1,000 RPM (36 kW at 500 RPM / 71 kW at 1,000 RPM)
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Companion Flange
- Mounting Type: 8-Bolt
- Compatible Transmission Manufacturers: Eaton/Fuller, Allison, Volvo/Mack, Other 8-Bolt
- Continuous Operation: Yes, with 30% de-rating
- Housing Material: Cast Iron
