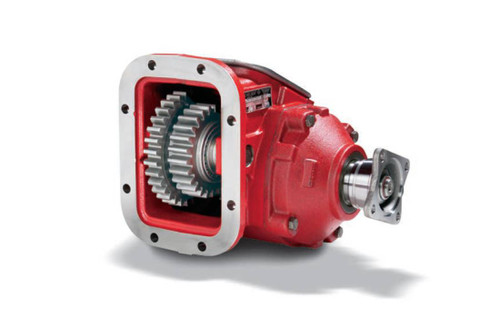

The Chelsea 885 Series Power Take-Off, part number 885XJAHX-P4XV or 885XJAHXP4XV, is an 8-bolt hydraulic PowerShift PTO built for heavy-duty applications on Allison, Eaton/Fuller, Volvo/Mack, and other compatible transmissions. The output shaft is a 1-1/2"-10T spline with a 1410 companion flange. The 885 Series is rated for intermittent torque up to 500 lb-ft (678 Nm) - check application pages for actual torque ratings for your specific configuration. Shaft power is rated at 48 HP at 500 RPM and 95 HP at 1000 RPM. Pressure lubrication is available on this unit. Call us to confirm proper fit for your application before ordering.
Features
8-Bolt mounting for compatibility with Allison, Eaton/Fuller, Volvo/Mack, and other transmissions
Hydraulic PowerShift (PowerShift Hydraulic) engagement
Intermittent torque rated up to 500 lb-ft (678 Nm) - verify actual rating on application pages
Output shaft: 1-1/2"-10T spline with 1410 companion flange
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Rugged cast iron housing with pressure lubrication available
Tech Specs
- Intermittent Torque: Up to 500 lb-ft (678 Nm) - Check Application Pages for Actual Torque Ratings
- Shift Type: Hydraulic PowerShift
- Output Power: 56+ HP (51+ kW)
- Transmission Manufacturer: Allison, Eaton/Fuller, Volvo/Mack, Other
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Companion Flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP at 500 RPM, 95 HP at 1000 RPM (36 kW at 500 RPM, 71 kW at 1000 RPM)
