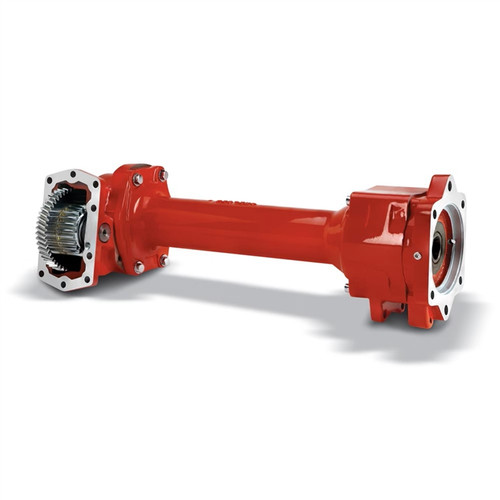

The Chelsea 890CAFJW-B3CS or 890CAFJWB3CS is a 890 Series power take-off assembly engineered for Allison 3000 MD and 4000 HD series automatic transmissions. It mounts via a 10-bolt pattern and uses hydraulic PowerShift engagement. The SAE C ("XS") output shaft and SAE C outlet flange deliver up to 670 lb-ft of continuous-duty torque and 128 HP at 1,000 RPM shaft speed. The wet-spline design lubricates the PTO-to-pump interface to extend shaft life, and the extended output shaft provides added clearance for direct-mount pump installations. A genuine Chelsea part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Fits Allison 3000 MD and 4000 HD series automatic transmissions
Hydraulic PowerShift engagement
10-bolt transmission mounting pattern
SAE C ("XS") output shaft with SAE C outlet flange
670 lb-ft continuous-duty torque rating; 128 HP at 1,000 RPM
Wet-spline lubrication with extended shaft for improved pump clearance
Tech Specs
- Transmission Application: Allison 3000 MD and 4000 HD Series
- Product Series: 890
- Mounting Type: 10-Bolt
- Shift Type: Hydraulic PowerShift
- Output Shaft Type: SAE C ("XS")
- Outlet Flange Type: SAE C
- Continuous Torque: 670 lb-ft (908 Nm) - check application pages for actual torque ratings
- Intermittent Torque: 501+ lb-ft (501+ Nm)
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 64 HP (48 kW) at 500 RPM; 128 HP (95 kW) at 1,000 RPM
- Lubrication: Wet Spline
