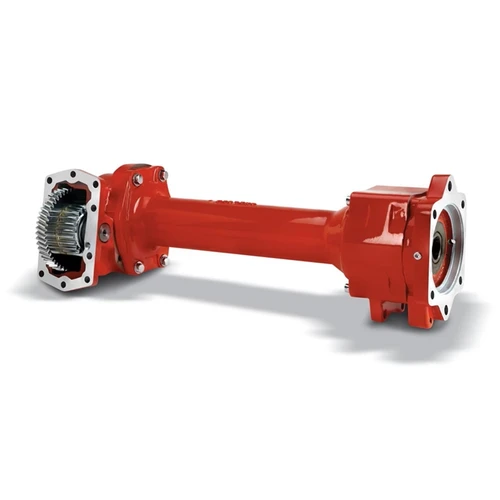

The Chelsea 890HAFJW-G5XS or 890HAFJWG5XS is a hydraulic hot-shift power take-off from the Chelsea 890 Series, built specifically for Allison 3000 MD and 4000 HD Series transmissions. It uses a 10-bolt mounting configuration and positions the pump output at the rear of the transmission, where a one-piece main shaft eliminates the input splines typically found between a PTO and an output extension. The SAE C output shaft uses Wet Spline technology to extend PTO and pump shaft life under demanding duty cycles. Continuous torque for this series reaches up to 670 ft-lb, with intermittent torque rated at 501+ ft-lb. Shaft power runs 64 HP at 500 RPM and 128 HP at 1000 RPM. Common applications include aerial trucks, fire and rescue trucks, refuse trucks, and truck cranes. Call us to confirm proper fit for your transmission configuration.
Features
Fits Allison 3000 MD and 4000 HD Series transmissions via 10-bolt mounting
Hydraulic PowerShift (hot-shift) engagement
SAE C output with Wet Spline technology for extended pump shaft life
One-piece main shaft eliminates input splines between PTO body and output extension
Continuous torque up to 670 ft-lb; intermittent torque 501+ ft-lb
Shaft power: 64 HP at 500 RPM, 128 HP at 1000 RPM
Tech Specs
- Transmission Fitment: Allison 3000 MD and 4000 HD Series
- Product Series: Chelsea 890
- Mounting Type: 10-Bolt
- Shift Type: Hydraulic PowerShift (hot-shift)
- Output Shaft Type: SAE C Wet Spline (XS)
- Outlet Flange Type: SAE C
- Continuous Torque: 670 ft-lb (check application pages for actual ratings)
- Intermittent Torque: 501+ ft-lb
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 64 HP (48 kW) at 500 RPM; 128 HP (95 kW) at 1000 RPM
- Lubricant: Wet Spline
