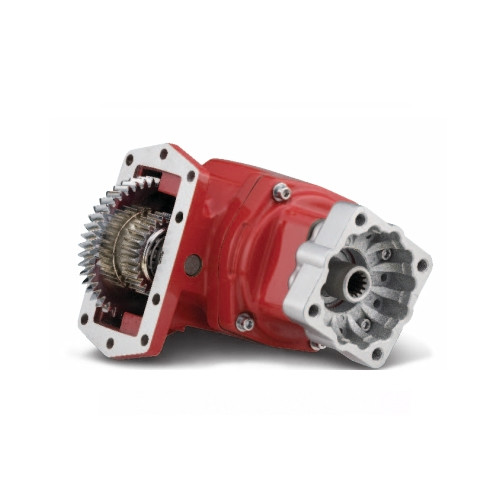

The Chelsea 890HEFJW-G5AF or 890HEFJWG5AF is a hydraulic PowerShift PTO assembly built for Allison 3000 MD and 4000 HD Series transmissions. The 890 Series positions the pump mounting flange at the rear of the transmission, fitting between the transmission and frame rail to provide clearance that a standard side-mount PTO cannot. The one-piece main shaft eliminates the input splines between the PTO body and output extension, and the clutch sits at the rear of the housing so the gear section tucks tightly against the transmission. The SAE C output uses Wet Spline Technology to extend PTO and pump shaft life under demanding duty cycles. Continuous-duty torque is rated up to 670 ft-lb on this 10-bolt unit. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
The Chelsea 890 Series is designed for aerial trucks, fire and rescue vehicles, snow and ice equipment, refuse trucks, and truck cranes where pump space is limited and high continuous torque is required. The 890 is a single-unit design, not a PTO with a bolt-on extension, and it mounts like a standard side-mounted PTO while adding a rear bracket for additional transmission support. Compatible with Allison 3000/4000 transmissions equipped with or without a cooler, retarder, or both.
Features
Fits Allison 3000 MD and 4000 HD Series transmissions via 10-bolt mount
Hydraulic PowerShift (hot shift) engagement
SAE C ("XS") Wet Spline output extends PTO and pump shaft life
Continuous-duty torque rating up to 670 ft-lb; intermittent torque 501+ ft-lb
Shaft power: 64 HP at 500 RPM, 128 HP at 1000 RPM
One-piece main shaft with rear-located clutch for maximum pump clearance
Tech Specs
- Transmission Compatibility: Allison 3000 MD and 4000 HD Series
- Mounting Type: 10-Bolt
- Shift Type: Hydraulic PowerShift
- Output Shaft Type: SAE C ("XS") Wet Spline
- Outlet Flange Type: SAE C
- Continuous Torque Rating: 670 ft-lb (check application pages for actual torque ratings)
- Intermittent Torque: 501+ ft-lb
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 64 HP (48 kW) at 500 RPM; 128 HP (95 kW) at 1000 RPM
- Lubricant: Wet Spline
- Product Series: 890
Additional Information
The Chelsea 890 Series is designed for aerial trucks, fire and rescue vehicles, snow and ice equipment, refuse trucks, and truck cranes where pump space is limited and high continuous torque is required. The 890 is a single-unit design, not a PTO with a bolt-on extension, and it mounts like a standard side-mounted PTO while adding a rear bracket for additional transmission support. Compatible with Allison 3000/4000 transmissions equipped with or without a cooler, retarder, or both.
