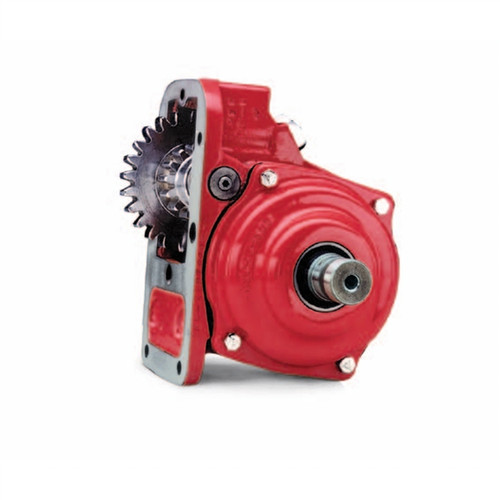

The Chelsea 890LBFJW-B5XK or 890LBFJWB5XK is a hydraulic PowerShift PTO assembly from the Chelsea 890 Series, engineered specifically for Allison 3000 MD and 4000 HD series transmissions. It mounts via a 10-bolt pattern and features an SAE C (XS) output shaft with Wet Spline technology to extend pump shaft life under demanding duty cycles. The 890 Series relocates the pump mounting flange to the rear of the transmission, tucking the housing tightly against the frame rail for improved pump clearance without the need for a separate extension. The one-piece main shaft eliminates input splines between the PTO and output extension. Continuous-duty torque reaches 670 lb-ft, with intermittent torque rated at 501 lb-ft or more. Shaft power output is 64 HP at 500 RPM and 128 HP at 1,000 RPM. Common applications include aerial trucks, fire and rescue apparatus, refuse trucks, and truck cranes. A genuine Chelsea part from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Fits Allison 3000 MD and 4000 HD series transmissions via 10-bolt mounting
Hydraulic PowerShift (hot shift) engagement
SAE C (XS) output shaft with Wet Spline technology for extended pump shaft life
Continuous-duty torque rating of 670 lb-ft; intermittent torque rated at 501 lb-ft or more
Shaft power: 64 HP at 500 RPM, 128 HP at 1,000 RPM
One-piece main shaft relocates pump flange to rear of transmission for improved clearance
Tech Specs
- Transmission: Allison 3000 MD and 4000 HD Series
- Product Series: 890
- Mounting Type: 10-Bolt
- Shift Type: Hydraulic PowerShift
- Output Shaft Type: SAE C (XS)
- Outlet Flange Type: SAE C
- Lubricant: Wet Spline
- Continuous Torque: 670 lb-ft (check application pages for actual torque ratings)
- Intermittent Torque: 501 lb-ft or more
- Output Power: 56 HP or more (51 kW or more)
- Shaft Power: 64 HP at 500 RPM, 128 HP at 1,000 RPM
