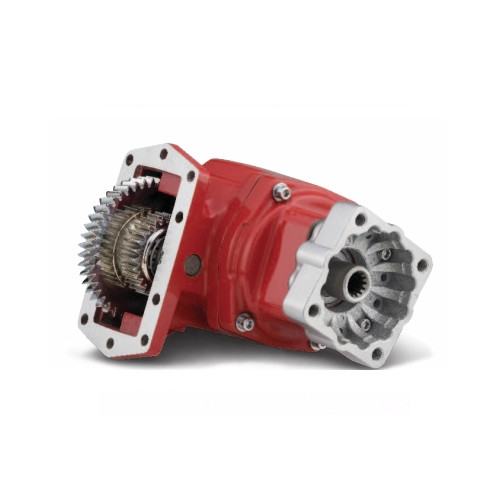

The Chelsea 890LCFJW-B5AF or 890LCFJWB5AF is a hydraulic PowerShift (hot-shift) power take-off built for Allison 3000 MD and 4000 HD Series transmissions. It mounts via a 10-bolt pattern and positions the pump output to the rear of the transmission, tucking between the gearbox and the frame rail to maximize pump clearance without an extension adapter. The main shaft is a one-piece design that eliminates the input splines between the PTO and the output extension. Output is an SAE C (XS) flange with Wet Spline technology to reduce pump shaft wear in demanding duty cycles. Continuous-duty torque reaches 670 lb-ft; intermittent torque is rated at 501+ lb-ft. Shaft power runs 64 HP at 500 RPM and 128 HP at 1,000 RPM. Common platforms include aerial, fire and rescue, refuse, and crane trucks. Call us to confirm proper fit for your specific transmission configuration.
Features
Hydraulic PowerShift (hot-shift) engagement for Allison 3000 MD and 4000 HD Series transmissions
10-bolt mounting with rear-of-transmission pump output location for improved clearance
One-piece main shaft eliminates input splines between PTO body and output extension
SAE C (XS) output flange with Wet Spline technology to extend pump shaft life
Continuous-duty torque rating up to 670 lb-ft; intermittent torque rated at 501+ lb-ft
Shaft power: 64 HP at 500 RPM, 128 HP at 1,000 RPM
Tech Specs
- Transmission Fit: Allison 3000 MD and 4000 HD Series
- Product Series: 890
- Mounting Type: 10-Bolt
- Shift Type: Hydraulic PowerShift (Hot-Shift)
- Output Shaft Type: SAE C (XS) Output
- Outlet Flange Type: SAE C
- Lubricant / Spline: Wet Spline
- Continuous Torque: 670 lb-ft (check application pages for actual torque ratings)
- Intermittent Torque: 501+ lb-ft
- Output Power: 56+ HP / 51+ kW
- Shaft Power: 64 HP (500 RPM), 128 HP (1,000 RPM) / 48 kW (500 RPM), 95 kW (1,000 RPM)
