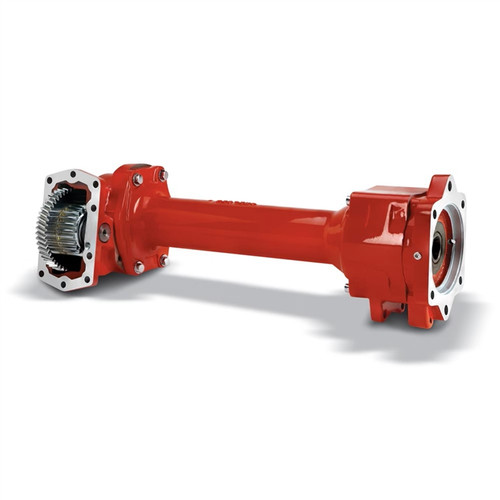

Chelsea 890LEFJW-B5XV or 890LEFJWB5XV is a hydraulic PowerShift PTO assembly from the Chelsea 890 Series, with a 10-bolt mounting and an SAE C output. It is a hot-shift unit, so the driver engages it with a hydraulic control rather than a mechanical linkage. The W in the model code marks a wet spline output made to extend PTO and pump shaft life, and the FJ input gear designator covers the Allison 3000 (medium-duty) and 4000 (heavy-duty) series transmissions. The 890 Series is described as having an extended shaft for better pump clearance. A genuine Chelsea part from Pro Gear and Transmission.
Features
Hydraulic PowerShift (hot shift) PTO from the 890 Series
10-bolt mounting with SAE C outlet flange and SAE C ("XS") output shaft
Wet spline output (W in the model code) to extend PTO and pump shaft life
FJ input gear designator for the Allison 3000 and 4000 series transmissions
Extended shaft to improve pump clearance
Series continuous-duty torque rating up to 670 ft-lbs (check application pages for actual ratings)
Tech Specs
- Transmission Manufacturer: Allison
- Intermittent Torque: 501+ lb-ft 501+ Nm
- Mounting Type: 10-Bolt
- Outlet Flange Type: SAE C
- Output Power: 56+ HP 51+ kW
- Output Shaft Type: SAE C SAE "C" ("XS") Output
- Shift Type: Hydraulic PowerShift (Hydraulic)
- Product Series: 890
- Input Gear Designator: FJ = Allison 3000 [MD] & 4000 [HD] Series
- Lubricant: W = Wet Spline
- Shaft Power: 500 RPM: 64, 1000 RPM: 128 HP 500 RPM: 48, 1000 RPM: 95 kW
- Weight: 88 lb 39 kg
- Continuous Torque: 908 (Check Application Pages for Actual Torque Ratings) Nm 670 (Check Application Pages for Actual Torque Ratings) lb-ft
