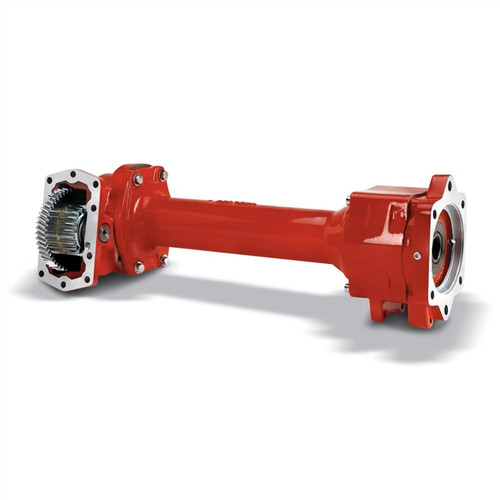

The Chelsea 890 Series Power Take-Off, part number 890LEFJW-5XV or 890LEFJW5XV, is a hydraulic hot shift PTO engineered specifically for Allison 3000 MD and 4000 HD Series transmissions. The 890 Series mounts via a 10-bolt pattern and relocates the pump output to the rear of the transmission, tucking the housing and gear section tightly against the case to free up valuable clearance between the PTO and the frame rail. A one-piece main shaft eliminates the input splines between the PTO body and the output extension. The SAE C output uses Wet Spline Technology to protect the PTO and pump shaft under continuous, demanding operation. Continuous-duty torque reaches 670 lb-ft, with shaft power of 64 HP at 500 RPM and 128 HP at 1,000 RPM. Common applications include aerial trucks, fire and rescue, refuse trucks, and truck cranes. Call us to confirm proper fit for your specific transmission configuration.
Features
Fits Allison 3000 MD and 4000 HD Series transmissions via 10-bolt mounting
Hydraulic hot shift (PowerShift) engagement
SAE C output flange and SAE C (XS) output shaft
Wet Spline output extends PTO and pump shaft life in demanding service
Continuous-duty torque rating up to 670 lb-ft; shaft power 64 HP at 500 RPM, 128 HP at 1,000 RPM
Extended shaft design moves pump mounting flange to rear of transmission for improved clearance
Tech Specs
- Transmission Fit: Allison 3000 MD and 4000 HD Series
- Product Series: 890
- Mounting Type: 10-Bolt
- Shift Type: Hydraulic PowerShift
- Outlet Flange Type: SAE C
- Output Shaft Type: SAE C (XS) Output
- Lubricant/Output: Wet Spline
- Continuous Torque: 670 lb-ft (see application pages for actual torque ratings)
- Intermittent Torque: 501+ lb-ft
- Output Power: 56+ HP (51+ kW)
- Shaft Power: 64 HP (48 kW) at 500 RPM; 128 HP (95 kW) at 1,000 RPM
Additional Information
Parts Manual: Chelsea 890 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
