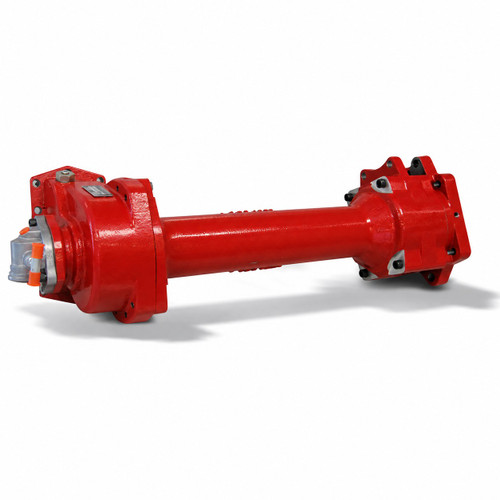

The Chelsea 897 Series Power Take-Off Assembly, part number 897EEFJW-M5XK or 897EEFJWM5XK, is a constant-engagement (constant mesh) PTO engineered specifically for Allison 3000 and 4000 Series transmissions. It mounts via a 10-bolt pattern on the transmission side, then adds a rear-of-transmission support bracket, positioning the SAE C output flange at the back of the transmission to maximize pump clearance without requiring a separate extension unit. The one-piece main shaft eliminates input splines between the PTO and output extension. Wet Spline Technology is built in, reducing wear on the pump and PTO shaft in demanding duty cycles. Continuous torque rating reaches 670 ft-lb (check application pages for confirmed ratings by application). At 1,000 RPM, shaft power output is 128 HP. Common applications include aerial trucks, fire and rescue trucks, refuse trucks, and truck cranes. Call us to confirm proper fit for your transmission configuration.
Features
Fits Allison 3000 and 4000 Series transmissions via 10-bolt mounting
Constant-engagement (constant mesh) output shift type
SAE C output flange and output shaft (XS) positions pump at rear of transmission for improved clearance
One-piece main shaft eliminates input splines between PTO and output extension
Wet Spline Technology extends pump and PTO shaft life in high-demand applications
Continuous torque rating up to 670 ft-lb; shaft power 128 HP at 1,000 RPM
Tech Specs
- Transmission Manufacturer: Allison 3000/4000 Series
- Mounting Type: 10-Bolt
- Output Shift Type: Constant Mesh (Constant Engagement)
- Input Gear Designator: Allison World Transmissions
- Outlet Flange Type: SAE C
- Output Shaft Type: SAE C (XS)
- Lubricant: Wet Spline
- Intermittent Torque: 501+ lb-ft / 501+ Nm
- Continuous Torque: 670 lb-ft / 908 Nm (check application pages for confirmed ratings)
- Output Power: 56+ HP / 51+ kW
- Shaft Power at 500 RPM: 64 HP / 48 kW
- Shaft Power at 1,000 RPM: 128 HP / 95 kW
Additional Information
Parts manual and diagrams: Chelsea 897 Series PTO parts list with prices
