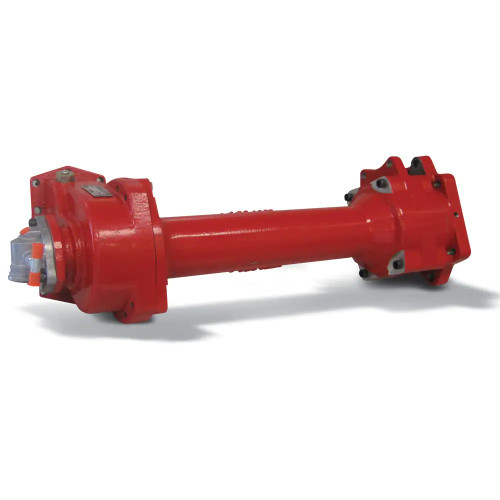

The Chelsea 897 Series Power Take-Off Assembly, part number 897HAFJW-M5AF or 897HAFJWM5AF, is a constant-mesh PTO engineered specifically for Allison 3000 and 4000 Series transmissions. The 897 Series moves the pump mounting flange to the rear of the transmission, locating the pump output behind the gear section so the housing tucks tightly against the transmission for improved clearance between the PTO and the frame rail. The assembly uses a single one-piece main shaft, eliminating the input splines found in PTO-plus-extension designs. Output is SAE C flange type, mounting is 10-bolt, and the wet-spline output extends pump shaft life in demanding duty cycles. Continuous-duty torque reaches 670 ft-lb; intermittent torque is rated at 501+ ft-lb. At 1,000 RPM, shaft output is 128 HP. Common applications include aerial trucks, fire and rescue, refuse trucks, truck cranes, and snow and ice equipment. Available from Pro Gear and Transmission - call us to confirm proper fit for your transmission configuration.
Features
Fits Allison 3000 and 4000 Series transmissions via 10-bolt mounting
Constant-mesh (constant engagement) shift type for smooth, continuous operation
SAE C output flange with wet-spline technology to extend pump shaft life
Continuous-duty torque rating up to 670 ft-lb; intermittent torque 501+ ft-lb
One-piece main shaft design eliminates input splines between PTO and output extension
Pump interface located at rear of transmission for improved clearance with the frame rail
Tech Specs
- Transmission Application: Allison 3000 and 4000 Series
- Input Gear Designator: FJ - Allison World Transmissions
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh / Constant Engagement
- Outlet Flange Type: SAE C
- Output Shaft Type: SAE C (XS)
- Lubricant / Spline Type: Wet Spline
- Continuous Torque: 670 ft-lb / 908 Nm (verify actual rating on application pages)
- Intermittent Torque: 501+ ft-lb / 501+ Nm
- Output Power: 56+ HP / 51+ kW
- Shaft Power at 500 RPM: 64 HP / 48 kW
- Shaft Power at 1,000 RPM: 128 HP / 95 kW
- Dimensions (H x W x L): 13 in. x 11.75 in. x 31.38 in.
