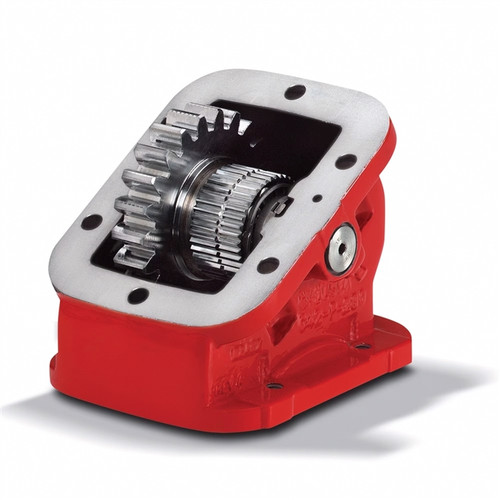

The Chelsea 630XAHP-3XX or 630XAHP3XX is a geared adapter that connects a 6-bolt PTO to a 6-bolt transmission opening. Its 30-degree downward angle moves the PTO output away from chassis components, helping eliminate interference problems in tight installations. The adapter shares its input gears with Chelsea's 442 Series PTO, which simplifies parts stocking for shops already running 442 Series units. The 630 Series parts manual linked below provides exploded views and full parts breakdowns for this adapter. Call us to confirm proper fit for your transmission and PTO combination before ordering.
Parts Manual: Chelsea 630 Series PTO Parts Manual (PDF) - exploded views, item numbers and the full parts breakdown for this series.
Features
6-bolt PTO to 6-bolt transmission opening configuration
30-degree downward angle offsets the PTO to help eliminate chassis interference
Uses the same input gears as the Chelsea 442 Series PTO
Part number: 630XAHP-3XX or 630XAHP3XX
Chelson 630 Series PTO Parts Manual available - see PDF link in description
