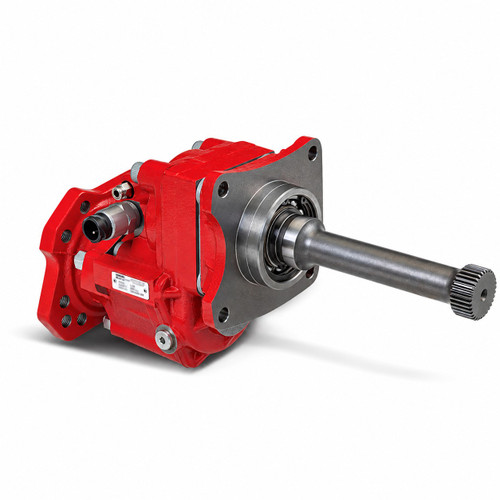

The Chelsea 524 Series Rear Mount Power Take-Off, part number 524XTDAX-A-XV or 524XTDAXAXV, mounts through the rear aperture of compatible transmissions to help eliminate clearance issues common with side-mount configurations. The 524 Series features a two-gear, compact housing design with three speed ratios, a pneumatic shift integrated directly into the housing, and two direct-mount pump output flanges. Output shaft type is DIN 5462, with a 4-bolt DIN 5462 flange option also available. The series carries an intermittent torque rating of up to 407 lb-ft and an output power range of 49 to 57 HP at 100 RPM output shaft. Input adapters are available for ZF, Mack mDrive, Volvo I-Shift, and Eaton Endurant transmissions. A genuine Chelsea part from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Chelsea 524 Series rear-mount design helps eliminate side-mount clearance issues
Pneumatic shift integrated into the PTO housing for a space-saving installation
Three speed ratios to match a range of vocational application requirements
Intermittent torque rating up to 407 lb-ft; output power 49 to 57 HP at 100 RPM
DIN 5462 output shaft with 4-bolt DIN 5462 flange option
Input adapters available for ZF, Mack mDrive, Volvo I-Shift, and Eaton Endurant transmissions
Tech Specs
- Mounting Type: Rear Mount
- Shift Type: Pneumatic
- Output Shaft Type: DIN 5462, 4-Bolt DIN 5462
- Intermittent Torque Rating: 407 lb-ft
- Output Power: 49 to 57 HP (at 100 RPM output shaft)
- Product Series: 524
- Mounting Option: ISO 7653 80mm x 80mm Mount
