Rockwell Meritor G Platform 10-Speed M-15G10AM15 Parts Manual
Introduction
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3293Q1109 | Cover, Rear | 1 | $1,353.53 | Add to Cart | |
| 2 | 2803D2968 | Output Bearing Selective Spacer (blue), Used On Serial Numbers LB-0001 1318 And Below. Note: Replace With Same Color Spacer. | NSS | — | Call for availability | |
| 2803F2970 | Output Bearing Selective Spacer (green), Used On Serial Numbers LB-0001 1318 And Below. Note: Replace With Same Color Spacer. | NSS | — | Call for availability | ||
| 2803E2969 | Output Bearing Selective Spacer (yellow), Used On Serial Numbers LB-0001 1318 And Below. Note: Replace With Same Color Spacer. | NSS | — | Call for availability | ||
| 3 | A11228J1414 | Bearing Assembly, Output | 1 | $798.13 | Add to Cart | |
| 4 | A1205V2596 | Oil Seal Assembly | 1 | $87.47 | Superseded by KIT5389Add to Cart | |
| 5 | 10X1660 | Bolt/capscrew (auxiliary Countershaft Bearing Cover) | 8 | $59.04 | Add to Cart | |
| 6 | 1229B1666 | Flat Washer (bearing Cover) | 8 | — | Call for availability | |
| 7 | 3266D1278 | Cover, Bearing Auxiliary, Countershaft Rear 9 And 10 | 2 | $182.72 | Add to Cart | |
| 8 | 10X1659 | Bolt/capscrew, 3/8"-16 UNC-2A X 1 -1/2 " | 18 | — | No longer available — call for replacement | |
| 9 | 1229B1666 | Flat Washer Copyright 2001 Arvinmeritor, Inc Page 1 . | 18 | — | Call for availability |

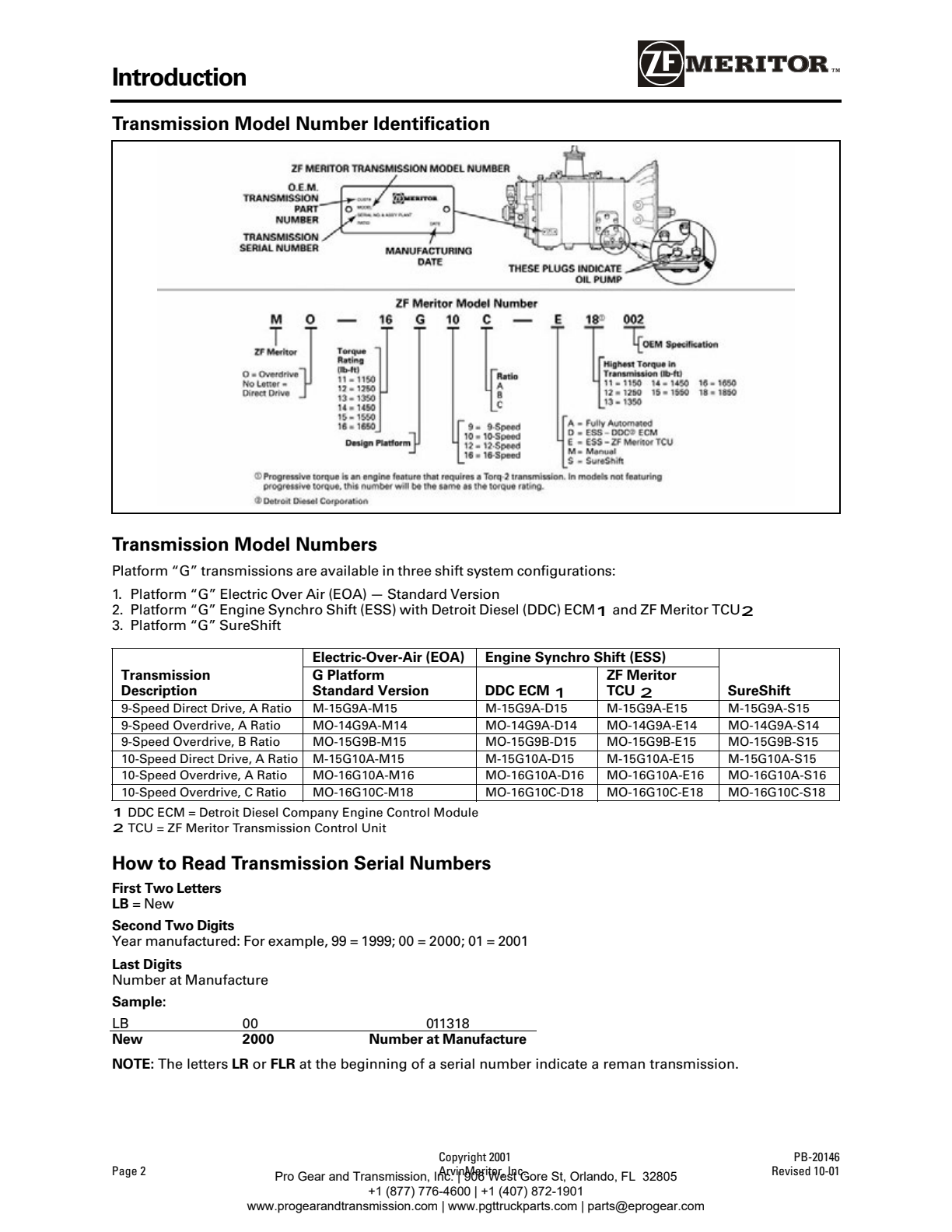

Transmission Replacements
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G10CE18002 | 35 MO-G10C-E Cover Designation To The End Of The Model Number. Top Cover Top Cover | the | — | Call for availability | ||
| MOG10CES | Has An Oil Pump, Add “p ” To The End Of The Model Number. | the transmission | — | Call for availability | ||
| MOG10CESP | Of The Model Number To Designate A Reman Transmission . | “R | — | Call for availability | ||
| MOG10CESPR | Loctite® Mastergasket™ Sealant #00203 Or Loctite #5699 Ultra Gray Flange Material Can Cause Leaks. Damage To The Transmission May Result. Description | transmissions | — | Call for availability | ||
| 2297C5905 | Loctite Master Gasket Sealant #00203, Use 2297-A-7021 | — | Call for availability | |||
| 2297A7021 | Loctite #5699 Ultra Grey Flange Sealant | 1 | — | Call for availability | ||
| 2297B6112 | Loctite Thread Locker 222 Copyright 2001 Arvinmeritor, Inc Page 3 . | 1 | — | Call for availability |

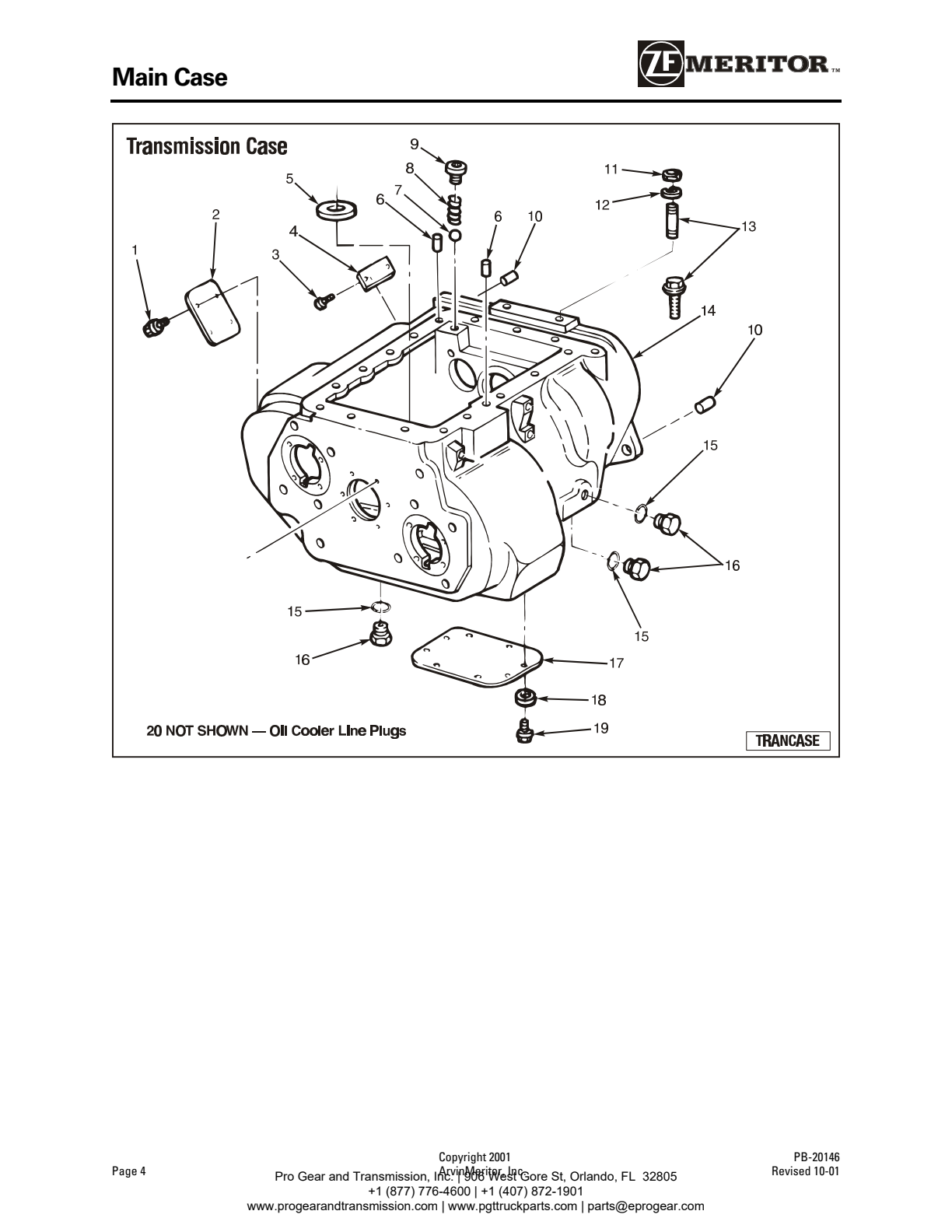

Main Case
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 10X1446 | Special Screw, 3/8"-16 UNC-2A X 1 " Flanged (pto) | 6 | $130.60 | Add to Cart | |
| 2 | 3266B1120 | Cover (6 Bolt Pto) | 1 | — | No longer available — call for replacement | |
| 3 | 17X1030 | Rivet, Pop (identification Plate) | 2 | — | Call for availability | |
| 4 | 2297B6554 | Name Plate | 1 | — | No longer available — call for replacement | |
| 5 | 2297Y5849 | Magnet (transmission Case) | 4 | $33.96 | Add to Cart | |
| 6 | 43X1193 | Dow1 El | 2 | — | No longer available — call for replacement | |
| 7 | 2297R6986 | Ball, Range Shift Detent | 1 | $330.00 | Add to Cart | |
| 8 | 2258F1332 | Spring, Range Shift Detent | 1 | $125.80 | Add to Cart | |
| 9 | 1250R1266 | Plug, Range Detent | 1 | $27.12 | Add to Cart | |
| 10 | 43X1150 | Dowel (rear Cover) | 2 | $92.52 | Add to Cart | |
| N1101 | Nut, 5/8"-18 (rear Support Bracket) | OPT | — | Call for availability | ||
| 12 | WA4101 | Lock Washer (rear Support Bracket) | OPT | — | Call for availability | |
| 13 | SN10171 | Stud, 5/8" X 2-1/8" (rear Support Bracket) | OPT | — | Call for availability | |
| SN10191 | Stud, 5/8" X 2-3/8" (rear Support Bracket) | OPT | — | Call for availability | ||
| 10X1510 | Special Screw, 1 -1/4" X 5/8"-1 1 Unc Flanged Capscrew | OPT | $72.70 | Add to Cart | ||
| 10X1511 | Special Screw, 1 -1/2" X 5/8"-1 1 Unc Flanged Capscrew | OPT | — | Call for availability | ||
| 10X1512 | Special Screw, 1 -3/4" X 5/8"-1 1 Unc Flanged Capscrew | OPT | — | Call for availability | ||
| 14 | A3294A1041 | -s* Assembly, Transmission Case Sureshift (with Internal Oil Pump), Includes Magnets, Drain Plugs And Pto Covers. | 1 | — | Call for availability | |
| A3294B1042S | Assembly, Transmission Case Ess Tcu (without Internal Oil Pump), Includes Magnets, Drain Plugs And Pto Covers. | 1 | — | Call for availability | ||
| A3294C1043S | Assembly, Transmission Case Ess Tcu (with Internal Oil Pump), Includes Magnets, Drain Plugs And Pto Covers. | 1 | — | Call for availability | ||
| A3294P1031 | -s* Assembly, Transmission Case Manual And Ess Ddc (without Internal Oil Pump), Includes Magnets, Drain Plugs And Pto Covers. | 1 | — | Call for availability | ||
| A3294P1056S | Assembly, Transmission Case Manual And Ess Ddc (with Internal Oil Pump), Includes Magnets, Drain Plugs And Pto Covers. | 1 | — | Call for availability | ||
| A3294Q1032S | Assembly, Transmission Case Manual And Ess Ddc (with Internal Oil Pump), Includes Magnets, Drain Plugs And Pto Covers. | 1 | — | Call for availability | ||
| A3294Q1057S | Assembly, Transmission Case Sureshift (with Internal Oil Pump), Includes Magnets, Drain Plugs And Pto Covers. | 1 | — | Call for availability | ||
| A3294S1059S | Assembly, Transmission Case Ess Tcu (with Internal Oil Pump), Includes Magnets, Drain Plugs And Pto Covers. | 1 | — | Call for availability | ||
| A3294Z1040S | Assembly, Transmission Case Sureshift (without Internal Oil Pump), Includes Magnets, Drain Plugs And Pto Covers. | 1 | — | Call for availability | ||
| 15 | 1205Y1039 | O-ring | 3 | $52.50 | Add to Cart | |
| 16 | A1250J1128 | Plug Assembly (drain Or Fill) With O-ring 1 -1/16"-12 UN-2A, Replaced By A-1250-T-1294 | NLA | $100.48 | Superseded by A1250T1294Add to Cart | |
| A1250P1186 | Plug Assembly, Magnetic (drain Or Fill) With O-ring 1 -1/16"-12 UN-2A, Replaced By A-1250-T-1294 | NLA | $100.48 | Superseded by A1250T1294Add to Cart | ||
| A1250T1294 | Plug Assembly, Lube Identification Tag | 3 | $100.48 | Add to Cart | ||
| 17 | 3266C1121 | Cover (8 Bolt Pto) | 1 | $78.32 | Add to Cart | |
| 18 | 1229E1513 | Flat Washer | 8 | — | Call for availability | |
| 19 | S276A2 | Cap Screw (pto), 7/16"-14 UNC-2A X 3/4" | 8 | — | Call for availability | |
| 20 | A1250H1126 | Oil Cooler Line Plugs Above. Below. Copyright 2001 Arvinmeritor, Inc. | 2 | $72.44 | Add to Cart | |
| 1 | S2828A2 | Bolt/capscrew, 1/2 " -13 UNC-2A X 3-1/2 " | 2 | — | Call for availability | |
| 2 | 1229C1511 | Flat Washer | 4 | — | Call for availability | |
| 3 | 1225X1194 | Bushing | 4 | $51.56 | Add to Cart | |
| 6 | S2812A2 | Bolt/capscrew, 1/2 " -13 UNC-2A X 1 -1/2 " Replaced By 10X-1669 , | 2 | — | Call for availability | |
| 7 | A3282Z1040 | Clutch Housing Assembly, SAE#1 (above Centerline Pull) | 1 | $1,949.97 | Add to Cart | |
| A3282E1045 | Clutch Housing Assembly, SAE#1 Iron (below Centerline Pull) , | 1 | $1,826.68 | Add to Cart | ||
| A3282V1036 | Clutch Housing Assembly, SAE#1 Aluminum (above Centerline Pull) , | 1 | $1,949.97 | Superseded by A3282Z1040Add to Cart | ||
| A3282F1046 | Clutch Housing Assembly, SAE#1 Aluminum (below Centerline Pull) , | 1 | — | Call for availability | ||
| A3282D1044 | Clutch Housing Assembly, SAE#2, Iron (above Centerline Pull) | 1 | $4,022.72 | Add to Cart | ||
| A3282P1082 | Clutch Housing Assembly, Volvo Hydraulic Only | 1 | $1,733.14 | Add to Cart | ||
| 8 | 1199H1620 | Oil Fitting Zerk , | 2 | $19.60 | Add to Cart | |
| 9 | 1229B1666 | Flat Washer | 4 | — | Call for availability | |
| 10 | S265A2 | Bolt/capscrew, 3/8"-16 UNC-2A X 5/8" | 4 | — | Call for availability | |
| 3266H1048 | Cover, Clutch Housing | 1 | $66.76 | Add to Cart | ||
| 12 | 4X1837 | Stud | 6 | $83.84 | Add to Cart | |
| 13 | 1229U1503 | Flat Washer, 5/8" | 6 | — | Call for availability | |
| 14 | N1101 | Nut, 5/8"-18 Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | 6 | — | Call for availability | |
| 4 | 1199Q901 | Elbow | 1 | — | Call for availability | |
| 5 | 1199B3226 | Oil Fitting Zerk , | 1 | $88.80 | Add to Cart | |
| 7 | A3282X1038 | Clutch Housing Assembly, SAE#1 Iron (above Centerline Pull) , | 1 | — | No longer available — call for replacement | |
| A3282G1047 | Clutch Housing Assembly, SAE#1 Iron (below Centerline Pull) , | 1 | — | No longer available — call for replacement | ||
| A3282B1042 | Clutch Housing Assembly, SAE#1 Aluminum (above Centerline Pull) , | 1 | — | Call for availability | ||
| A3282H1048 | Clutch Housing Assembly, SAE#1 Aluminum (below Centerline Pull) , | 1 | $680.18 | Add to Cart | ||
| 1 | S2610A2 | Bolt/capscrew, 3/8"-16 Unc X 1 -1/4" | 6 | — | Call for availability | |
| 2 | 1229B1666 | Flat Washer | 6 | — | Call for availability | |
| 3 | 3105K1155 | Retainer | 1 | $151.88 | Add to Cart | |
| 4 | 1205T2308 | Oil Seal (for Shipping Purposes Only. Remove Prior To Installation .) Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | NSS | $71.04 | Add to Cart | |

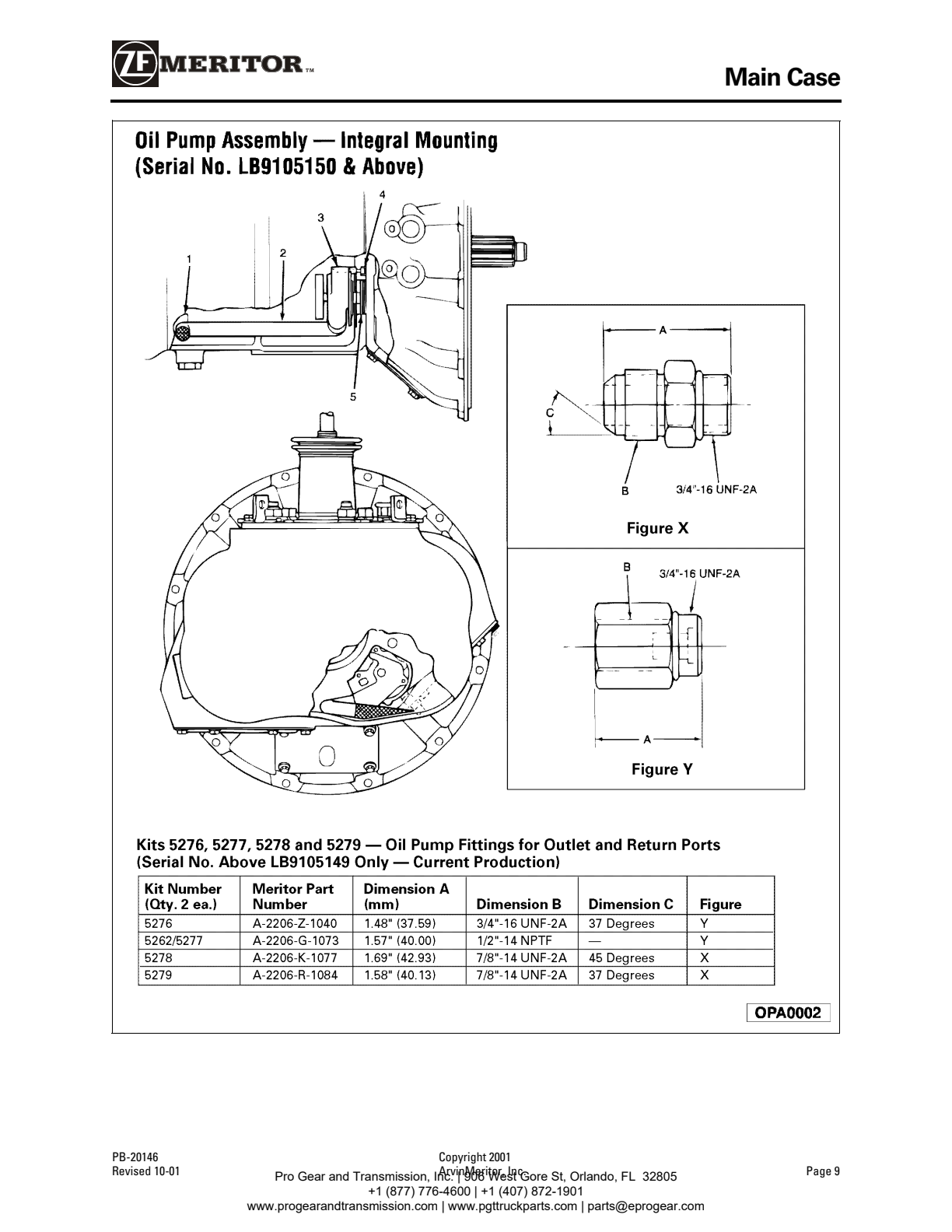

| 1 | 2255Z1118 | Bracket (for Inlet Suction Tube) | 1 | — | Call for availability | |
| S264A1 | Bolt/capscrew, Replaced By S-264-A-2 | NLA | — | Call for availability | ||
| S264A2 | Bolt/capscrew, 3/8"-16 X 1/2 " (for Bracket Not Pictured) — | 1 | — | Call for availability | ||
| 2 | A3196A1067 | Tube Assembly (pipe/suction With Screen) | 1 | $41.75 | Add to Cart | |
| 5X1157 | O-ring (tube Not Pictured) — | 1 | $40.12 | Add to Cart | ||
| 3 | A3303N1028 | Pump Assembly (includes Drive Gear) | 1 | — | Call for availability | |
| 4 | 10X1532 | Special Screw, 1/4"-20 X 1 -1/2 " Allen Head | 3 | $157.00 | Add to Cart | |
| A1250H1126 | Plug Assembly (used In Shipping Not Pictured) — | OPT | $72.44 | Add to Cart | ||
| 5 | 5X1156 | O-ring Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | 1 | $19.98 | Add to Cart |

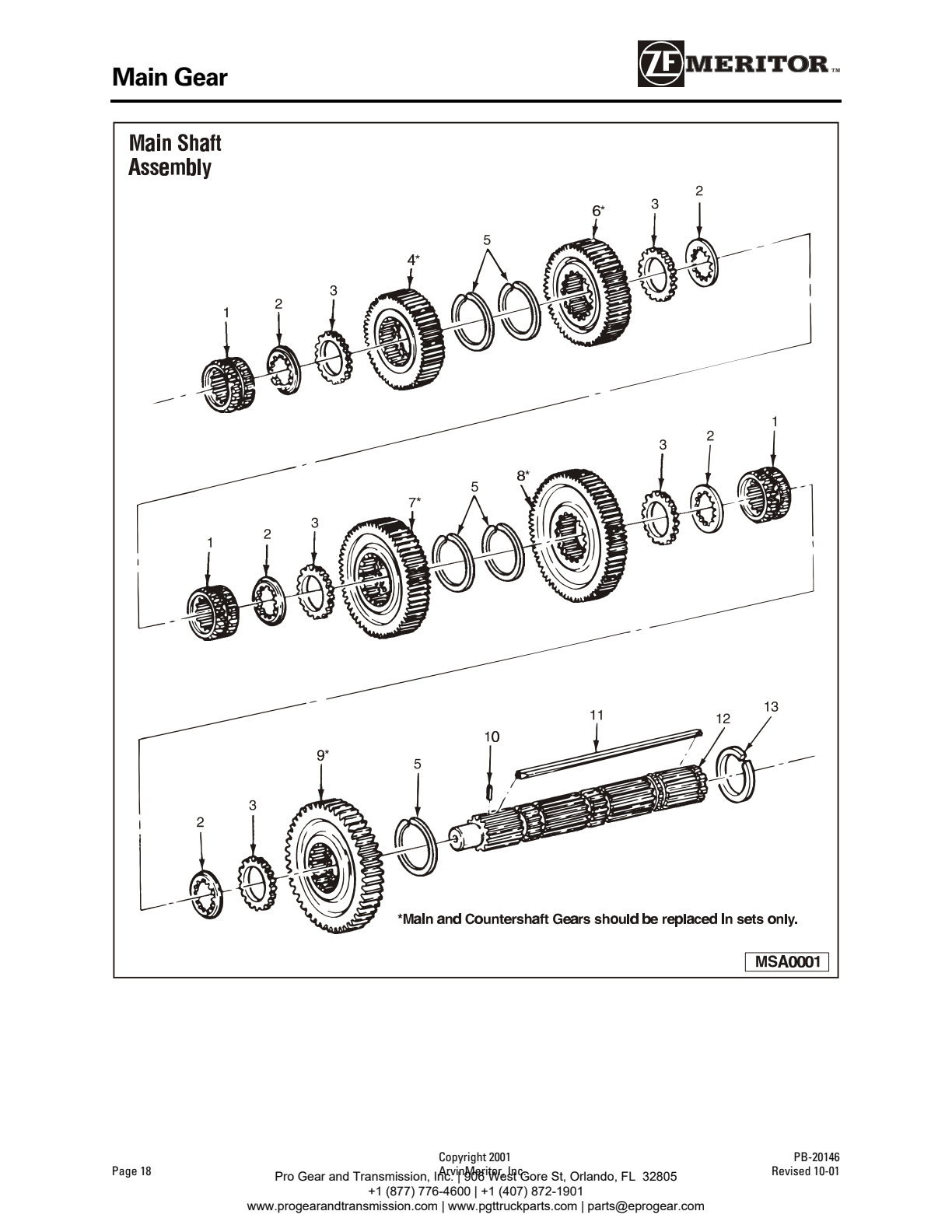

Main Gear
Click a number on the diagram to highlight that part below.

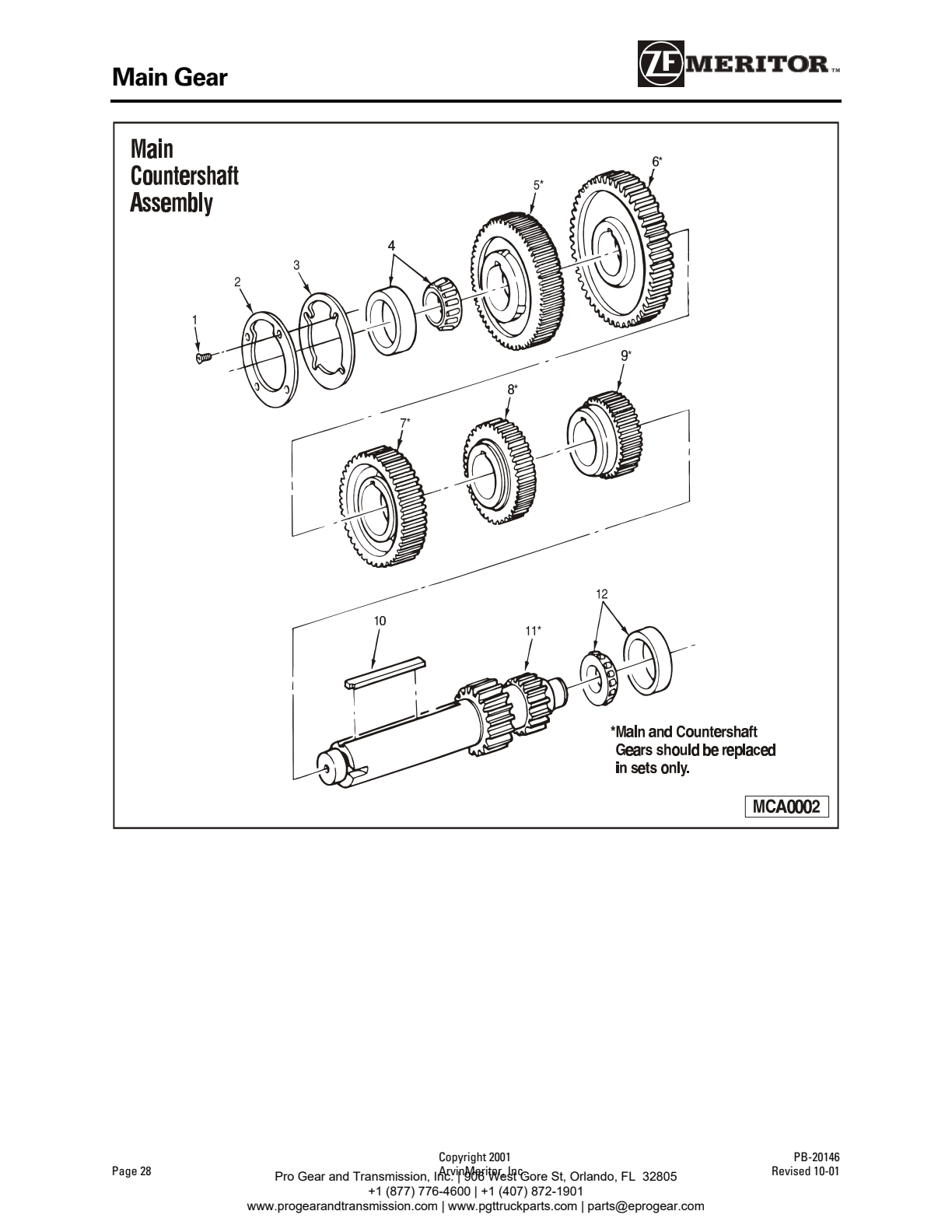

| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1229W4339 | Snap Ring | 1 | $73.20 | Add to Cart | |
| 2 | 1228G1203 | Ball Bearing | 1 | $119.25 | Add to Cart | |
| 3 | 1244J2194 | Spacer, Use With Shaft A-3297-B-1380 | 1 | $82.92 | Add to Cart | |
| 4 | 1229C4657 | Snap Ring (main Drive Gear), For Service Use 1229-X-4418 | 1 | $309.68 | Add to Cart | |
| 5 | 3892W5015 | Main Shaft Gear, Drive (50 Teeth) Direct 10A And 9A | 1 | $344.65 | Add to Cart | |
| 3892V5144 | Main Shaft Gear, Drive (54 Teeth) 9 | 1 | $560.39 | Add to Cart | ||
| 3892F5232 | Main Shaft Gear, Drive (60 Teeth) Overdrive 10A And 9A | 1 | $388.38 | Add to Cart | ||
| 3892M5473 | Main Shaft Gear, Drive (54 Teeth) 10 Overdrive C Ratio | 1 | $395.51 | Superseded by 3892F5830Add to Cart | ||
| 6 | A3297B1380 | Input Shaft Assembly, 2 " Pull Type (includes 1225-A-1 171 Bushing) | 1 | — | Call for availability | |
| 7 | 1225A1171 | Bushing (main Shaft) Copyright 2001 Arvinmeritor, Inc . | 1 | $439.60 | Add to Cart | |
| 1 | 3107G1073 | Clutch Collar | 3 | $158.43 | Add to Cart | |
| 2 | 42X1457 | Thrust Washer (6.92 Mm Yellow) - | AR | $77.82 | Add to Cart | |
| 42X1458 | Thrust Washer (7 .02 Mm White), Required In Reverse Gear - | AR | $45.86 | Add to Cart | ||
| 42X1459 | Thrust Washer (7 .1 1 Mm Red) - | AR | $92.58 | Add to Cart | ||
| 3 | 1244M2041 | Spacer (main Shaft Gears) | 5 | $99.68 | Add to Cart | |
| 4 | 3892F5232 | Main Shaft Gear, 3rd (60 Teeth) | 1 | $388.38 | Add to Cart | |
| 5 | 1229W4625 | Snap Ring (main Shaft Gears) | 5 | $46.10 | Add to Cart | |
| 6 | 3892G5025 | Main Shaft Gear, 2nd (60 Teeth) | 1 | $372.11 | Add to Cart | |
| 7 | 3892E5023 | Main Shaft Gear, 1 St (64 Teeth) | 1 | $503.23 | Add to Cart | |
| 8 | 3892C5021 | Main Shaft Gear, Low (46 Teeth), Requires 3297-K-1259 Countershaft | 1 | $428.24 | Add to Cart | |
| 9 | 3892L5030 | Main Shaft Gear, Reverse (48 Teeth), Requires 3297-K-1259 Countershaft | 1 | $455.22 | Add to Cart | |
| 10 | 43X1158 | Pin (roll) | 1 | $168.00 | Add to Cart | |
| 16X1028 | Key (main Shaft) | 1 | $46.00 | Add to Cart | ||
| 12 | 3297J1336 | Main Shaft | 1 | — | Call for availability | |
| 13 | 1229W4339 | Snap Ring (main Shaft Key) Copyright 2001 Arvinmeritor, Inc . | 1 | $73.20 | Add to Cart | |
| 4 | 3892W5015 | Main Shaft Gear, 4th (50 Teeth) | 1 | $344.65 | Add to Cart | |
| 4 | 3892B5150 | Main Shaft Gear, 4th (46 Teeth) | 1 | — | Call for availability | |
| 6 | 3892Z5148 | Main Shaft Gear, 2nd (54 Teeth) | 1 | — | No longer available — call for replacement | |
| 7 | 3892X5146 | Main Shaft Gear, 1 St (62 Teeth) | 1 | $3,477.84 | Add to Cart | |
| 4 | 3892J5028 | Main Shaft Gear | 1 | $388.38 | Superseded by 3892F5232Add to Cart | |
| 7 | 3892M5395 | Main Shaft Gear, 2nd | 1 | $325.05 | Add to Cart | |
| 8 | 3892F5414 | Main Shaft Gear, 1 St, Requires 3297-N -1366 Countershaft | 1 | — | Call for availability | |
| 4 | 3892N5474 | Main Shaft Gear, 5th (52 Teeth) | 1 | $521.90 | Add to Cart | |
| 6 | 3892Q5477 | Main Shaft Gear, 3rd (62 Teeth) | 1 | $571.59 | Add to Cart | |
| 7 | 3892R5478 | Main Shaft Gear, 2nd (64 Teeth) | 1 | $424.25 | Superseded by 3892E5829Add to Cart | |
| 1 | 10X1537 | Special Screw | 8 | $58.50 | Add to Cart | |
| 2 | 3105E1175 | Retainer, Countershaft Front Bearing | 2 | $33.74 | Add to Cart | |
| 3 | KIT5364 | Service Kit, Shim Kit, Main Countershaft Front Bearing | AR | $46.90 | Add to Cart | |
| 4 | A1228T1346 | Bearing Assembly, Cup And Cone (main Countershaft Front) | 2 | $222.07 | Add to Cart | |
| 5 | 3892Q5035 | Countershaft Gear, Drive (66 Teeth) | 2 | $509.49 | Add to Cart | |
| 6 | 3892U5013 | Countershaft Gear, Pto (45 Teeth) | 2 | — | No longer available — call for replacement | |
| 7 | 3892Y5017 | Countershaft Gear, 3rd (59 Teeth) | 2 | $360.67 | Add to Cart | |
| 8 | 3892S5011 | Countershaft Gear, 2nd (43 Teeth) | 2 | $495.63 | Add to Cart | |
| 9 | 3892A5019 | Countershaft Gear, 1 St (33 Teeth) | 2 | — | No longer available — call for replacement | |
| 10 | 16X1031 | Key (countershaft), Replaced By 16X-1040 | 2 | $59.12 | Superseded by 16X1040Add to Cart | |
| 16X1040 | Key (countershaft) | $59.12 | Add to Cart | |||
| 3297K1259 | Countershaft (16/17 Teeth) | 2 | $791.60 | Add to Cart | ||
| 12 | A1228S1345 | Bearing Assembly, Cup And Cone (main Countershaft Rear) Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | 2 | $149.17 | Add to Cart | |
| 5 | 3892K5159 | Countershaft Gear, Drive (59 Teeth) | 2 | $401.97 | Add to Cart | |
| 7 | 3892H5156 | Countershaft Gear, 4th (66 Teeth) | 2 | $468.72 | Add to Cart | |
| 5 | 3892M5135 | Countershaft Gear, Drive (62 Teeth) | 2 | $408.54 | Add to Cart | |
| 7 | 3892T5142 | Countershaft Gear, 4th (73 Teeth) | 2 | $739.98 | Add to Cart | |
| 8 | 3892R5140 | Countershaft Gear, 2nd (44 Teeth) | 2 | $356.10 | Add to Cart | |
| 9 | 3892P5138 | Countershaft Gear, 1 St (36 Teeth) | 2 | — | No longer available — call for replacement | |
| 9 | 3892N5396 | Countershaft Gear, 2nd (34 Teeth) | 2 | $274.15 | Add to Cart | |
| 3297N1366 | Countershaft (17/26 Teeth) | 2 | $1,594.18 | Add to Cart | ||
| 2 | 3105N1236 | Retainer, Countershaft Front Bearing | 2 | — | Call for availability | |
| KIT5438 | Shim Kit, Main Countershaft Front Bearing 1850 Input Torque And Above — | AR | $82.83 | Add to Cart | ||
| A1228B1484 | Bearing Assembly, Cup And Cone (main Countershaft Front) 1850 Input Torque — And Above | 2 | $181.27 | Add to Cart | ||
| 5 | 3892S5479 | Countershaft Gear, Drive (55 Teeth) 1650 Input Torque And Below | 2 | $396.26 | Add to Cart | |
| 3892J5678 | Countershaft Gear, Drive (55 Teeth) 1850 Input Torque And Above | 2 | — | No longer available — call for replacement | ||
| 7 | 3892V5482 | Countershaft Gear, 5th (73 Teeth) | 2 | $445.50 | Add to Cart | |
| 8 | 3892T5480 | Countershaft Gear, 3rd (46 Teeth) | 2 | $376.68 | Add to Cart | |
| 9 | 3892U5481 | Countershaft Gear, 2nd (34 Teeth) | 2 | $518.38 | Superseded by 3892H5832Add to Cart | |
| 10 | 16X1040 | Key (countershaft) | 2 | $59.12 | Add to Cart | |
| 3297W1453 | Countershaft (26/17 Teeth) | 2 | $1,388.31 | Add to Cart | ||
| 1 | NL1101 | Lock Nut (reverse Idler Shaft) | 2 | — | Call for availability | |
| 2 | 1229N1626 | Flat Washer | 2 | — | Call for availability | |
| 3 | 42X1258 | Thrust Washer | 4 | $15.44 | Add to Cart | |
| 4 | A1228E1175 | Bearing Assembly (includes: 1228-E-1 175, Needle Bearing And 2297-S-5765, Inner Bearing Race) | 2 | $123.21 | Add to Cart | |
| 5 | 3892N5032 | Idler Gear, Reverse (28 Teeth) | 2 | — | No longer available — call for replacement | |
| 6 | 3198D1070 | Idler Shaft (reverse) Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | 2 | $18.63 | Add to Cart |
Auxiliary Case Assembly
Click a number on the diagram to highlight that part below.

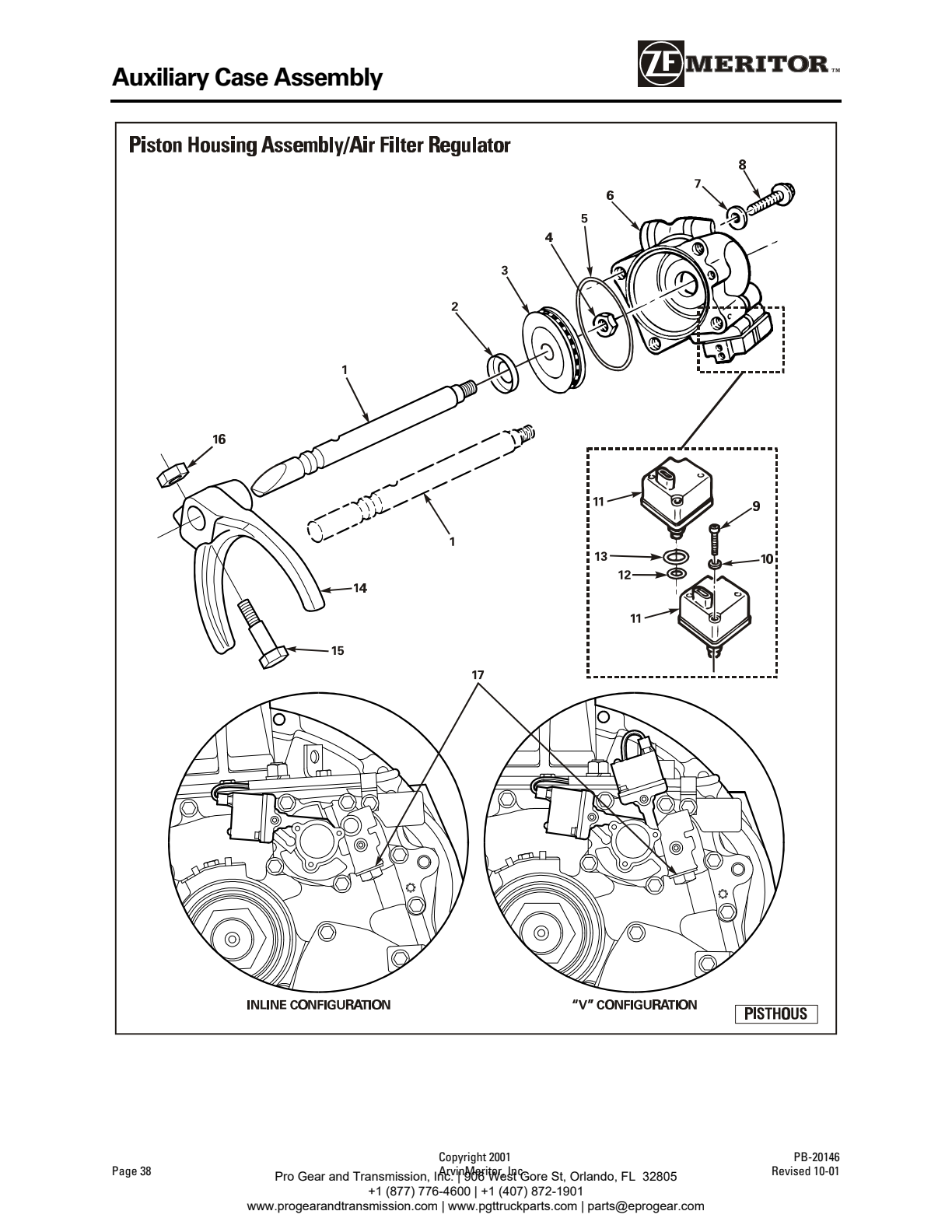

| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3293Q1109 | Cover, Rear | 1 | $1,353.53 | Add to Cart | |
| KIT5391 | Output Bearing Selective Spacer (blue), Used On Serial Numbers LB-0001 1318 And Below. Note: Replace With Same Color Spacer. | 1 | $84.10 | Add to Cart | ||
| 3 | A11228J1414 | Bearing Assembly, Output (includes Speedo Rotor) | 1 | $798.13 | Add to Cart | |
| 4 | KIT5389 | Oil Seal Assembly | 1 | $87.47 | Add to Cart | |
| 5 | 10X1660 | Bolt/capscrew (auxiliary Countershaft Bearing Cover) | 8 | $59.04 | Add to Cart | |
| 6 | 1229B1666 | Flat Washer (bearing Cover) | 8 | — | Call for availability | |
| 7 | 3266D1278 | Cover, Bearing Auxiliary, Countershaft Rear 9 And 10 | 2 | $182.72 | Add to Cart | |
| 8 | 10X1659 | Bolt/capscrew, 3/8"-16 UNC-2A X 1 -1/2 " | 18 | — | No longer available — call for replacement | |
| 9 | 1229B1666 | Flat Washer Rear Covers. Copyright 2001 Arvinmeritor, Inc Page 33 . | 18 | — | Call for availability | |
| 1 | A1228H1204 | Bearing Assembly (ball) | 1 | $230.97 | Add to Cart | |
| 2 | 3105Y1195 | Retainer, Rear Main Bearing | 2 | — | No longer available — call for replacement | |
| 3 | 5X1069 | O-ring | 2 | $64.88 | Add to Cart | |
| 4 | 2245W1219 | Sleeve | 1 | — | Call for availability | |
| 5 | 3892G5519 | Auxiliary Gear, Drive (38 Teeth) All Except 10-Speed Overdrive “c” Ratio | 1 | $561.00 | Superseded by KIT5448Add to Cart | |
| 3892F5518 | Auxiliary Gear, Drive (42 Teeth) 10-Speed Overdrive “c” Ratio Only | 1 | $453.52 | Superseded by KIT5447Add to Cart | ||
| 6 | 1229W4339 | Snap Ring | 1 | $73.20 | Add to Cart | |
| 7 | S2682 | Bolt/capscrew, 3/8"-16 UNC-2 Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | 10 | — | Call for availability | |
| 1 | A1228S1345 | Bearing Set | 2 | $149.17 | Add to Cart | |
| 2 | 3297K1415 | Auxiliary Countershaft, 9 Direct And 9 Overdrive “a” Ratio | 2 | $337.89 | Add to Cart | |
| 3297J1414 | Auxiliary Countershaft, 9 Overdrive “b ” Ratio And Direct | 2 | $410.16 | Add to Cart | ||
| 3297T1398 | Auxiliary Countershaft, 10 Direct And 10 Overdrive “a” Ratio And Direct | 2 | $2,765.12 | Add to Cart | ||
| 3297S1397 | Auxiliary Countershaft, 10 Overdrive “c ” Ratio | 2 | $1,957.99 | Add to Cart | ||
| 3 | A1228S1345 | Bearing Set | 2 | $149.17 | Add to Cart | |
| 4 | KIT5404 | Kit Spacer Washer, Auxiliary Countershaft Selective — Copyright 2001 Arvinmeritor, Inc . | AR | $592.04 | Add to Cart | |
| 1 | 2258Z1144 | Spring | 3 | $185.00 | Add to Cart | |
| 2 | A3203Z1014 | Synchro Assembly (high), Not Sold Separately | 1 | $1,200.39 | Superseded by KIT5289Add to Cart | |
| 3 | 3107S1111 | Collar, Not Sold Separately | 1 | $1,200.39 | Superseded by KIT5289Add to Cart | |
| 4 | A3203R1006 | Synchro Assembly (low), Not Sold Separately Copyright 2001 Arvinmeritor, Inc . | 1 | $1,200.39 | Superseded by KIT5289Add to Cart | |
| 1 | 3297N1418 | Output Shaft | 1 | $470.27 | Add to Cart | |
| 2 | 1244W2103 | Spacer (output Shaft) | 1 | $38.46 | Add to Cart | |
| 3 | 1244X2104 | Spacer (output Bearing) | 1 | $66.16 | Add to Cart | |
| 4 | 3892E5517 | Auxiliary Low Gear (58T), 10 Speed A And C Ratio | 1 | $925.19 | Add to Cart | |
| 3892H5598 | Auxiliary Low Gear (66T), 9 Speed B Ratio | 1 | $723.99 | Add to Cart | ||
| 3892J5600 | Auxiliary Low Gear (60T), 9 Speed A Ratio | 1 | — | No longer available — call for replacement | ||
| 5 | 1227T1554 | Nut, Flanged (yoke) Copyright 2001 Arvinmeritor, Inc Page 37 . | 1 | $66.54 | Add to Cart | |
| 1 | 2244W1167 | Range Shaft (service With 2244-R-1 188) | 1 | $753.71 | Add to Cart | |
| 2244R1188 | Range Shaft | 1 | — | Call for availability | ||
| 2 | 1205G2607 | Seal Oil Shaft (auxiliary Housing) , , | 1 | — | Call for availability | |
| 3 | 2230J1310 | Piston Assembly | 1 | — | Call for availability | |
| 4 | 1227S1570 | Nut | 1 | — | Call for availability | |
| 5 | 5X1217 | O-ring (range Piston Housing Cover Seal) | 1 | $21.38 | Add to Cart | |
| A13280H9602 | Piston Housing With Air Filter Regulator ( “v” Configuration), Nla | NLA | — | Call for availability | ||
| A13280R9716 | Piston Housing With Air Filter Regulator (inline Configuration) | — | Call for availability | |||
| 7 | 1229B1666 | Flat Washer | 4 | — | Call for availability | |
| 8 | 10X1670 | Bolt/capscrew | 4 | $2.88 | Add to Cart | |
| 9 | 10X1623 | Screw, Solenoid/piston Housing Cover | 4 | $12.28 | Add to Cart | |
| 10 | WA43Z | Flat Washer | 4 | — | No longer available — call for replacement | |
| A3280F9392 | Solenoid Assembly (includes 5X-1207 And 5X-1092 O-rings) | 2 | $289.73 | Add to Cart | ||
| 12 | 5X1207 | O-ring Solenoid , | 4 | $8.62 | Add to Cart | |
| 13 | 5X1092 | O-ring Solenoid , | 2 | $82.20 | Add to Cart | |
| 14 | 3296Q1161 | Range Shift Fork | 1 | $379.14 | Add to Cart | |
| 15 | 10X1534 | Bolt | 1 | $880.32 | Add to Cart | |
| 16 | NL251 | Lock Nut | 1 | — | Call for availability | |
| 17 | A3280G9610S | Air Filter Regulator | 1 | — | Call for availability | |
| KIT5403 | Copyright 2001 Arvinmeritor, Inc . | with | $769.51 | Add to Cart |

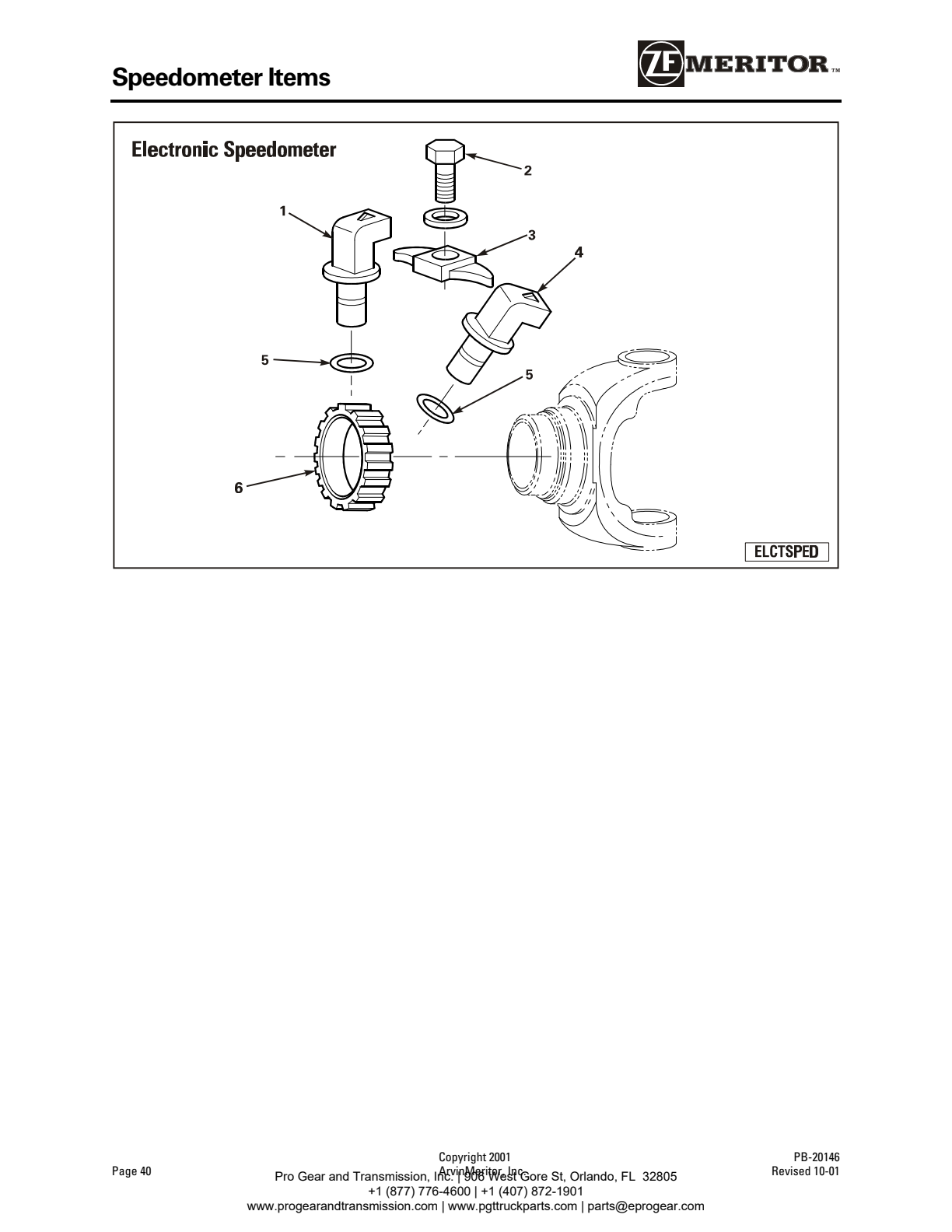

Speedometer Items
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A3280G9575 | Two Lead Speedometer Sensor | 1 | $187.54 | Add to Cart | |
| 2 | S2641 | Speedometer Sensor Bracket Bolt | 1 | — | Call for availability | |
| 3 | 2255T1268 | Speedometer Sensor Tie Down Bracket | 1 | $10.67 | Add to Cart | |
| 4 | A3280H9576 | Four Lead Speedometer Sensor | 1 | $363.91 | Add to Cart | |
| 5 | 5X1134 | O-ring | 1 | $52.50 | Add to Cart | |
| 6 | 2297X7278 | Speedometer Rotor, Included In A1 -1228-J -1414 Copyright 2001 Arvinmeritor, Inc . | NSS | — | Call for availability |

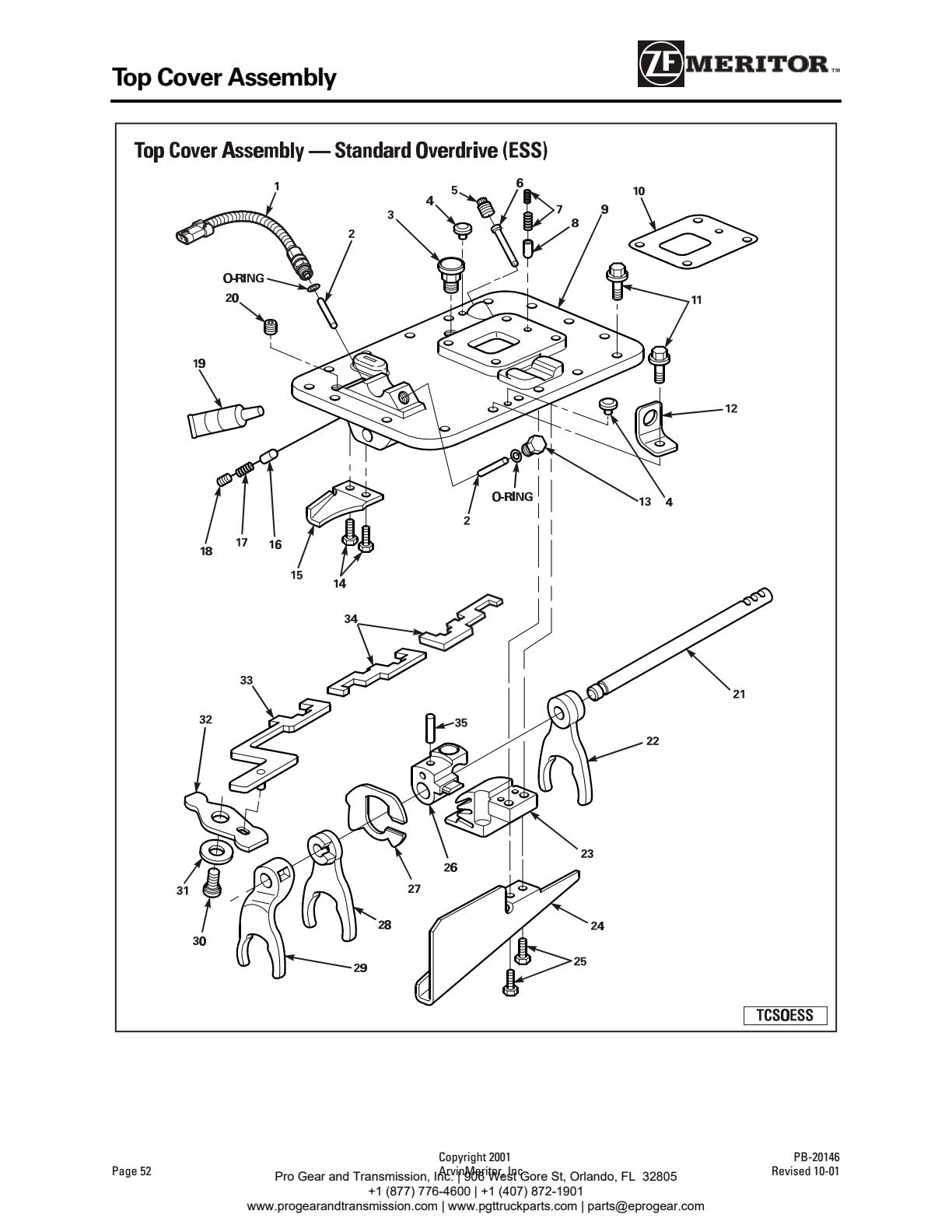

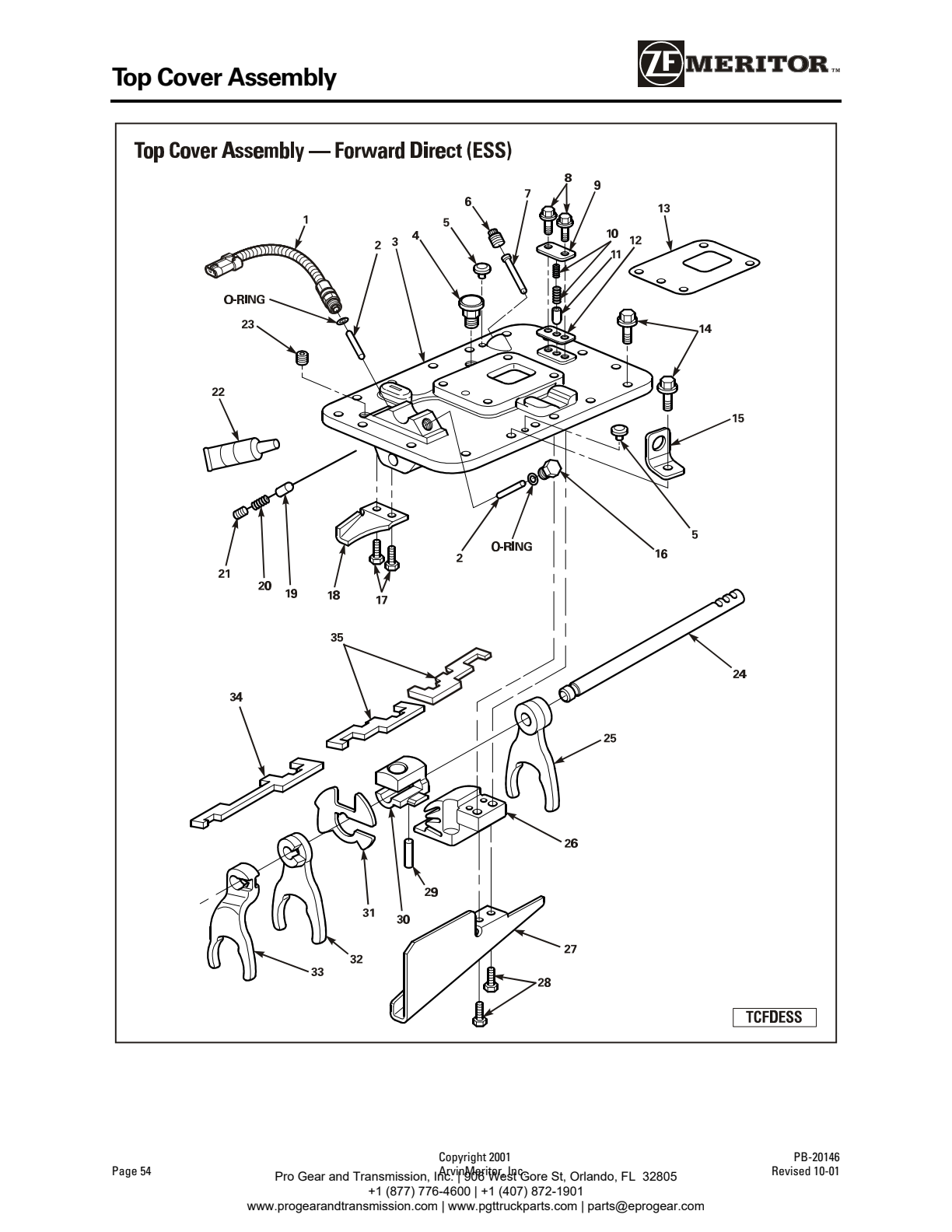

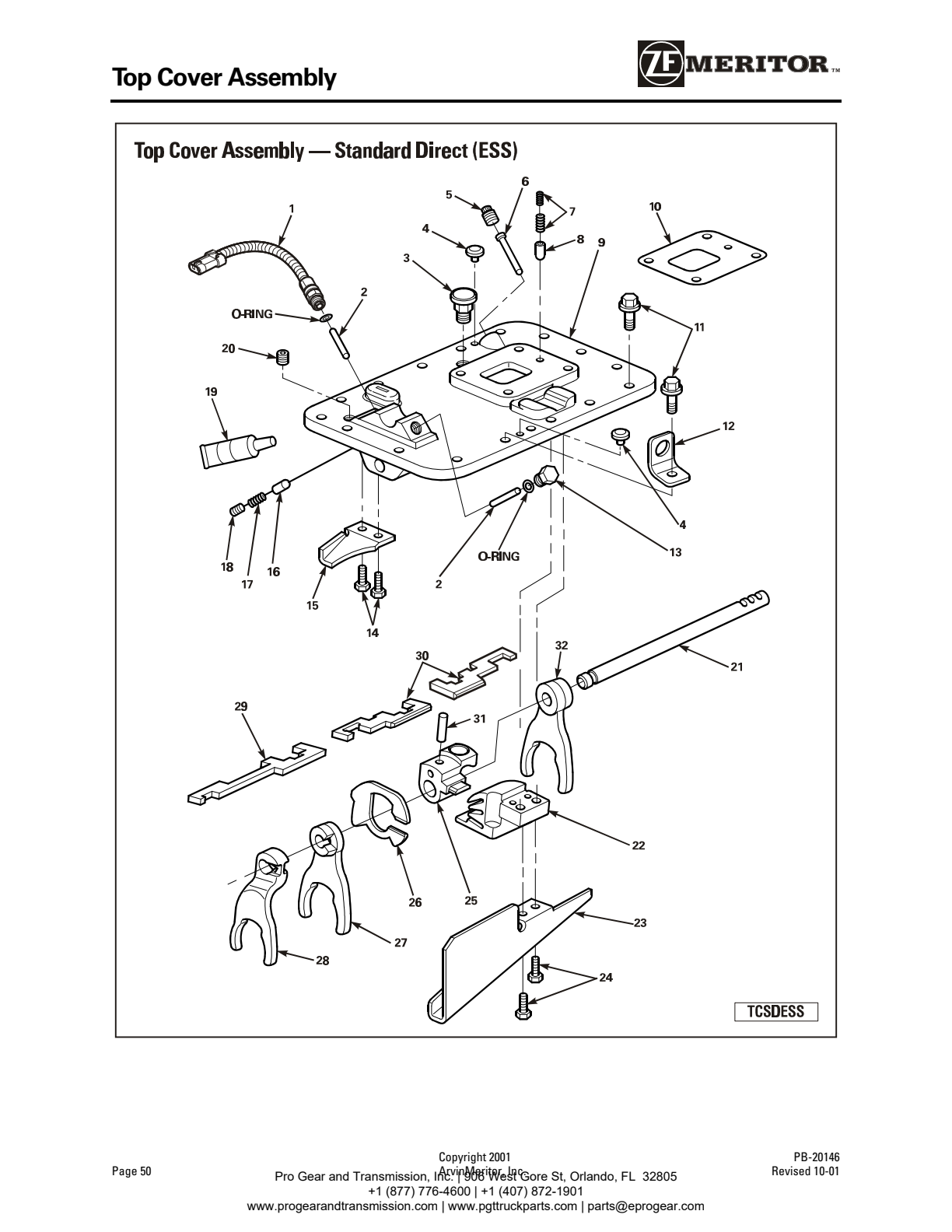

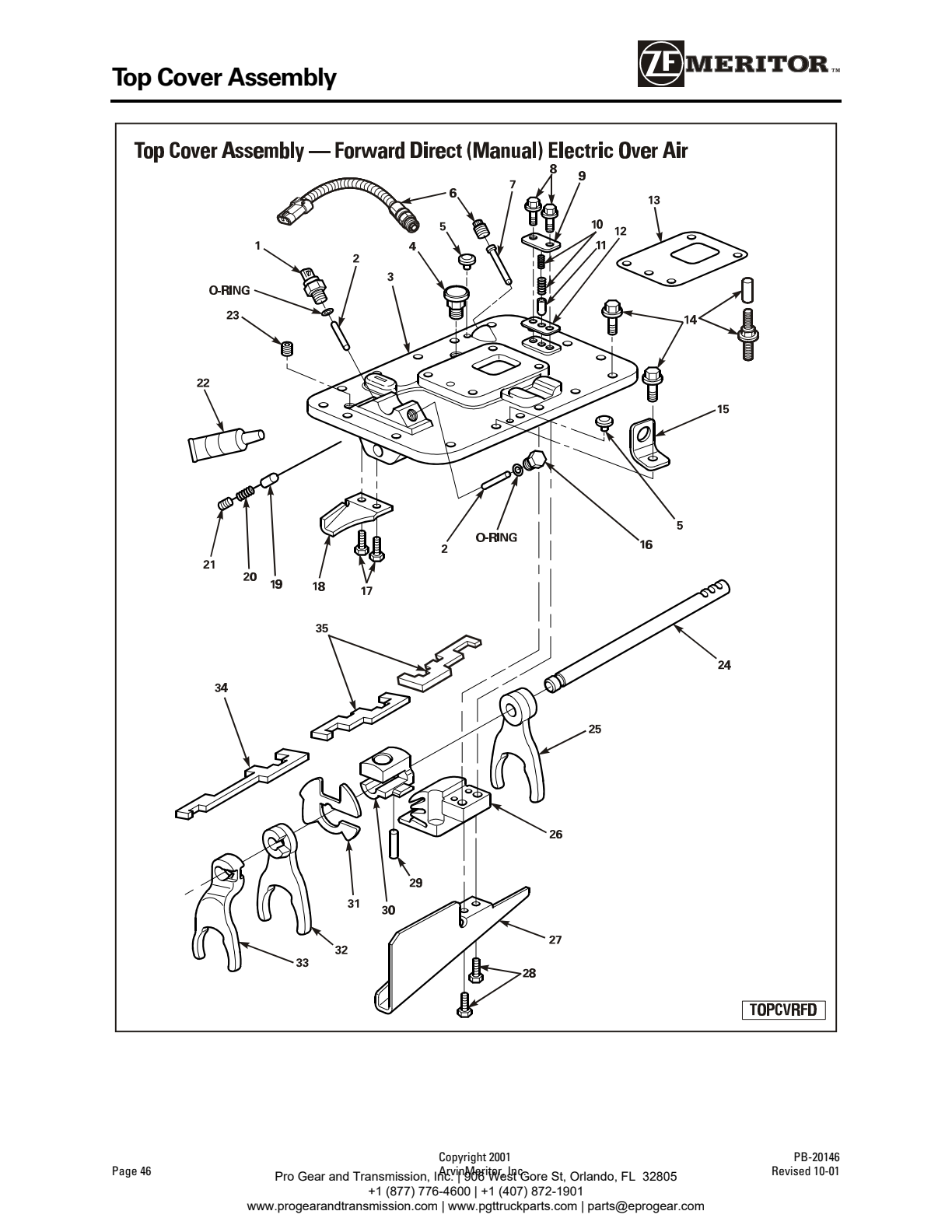

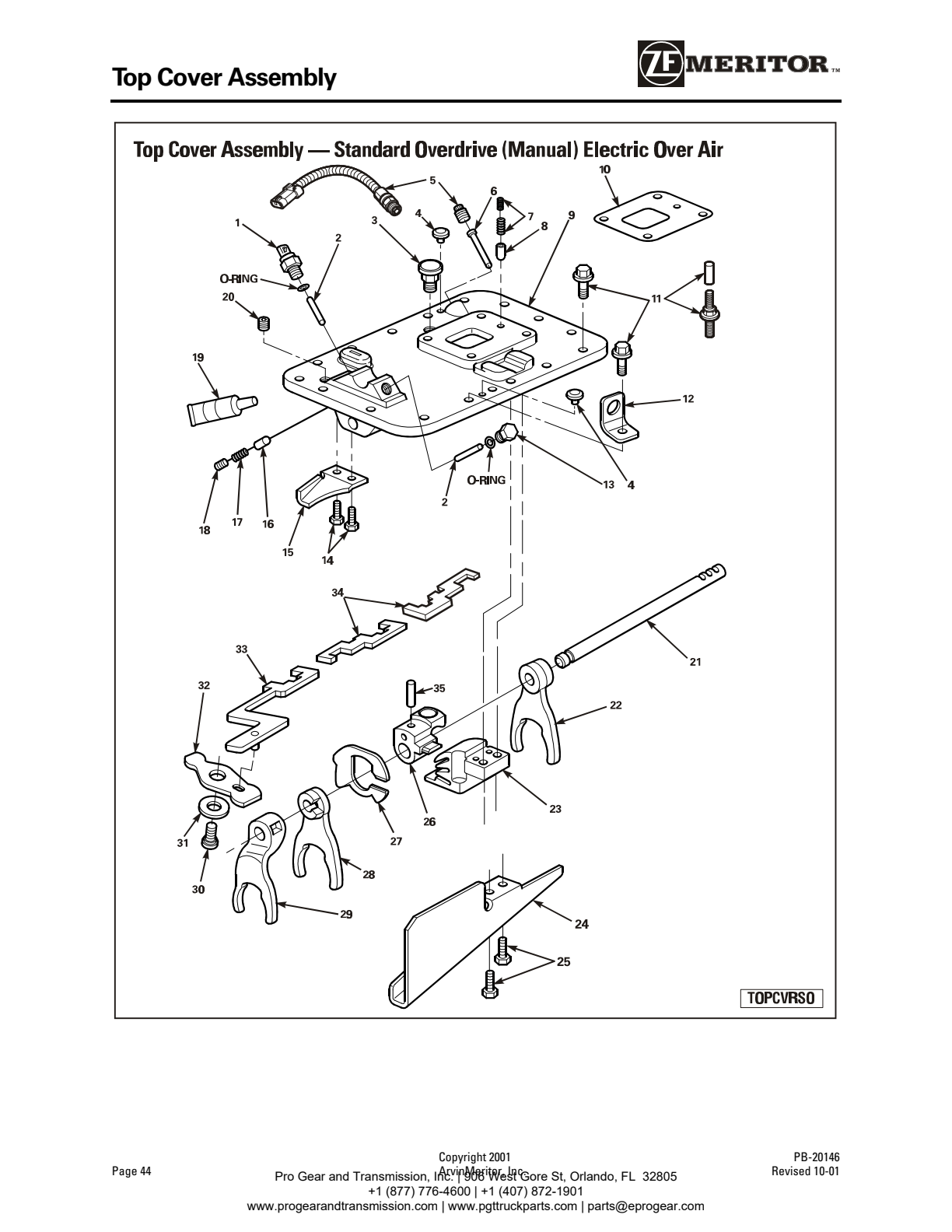

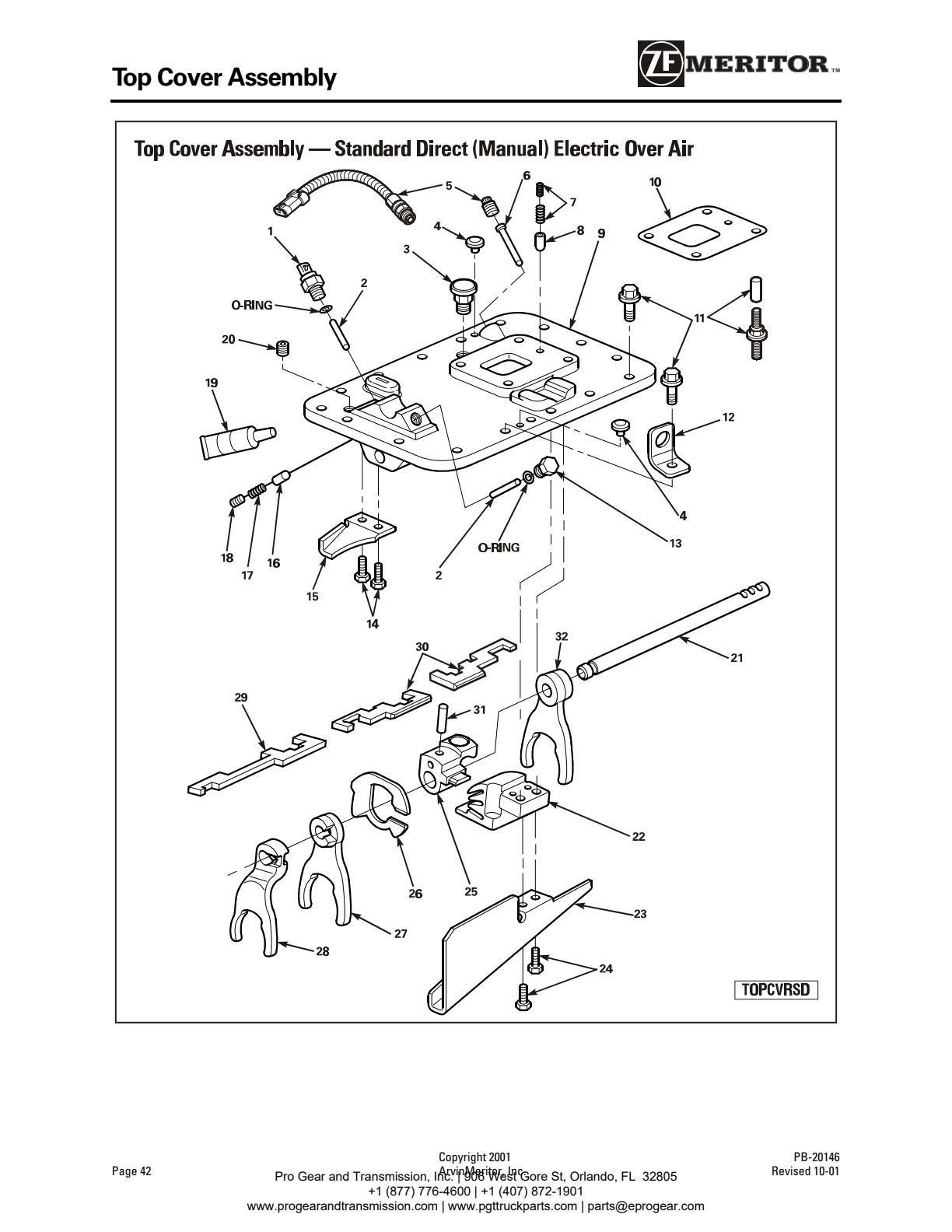

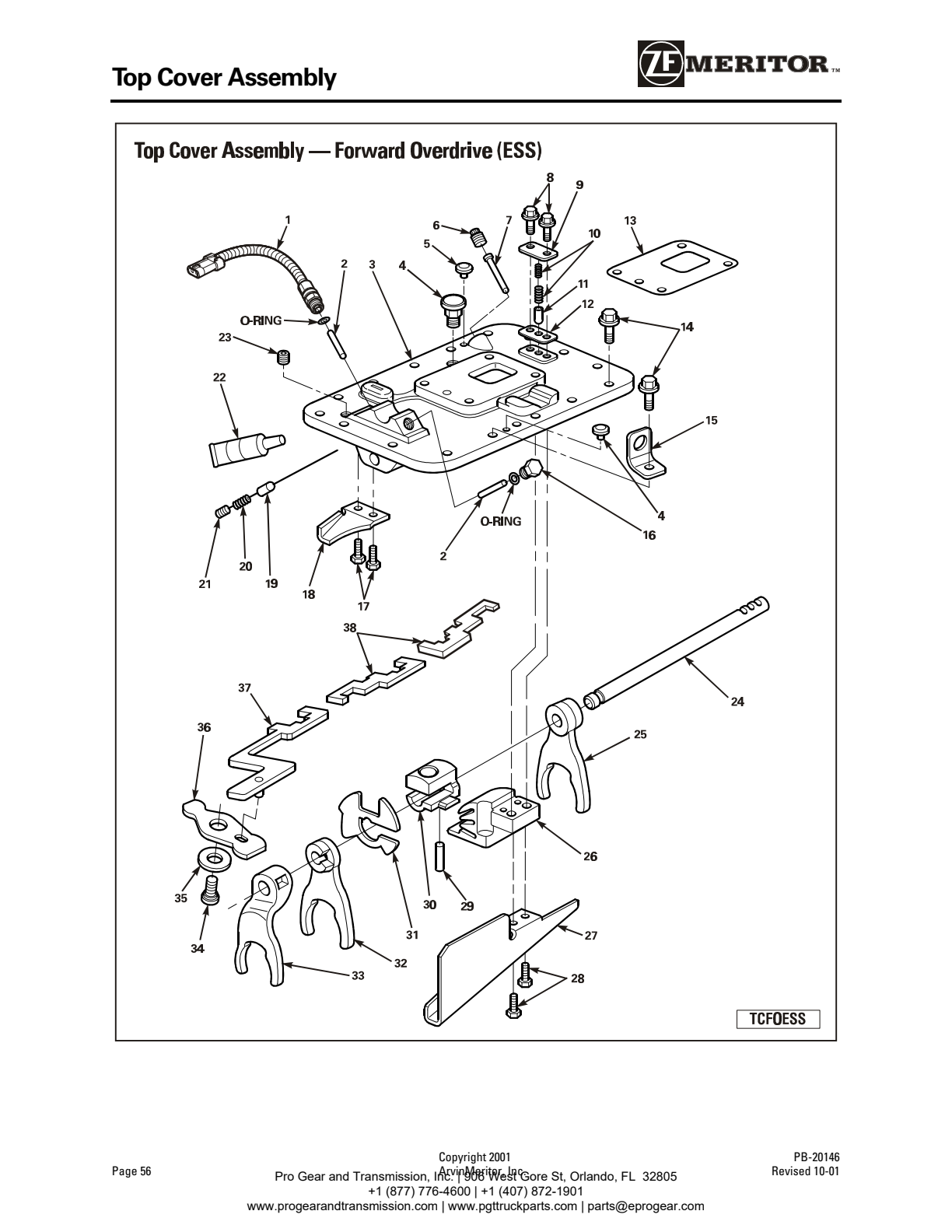

Top Cover Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A3280W9409 | Switch Assembly, Neutral | 1 | $126.82 | Add to Cart | |
| 2 | 43X1210 | Pin, Neutral Actuator | 2 | — | Call for availability | |
| 3 | A1199P1394 | Breather Assembly | 1 | — | Call for availability | |
| 4 | 1250Q1265 | Plug, Jack Screw | 2 | — | Call for availability | |
| 5 | 1250D1252 | Plug | 1 | $45.08 | Add to Cart | |
| A2297Q8285 | Reverse Switch (optional), Volvo Only | 1 | $62.10 | Add to Cart | ||
| 6 | 43X1208 | Pin, Reverse Actuator | 1 | — | Call for availability | |
| 7 | 2258P1368 | Spring, Rail Detent (pink), Replaced By 2258-V-1452 | NLA | — | Call for availability | |
| 2258T1424 | Spring, Rail Detent (argosy Only), Replaced By 2258-B-1458 | NLA | — | Call for availability | ||
| 2258V1452 | Spring, Rail Detent (standard) Black | 1 | — | Call for availability | ||
| 2258W1453 | Spring, Rail Detent (optional Heavy Volvo And International) — (use With 2258-V-1452) Blue | 1 | — | Call for availability | ||
| 2258B1458 | Spring, Rail Detent (optional Light Argosy) Purple — | 1 | — | Call for availability | ||
| 8 | 43X1207 | Pin, Rail Detent, Replaced By 42X-1247 | NLA | — | Call for availability | |
| 42X1247 | Pin, Rail Detent | 1 | — | Call for availability | ||
| 9 | A13293Y1 | 1 17-S Top Cover Assembly, Replaced By A2-3293-T-1 138-S | NLA | — | Call for availability | |
| A23293T1 | 138-S Top Cover Assembly | 1 | — | Call for availability | ||
| 10 | 2208H1152 | Gasket, Shift Tower | 1 | — | Call for availability | |
| 10X1657 | Bolt, Top Cover | 16 | $273.80 | Add to Cart | ||
| A2297V8290 | Stud And Protective Cap (optional) | 16 | — | Call for availability | ||
| 12 | 2297P5840 | Lifting Hook | 2 | $62.60 | Add to Cart | |
| 13 | A1250H1126 | Plug Assembly, Neutral | 1 | $72.44 | Add to Cart | |
| 14 | S244A1 | Screw, Hex Socket Head Cap | 2 | — | No longer available — call for replacement | |
| 15 | 2205W101 | 1 Scoop, Oil | 1 | — | Call for availability | |
| 16 | 43X1203 | Pin, Reverse Detent | 1 | — | Call for availability | |
| 17 | 2258Q1369 | Spring, Reverse Detent (grey) | 1 | — | Call for availability | |
| 18 | 26X1032 | Screw, Reverse Detent Set | 1 | — | Call for availability | |
| 19 | 2297U6417 | Loctite Sealant Plug, Lube Return | A/R | — | Call for availability | |
| 21 | 2244F1176 | Rail, Shift | 1 | — | Call for availability | |
| A3280N9608 | Shift Housing Assembly | NLA | — | Call for availability | ||
| A3280G9809 | Shift Housing Assembly | 1 | — | Call for availability | ||
| 23 | 3221C1017 | Scoop, Oil | 1 | — | Call for availability | |
| 24 | 10X1667 | Screw, Hex Socket Head Cap | 2 | — | Call for availability | |
| 2245A1223 | Shift Sleeve | NLA | — | Call for availability | ||
| 2245M1235 | Shift Sleeve | 1 | — | Call for availability | ||
| 3280L9606 | Plate, Interlock | NLA | — | Call for availability | ||
| 3280C9805 | Plate, Interlock | 1 | — | Call for availability | ||
| 3296K1259 | Fork, Mid Shift | NLA | — | Call for availability | ||
| 3296S1319 | Fork, Mid Shift | 1 | — | Call for availability | ||
| 28 | 3296M1261 | Fork, High Shift | 1 | — | Call for availability | |
| 2244C1173 | Bar, High Connecting | NLA | — | Call for availability | ||
| 2244H1204 | Bar, High Connecting | 1 | — | Call for availability | ||
| 2244B1172 | Bar, Low/mid Connecting | NLA | — | Call for availability | ||
| 2244F1202 | Bar, Low Connecting | 1 | — | Call for availability | ||
| 2244G1203 | Bar, Mid Connecting | 1 | — | Call for availability | ||
| 31 | 43X1214 | Pin | 1 | — | Call for availability | |
| 32 | 3296J1258 | Fork, Low Shift Assembly A2-3293-T-1138-S New Components Will Not Interchange On The Old Top Covers. . Copyright 2001 Arvinmeritor, Inc. | 1 | — | Call for availability | |
| A2297A8285 | Reverse Switch (optional), Volvo Only | 1 | — | Call for availability | ||
| 9 | A13293X1 | 1 16-S Top Cover Assembly, Replaced By A3-3293-T-1 138S | NLA | — | Call for availability | |
| A33293T1 | 138S Top Cover Assembly | 1 | — | Call for availability | ||
| 21 | 2244E1176 | Rail Shift , | 1 | — | Call for availability | |
| 22 | 3296J1258 | Fork, Low Shift | 1 | — | Call for availability | |
| 24 | 3221C1017 | Scoop, Oil | 1 | — | Call for availability | |
| 25 | 10X1667 | Screw, Hex Socket Head Cap | 2 | — | Call for availability | |
| 26 | 2245A1223 | Shift Sleeve, Replaced By 2245-M -1235 | NLA | — | Call for availability | |
| 29 | 3296N1262 | Fork, High Shift | 1 | — | Call for availability | |
| 30 | 2244U1165 | Screw, Socket Head Shoulder | 1 | — | Call for availability | |
| 31 | 1229T4752 | Spacer, Rocking Lever | 1 | — | Call for availability | |
| 2247K1493 | Lever, Rocking | NLA | — | Call for availability | ||
| 2247Z1534 | Lever, Rocking | 1 | — | Call for availability | ||
| A2244D1174 | Bar, High Connecting (includes Pin 43X1 197 Not Sold Separately) — | NLA | — | Call for availability | ||
| A2244J1206 | Bar, High Connecting (includes Pin 43X1 197 Not Sold Separately) — | 1 | — | Call for availability | ||
| 35 | 43X1214 | Pin Assembly A3-3293-T-1138-S New Components Will Not Interchange On The Old Top Covers. . Copyright 2001 Arvinmeritor, Inc . | 1 | — | Call for availability | |
| 3 | A13293V1 | 1 14-S Top Cover Assembly, Replaced By A2-3293-R-1 136-S | NLA | — | Call for availability | |
| A23293R1 | 136-S Top Cover Assembly | 1 | — | Call for availability | ||
| 4 | A1199P1394 | Breather Assembly | 1 | — | Call for availability | |
| 5 | 1250Q1265 | Plug Jack Screw , | 2 | — | Call for availability | |
| 6 | 1250D1252 | Plug | 1 | $45.08 | Add to Cart | |
| 7 | 43X1208 | Pin, Reverse Actuator | 1 | — | Call for availability | |
| 8 | 10X1446 | Bolt, Rail Detent Strap | 2 | $130.60 | Add to Cart | |
| 9 | 2205H1126 | Strap | 1 | — | Call for availability | |
| 10 | 2258P1368 | Spring Rail Detent (pink), Replaced By 2258-V-1452 , | NLA | — | Call for availability | |
| 43X1207 | Pin, Rail Detent, Replaced By 42X-1247 | NLA | — | Call for availability | ||
| 12 | 2208G1151 | Gasket, Rail Detent | 1 | — | Call for availability | |
| 13 | 2208H1152 | Gasket, Shift Tower | 1 | — | Call for availability | |
| 14 | 10X1657 | Bolt, Top Cover | 16 | $273.80 | Add to Cart | |
| 15 | 2297P5840 | Lifting Hook | 2 | $62.60 | Add to Cart | |
| 16 | A1250H1126 | Plug Assembly, Neutral | 1 | $72.44 | Add to Cart | |
| 17 | S244A1 | Screw, Hex Socket Head Cap | 2 | — | No longer available — call for replacement | |
| 18 | 2205W101 | 1 Scoop, Oil | 1 | — | Call for availability | |
| 19 | 43X1203 | Pin, Reverse Detent | 1 | — | Call for availability | |
| 20 | 2258Q1369 | Spring Reverse Detent (grey) , | 1 | — | Call for availability | |
| 21 | 26X1032 | Screw, Reverse Detent Set | 1 | — | Call for availability | |
| 22 | 2297U6417 | Loctite Sealant Plug Lube Return , | A/R | — | Call for availability | |
| 24 | 2244E1175 | Rail Shift , | 1 | — | Call for availability | |
| 25 | 3296J1258 | Fork, Low Shift | 1 | — | Call for availability | |
| 27 | 3221C1017 | Scoop, Oil | 1 | — | Call for availability | |
| 28 | 10X1667 | Screw, Hex Socket Head Cap | 2 | — | Call for availability | |
| 29 | 43X1214 | Pin | 1 | — | Call for availability | |
| 2245Y1221 | Shift Sleeve | NLA | — | Call for availability | ||
| 2245N1236 | Shift Sleeve | 1 | — | Call for availability | ||
| 3280K9605 | Plate, Interlock | NLA | — | Call for availability | ||
| 3280D9806 | Plate, Interlock | 1 | — | Call for availability | ||
| 33 | 3296M1261 | Fork, High Shift | 1 | — | Call for availability | |
| 3 | A13293U1113S | Top Cover Assembly, Replaced By A3-3293-R-1 136S | NLA | — | Call for availability | |
| A33293R1136S | Top Cover Assembly | 1 | — | Call for availability | ||
| 11 | 43X1207 | Pin, Rail Detent, Replaced By 42X-1247 | NLA | — | Call for availability | |
| 18 | 2205W1011 | Scoop, Oil | 1 | — | Call for availability | |
| 24 | 2244F1176 | Rail, Shift | 1 | — | Call for availability | |
| 3280K9806 | Plate, Interlock | 1 | — | Call for availability | ||
| 33 | 3296N1262 | Fork, High Shift | 1 | — | Call for availability | |
| 34 | 2244U1165 | Screw, Socket Head Shoulder | 1 | — | Call for availability | |
| 35 | 1229T4752 | Spacer, Rocking Lever | 1 | — | Call for availability | |
| 1 | A3280J9396 | Switch Assembly, Ess Neutral -in Gear | 1 | — | No longer available — call for replacement | |
| 9 | A3293Y11 | 17-S Top Cover Assembly, Replaced By A2-3293-T-1 138S | NLA | — | Call for availability | |
| A3293T1138S | Top Cover Assembly | 1 | — | Call for availability | ||
| 21 | 2244E1175 | Rail Shift , | 1 | — | Call for availability | |
| 32 | 243296J1258 | Fork, Low Shift Assembly A2-3293-T-1138-S New Components Will Not Interchange On The Old Top Covers. . Copyright 2001 Arvinmeritor, Inc . | 1 | — | Call for availability | |
| 9 | A3293X11 | 16-S Top Cover Assembly, Replaced By A1 -3293-T-1 138S | NLA | — | Call for availability | |
| A13293T1 | 138-S Top Cover Assembly | 1 | — | Call for availability | ||
| 3 | A3293V11 | 14-S Top Cover Assembly, Replaced By A-3293-R-1 136S | NLA | — | Call for availability | |
| A3293R1136S | Top Cover Assembly | 1 | — | Call for availability | ||
| 3 | A3293U11 | 13-S Top Cover Assembly, Replaced By A1 -3293-R-1 136S | NLA | — | Call for availability | |
| A13293R1 | 136-S Top Cover Assembly | 1 | — | Call for availability | ||
| 1 | A2297V8290 | Stud And Protective Cap (volvo Only), Also Use 5 Of Part Number 10X-1657 | 1 1 | — | Call for availability | |
| 2 | 10X1657 | Screw, Flange Head | 16 | $273.80 | Add to Cart | |
| 4 | 43X1190 | Pin, Actuator | 2 | $75.04 | Add to Cart | |
| 5 | 5X1091 | O-ring | 2 | — | No longer available — call for replacement | |
| 6 | A1250H1126 | Plug Assembly (includes 5X-1091 O-ring) | 2 | $72.44 | Add to Cart | |
| 7 | 1250Q1625 | Plug (for Jack Screw Holes) | 2 | — | Call for availability | |
| 8 | A2297R7298 | Range Position Sensor | 1 | — | Call for availability | |
| 9 | 2258D1278 | Spring Detent , | 3 | $100.00 | Add to Cart | |
| 2258E1409 | Spring Rail Detent (argosy Only) , | 1 | — | No longer available — call for replacement | ||
| 10 | 2297R6986 | Ball Detent , | 3 | $330.00 | Add to Cart | |
| A3293Z1092 | Assembly, Top Cover (standard) | 1 | — | Call for availability | ||
| 12 | 3221U1009 | Oil Scoop | 1 | — | Call for availability | |
| 13 | S244A1 | Bolt/capscrew, 1/4"-20 UNC-2A X 1/2 " | 4 | — | No longer available — call for replacement | |
| 14 | 2205W101 | 1 Oil Scoop Copyright 2001 Arvinmeritor, Inc . | 1 | — | Call for availability | |
| 1 | 2244J1128 | Shift Shaft (low/reverse) | 1 | $25.16 | Add to Cart | |
| 2 | 26X1011 | Set Screw, Note: Requires Loctite® 242 (zf Meritor Part Number 2297-E-4295, 50 Ml Tube), Or Equivalent And Lockwire | 5 | $81.16 | Add to Cart | |
| 3 | 3296Z1248 | Shift Fork Assembly (low/reverse), Standard Cover | 1 | — | Call for availability | |
| 4 | 2245T1060 | Sleeve (mid), Standard Cover | 1 | $139.56 | Add to Cart | |
| 5 | 2244K1155 | Shift Shaft, Neutral Check | 1 | — | No longer available — call for replacement | |
| 6 | 2258D1330 | Spring Neutral Checkshaft , | 1 | — | Call for availability | |
| 7 | 1250W1271 | Plug Expansion , | 1 | $202.40 | Add to Cart | |
| 8 | 2245P1134 | Sleeve (high) | 1 | — | No longer available — call for replacement | |
| 9 | 2244L1130 | Shift Shaft (high) | 1 | $44.57 | Add to Cart | |
| 10 | 3296K1129 | Shift Fork (high) | 1 | $330.58 | Add to Cart | |
| 1254P1030 | Lock Wire | 5 | — | No longer available — call for replacement | ||
| 12 | 3296H1126 | Shift Fork (mid) | 1 | $321.38 | Add to Cart | |
| 13 | 2244K1129 | Shift Shaft (mid) | 1 | $424.59 | Add to Cart | |
| 14 | 2297R5764 | Ball (shift Interlock) | 2 | $40.90 | Add to Cart | |
| 15 | 43X1184 | Pin (interlocking) Copyright 2001 Arvinmeritor, Inc Page 59 . | 1 | $386.20 | Add to Cart |
Controls
Click a number on the diagram to highlight that part below.

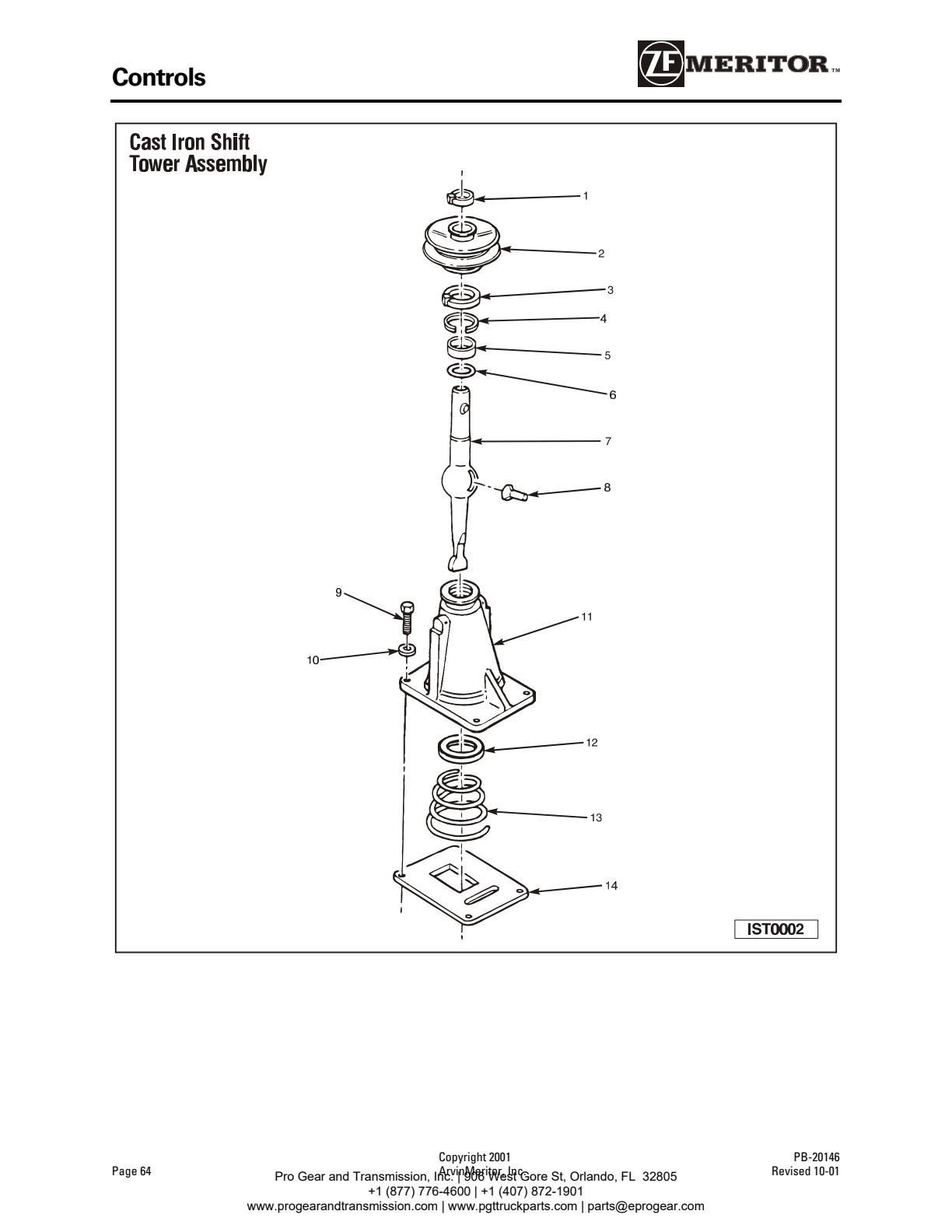

| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A2297L7058 | Switch Assembly, Shift-n-cruise (optional) | 1 | — | No longer available — call for replacement | ||
| A2297C7413 | Switch Assembly, Shift-n-cruise (optional) | 1 | — | Call for availability | ||
| A2297W7609 | Shield, Lens Cap | 1 | — | Call for availability | ||
| A2297D7414 | Shield, Lens Cap | 1 | — | Call for availability | ||
| 3 | A3280C9467 | Shift Knob, Assembly | 1 | $471.57 | Add to Cart | |
| A3280D9468 | Shift Knob, Assembly, With Shift-n-cruise (optional) | 1 | $893.59 | Add to Cart | ||
| A3280E9469 | Shift Knob, Assembly, Volvo Only | 1 | $502.63 | Add to Cart | ||
| A3280F9470 | Shift Knob, Assembly, With Shift-n-cruise, Volvo Only (optional) Jam Nut | 1 | $490.35 | Add to Cart | ||
| 5 | 2245P1186 | Shroud, Skirt | 1 | — | Call for availability | |
| 6 | 10X1625 | Special Screw There Is Also A New Style A-2297-C-7413. — There Is Also A New Style A-2297-D-7414. — Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | 1 | — | No longer available — call for replacement | |
| 3 | A3280K9397 | Shift Knob, Ess (without Cruise Control), Includes; 2245-P-1 186 And 10X-1625 | 1 | — | No longer available — call for replacement | |
| A3280L9398 | Shift Knob, Ess (with Cruise Control), Includes; 2245-P-1 186 And 10X-1625 Jam Nut | 1 | $922.08 | Add to Cart | ||
| 1 | A2297N7294 | Shift Lever With Shift-n-cruise Speed Control | 1 | $892.47 | Add to Cart | |
| A2297C7361 | Shift Lever Without Shift-n-cruise Speed Control | 1 | — | No longer available — call for replacement | ||
| 2 | A2297Y7383 | Wiring Harness With Shift-n-cruise Speed Control | 1 | $940.47 | Add to Cart | |
| A2297E7389 | Wiring Harness Without Shift-n-cruise Speed Control Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | 1 | — | No longer available — call for replacement | ||
| 2 | A3305M1469 | Stamping Assembly | 1 | — | Call for availability | |
| 3 | A2297J8278 | Wiring Harness, With Cruise Control | 1 | — | Call for availability | |
| A2297K8279 | Wiring Harness, Without Cruise Control | 1 | — | Call for availability | ||
| 4 | 41X1566 | Screw Special (socket Button Head Cap Screw) — Copyright 2001 Arvinmeritor, Inc Page 63 . | 18 | — | Call for availability | |
| 1 | 3237N66 | Strap | 1 | $24.00 | Add to Cart | |
| 2 | 2260B1146 | Boot | 1 | $81.83 | Add to Cart | |
| 3 | 3237H294 | Strap | 1 | — | Call for availability | |
| 4 | 1229F4660 | Ring Retainer , | 1 | $30.40 | Add to Cart | |
| 5 | 2214V1166 | Ring Inner , | 1 | $72.38 | Add to Cart | |
| 6 | 5X1201 | O-ring | 1 | $135.35 | Add to Cart | |
| 7 | 2247M1313 | Lever, Low | 1 | $627.02 | Add to Cart | |
| 2247G1463 | Lever, Mid | 1 | $372.78 | Add to Cart | ||
| 2247N1314 | Lever, High | 1 | $350.08 | Add to Cart | ||
| 8 | 43X1188 | Pin | 1 | $328.70 | Add to Cart | |
| 9 | S2610A2 | Bolt/capscrew, 3/8"-16 Unc X 1 -1/4" | 1 | — | Call for availability | |
| 10 | 1229B1666 | Flat Washer | 1 | — | Call for availability | |
| A13280J9318 | Shift Housing Assembly, Low | 1 | $1,285.33 | Add to Cart | ||
| A13280T9458 | Shift Housing Assembly, Mid | 1 | — | Call for availability | ||
| A13280L9320 | Shift Housing Assembly, High | 1 | $1,269.25 | Add to Cart | ||
| 12 | 3105B1198 | Retainer, Spring | 1 | $171.68 | Add to Cart | |
| 13 | 2258B1328 | Spring | 1 | $90.28 | Add to Cart | |
| 14 | 3208N1080 | Gasket Copyright 2001 Arvinmeritor, Inc . | 1 | $66.20 | Add to Cart | |

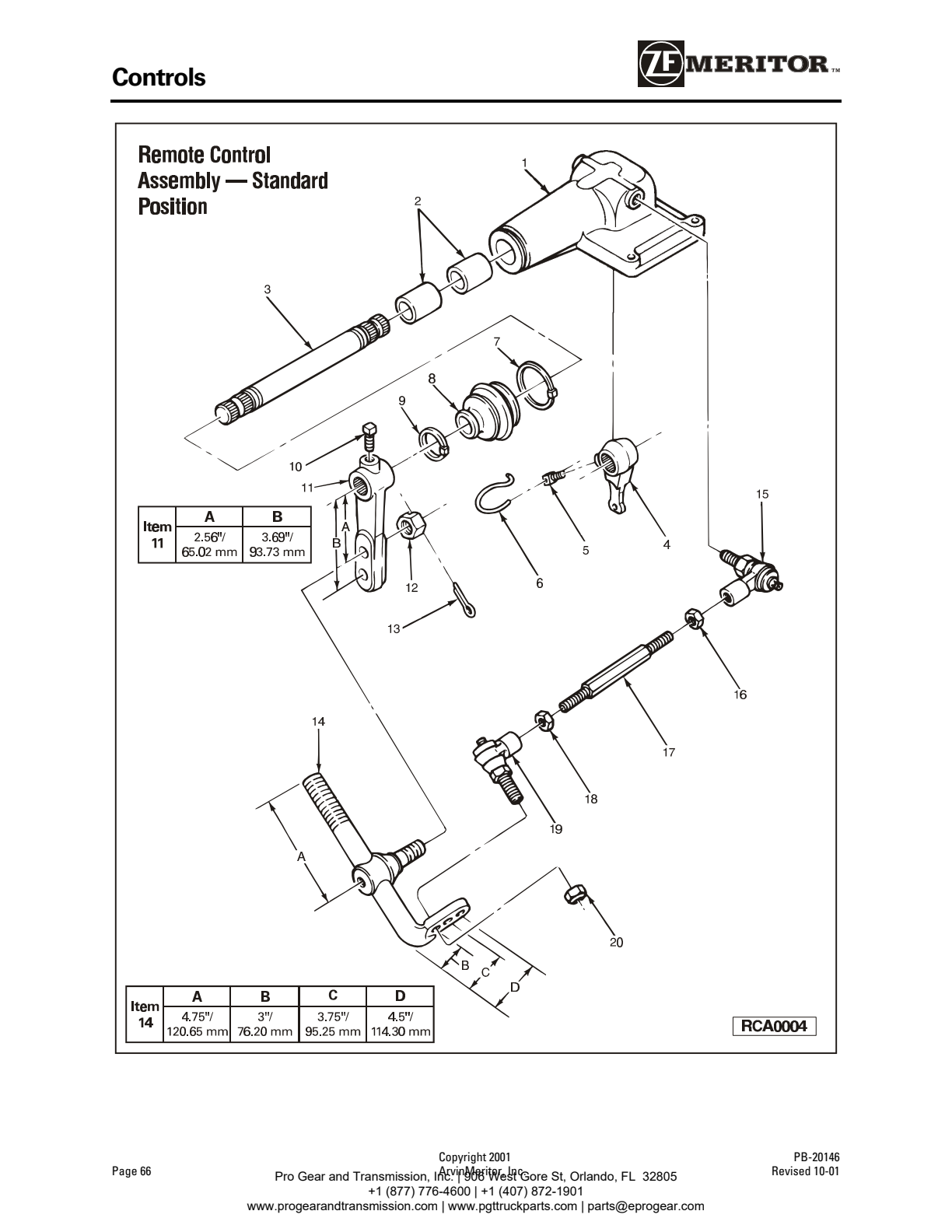

| 1 | A13280E8741 | Remote Control Housing Standard Position , | 1 | $327.51 | Add to Cart | |
| 2 | 1225P1186 | Bushing | 2 | — | No longer available — call for replacement | |
| 3 | 2244Y1065 | Shift Shaft, 1 1 -1/4" | 1 | $365.23 | Add to Cart | |
| 4 | 2247K1077 | Inner Shift Lever | 1 | $26.33 | Add to Cart | |
| 5 | 10X1521 | Set Screw | 1 | — | Call for availability | |
| 6 | LW1310 | Lock Wire | 1 | — | Call for availability | |
| 7 | 3237H294 | Strap | 1 | — | Call for availability | |
| 8 | 2260R1032 | Boot | 1 | $48.33 | Add to Cart | |
| 9 | 3237N66 | Strap, Cable Tie | 1 | $24.00 | Add to Cart | |
| 10 | 10X1522 | Set Screw | 1 | $5.25 | Add to Cart | |
| 2247M1079 | Outer Shift Lever Nut Pin, Cotter | 1 | $82.14 | Add to Cart | ||
| 14 | A2247F1098 | Lever Assembly, Selection | 1 | — | Call for availability | |
| 15 | A2110M1001 | Ball Socket, Assembly | 1 | — | No longer available — call for replacement | |
| 16 | 1227F1384 | Jam Nut | 1 | — | Call for availability | |
| 17 | 2297B6060 | Rod, Adjusting Jam Nut | 1 | $40.10 | Add to Cart | |
| 19 | A2110N1002 | Ball Socket, Assembly | 1 | — | No longer available — call for replacement | |
| 20 | NL281 | Lock Nut Copyright 2001 Arvinmeritor, Inc Page 67 . | 1 | — | Call for availability | |

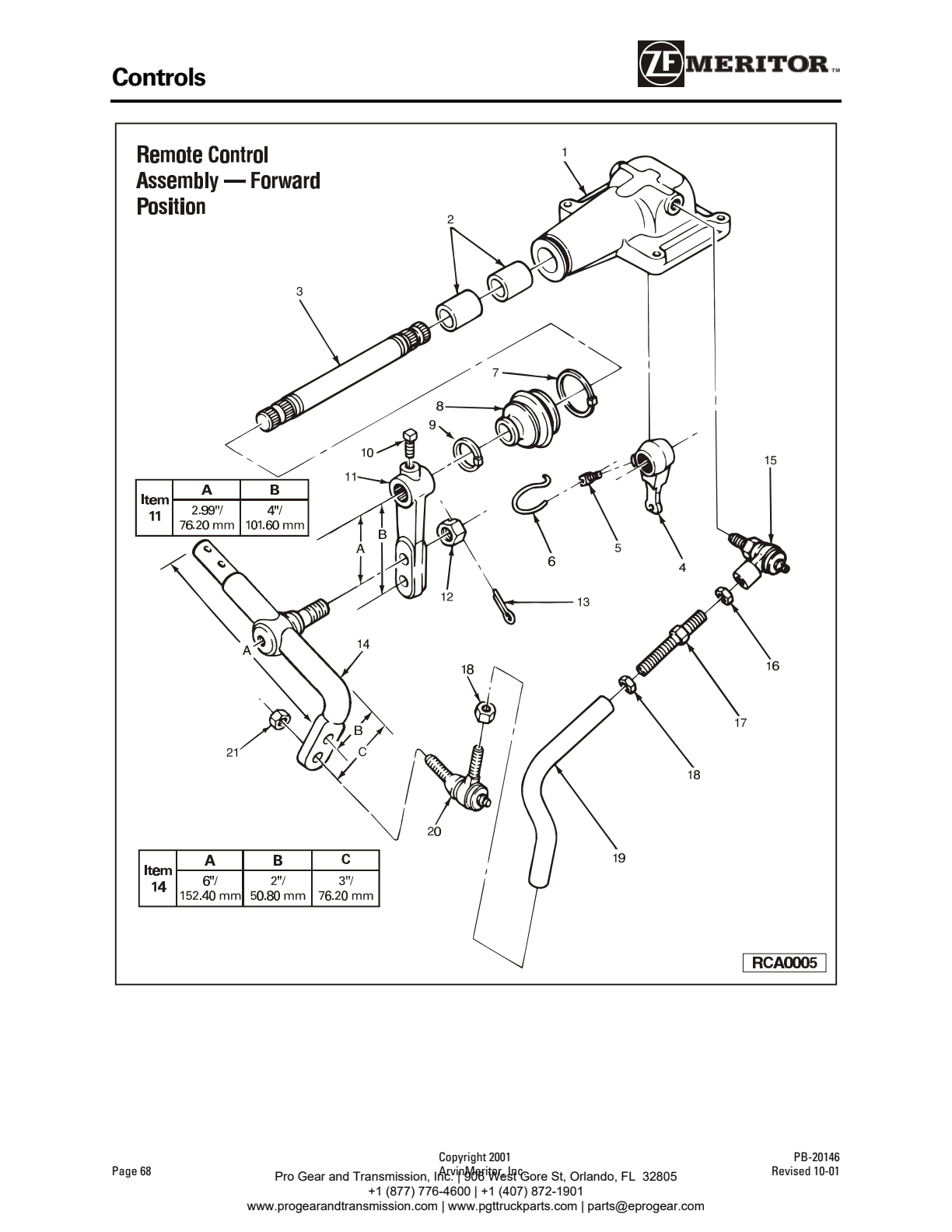

| 1 | 3280G8743 | Remote Control Housing Forward Position , | 1 | — | Call for availability | |
| 3 | 2244K1077 | Shift Shaft | 1 | — | No longer available — call for replacement | |
| 2247N1080 | Outer Shift Lever Nut Pin, Cotter | 1 | — | Call for availability | ||
| 14 | A2247G1099 | Lever Assembly, Selection | 1 | — | Call for availability | |
| 17 | 2297D6062 | Rod, Adjusting Jam Nut | 1 | — | No longer available — call for replacement | |
| 19 | 2297E6063 | Rod, Adjusting | 1 | — | Call for availability | |
| 20 | A2110P1004 | Ball Socket, Assembly | 1 | $129.93 | Add to Cart | |
| 21 | NL281 | Lock Nut Copyright 2001 Arvinmeritor, Inc Page 69 . | 1 | — | Call for availability | |

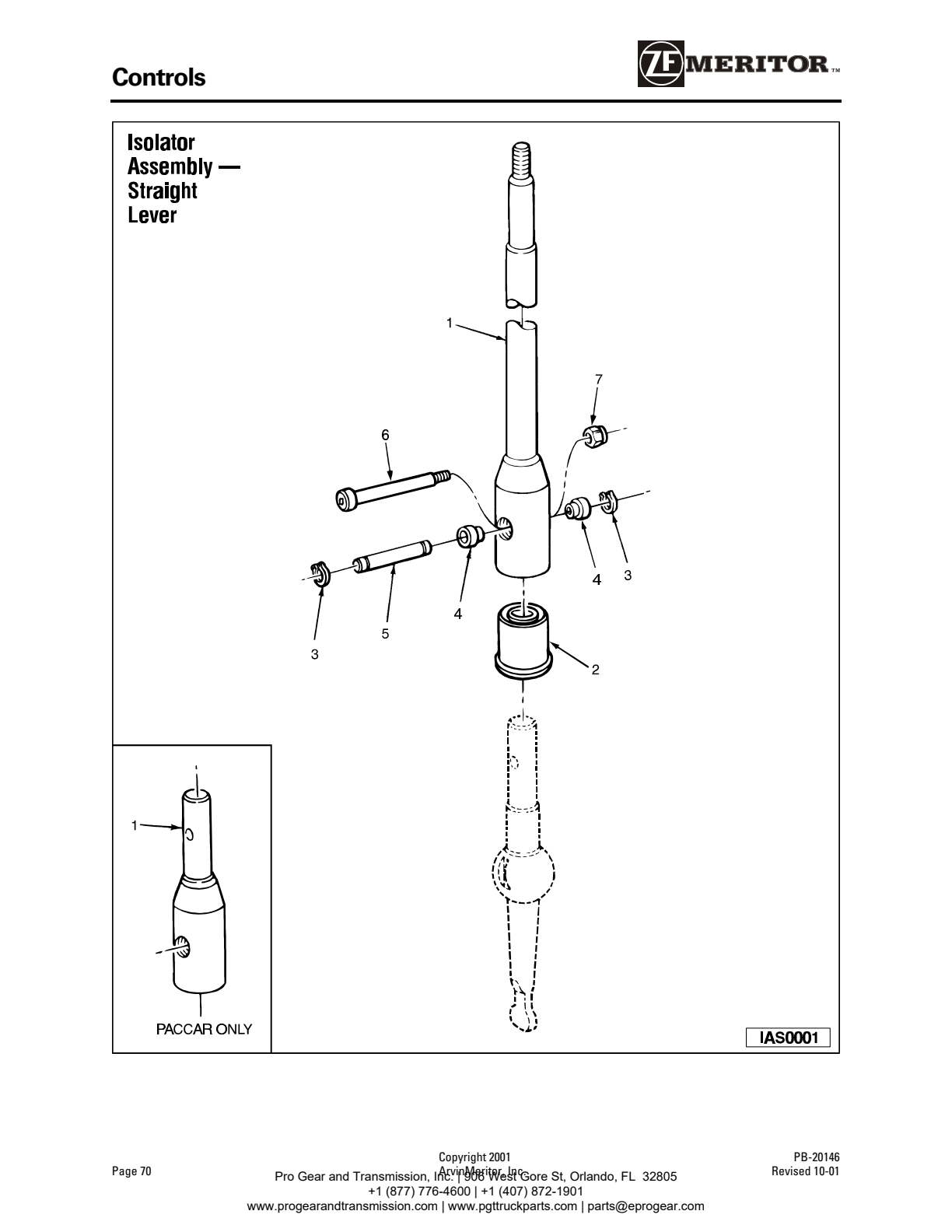

| 1 | A2247X1142 | Lever Assembly (isolated), 24"/60.96 Cm Measure Hole Centerline To Top — Note: These Are Straight Shift Levers And May Need To Be Bent To Match Application For Specific Lever Take Part Number From Level Or See Truck Line . Setting Ticket. Includes 2245-J -1076 Sleeve | 1 | $1,544.09 | Add to Cart | |
| A2247T1190 | Lever Assembly (isolated), 32 "/81 .28 Cm Measure Hole Centerline To Top — Note: These Are Straight Shift Levers And May Need To Be Bent To Match Application For Specific Lever Take Part Number From Lever Or See Truck Line . Setting Ticket. Includes 2245-J -1076 | 1 | $772.99 | Add to Cart | ||
| A3268H1646 | Adapter Assembly (isolated), For Paccar Non-isolated Hollow Lever. Includes 2245-J -1076 | 1 | — | Call for availability | ||
| 2 | 2245J1076 | Sleeve (isolator Bushing) | 1 | $77.22 | Add to Cart | |
| 3 | 1229T4336 | Snap Ring Clip , | 1 | — | Call for availability | |
| 4 | 1225B1198 | Bushing | 2 | $63.00 | Add to Cart | |
| 5 | 43X1174 | Pin | 1 | — | Call for availability | |
| 6 | 10X1611 | Bolt/capscrew | 1 | $27.76 | Add to Cart | |
| 7 | 1227Q1525 | Nut Copyright 2001 Arvinmeritor, Inc . | 1 | $52.50 | Add to Cart | |
| 1 | 1229T4336 | Snap Ring | 2 | — | Call for availability | |
| 2 | 1225B1198 | Bushing | 2 | $63.00 | Add to Cart | |
| 3 | 2245J1076 | Sleeve (isolator Bushing) | 1 | $77.22 | Add to Cart | |
| 4 | 43X1174 | Pin | 1 | — | Call for availability | |
| 5 | A2247Y1143 | Lever Assembly (isolated), 30"/76.20 Cm Measure Hole Centerline To End — Note: Requires Bending To Match Application . | 1 | $638.70 | Add to Cart | |

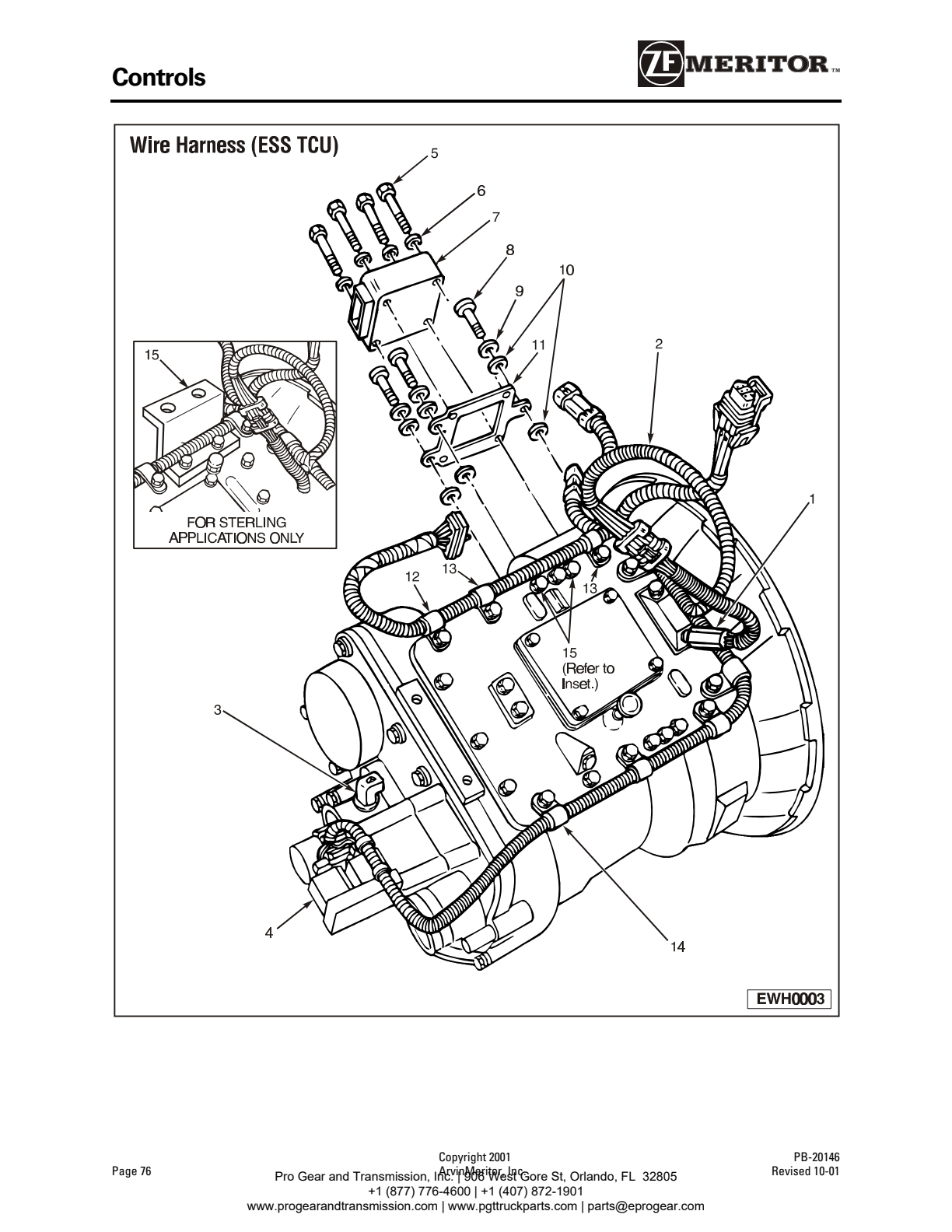

| 1 | A2297Q7219 | Wire Harness, Transmission | 1 | — | Call for availability | |
| 2 | A3280W9409 | Switch Assembly, Eoa, Neutral Position (includes 5X-1091 O-ring) | 1 | $126.82 | Add to Cart | |
| 3 | 2257G1229 | Clip, Wiring Harness, Replaced By 2257-Y-1273 | 7 | — | Call for availability | |
| 2257Y1273 | Clip, Wiring Harness | 6 | — | Call for availability | ||
| 4 | A3280F9392 | Solenoid Assembly (includes 5X-1207 And 5X-1092 O-rings) Copyright 2001 Arvinmeritor, Inc . | 2 | $289.73 | Add to Cart | |

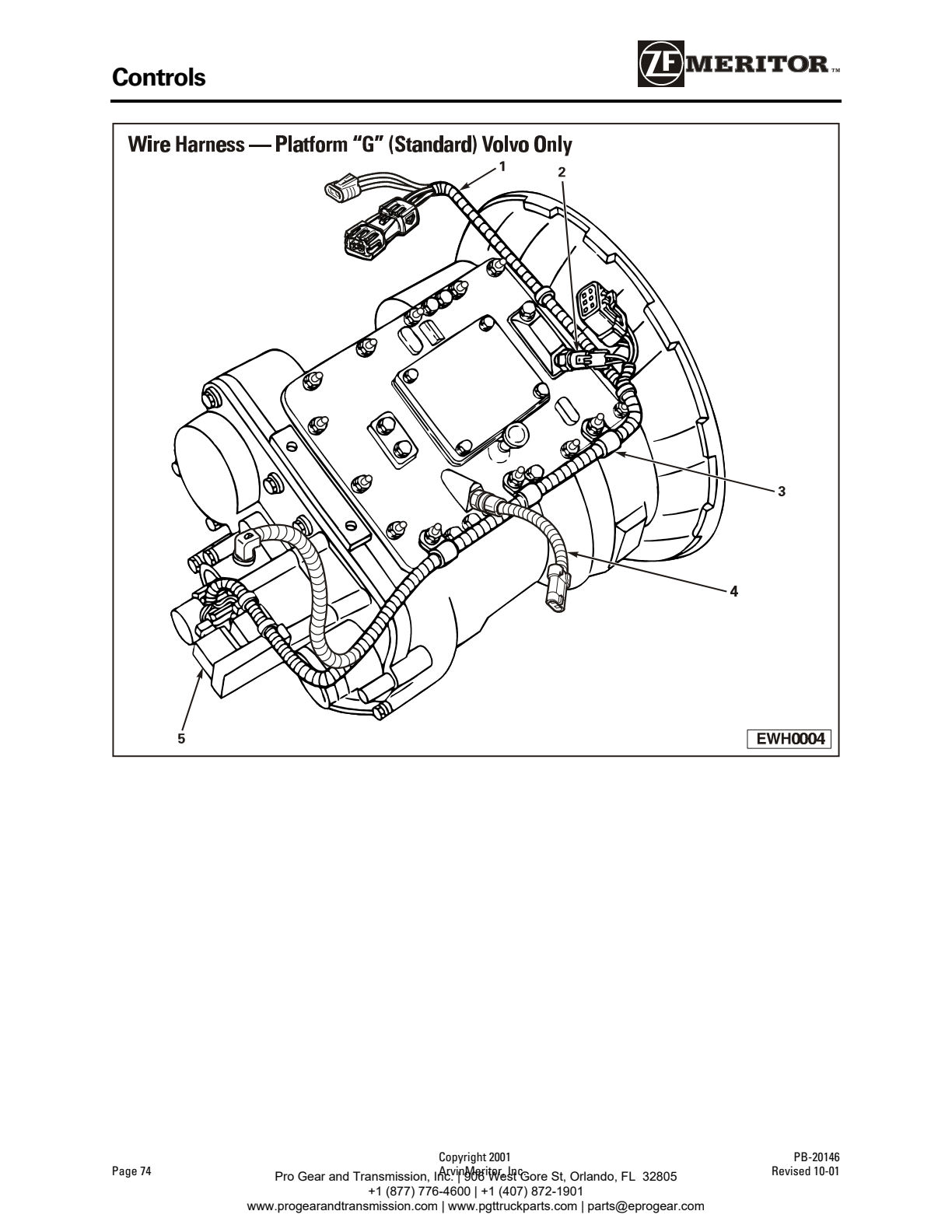

| 1 | A2297R8286 | Wire Harness, Transmission | 1 | $576.84 | Add to Cart | |
| 4 | A2297Q8285 | Neutral Switch Assembly | 1 | $62.10 | Add to Cart | |
| 5 | A3280F9392 | Solenoid Assembly (includes 5X-1207 And 5X-1092 O-rings) Copyright 2001 Arvinmeritor, Inc Page 75 . | 2 | $289.73 | Add to Cart | |
| 1 | A3280J9396 | Switch Assembly, Ess (includes 5X-1091 O-ring) | 1 | — | No longer available — call for replacement | |
| 5X1091 | O-ring | 1 | — | No longer available — call for replacement | ||
| 2 | A2297R7272 | Assembly, Wiring Harness | 1 | — | Call for availability | |
| 3 | A3280A9413 | Sensor, Speedometer (includes 1205-T-1268 O-ring) | 1 | — | No longer available — call for replacement | |
| 1205T1268 | O-ring | 1 | $147.00 | Add to Cart | ||
| 5 | S2422A2 | Bolt, 0.250-20 X 2 .75-inches Washer, Flat | 4 | — | Call for availability | |
| 7 | A2297M7423 | Controller, Transmission, 9-Speed Direct A Ratio — | 1 | — | Call for availability | |
| A2297N7424 | Controller, Transmission, 9-Speed Overdrive A Ratio — | 1 | — | Call for availability | ||
| A2297P7426 | Controller, Transmission, 9-Speed Overdrive B Ratio — | 1 | — | Call for availability | ||
| A2297Q7427 | Controller, Transmission, 10-Speed Direct A Ratio — | 1 | — | Call for availability | ||
| A2297R7428 | Controller, Transmission, 10-Speed Overdrive A Ratio — | 1 | — | Call for availability | ||
| A2297S7429 | Controller, Transmission, 10-Speed Overdrive C Ratio — | 1 | — | Call for availability | ||
| 8 | 15X1812 | Screw, Shoulder | 3 | — | Call for availability | |
| 9 | 1299B1666 | Washer, Flat | 3 | — | Call for availability | |
| 10 | 1225F1306 | Bushing, Isolater | 6 | — | Call for availability | |
| 3305V1348 | Plate | 1 | — | Call for availability | ||
| 12 | 2257G1229 | Harness J -clip, 3/8-inch Replaced By 2257-Y-1273 , | 1 | — | Call for availability | |
| 13 | 2257Z1248 | Harness J -clip, 3/4-inch | 2 | — | Call for availability | |
| 14 | 2257Y1247 | Harness J -clip, 1/2-inch Oem Clutch Return Spring Bracket (sterling Applications Only. Refer To Sterling For Part Information .) Copyright 2001 Arvinmeritor, Inc Page 77 . | 7 | — | Call for availability | |
| 2 | A2297U7197 | Wire Harness, Assembly | 1 | — | Call for availability | |
| 5 | 2257G1229 | Clip, Wiring Harness, Replaced By 2257-Y-1273 | 6 | — | Call for availability | |
| 1 | A2297J7498 | Wiring Harness | 1 | — | Call for availability | |
| 2 | A3280A9413 | Speed Sensor | 1 | — | No longer available — call for replacement | |
| 3 | A2297Q7297 | X-y Unit | 1 | — | Call for availability | |
| 4 | A2297R7298 | Range Sensor | 1 | — | Call for availability | |
| 6 | A3280G9575 | Speed Sensor, 2-Pin | 1 | $187.54 | Add to Cart | |
| A3280H9576 | Speed Sensor, 4-Pin Copyright 2001 Arvinmeritor, Inc . | 1 | $363.91 | Add to Cart | ||
| 1 | A2297F7078 | Wiring Harness, Cruise Control Retrofit | 1 | — | Call for availability | |
| 2 | 2297J7082 | Connector Tubes, “butt Splice ” Description | 5 | — | Call for availability | |
| 1 | A6000Y1299 | Zf Meritor Display Gauge Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | 1 | — | Call for availability |
Labels
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 2297T6104 | Decal Cab Shift Label (square) , | 1 | $28.59 | Add to Cart | |
| 2 | 2297Z7384 | Decal Cab Shift Label (oval) , Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | 1 | — | Call for availability | |
| 1 | 2297X7252 | Decal Cab Shift Label (square) , | 1 | $55.76 | Add to Cart | |
| 2 | 2297A7388 | Decal Cab Shift Label (oval) , Copyright 2001 Arvinmeritor, Inc Page 83 . | 1 | — | Call for availability | |
| 1 | 2297A7125 | Decal Cab Shift Label (square) , | 1 | $12.69 | Add to Cart | |
| 2 | 2297Q7245 | Decal Cab Shift Label (oval) , Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | 1 | — | Call for availability | |
| 1 | 2297B7126 | Decal Cab Shift Label (square) , | 1 | $6.80 | Add to Cart | |
| 2 | 2297R7246 | Decal Cab Shift Label (oval) , Copyright 2001 Arvinmeritor, Inc Page 85 . | 1 | — | Call for availability | |
| 1 | 2297L7422 | Cab Shift Label (oval Shaped) | 1 | — | Call for availability | |
| 2 | 2297K7421 | Cab Shift Label (rectangular Shaped) Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | 1 | — | Call for availability | |
| 1 | 2297N6904 | Decal Notice Extended Drain Lubricant , — Copyright 2001 Arvinmeritor, Inc Page 87 . | 1 | — | Call for availability |
Output Yokes
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 21210 | 3.00²/76.2 Mm 3.75²/95.25 Mm 5.62²/142.75 Mm 17NYS40-125A 17N 1710 Fr With Deflector 1 | — | Call for availability | |||
| 23410 | 3.00²/76.2 Mm 3.75²/95.25 Mm 5.75²/146.05 Mm 17N46931X 17N 1710 Fr With Deflector | — | Call for availability | |||
| 1 | 17NYS40125A | Yoke Assembly, Full Round | 1 | — | Call for availability | |
| 176NYS4014A | Yoke Assembly, Full Round | 1 | — | Call for availability | ||
| 18NYS404A | Yoke Assembly, Full Round | 1 | — | Call for availability | ||
| 17N46931X | Yoke Assembly, Full Round | 1 | — | Call for availability | ||
| 176NYS444A | Yoke Assembly, Full Round | 1 | — | Call for availability | ||
| 18NYS444A | Yoke Assembly, Full Round | 1 | — | Call for availability | ||
| 2 | 17TYS40144 | (f) Yoke Assembly, Easy Service | 1 | — | Call for availability | |
| 176TYS4014A | Yoke Assembly, Easy Service | 1 | — | Call for availability | ||
| 18TYS404A | Yoke Assembly, Easy Service | 1 | — | Call for availability | ||
| 17TYS4410A | (f) Yoke Assembly, Easy Service | 1 | — | Call for availability | ||
| 176TYS444A | Yoke Assembly, Easy Service | 1 | — | Call for availability | ||
| 18TYS444A | Yoke Assembly, Easy Service | 1 | — | Call for availability | ||
| 3 | 72NYS4099A | Yoke Assembly, Wing Series Permalube | 1 | — | Call for availability | |
| 82NYS4028A | Yoke Assembly, Wing Series Permalube | 1 | — | Call for availability | ||
| 85WBYS4034A | Yoke Assembly, Wing Series Permalube | 1 | — | Call for availability | ||
| 92NYS4040A | Yoke Assembly, Wing Series Permalube | 1 | — | Call for availability | ||
| 85WBYS441A | Yoke Assembly, Wing Series Permalube | 1 | — | Call for availability | ||
| 92NYS4422A | Yoke Assembly, Wing Series Permalube | 1 | — | Call for availability | ||
| 4 | 20WYS402A | Yoke Assembly, Rpl Series Permalube | 1 | — | Call for availability | |
| 25WYS402A | Yoke Assembly, Rpl Series Permalube | 1 | — | Call for availability | ||
| 20WYS442A | Yoke Assembly, Rpl Series Permalube | 1 | — | Call for availability | ||
| 25WYS442A | Yoke Assembly, Rpl Series Permalube | 1 | — | Call for availability | ||
| 5 | 5WCS4040A | Yoke Assembly, Companion Flange | 1 | — | Call for availability | |
| 5WCS4041A | Yoke Assembly, Companion Flange | 1 | — | Call for availability | ||
| 5WCS443A | Yoke Assembly, Companion Flange Copyright 2001 Arvinmeritor, Inc Page 89 . | 1 | — | Call for availability |

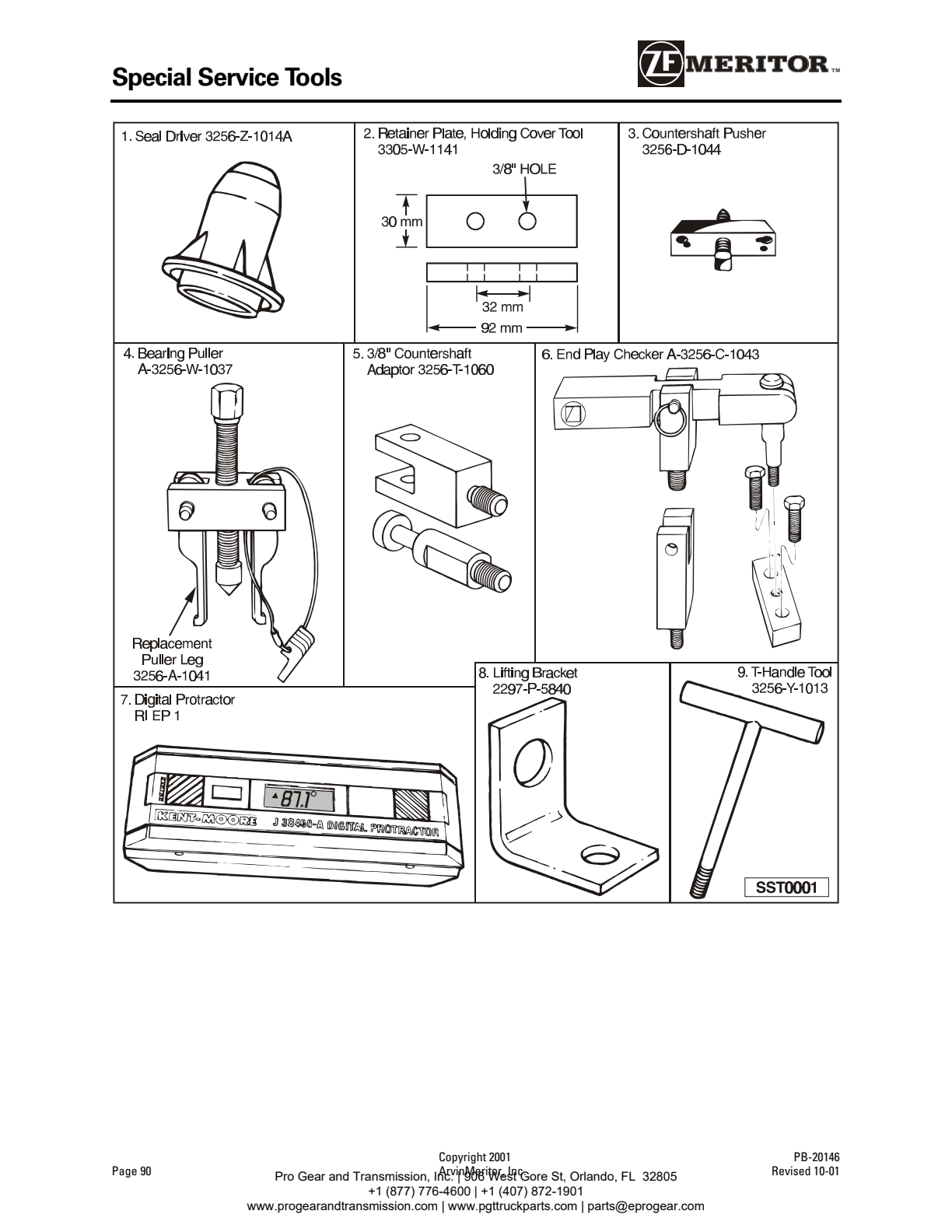

Special Service Tools
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3256Z1014A | Seal Driver, Fits All Models. | 1 | $838.74 | Add to Cart | |
| 2 | 3305W1141 | Retainer Plate, Holding Cover Tool | 1 | $9.44 | Add to Cart | |
| 3 | 3256D1044 | Tool Countershaft Pusher , | 1 | $304.11 | Add to Cart | |
| 4 | A3256W1037 | Tool Bearing Puller , | 1 | — | No longer available — call for replacement | |
| 3256A1041 | Tool Puller Leg Replacement , , | 1 | — | Call for availability | ||
| 5 | 3256T1060 | Tool 3/8" Countershaft Adaptor , | 1 | — | Call for availability | |
| 6 | A3256C1043 | Tool End Play Checker Assembly , | 1 | — | Call for availability | |
| 7 | RIEP1 | Tool Digital Protractor , | 1 | — | Call for availability | |
| 8 | 2297P5840 | Hook, Lifting | 1 | $62.60 | Add to Cart | |
| 9 | 3256Y1013 | Tool T-handle , Copyright 2001 Arvinmeritor, Inc Page 91 . | 1 | — | Call for availability | |
| 1 | 3256B1068 | Tool Tester, Shift-n-cruisetm , Description | 1 | — | Call for availability | |
| 1 | 3256J1102 | Meritor Shift Knob Tester Copyright 2001 PB-20146 Arvinmeritor, Inc Revised 10-01 . | 1 | $620.38 | Add to Cart |
This is the complete factory parts breakdown for the Meritor Transmission ROCKWELL-MERITOR-G-PLATFOR — every part in the manual, matched to our live inventory. We stock 206 of the 535 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Introduction Transmission Replacements Main Case Main Gear Auxiliary Case Assembly Speedometer Items Top Cover Assembly Controls Labels Output Yokes Special Service Tools
No parts match that search — try the part number with no dashes.
This is the Rockwell / Meritor Illustrated Parts List (document PB-20146) covering the M-15G10AM15 transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | M-15G10AM15 |
| Transmission type | 10-speed, twin-countershaft, heavy duty |
| Document | PB-20146 Illustrated Parts List (Rockwell / Meritor) |
| Length | 115 pages |
| Format | PDF — free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Rockwell / Meritor parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Rockwell / Meritor transmission units:
- Rockwell / Meritor transmission parts
- Remanufactured transmissions
- Search our catalog for M-15G10AM15
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
