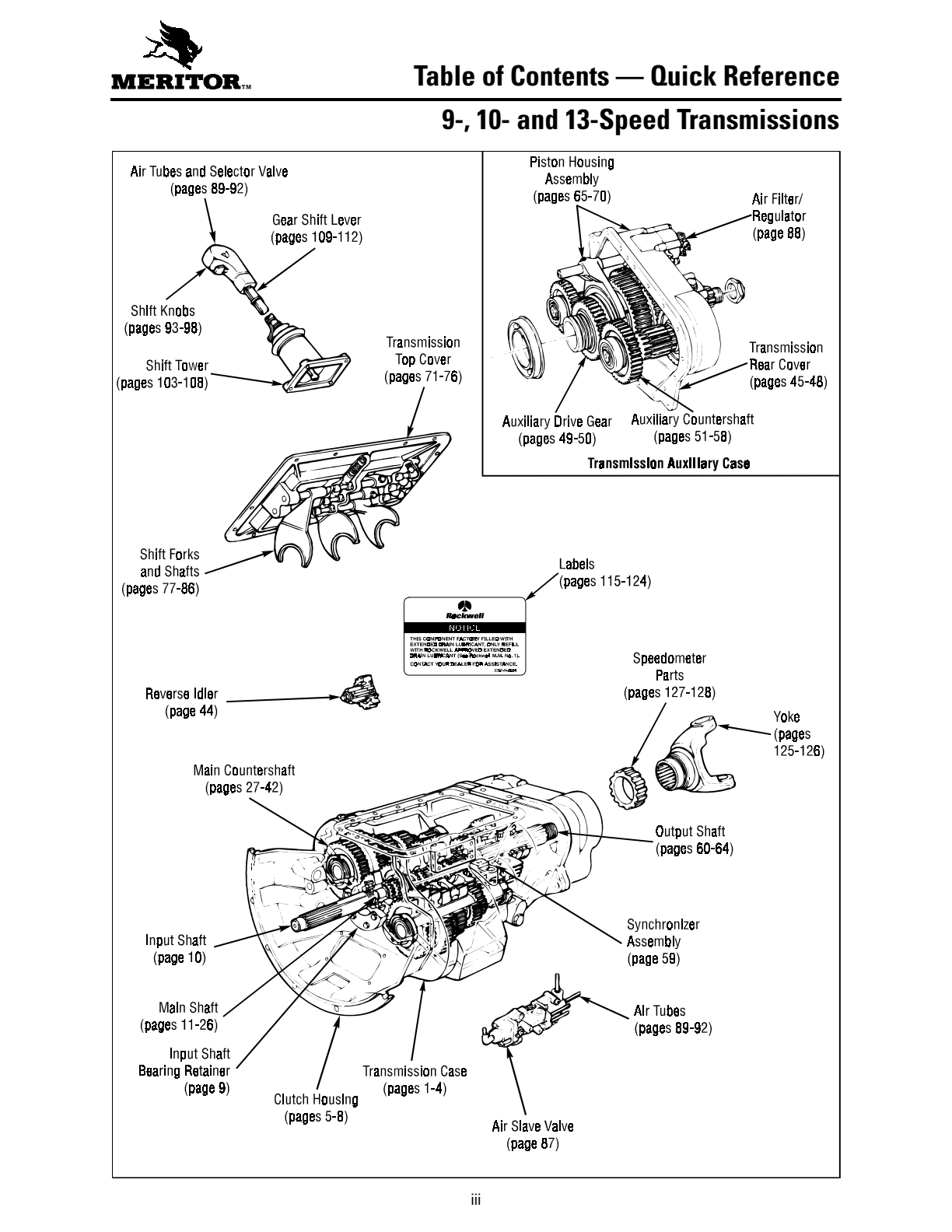

Meritor Rockwell ZF 9-Speed RMX9-145R Parts Manual
Transmission Replacements
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2297C5905 | Master Gasket Sealant #00203, Use 2297 -A-7021 | NLA | — | Call for availability | ||
| 1 | 2297A7021 | #5699 Ultra Grey Flange Sealant | 1 | — | Call for availability | |
| 2 | 2297B6112 | Thread Locker 222 I | 1 | — | Call for availability |
How To Use This Parts Book Input Shaft Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1229W4339 | Snap Ring 5200, 5203, 5215, 5221 5238, 5239, , 5329, 5363, 5367, 5381 5382, , | 1 | $73.20 | Add to Cart | |
| 2 | 1228G1203 | Ball Bearing 5200, 5203, 5220, 5238, 5239, 5356, 5358, 5359, 5360, 5380, 5381 5382, , | 1 | $119.25 | Add to Cart | |
| 3 | 1244C1823 | Spacer, Use With Shaft A-3297 -Y-1351 Replaced By . 1244-J -2194 | NLA | $82.92 | Superseded by 1244J2194Add to Cart | |
| 1244J2194 | Spacer, Use With Shaft A-3297 -b -1380. 5200, 5203, 5238, 5360, 5361 , | 1 | $82.92 | Add to Cart | ||
| 4 | 1229H4168 | Snap Ring, Replaced By 1229-C-4657 5324, 5380, | NLA | $309.68 | Superseded by 1229C4657Add to Cart | |
| 1229C4657 | Snap Ring, (main Drive Gear) 5200, 5203, 5215, 5221 5238, 5239, , 5329, 5367 | 1 | $309.68 | Add to Cart | ||
| 5 | 3892W5015 | M/s Gear, Drive (50T) Dir & 13 Speed O/d | 1 | $344.65 | Add to Cart | |
| 3892V5144 | M/s Gear, Drive (54T) 9-B | 1 | $560.39 | Add to Cart | ||
| 3892N5474 | M/s Gear, Drive (60T) 9-A & R O/d 125, 145 | 1 | $521.90 | Add to Cart | ||
| 3892F5232 | M/s Gear, Drive (60T) 9-A & R O/d 115, 135 | 1 | $388.38 | Add to Cart | ||
| 3892M5473 | M/s Gear, Drive (54T) 10-C O/d All | 1 | $395.51 | Superseded by 3892F5830Add to Cart | ||
| 3892W5015 | M/s Gear, Drive (50T) 13 O/d, 10 Dir 115, 125, 135, 145 | 1 | $344.65 | Add to Cart | ||
| 6 | A43297T1060 | I/p Shaft Assy, (replaced By A-3297 -Y-1351) | NLA | $624.49 | Superseded by KIT5367Add to Cart | |
| A3297C1329 | I/p Shaft Assy, Replaced By A-3297 -Y-1351 | NLA | $624.49 | Superseded by KIT5367Add to Cart | ||
| A3297Y1351 | I/p Shaft Assy, 2" Pull Type (includes 1225-A-1171 Bushing) Use KIT5367 | 1 | $624.49 | Superseded by KIT5367Add to Cart | ||
| 7 | 1225A1171 | Bushing (m/s) 5200, 5203, , 5239, 5356, Are In Millimeters Unless Otherwise Noted . X 0.00394 Inches Inches X 25.4 Millimeters = = Ii | 1 | $439.60 | Add to Cart |

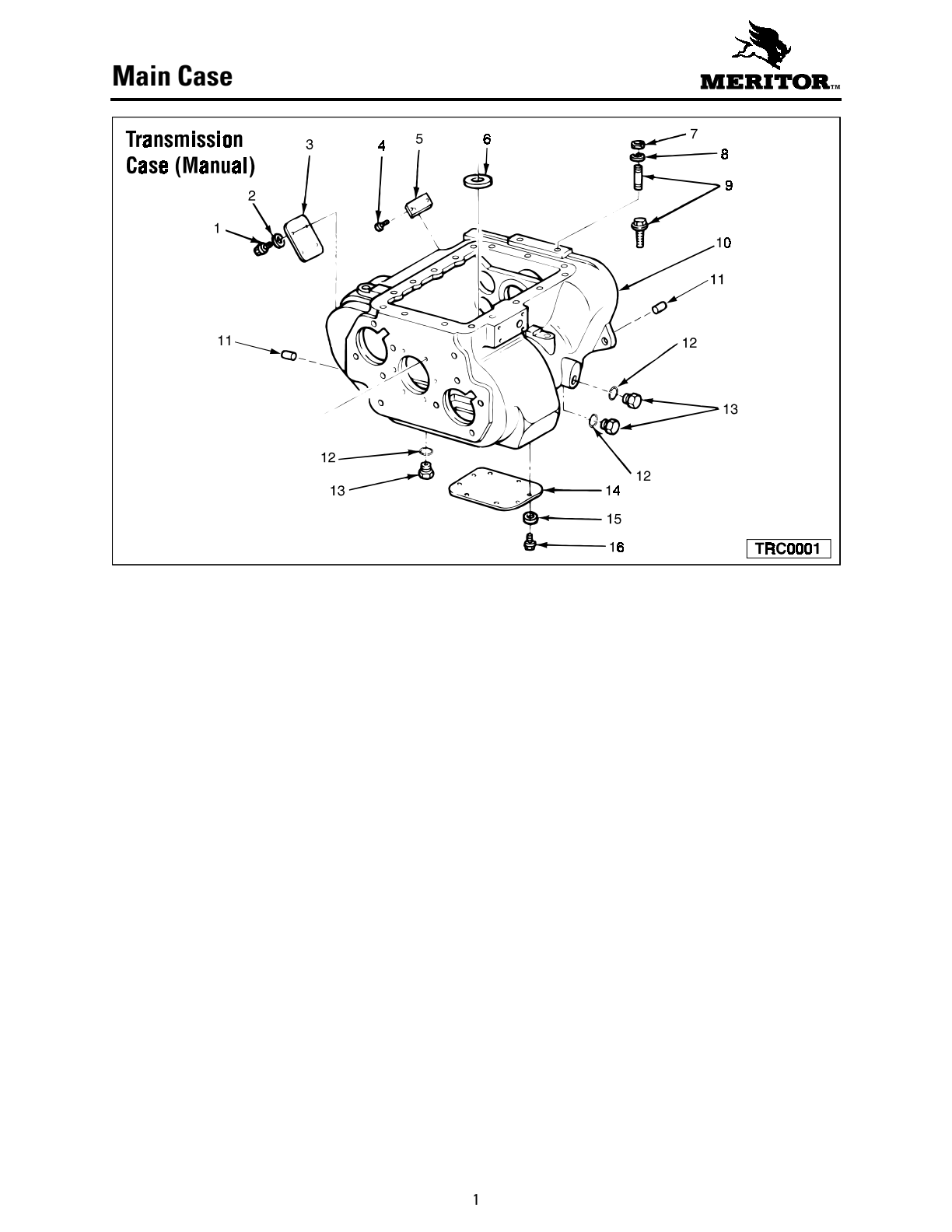

Main Case
Click a number on the diagram to highlight that part below.

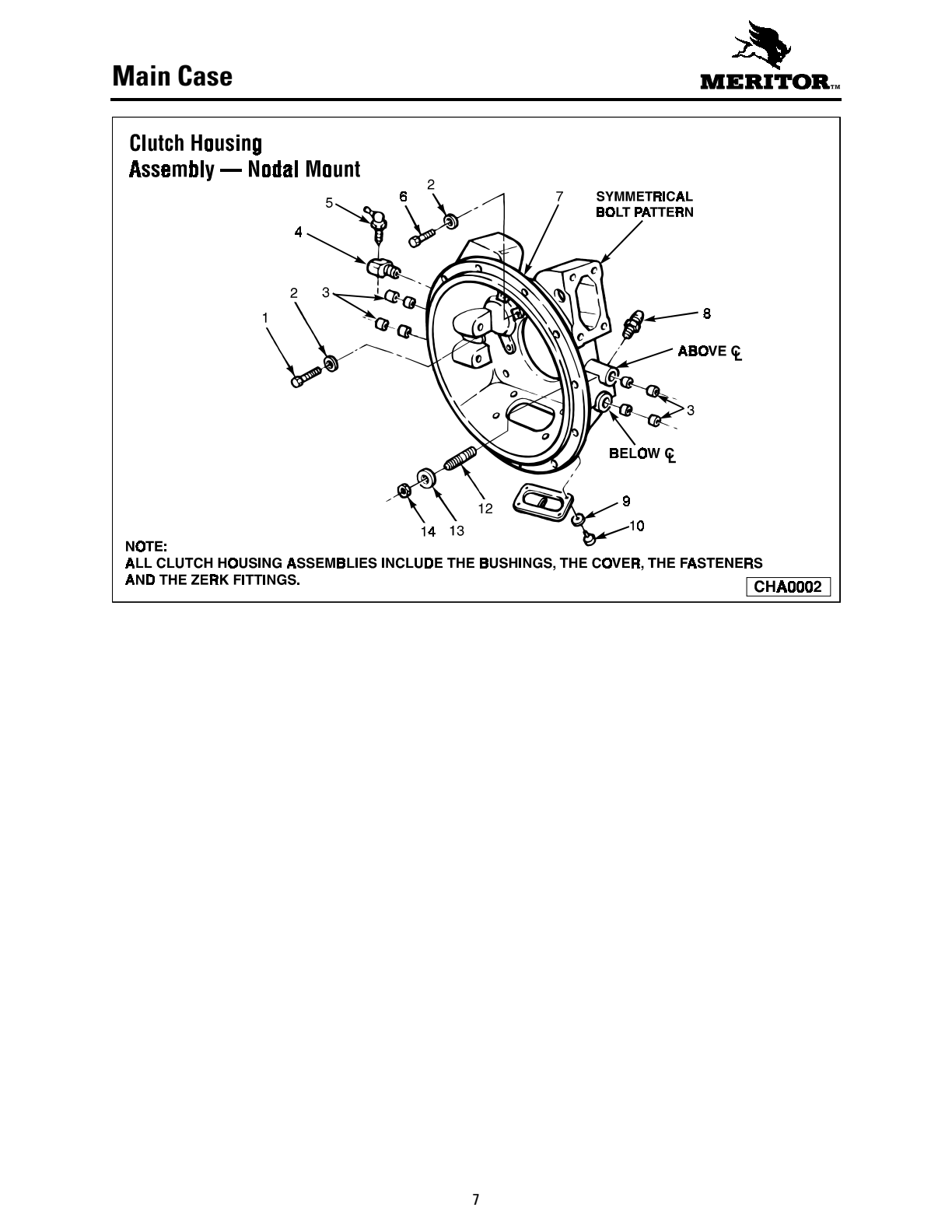

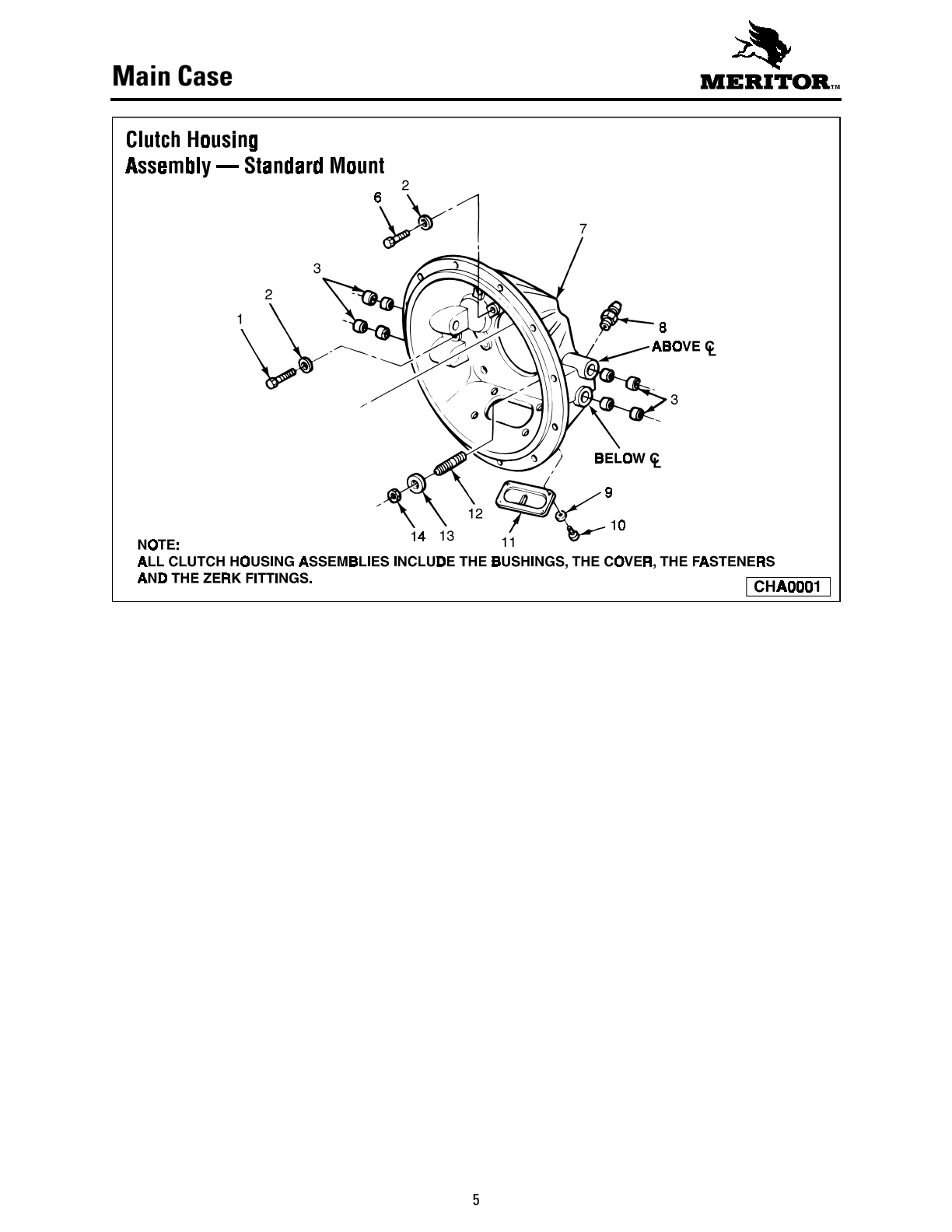

| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 10X1446 | Special Screw, 3/8"-16 Unc -2A X 1 " Flanged (pto) | 6 | $130.60 | Add to Cart | |
| 2 | 1229B1666 | Flat Wshr, (replaced By 10X-1446) 5299, 5300, 5369, 5386 | NLA | — | Call for availability | |
| 3 | 3266B1120 | Cover, (6 Bolt Pto) Screw, (replaced By 17X-1030, Pop Rivet) | 1 | — | No longer available — call for replacement | |
| 17X1030 | Rivet, Pop (id Plate) | 2 | — | Call for availability | ||
| 5 | 2297B6554 | Name Plate | 1 | — | No longer available — call for replacement | |
| 6 | 2297Y5849 | Magnet, (trans Case) | 4 | $33.96 | Add to Cart | |
| 7 | N1101 | Nut, 5/8"-18 (rear Support Bracket) | OPT | — | Call for availability | |
| 8 | WA4101 | Lock Wshr, (rear Support Bracket) | OPT | — | Call for availability | |
| 9 | SN10171 | Stud 5/8" X 2-1/8" (rear Support Bracket) , | OPT | — | Call for availability | |
| SN10191 | Stud 5/8" X 2-3/8" (rear Support Bracket) , | OPT | — | Call for availability | ||
| 10X1510 | Special Screw, 1 -1/4" X 5/8"-11 Unc Flanged Capscrew | OPT | $72.70 | Add to Cart | ||
| 10X1511 | Special Screw, 1 -1/2" X 5/8"-11 Unc Flanged Capscrew | OPT | — | Call for availability | ||
| 10X1512 | Special Screw, 1 -3/4" X 5/8"-11 Unc Flanged Capscrew | OPT | — | Call for availability | ||
| 10 | A23294Z1014 | Case Assy, Replaced By A4-3294-B -1016 | NLA | — | Call for availability | |
| A43294B1016 | Case Assy, (w/o Internal Oil Pump) Magnetic Drain Plug Includes: 10X-1446 Flanged Capscrew, , 43X-1150 Dowel & 14X-1837 Stud . | 1 | — | Call for availability | ||
| A3294V1010 | Case Assy, (internal Oil Pump) Use A2-3294-B -1016 Case & A-3303-N -1028 Oil Pump . | NLA | — | Call for availability | ||
| A23294B1016 | Case Assy, (internal Oil Pump) Magnetic Drain Plug , Includes: 10X-1446 Flanged Capscrew, 43X-1150 Dowel & 4X-1837 Stud . | 1 | — | Call for availability | ||
| A23294H1022 | Case Assy, Replaced By A2-3294-N -1028 | NLA | — | Call for availability | ||
| A23294N1028 | Case Assy, (w/o Internal Oil Pump) Includes: 2297 -Y-5849, 43X-1150, A-1250-P -1186, 17X-1030, 2297 -b -6554 & 4X-1837 . | 1 | — | Call for availability | ||
| A23294L1026 | Case Assy, Replaced By A2-3294-P -1030 | NLA | — | Call for availability | ||
| A23294P1030 | Case Assy, (internal Oil Pump) Includes: 2297 -Y-5849, 43X-1150, A-1250-P -1186, 17X-1030, 2297 -b -6554 & 4X-1837 . | 1 | — | Call for availability | ||
| 11 | 43X1150 | Dowel (rear Cover) , | 2 | $92.52 | Add to Cart | |
| 12 | 1205Y1039 | O -ring 5356, 5357, 5359, 5360, | 3 | $52.50 | Add to Cart | |
| 13 | A1250J1128 | Plug Assy, (drain Or Fill) W/o -ring 1 -1/16"-12 Un -2A | 3 | $100.48 | Superseded by A1250T1294Add to Cart | |
| A1250P1186 | Plug Assy, Magnetic (drain Or Fill) 1 -1/16"-12 Un -2A W/o -ring | OPT | $100.48 | Superseded by A1250T1294Add to Cart | ||
| 14 | 3266C1121 | Cover, (8 Bolt Pto) | 1 | $78.32 | Add to Cart | |
| 15 | 1229E1513 | Flat Wshr | 8 | — | Call for availability | |
| 16 | S276A1 | Cap Screw, Replaced By S -276-A-2 | NLA | — | Call for availability | |
| S276A2 | Cap Screw, (pto) 7/16"-14 UNC-2A X 3/4" | 8 | — | Call for availability | ||
| 6 | 43X1193 | Dowel | 2 | — | No longer available — call for replacement | |
| 7 | 2297R6986 | Detent Ball, Range Shift | 1 | $330.00 | Add to Cart | |
| 8 | 2258F1332 | Spring Range Shift Detent 5375 , | 1 | $125.80 | Add to Cart | |
| 9 | 1250R1266 | Plug Range Detent , | 1 | $27.12 | Add to Cart | |
| 10 | 2297Y5849 | Magnet, (trans Case) | 4 | $33.96 | Add to Cart | |
| 11 | N1101 | Nut, 5/8"-18 (rear Support Bracket) | OPT | — | Call for availability | |
| 12 | WA4101 | Lock Wshr, (rear Support Bracket) | OPT | — | Call for availability | |
| 13 | SN10171 | Stud 5/8" X 2-1/8" (rear Support Bracket) , | OPT | — | Call for availability | |
| 14 | A3294Q1031 | Case Assy, Transmission | 1 | — | Call for availability | |
| A3294R1032 | Case Assy, Transmission (pump) | 1 | — | Call for availability | ||
| 15 | 43X1150 | Dowel (rear Cover) , | 2 | $92.52 | Add to Cart | |
| 16 | 1205Y1039 | O -ring 5356, 5357, 5359, 5360, | 3 | $52.50 | Add to Cart | |
| 17 | A1250J1128 | Plug Assy, (drain Or Fill) W/o -ring 1 -1/16"-12 Un -2A | 3 | $100.48 | Superseded by A1250T1294Add to Cart | |
| 18 | 3266C1121 | Cover, (8 Bolt Pto) | 1 | $78.32 | Add to Cart | |
| 19 | 1229E1513 | Flat Wshr | 8 | — | Call for availability | |
| 20 | S276A1 | Cap Screw, Replaced By S -276-A-2 | NLA | — | Call for availability | |
| 1 | S2828A1 | Bolt/capscrew, Replaced By S -2828-A-2 | NLA | — | Call for availability | |
| S2828A2 | Bolt/capscrew, 1/2"-13UNC-2A X 3-1/2" | 2 | — | Call for availability | ||
| 2 | 1229C1511 | Flat Wshr | 4 | — | Call for availability | |
| 3 | 1225X1194 | Bushing | 4 | $51.56 | Add to Cart | |
| 6 | S2811A1 | Bolt/capscrew, Replaced By S -2812-A-2 | NLA | — | Call for availability | |
| S2812A2 | Bolt/capscrew, 1/2"-13 Unc -2A X 1 -1/2" | 2 | — | Call for availability | ||
| 7 | A3282M1001 | Clutch Hsg Assy, (replaced By A-3282-Z-1040) | NLA | — | Call for availability | |
| A3282Z1040 | Clutch Hsg Assy, SAE#1 (above Centerline Pull) , | 1 | $1,949.97 | Add to Cart | ||
| A3282G1021 | Clutch Hsg Assy, (replaced By A-3282-E-1045) | NLA | — | Call for availability | ||
| A3282E1045 | Clutch Hsg Assy, SAE#1 Iron (below Centerline Pull) , | 1 | $1,826.68 | Add to Cart | ||
| A3282V1010 | Clutch Hsg Assy, (replaced By A-3282-V-1036) | NLA | — | Call for availability | ||
| A3282V1036 | Clutch Hsg Assy, SAE#1 Aluminum (above , Centerline Pull) | 1 | $1,949.97 | Superseded by A3282Z1040Add to Cart | ||
| A3282J1024 | Clutch Hsg Assy, (replaced By A-3282-F-1046) | NLA | — | Call for availability | ||
| A3282F1046 | Clutch Hsg Assy, SAE#1 Aluminum (below , Centerline Pull) | 1 | — | Call for availability | ||
| A3282P1030 | Clutch Hsg Assy, (replaced By A-3282-D -1044) | NLA | — | Call for availability | ||
| A3282D1044 | Clutch Hsg Assy, SAE#2, Iron (above Centerline Pull) | 1 | $4,022.72 | Add to Cart | ||
| 8 | 1199H1620 | Oil Fitting Zerk , | 2 | $19.60 | Add to Cart | |
| 9 | 1229B1666 | Flat Wshr 5299, 5300, 5369, 5386 | 4 | — | Call for availability | |
| 10 | S265A1 | Bolt/capscrew, Replaced By S -265-A-2 | NLA | — | Call for availability | |
| S265A2 | Bolt/capscrew, 3/8"-16UNC-2A X 5/8" | 4 | — | Call for availability | ||
| 11 | 3266H1048 | Cover, (clutch Housing) | 1 | $66.76 | Add to Cart | |
| 12 | 4X1837 | Stud | 6 | $83.84 | Add to Cart | |
| 13 | 1229U1503 | Flat Wshr, 5/8" | 6 | — | Call for availability | |
| 14 | N1101 | Nut, 5/8"-18 | 6 | — | Call for availability | |
| 4 | 1199Q901 | Elbow | 1 | — | Call for availability | |
| 5 | 1199B3226 | Oil Fitting Zerk , | 1 | $88.80 | Add to Cart | |
| 7 | A3282T1008 | Clutch Hsg Assy, (replaced By A-3282-X-1038) | NLA | — | Call for availability | |
| A3282X1038 | Clutch Hsg Assy, SAE#1 Iron (above Centerline Pull) , | 1 | — | No longer available — call for replacement | ||
| A3282H1022 | Clutch Hsg Assy, (replaced By A-3282-G -1047) | NLA | — | Call for availability | ||
| A3282G1047 | Clutch Hsg Assy, SAE#1 Iron (below Centerline Pull) , | 1 | — | No longer available — call for replacement | ||
| A3282X1012 | Clutch Hsg Assy, (replaced By A-3282-B -1042) | NLA | — | Call for availability | ||
| A3282B1042 | Clutch Hsg Assy, SAE#1 Aluminum (above , Centerline Pull) | 1 | — | Call for availability | ||
| A3282K1025 | Clutch Hsg Assy, (replaced By A-3282-H -1048) | NLA | — | Call for availability | ||
| A3282H1048 | Clutch Hsg Assy, SAE#1 Aluminum (below , Centerline Pull) | 1 | $680.18 | Add to Cart |
Main Case Input Shaft Bearing Retainer
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S2610A1 | Bolt/capscrew, Replaced By S -2610-A-2 | NLA | — | Call for availability | |
| S2610A2 | Bolt/capscrew, 3/8"-16 Unc X 1 -1/4" | 6 | — | Call for availability | ||
| 2 | 1229B1666 | Flat Wshr 5299, 5300, 5369, 5386 | 6 | — | Call for availability | |
| 3 | 3105K1155 | Retainer | 1 | $151.88 | Add to Cart | |
| 4 | 1205T2308 | Oil Seal (for Shipping Purposes Only. Remove Prior , To Installation .) | NSS | $71.04 | Add to Cart |
Main Gear Input Shaft Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1229W4339 | Snap Ring 5200, 5203, 5215, 5221 5238, 5239, , 5329, 5363, 5367, 5381 5382, , | 1 | $73.20 | Add to Cart | |
| 2 | 1228G1203 | Ball Bearing 5200, 5203, 5220, 5238, 5239, 5356, 5358, 5359, 5360, 5380, 5381 5382, , | 1 | $119.25 | Add to Cart | |
| 3 | 1244C1823 | Spacer, Use With Shaft A-3297 -Y-1351 Replaced By . 1244-J -2194 | NLA | $82.92 | Superseded by 1244J2194Add to Cart | |
| 1244J2194 | Spacer, Use With Shaft A-3297 -b -1380. 5200, 5203, 5238, 5360, 5361 , | 1 | $82.92 | Add to Cart | ||
| 4 | 1229H4168 | Snap Ring, Replaced By 1229-C-4657 5324, 5380, | NLA | $309.68 | Superseded by 1229C4657Add to Cart | |
| 1229C4657 | Snap Ring, (main Drive Gear) 5200, 5203, 5215, 5221 5238, 5239, , 5329, 5367 | 1 | $309.68 | Add to Cart | ||
| 5 | 3892W5015 | M/s Gear, Drive (50T) Dir & 13 Speed O/d | 1 | $344.65 | Add to Cart | |
| 3892V5144 | M/s Gear, Drive (54T) 9-B | 1 | $560.39 | Add to Cart | ||
| 3892N5474 | M/s Gear, Drive (60T) 9-A & R O/d 125, 145 | 1 | $521.90 | Add to Cart | ||
| 3892F5232 | M/s Gear, Drive (60T) 9-A & R O/d 115, 135 | 1 | $388.38 | Add to Cart | ||
| 3892M5473 | M/s Gear, Drive (54T) 10-C O/d All | 1 | $395.51 | Superseded by 3892F5830Add to Cart | ||
| 3892W5015 | M/s Gear, Drive (50T) 13 O/d, 10 Dir 115, 125, 135, 145 | 1 | $344.65 | Add to Cart | ||
| 6 | A43297T1060 | I/p Shaft Assy, (replaced By A-3297 -Y-1351) | NLA | $624.49 | Superseded by KIT5367Add to Cart | |
| A3297C1329 | I/p Shaft Assy, Replaced By A-3297 -Y-1351 | NLA | $624.49 | Superseded by KIT5367Add to Cart | ||
| A3297Y1351 | I/p Shaft Assy, 2" Pull Type (includes 1225-A-1171 Bushing) Use KIT5367 | 1 | $624.49 | Superseded by KIT5367Add to Cart | ||
| 7 | 1225A1171 | Bushing (m/s) 5200, 5203, , 5239, 5356, | 1 | $439.60 | Add to Cart |
Main Gear Main Shaft Assembly 9-Speed Direct Drive
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3107G1073 | Clutch Collar 5200, 5203, 5359, 5360, | 3 | $158.43 | Add to Cart | |
| 2 | 42X1256 | Thrust Wshr, (5.50 Mm) Sn: LB93021753 & Below | AR | $1,612.59 | Superseded by KIT5363Add to Cart | |
| 42X1412 | Thrust Wshr, (6.90 Mm) Sn: LB93021754 & Above 5363 | AR | $77.82 | Superseded by 42X1457Add to Cart | ||
| 42X1255 | Thrust Wshr, (5.60 Mm) (required In Reverse Gear) Sn: LB93021753 & Below | AR | — | Call for availability | ||
| 42X1413 | Thrust Wshr, (7 .00 Mm) (required In Reverse Gear) Sn: LB93021754 & Above | AR | $45.86 | Superseded by 42X1458Add to Cart | ||
| 42X1257 | Thrust Wshr, (5.70 Mm) Sn: LB93021753 & Below 5363 | AR | $1,612.59 | Superseded by KIT5363Add to Cart | ||
| 42X1414 | Thrust Wshr, (7 .10 Mm) Sn: LB93021754 & Above 5363 | AR | $92.58 | Superseded by 42X1459Add to Cart | ||
| 3 | 1244M2041 | Spacer, (main Shaft Gears) 5363 | 5 | $99.68 | Add to Cart | |
| 4 | 3892J5028 | M/s Gear, 3rd (60T) 125, 145, 155 | 1 | $388.38 | Superseded by 3892F5232Add to Cart | |
| 3892F5232 | M/s Gear, 3rd (60T) 115, 135 | 1 | $388.38 | Add to Cart | ||
| 5 | 1229X4418 | Snap Ring, (main Shaft Gears) Sn: LB93021753 & Below | 5 | $54.40 | Add to Cart | |
| 1229W4625 | Snap Ring, (main Shaft Gears) Sn: LB93021754 & 5363 Above | 5 | $46.10 | Add to Cart | ||
| 6 | 3892G5025 | M/s Gear, 2nd (60T) | 1 | $372.11 | Add to Cart | |
| 7 | 3892E5023 | M/s Gear, 1st (64T) | 1 | $503.23 | Add to Cart | |
| 8 | 3892C5021 | M/s Gear, 3/8"-16 Unc -2A X 1 " Flanged (pto) | 1 | $428.24 | Add to Cart | |
| 9 | 3892L5030 | M/s Gear, (6 Bolt Pto) | 1 | $455.22 | Add to Cart | |
| 10 | 43X1158 | Pin, (roll) | 1 | $168.00 | Add to Cart | |
| 11 | 16X1028 | Key, (mainshaft) | 1 | $46.00 | Add to Cart | |
| 12 | 3297X1116 | Main Shaft, Sn: LB93021753 & Below | 1 | — | Call for availability | |
| 3297J1336 | Main Shaft, Sn: LB93021754 & Above, Use KIT5363 5363 | 1 | — | Call for availability | ||
| 13 | 1229W4339 | Snap Ring, (main Shaft Key) 5200, 5203, 5220, 5221 5239, 5324, 5363, 5367, 5381 5382, , | 1 | $73.20 | Add to Cart |

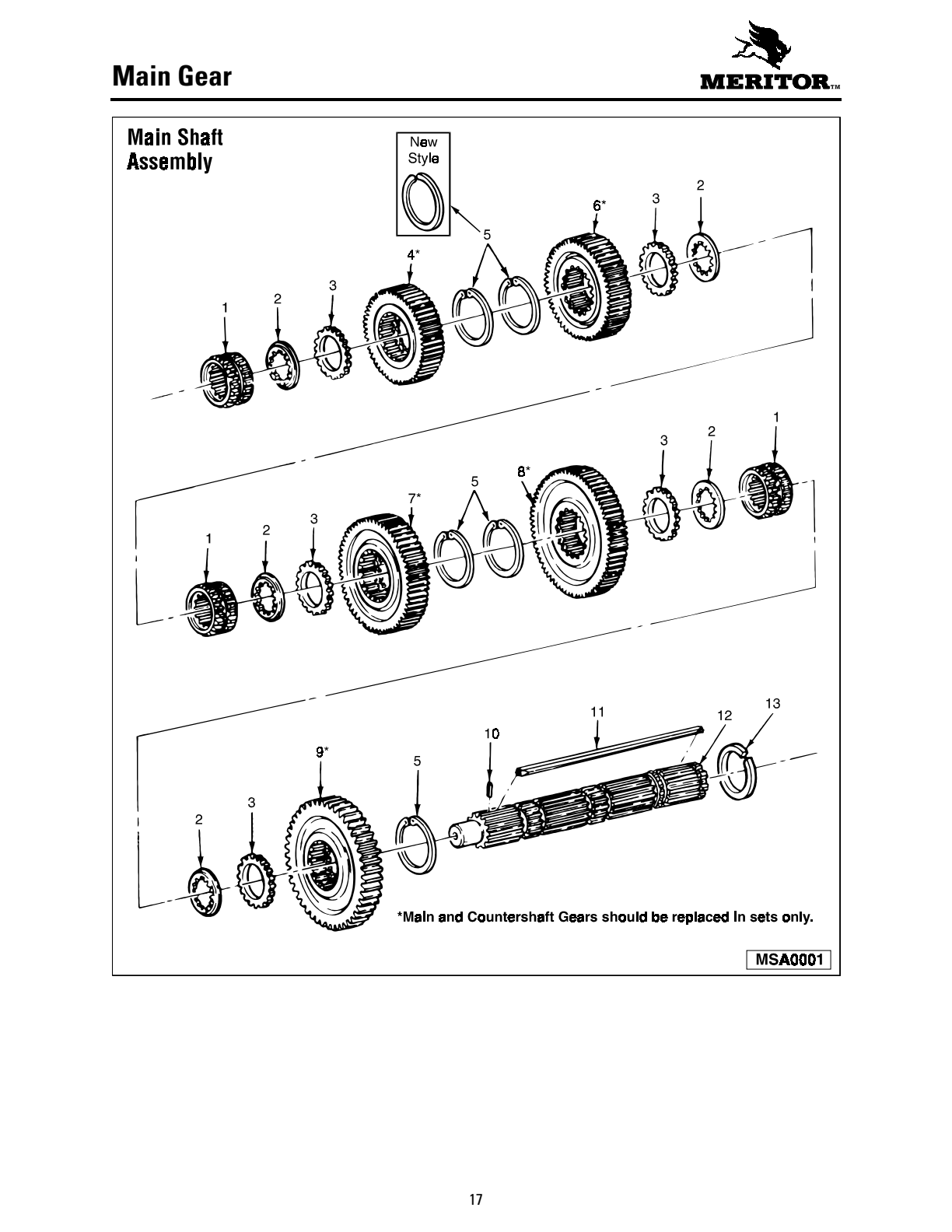

Main Gear Main Shaft Assembly 9-Speed Overdrive “A” Ratio
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3107G1073 | Clutch Collar 5200, 5203, 5359, 5360, | 3 | $158.43 | Add to Cart | |
| 2 | 42X1256 | Thrust Wshr, (5.50 Mm) Sn: LB93021753 & Below | AR | $1,612.59 | Superseded by KIT5363Add to Cart | |
| 42X1412 | Thrust Wshr, (6.90 Mm) Sn: LB93021754 & Above 5363 | AR | $77.82 | Superseded by 42X1457Add to Cart | ||
| 42X1255 | Thrust Wshr, (5.60 Mm) (required In Reverse Gear) Sn: LB93021753 & Below | AR | — | Call for availability | ||
| 42X1413 | Thrust Wshr, (7 .00 Mm) (required In Reverse Gear) Sn: LB93021754 & Above | AR | $45.86 | Superseded by 42X1458Add to Cart | ||
| 42X1257 | Thrust Wshr, (5.70 Mm) Sn: LB93021753 & Below 5363 | AR | $1,612.59 | Superseded by KIT5363Add to Cart | ||
| 42X1414 | Thrust Wshr, (7 .10 Mm) Sn: LB93021754 & Above 5363 | AR | $92.58 | Superseded by 42X1459Add to Cart | ||
| 3 | 1244M2041 | Spacer, (main Shaft Gears) 5363 | 5 | $99.68 | Add to Cart | |
| 4 | 3892W5015 | M/s Gear, Overdrive (50T) 125, 135, 145 | 1 | $344.65 | Add to Cart | |
| 5 | 1229X4418 | Snap Ring, (main Shaft Gears) Sn: LB93021753 & Below | 5 | $54.40 | Add to Cart | |
| 1229W4625 | Snap Ring, (main Shaft Gears) Sn: LB93021754 & 5363 Above | 5 | $46.10 | Add to Cart | ||
| 6 | 3892G5025 | M/s Gear, 2nd (60T) | 1 | $372.11 | Add to Cart | |
| 7 | 3892E5023 | M/s Gear, 1st (64T) | 1 | $503.23 | Add to Cart | |
| 8 | 3892C5021 | M/s Gear, Low (46T) | 1 | $428.24 | Add to Cart | |
| 9 | 3892L5030 | M/s Gear, Reverse (48T) | 1 | $455.22 | Add to Cart | |
| 10 | 43X1158 | Pin, (roll) | 1 | $168.00 | Add to Cart | |
| 11 | 16X1028 | Key, (mainshaft) | 1 | $46.00 | Add to Cart | |
| 12 | 3297X1116 | Main Shaft, Sn: LB93021753 & Below | 1 | — | Call for availability | |
| 3297J1336 | Main Shaft, Sn: LB93021754 & Above, Use KIT5363 5363 | 1 | — | Call for availability | ||
| 13 | 1229W4339 | Snap Ring, (main Shaft Key) 5200, 5203, 5220, 5221 5239, 5324, 5363, 5367, 5381 5382, , | 1 | $73.20 | Add to Cart |
Main Gear Main Shaft Assembly 9-Speed Overdrive “B ” Ratio
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3107G1073 | Clutch Collar 5200, 5203, 5359, 5360, | 3 | $158.43 | Add to Cart | |
| 2 | 42X1256 | Thrust Wshr, (5.50 Mm) Sn: LB93021753 & Below | AR | $1,612.59 | Superseded by KIT5363Add to Cart | |
| 42X1412 | Thrust Wshr, (6.90 Mm) Sn: LB93021754 & Above 5363 | AR | $77.82 | Superseded by 42X1457Add to Cart | ||
| 42X1255 | Thrust Wshr, (5.60 Mm) (required In Reverse Gear) Sn: LB93021753 & Below | AR | — | Call for availability | ||
| 42X1413 | Thrust Wshr, (7 .00 Mm) (required In Reverse Gear) Sn: LB93021754 & Above | AR | $45.86 | Superseded by 42X1458Add to Cart | ||
| 42X1257 | Thrust Wshr, (5.70 Mm) Sn: LB93021753 & Below 5363 | AR | $1,612.59 | Superseded by KIT5363Add to Cart | ||
| 42X1414 | Thrust Wshr, (7 .10 Mm) Sn: LB93021754 & Above 5363 | AR | $92.58 | Superseded by 42X1459Add to Cart | ||
| 3 | 1244M2041 | Spacer, (main Shaft Gears) 5363 | 5 | $99.68 | Add to Cart | |
| 4 | 3892B5150 | M/s Gear, Overdrive (46T) 125, 145, 155 | 1 | — | Call for availability | |
| 3892E5231 | M/s Gear, Overdrive (46T) 115, 135 | 1 | — | No longer available — call for replacement | ||
| 5 | 1229X4418 | Snap Ring, (main Shaft Gears) Sn: LB93021753 & Below | 5 | $54.40 | Add to Cart | |
| 1229W4625 | Snap Ring, (main Shaft Gears) Sn: LB93021754 & 5363 Above | 5 | $46.10 | Add to Cart | ||
| 6 | 3892Z5148 | M/s Gear, 2nd (54T) | 1 | — | No longer available — call for replacement | |
| 7 | 3892X5146 | M/s Gear, 1st (62T) | 1 | $3,477.84 | Add to Cart | |
| 8 | 3892C5021 | M/s Gear, Low | 1 | $428.24 | Add to Cart | |
| 9 | 3892L5030 | M/s Gear, Reverse (48T) | 1 | $455.22 | Add to Cart | |
| 10 | 43X1158 | Pin, (roll) | 1 | $168.00 | Add to Cart | |
| 11 | 16X1028 | Key, (mainshaft) | 1 | $46.00 | Add to Cart | |
| 12 | 3297X1116 | Main Shaft, Sn: LB93021753 & Below | 1 | — | Call for availability | |
| 3297J1336 | Main Shaft, Sn: LB93021754 & Above, Use KIT5363 5363 | 1 | — | Call for availability | ||
| 13 | 1229W4339 | Snap Ring, (main Shaft Key) 5200, 5203, 5220, 5221 5239, 5324, 5363, 5367, 5381 5382, , | 1 | $73.20 | Add to Cart |
Main Gear Main Shaft Assembly 9-Speed Overdrive “R ” Ratio
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3107G1073 | Clutch Collar 5200, 5203, 5359, 5360, | 3 | $158.43 | Add to Cart | |
| 2 | 42X1256 | Thrust Wshr, (5.50 Mm) Sn: LB93021753 & Below | AR | $1,612.59 | Superseded by KIT5363Add to Cart | |
| 42X1412 | Thrust Wshr, (6.90 Mm) Sn: LB93021754 & Above 5363 | AR | $77.82 | Superseded by 42X1457Add to Cart | ||
| 42X1255 | Thrust Wshr, (5.60 Mm) (required In Reverse Gear) Sn: LB93021753 & Below | AR | — | Call for availability | ||
| 42X1413 | Thrust Wshr, (7 .00 Mm) (required In Reverse Gear) Sn: LB93021754 & Above | AR | $45.86 | Superseded by 42X1458Add to Cart | ||
| 42X1257 | Thrust Wshr, (5.70 Mm) Sn: LB93021753 & Below 5363 | AR | $1,612.59 | Superseded by KIT5363Add to Cart | ||
| 42X1414 | Thrust Wshr, (7 .10 Mm) Sn: LB93021754 & Above 5363 | AR | $92.58 | Superseded by 42X1459Add to Cart | ||
| 3 | 1244M2041 | Spacer, (main Shaft Gears) 5363 | 5 | $99.68 | Add to Cart | |
| 4 | 3892P5242 | M/s Gear, Overdrive (48T) 115, 125, 135, 145 | 1 | $299.71 | Add to Cart | |
| 5 | 1229X4418 | Snap Ring, (main Shaft Gears) Sn: LB93021753 & Below | 5 | $54.40 | Add to Cart | |
| 1229W4625 | Snap Ring, (main Shaft Gears) Sn: LB93021754 & 5363 Above | 5 | $46.10 | Add to Cart | ||
| 6 | 3892M5239 | M/s Gear, 3rd (52T) | 1 | — | No longer available — call for replacement | |
| 7 | 3892K5237 | M/s Gear, 2nd (70T) | 1 | — | No longer available — call for replacement | |
| 8 | 3892C5021 | M/s Gear, Low | 1 | $428.24 | Add to Cart | |
| 9 | 3892L5030 | M/s Gear, Reverse (48T) | 1 | $455.22 | Add to Cart | |
| 10 | 43X1158 | Pin, (roll) | 1 | $168.00 | Add to Cart | |
| 11 | 16X1028 | Key, (mainshaft) | 1 | $46.00 | Add to Cart | |
| 12 | 3297X1116 | Main Shaft, Sn: LB93021753 & Below | 1 | — | Call for availability | |
| 3297J1336 | Main Shaft, Sn: LB93021754 & Above, Use KIT5363 5363 | 1 | — | Call for availability | ||
| 13 | 1229W4339 | Snap Ring, (main Shaft Key) 5200, 5203, 5220, 5221 5239, 5324, 5363, 5367, 5381 5382, , | 1 | $73.20 | Add to Cart |
Main Gear Main Shaft Assembly 10-Speed Direct Drive
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3107G1073 | Clutch Collar 5200, 5203, 5359, 5360, | 3 | $158.43 | Add to Cart | |
| 2 | 42X1256 | Thrust Wshr, (5.50 Mm) Sn: LB93021753 & Below | AR | $1,612.59 | Superseded by KIT5363Add to Cart | |
| 42X1255 | Thrust Wshr, (5.60 Mm) Sn: LB93021753 & Below | AR | — | Call for availability | ||
| 42X1257 | Thrust Wshr, (5.70 Mm) Sn: LB93021753 & Below 5363 | AR | $1,612.59 | Superseded by KIT5363Add to Cart | ||
| 42X1412 | Thrust Wshr, (6.90 Mm) Sn: LB93021754 & Above 5363 | AR | $77.82 | Superseded by 42X1457Add to Cart | ||
| 42X1413 | Thrust Wshr, (7 .00 Mm) Sn: LB93021754 & Above | AR | $45.86 | Superseded by 42X1458Add to Cart | ||
| 42X1414 | Thrust Wshr, (7 .10 Mm) Sn: LB93021754 & Above, 5363 Use KIT5363 | AR | $92.58 | Superseded by 42X1459Add to Cart | ||
| 3 | 1244M2041 | Spacer, (main Shaft Gears) 5363 | 5 | $99.68 | Add to Cart | |
| 4 | 3892N5028 | M/s Gear, Overdrive (50T) | 1 | — | Call for availability | |
| 5 | 1229X4418 | Snap Ring, (main Shaft Gears) Sn: LB93021753 & Below | 5 | $54.40 | Add to Cart | |
| 1229W4625 | Snap Ring, (main Shaft Gears) Sn: LB93021754 & 5363 Above | 5 | $46.10 | Add to Cart | ||
| 6 | 3892G5025 | M/s Gear, 3rd (60T) | 1 | $372.11 | Add to Cart | |
| 7 | 3892M5343 | M/s Gear, 2nd (replaced By 3892-M -5395) | NLA | — | Call for availability | |
| 3892M5395 | M/s Gear, 2nd | 1 | $325.05 | Add to Cart | ||
| 8 | 3892N5370 | M/s Gear, 1st (replaced By 3892-F-5414) | NLA | — | Call for availability | |
| 3892F5414 | M/s Gear, 1st, Requires 3297 -n -1366 Countershaft | 1 | — | Call for availability | ||
| 9 | 3892L5030 | M/s Gear, Reverse (48T) | 1 | $455.22 | Add to Cart | |
| 10 | 43X1158 | Pin, (roll) | 1 | $168.00 | Add to Cart | |
| 11 | 16X1028 | Key, (mainshaft) | 1 | $46.00 | Add to Cart | |
| 12 | 3297X1116 | Main Shaft, Sn: LB93021753 & Below, Use KIT5363 | 1 | — | Call for availability | |
| 3297J1336 | Main Shaft, Sn: LB93021754 & Above, Use KIT5363 5363 | 1 | — | Call for availability | ||
| 13 | 1229W4339 | Snap Ring, (main Shaft Key) 5200, 5203, 5220, 5221 5239, 5324, 5363, 5367, 5381 5382, , | 1 | $73.20 | Add to Cart |
Main Gear Main Shaft Assembly 10-Speed Overdrive “A” Ratio
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3107G1073 | Clutch Collar 5200, 5203, 5359, 5360, | 3 | $158.43 | Add to Cart | |
| 2 | 42X1256 | Thrust Wshr, (5.50 Mm) Sn: LB93021753 & Below | AR | $1,612.59 | Superseded by KIT5363Add to Cart | |
| 42X1255 | Thrust Wshr, (5.60 Mm) Sn: LB93021753 & Below | AR | — | Call for availability | ||
| 42X1257 | Thrust Wshr, (5.70 Mm) Sn: LB93021753 & Below 5363 | AR | $1,612.59 | Superseded by KIT5363Add to Cart | ||
| 42X1412 | Thrust Wshr, (6.90 Mm) Sn: LB93021754 & Above 5363 | AR | $77.82 | Superseded by 42X1457Add to Cart | ||
| 42X1413 | Thrust Wshr, (7 .00 Mm) Sn: LB93021754 & Above | AR | $45.86 | Superseded by 42X1458Add to Cart | ||
| 42X1414 | Thrust Wshr, (7 .10 Mm) Sn: LB93021754 & Above 5363 | AR | $92.58 | Superseded by 42X1459Add to Cart | ||
| 3 | 1244M2041 | Spacer, (main Shaft Gears) 5363 | 5 | $99.68 | Add to Cart | |
| 4 | 3892W5015 | M/s Gear, Overdrive (50T) | 1 | $344.65 | Add to Cart | |
| 5 | 1229X4418 | Snap Ring, (main Shaft Gears) Sn: LB93021753 & Below | 5 | $54.40 | Add to Cart | |
| 1229W4625 | Snap Ring, (main Shaft Gears) Sn: LB93021754 & 5363 Above | 5 | $46.10 | Add to Cart | ||
| 6 | 3892G5025 | M/s Gear, 3rd (60T) | 1 | $372.11 | Add to Cart | |
| 7 | 3892M5343 | M/s Gear, 2nd (64T) (replaced By 3892-M -5395) | NLA | — | Call for availability | |
| 3892M5395 | M/s Gear, 2nd (64T) Requires 3892-N -5396 C/s Gear, 2nd | 1 | $325.05 | Add to Cart | ||
| 8 | 3892N5344 | M/s Gear, 1st (66T) (replaced By 3892-F-5414) | NLA | — | Call for availability | |
| 3892F5414 | M/s Gear, 1st (66T) Requires 3297 -n -1366 Countershaft | 1 | — | Call for availability | ||
| 9 | 3892L5030 | M/s Gear, Reverse (48T) | 1 | $455.22 | Add to Cart | |
| 10 | 43X1158 | Pin, (roll) | 1 | $168.00 | Add to Cart | |
| 11 | 16X1028 | Key, (mainshaft) | 1 | $46.00 | Add to Cart | |
| 12 | 3297X1116 | Main Shaft, Sn: LB93021753 & Below, Use KIT5363 | 1 | — | Call for availability | |
| 3297J1336 | Main Shaft, Sn: LB93021754 & Above, Use KIT5363 5363 | 1 | — | Call for availability | ||
| 13 | 1229W4339 | Snap Ring, (mainshaft) 5200, 5203, 5220, 5221 5239, 5324, 5363, 5367, 5381 5382, , | 1 | $73.20 | Add to Cart |
Main Gear Main Shaft Assembly 10-Speed Overdrive “C ” Ratio
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3107G1073 | Clutch Collar 5200, 5203, 5359, 5360, | 3 | $158.43 | Add to Cart | |
| 2 | 42X1412 | Thrust Wshr, (6.90 Mm) 5363 | AR | $77.82 | Superseded by 42X1457Add to Cart | |
| 42X1413 | Thrust Wshr, (7.00 Mm) | AR | $45.86 | Superseded by 42X1458Add to Cart | ||
| 42X1414 | Thrust Wshr, (7.10 Mm) 5363 | AR | $92.58 | Superseded by 42X1459Add to Cart | ||
| 3 | 1244M2041 | Spacer, (main Shaft Gears) 5363 | 5 | $99.68 | Add to Cart | |
| 4 | 3892N5474 | M/s Gear, Overdrive (50T) | 1 | $521.90 | Add to Cart | |
| 5 | 1229W4625 | Snap Ring, (main Shaft Gears) 5363 | 5 | $46.10 | Add to Cart | |
| 6 | 3892Q5477 | M/s Gear, 3rd (62T) | 1 | $571.59 | Add to Cart | |
| 7 | 3892R5478 | M/s Gear, 2nd (70T) | 1 | $424.25 | Superseded by 3892E5829Add to Cart | |
| 8 | 3892F5414 | M/s Gear, 1st (66T) | 1 | — | Call for availability | |
| 9 | 3892L5030 | M/s Gear, Reverse (48T) | 1 | $455.22 | Add to Cart | |
| 10 | 43X1158 | Pin, (roll) | 1 | $168.00 | Add to Cart | |
| 11 | 16X1028 | Key, (mainshaft) | 1 | $46.00 | Add to Cart | |
| 12 | 3297J1336 | Main Shaft 5363 | 1 | — | Call for availability | |
| 13 | 1229W4339 | Snap Ring, (main Shaft Key) 5200, 5203, 5220, 5221 5239, 5324, 5363, 5367, 5381 5382, , | 1 | $73.20 | Add to Cart |

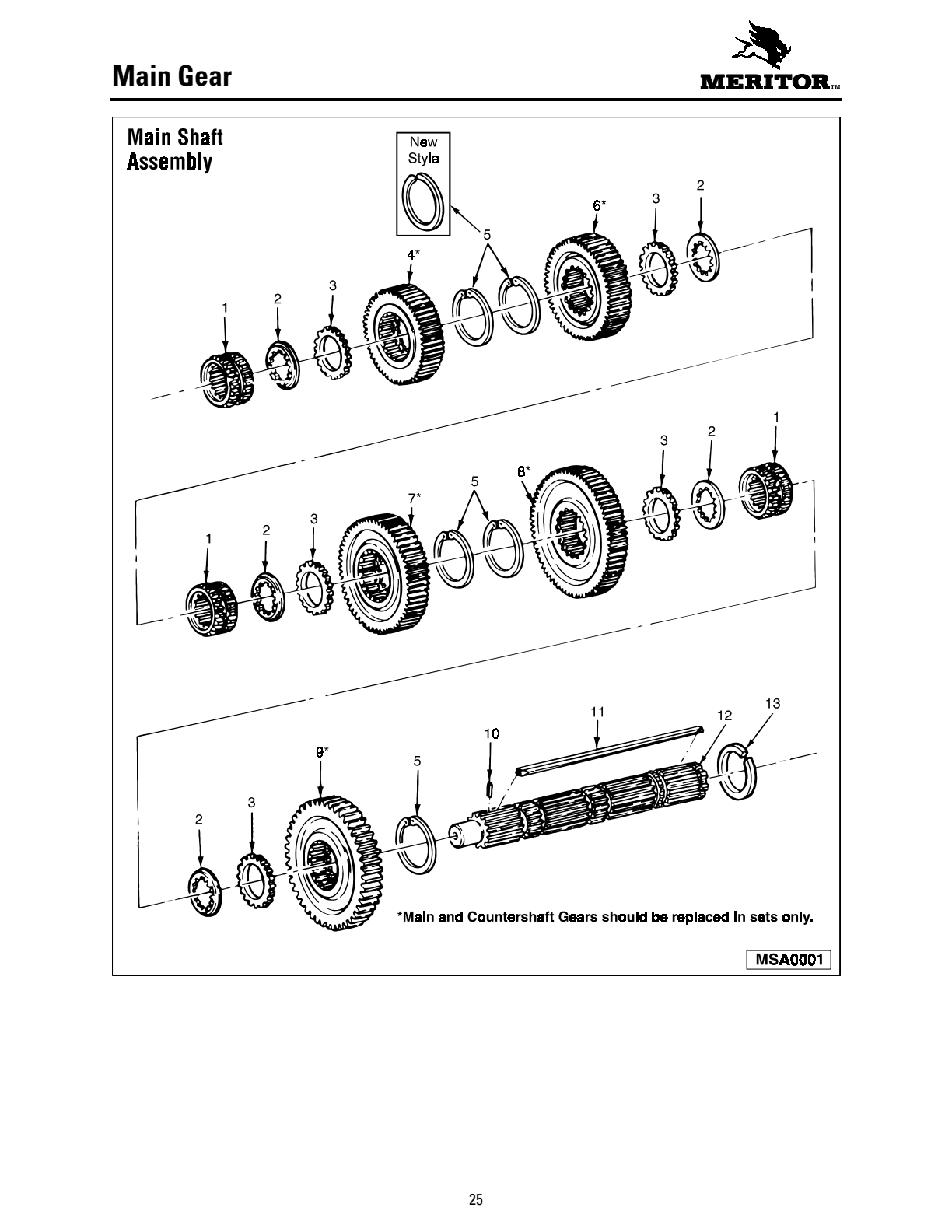

Main Gear Main Shaft Assembly 13-Speed Overdrive
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3107G1073 | Clutch Collar 5200, 5203, 5359, 5360, | 3 | $158.43 | Add to Cart | |
| 2 | 42X1256 | Thrust Wshr, (5.50 Mm) Sn: LB93021753 & Below | AR | $1,612.59 | Superseded by KIT5363Add to Cart | |
| 42X1412 | Thrust Wshr, (6.90 Mm) Sn: LB93021754 & Above 5363 | AR | $77.82 | Superseded by 42X1457Add to Cart | ||
| 42X1255 | Thrust Wshr, (5.60 Mm) (required In Reverse Gear) Sn: LB93021753 & Below | AR | — | Call for availability | ||
| 42X1413 | Thrust Wshr, (7 .00 Mm) (required In Reverse Gear) Sn: LB93021754 & Above | AR | $45.86 | Superseded by 42X1458Add to Cart | ||
| 42X1257 | Thrust Wshr, (5.70 Mm) Sn: LB93021753 & Below 5363 | AR | $1,612.59 | Superseded by KIT5363Add to Cart | ||
| 42X1414 | Thrust Wshr, (7 .10 Mm) Sn: LB93021654 & Above 5363 | AR | $92.58 | Superseded by 42X1459Add to Cart | ||
| 3 | 1244M2041 | Spacer, (main Shaft Gears) 5363 | 5 | $99.68 | Add to Cart | |
| 4 | 3892J5028 | M/s Gear, 3rd (60T) | 1 | $388.38 | Superseded by 3892F5232Add to Cart | |
| 5 | 1229X4418 | Snap Ring, (main Shaft Gears) Sn: LB93021753 & Below | 5 | $54.40 | Add to Cart | |
| 1229W4625 | Snap Ring, (main Shaft Gears) Sn: LB93021754 & 5363 Above | 5 | $46.10 | Add to Cart | ||
| 6 | 3892G5025 | M/s Gear, 2nd (60T) | 1 | $372.11 | Add to Cart | |
| 7 | 3892E5023 | M/s Gear, 1st (64T) | 1 | $503.23 | Add to Cart | |
| 8 | 3892C5021 | M/s Gear, Low (46T) | 1 | $428.24 | Add to Cart | |
| 9 | 3892L5030 | M/s Gear, Reverse (48T) | 1 | $455.22 | Add to Cart | |
| 10 | 43X1158 | Pin, (roll) | 1 | $168.00 | Add to Cart | |
| 11 | 16X1028 | Key, (mainshaft) | 1 | $46.00 | Add to Cart | |
| 12 | 3297X1116 | Main Shaft, Sn: LB93021753 & Below | 1 | — | Call for availability | |
| 3297J1336 | Main Shaft, Sn: LB93021754 & Above, Use KIT5363 5363 | 1 | — | Call for availability | ||
| 13 | 1229W4339 | Snap Ring, (main Shaft Key) 5200, 5203, 5220, 5221 5239, 5324, 5363, 5367, 5381 5382, , | 1 | $73.20 | Add to Cart |

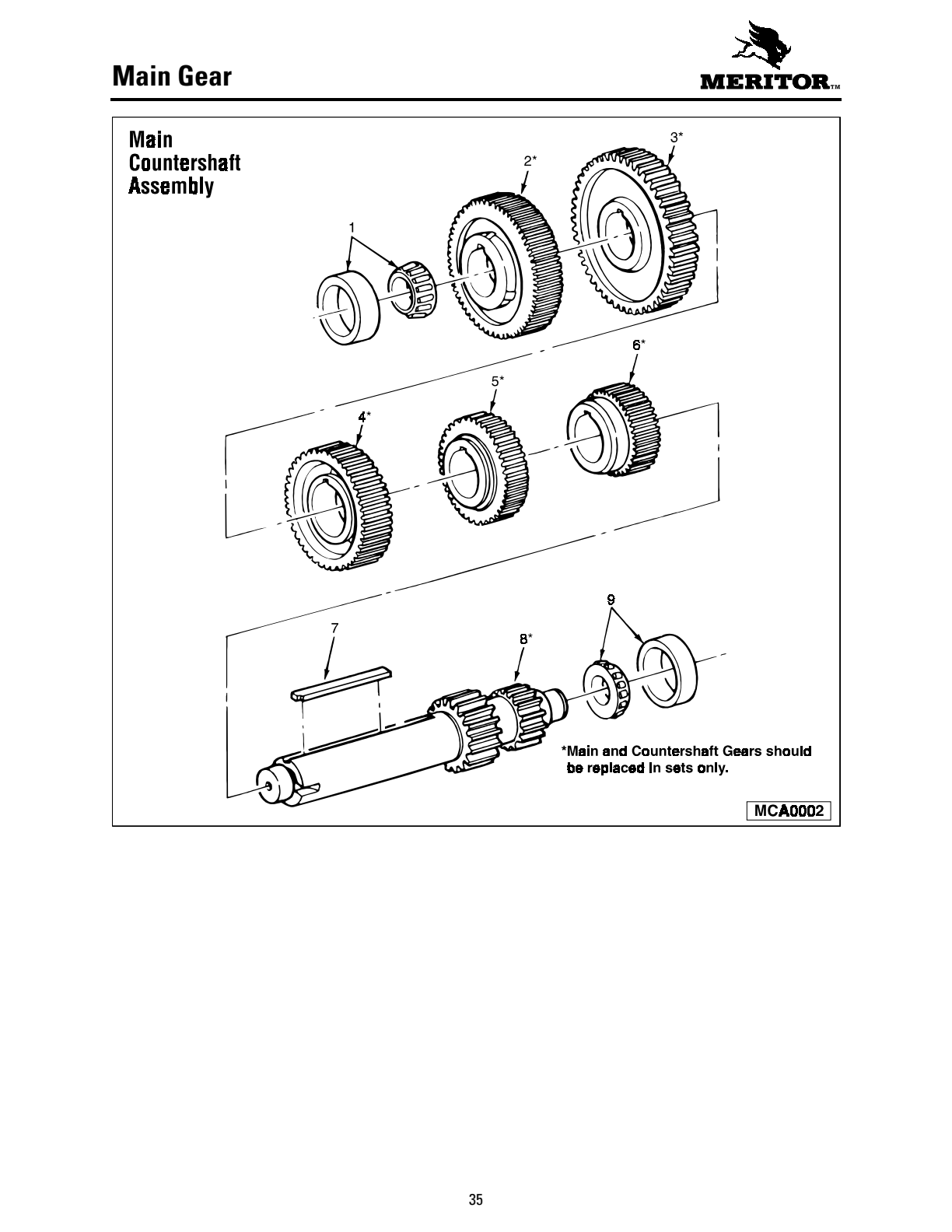

Main Gear Main Countershaft Assembly 9-Speed Direct Drive
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A1228W1349 | Bearing Assy, Cup & Cone (main Countershaft Front) 5380, 5381 | 2 | $110.12 | Add to Cart | |
| A1228T1346 | Bearing Assy, Cup & Cone (main Countershaft Front) 5356, 5357, 5359, 5360, 5383, 5384 | 2 | $222.07 | Add to Cart | ||
| 2 | 3892Q5035 | C/s Gear, Drive (66T) | 2 | $509.49 | Add to Cart | |
| 3 | 3892U5013 | C/s Gear, Pto (45T) | 2 | — | No longer available — call for replacement | |
| 4 | 3892Y5017 | C/s Gear, 3rd (59T) | 2 | $360.67 | Add to Cart | |
| 5 | 3892S5011 | C/s Gear, 2nd (43T) | 2 | $495.63 | Add to Cart | |
| 6 | 3892A5019 | C/s Gear, 1st (33T) | 2 | — | No longer available — call for replacement | |
| 7 | 16X1027 | Key, (countershaft) | 2 | $13.25 | Add to Cart | |
| 16X1031 | Key, (countershaft) | 2 | $59.12 | Superseded by 16X1040Add to Cart | ||
| 8 | 43X1158 | Pin, (roll) | 2 | $168.00 | Add to Cart | |
| 9 | 3297X1090 | Countershaft, (16/17T) Requires 43X-1158, Pin | 2 | $761.84 | Add to Cart | |
| 3297K1259 | Countershaft, (16/17T) | 2 | $791.60 | Add to Cart | ||
| 10 | A1228V1348 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5380, 5381 | 2 | $190.44 | Add to Cart | |
| A1228S1345 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5239, 5356, 5358, 5359, 5361 5383, , | 2 | $149.17 | Add to Cart |
Main Gear Main Countershaft Assembly 9-Speed Overdrive “A” Ratio
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A1228W1349 | Bearing Assy, Cup & Cone (main Countershaft Front) 5380, 5381 | 2 | $110.12 | Add to Cart | |
| A1228T1346 | Bearing Assy, Cup & Cone (main Countershaft Front) 5356, 5357, 5359, 5360, 5383, 5384 | 2 | $222.07 | Add to Cart | ||
| 2 | 3892K5159 | C/s Gear, Drive (59T) | 2 | $401.97 | Add to Cart | |
| 3 | 3892U5013 | C/s Gear, Pto (45T) | 2 | — | No longer available — call for replacement | |
| 4 | 3892H5156 | C/s Gear, Overdrive (66T) | 2 | $468.72 | Add to Cart | |
| 5 | 3892S5011 | C/s Gear, 2nd (43T) | 2 | $495.63 | Add to Cart | |
| 6 | 3892A5019 | C/s Gear, 1st (33T) | 2 | — | No longer available — call for replacement | |
| 7 | 16X1027 | Key, (countershaft) | 2 | $13.25 | Add to Cart | |
| 16X1031 | Key, (countershaft) | 2 | $59.12 | Superseded by 16X1040Add to Cart | ||
| 8 | 43X1158 | Pin, (roll) | 2 | $168.00 | Add to Cart | |
| 9 | A3297X1090 | Countershaft, (16/17T) Requires 43X-1158, Pin | 2 | — | Call for availability | |
| 3297K1259 | Countershaft, (16/17T) | 2 | $791.60 | Add to Cart | ||
| 10 | A1228V1348 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5380, 5381 | 2 | $190.44 | Add to Cart | |
| A1228S1345 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5239, 5356, 5358, 5359, 5361 5383, , | 2 | $149.17 | Add to Cart |
Main Gear Main Countershaft Assembly 9-Speed Overdrive “B ” Ratio
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A1228W1349 | Bearing Assy, Cup & Cone (main Countershaft Front) 5380, 5381 | 2 | $110.12 | Add to Cart | |
| A1228T1346 | Bearing Assy, Cup & Cone (main Countershaft Front) 5356, 5357, 5359, 5360, 5383, 5384 | 2 | $222.07 | Add to Cart | ||
| 2 | 3892M5135 | C/s Gear, Drive (62T) | 2 | $408.54 | Add to Cart | |
| 3 | 3892U5013 | C/s Gear, Pto (45T) | 2 | — | No longer available — call for replacement | |
| 4 | 3892T5142 | C/s Gear, Overdrive (73T) | 2 | $739.98 | Add to Cart | |
| 5 | 3892R5140 | C/s Gear, 2nd (44T) | 2 | $356.10 | Add to Cart | |
| 6 | 3892P5138 | C/s Gear, 1st (36T) | 2 | — | No longer available — call for replacement | |
| 7 | 16X1027 | Key, (countershaft) | 2 | $13.25 | Add to Cart | |
| 16X1031 | Key, (countershaft) | 2 | $59.12 | Superseded by 16X1040Add to Cart | ||
| 8 | 43X1158 | Pin, (roll) | 2 | $168.00 | Add to Cart | |
| 9 | 3297X1090 | Countershaft, (16/17T) Requires 43X-1158, Pin | 2 | $761.84 | Add to Cart | |
| 3297K1259 | Countershaft, (16/17T) | 2 | $791.60 | Add to Cart | ||
| 10 | A1228V1348 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5380, 5381 | 2 | $190.44 | Add to Cart | |
| A1228S1345 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5239, 5356, 5358, 5359, 5361 5383, , | 2 | $149.17 | Add to Cart |
Main Gear Main Countershaft Assembly 9-Speed Overdrive “R ” Ratio
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A1228W1349 | Bearing Assy, Cup & Cone (main Countershaft Front) 5380, 5381 | 2 | $110.12 | Add to Cart | |
| A1228T1346 | Bearing Assy, Cup & Cone (main Countershaft Front) 5356, 5357, 5359, 5360, 5383, 5384 | 2 | $222.07 | Add to Cart | ||
| 2 | 3892K5159 | C/s Gear, Drive (59T) | 2 | $401.97 | Add to Cart | |
| 3 | 3892U5013 | C/s Gear, Pto (45T) | 2 | — | No longer available — call for replacement | |
| 4 | 3892V5248 | C/s Gear, Overdrive (59T) | 2 | $174.17 | Add to Cart | |
| 5 | 3892T5246 | C/s Gear, 3rd (36T) | 2 | $397.53 | Add to Cart | |
| 6 | 3892R5244 | C/s Gear, 2nd (34T) | 2 | — | No longer available — call for replacement | |
| 7 | 16X1027 | Key, (countershaft) | 2 | $13.25 | Add to Cart | |
| 16X1031 | Key, (countershaft) | 2 | $59.12 | Superseded by 16X1040Add to Cart | ||
| 8 | 43X1158 | Pin, (roll) | 2 | $168.00 | Add to Cart | |
| 9 | 3297X1090 | Countershaft, (16/17T) Requires 43X-1158, Pin | 2 | $761.84 | Add to Cart | |
| 3297K1259 | Countershaft, (16/17T) | 2 | $791.60 | Add to Cart | ||
| 10 | A1228V1348 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5380, 5381 | 2 | $190.44 | Add to Cart | |
| A1228S1345 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5239, 5356, 5358, 5359, 5361 5383, , | 2 | $149.17 | Add to Cart |
Main Gear Main Countershaft Assembly 10-Speed Direct Drive
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A1228T1346 | Bearing Assy, Cup & Cone (main Countershaft Front) 5356, 5357, 5359, 5360, 5383, 5384 | 2 | $222.07 | Add to Cart | |
| 2 | 3892Q5035 | C/s Gear, Drive (62T) | 2 | $509.49 | Add to Cart | |
| 3 | 3892U5013 | C/s Gear, Pto (45T) | 2 | — | No longer available — call for replacement | |
| 4 | 3892Y5017 | C/s Gear, (59T) | 2 | $360.67 | Add to Cart | |
| 5 | 3892S5011 | C/s Gear, 3rd (43T) | 2 | $495.63 | Add to Cart | |
| 6 | 3892N5396 | C/s Gear, 2nd (34T) | 2 | $274.15 | Add to Cart | |
| 7 | 16X1031 | Key, (countershaft) | 2 | $59.12 | Superseded by 16X1040Add to Cart | |
| 8 | 3297N1366 | Countershaft, (17/26T) Requires 3892-F-5414 M/s 5363 Gear, 1st | 2 | $1,594.18 | Add to Cart | |
| 9 | A1228S1345 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5239, 5356, 5358, 5359, 5361 5383, , | 2 | $149.17 | Add to Cart |
Main Gear Main Countershaft Assembly 10-Speed Overdrive “A” Ratio
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A1228T1346 | Bearing Assy, Cup & Cone (main Countershaft Front) 5356, 5357, 5359, 5360, 5383, 5384 | 2 | $222.07 | Add to Cart | |
| 2 | 3892K5159 | C/s Gear, Drive (59T) | 2 | $401.97 | Add to Cart | |
| 3 | 3892U5013 | C/s Gear, Pto (45T) | 2 | — | No longer available — call for replacement | |
| 4 | 3892H5156 | C/s Gear, Overdrive (66T) | 2 | $468.72 | Add to Cart | |
| 5 | 3892S5011 | C/s Gear, 3rd (43T) | 2 | $495.63 | Add to Cart | |
| 6 | 3892L5342 | C/s Gear, 2nd (34T) (replaced By 3892-N -5396) | NLA | — | Call for availability | |
| 3892N5396 | C/s Gear, 2nd (34T) Requires 3892-M -5395 M/s Gear, 2nd | 2 | $274.15 | Add to Cart | ||
| 7 | 16X1031 | Key, (countershaft) | 2 | $59.12 | Superseded by 16X1040Add to Cart | |
| 8 | 3297H1282 | Countershaft, (26/18T) (replaced By 3297 -n -1366) | NLA | — | Call for availability | |
| 3297V1348 | Countershaft, (26/18T) (replaced By 3297 -n -1366) | NLA | — | Call for availability | ||
| 3297H1334 | Countershaft, (26/18T) (replaced By 3297 -n -1366) | NLA | — | Call for availability | ||
| 3297N1366 | Countershaft, (26/18T) Requires 3892-L-5394 M/s 5363 Gear, 1st | 2 | $1,594.18 | Add to Cart | ||
| 9 | A1228S1345 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5239, 5356, 5358, 5359, 5361 5383, , | 2 | $149.17 | Add to Cart |
Main Gear Main Countershaft Assembly 10-Speed Overdrive “C” Ratio
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A1228T1346 | Bearing Assy, Cup & Cone (main Countershaft Front) 5356, 5357, 5359, 5360, 5383, 5384 | 2 | $222.07 | Add to Cart | |
| 2 | 3892S5479 | C/s Gear, Drive (59T) | 2 | $396.26 | Add to Cart | |
| 3 | 3892U5013 | C/s Gear, Pto (45T) | 2 | — | No longer available — call for replacement | |
| 4 | 3892V5482 | C/s Gear, Overdrive (66T) | 2 | $445.50 | Add to Cart | |
| 5 | 3892T5480 | C/s Gear, 3rd (43T) | 2 | $376.68 | Add to Cart | |
| 6 | 3892U5481 | C/s Gear, 2nd (34T) | 2 | $518.38 | Superseded by 3892H5832Add to Cart | |
| 7 | 16X1031 | Key, (countershaft) | 2 | $59.12 | Superseded by 16X1040Add to Cart | |
| 8 | 3297N1366 | Countershaft, (26/18T) Requires 3892-F-5414 M/s 5363 Gear, 1st | 2 | $1,594.18 | Add to Cart | |
| 9 | A1228S1345 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5239, 5356, 5358, 5359, 5361 5383, , | 2 | $149.17 | Add to Cart |
Main Gear Main Countershaft Assembly 13-Speed Overdrive
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A1228W1349 | Bearing Assy, Cup & Cone (main Countershaft Front) 5380, 5381 | 2 | $110.12 | Add to Cart | |
| A1228T1346 | Bearing Assy, Cup & Cone (main Countershaft Front) 5356, 5357, 5359, 5360, 5383, 5384 | 2 | $222.07 | Add to Cart | ||
| 2 | 3892Q5035 | C/s Gear, Drive (66T) | 2 | $509.49 | Add to Cart | |
| 3 | 3892U5013 | C/s Gear, Pto (45T) | 2 | — | No longer available — call for replacement | |
| 4 | 3892Y5017 | C/s Gear, 3rd (59T) | 2 | $360.67 | Add to Cart | |
| 5 | 3892S5011 | C/s Gear, 2nd (43T) | 2 | $495.63 | Add to Cart | |
| 6 | 3892A5019 | C/s Gear, 1st (33T) | 2 | — | No longer available — call for replacement | |
| 7 | 16X1027 | Key, (countershaft) | 2 | $13.25 | Add to Cart | |
| 16X1031 | Key, (countershaft) | 2 | $59.12 | Superseded by 16X1040Add to Cart | ||
| 8 | 43X1158 | Pin, (roll) | 2 | $168.00 | Add to Cart | |
| 9 | 3297X1090 | Countershaft, (16/17T) Requires 43X-1158, Pin | 2 | $761.84 | Add to Cart | |
| 3297K1259 | Countershaft, (16/17T) | 2 | $791.60 | Add to Cart | ||
| 10 | A1228V1348 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5380, 5381 | 2 | $190.44 | Add to Cart | |
| A1228S1345 | Bearing Assy, Cup & Cone (main Countershaft Rear) 5239, 5356, 5358, 5359, 5361 5383, , | 2 | $149.17 | Add to Cart |
Main Gear
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1229C1121 | Snap Ring, Not Required | NLA | — | Call for availability | |
| 2 | KIT5325 | Service Kit, Snap Ring Kit, Main Countershaft 5322, 5381 | AR | $389.02 | Add to Cart | |
| 3 | 10X1537 | Special Screw | 8 | $58.50 | Add to Cart | |
| 4 | 3105E1175 | Retainer, Countershaft Front Bearing | 2 | $33.74 | Add to Cart | |
| 5 | KIT5364 | Service Kit, Shim Kit, Main Countershaft Front 5332, 5383, Bearing | AR | $46.90 | Add to Cart | |
| 6 | 1229E4243 | Snap Ring, Replaced By 1229-B -4656 | NLA | $53.04 | Superseded by 1229B4656Add to Cart | |
| 1229B4656 | Snap Ring, (main Countershaft Rear) 5200, 5203, 5221 5238, , | 2 | $53.04 | Add to Cart | ||
| 7 | 3105B1172 | Retainer, Countershaft Rear Bearing S/n LB93017864 & Below, Uses 6 S -268-1 Bolts | 2 | $18.58 | Add to Cart | |
| 3105Y1195 | Retainer, Countershaft Rear Bearing S/n LB93017865 & Above, Uses 10 S -268-1 Bolts | 2 | — | No longer available — call for replacement | ||
| 8 | S2681 | Bolt/capscrew, Replaced By S -268-2 | NLA | — | Call for availability | |
| S2682 | Bolt/capscrew, (3/8"-16 Unc -2b 1 " Lng) Note: Use 10 For 3105-Y-1195, Use 6 For 3105-B -1172. | 6 | — | Call for availability | ||
| 1 | NL1101 | Lock Nut, (reverse Idler Shaft) | 2 | — | Call for availability | |
| 2 | 1229N1626 | Flat Wshr | 2 | — | Call for availability | |
| 3 | 42X1258 | Thrust Wshr | 4 | $15.44 | Add to Cart | |
| 4 | A1228E1175 | Bearing Assy, (includes: 1228-E-1175, Needle 5380, 5381 Bearing & 2297-S -5765, Inner Bearing Race) 5383, 5384 | 2 | $123.21 | Add to Cart | |
| 5 | 3892N5032 | Idler Gear, Reverse (28T) | 2 | — | No longer available — call for replacement | |
| 6 | 3198D1070 | Idler Shaft, (rev) | 2 | $18.63 | Add to Cart |

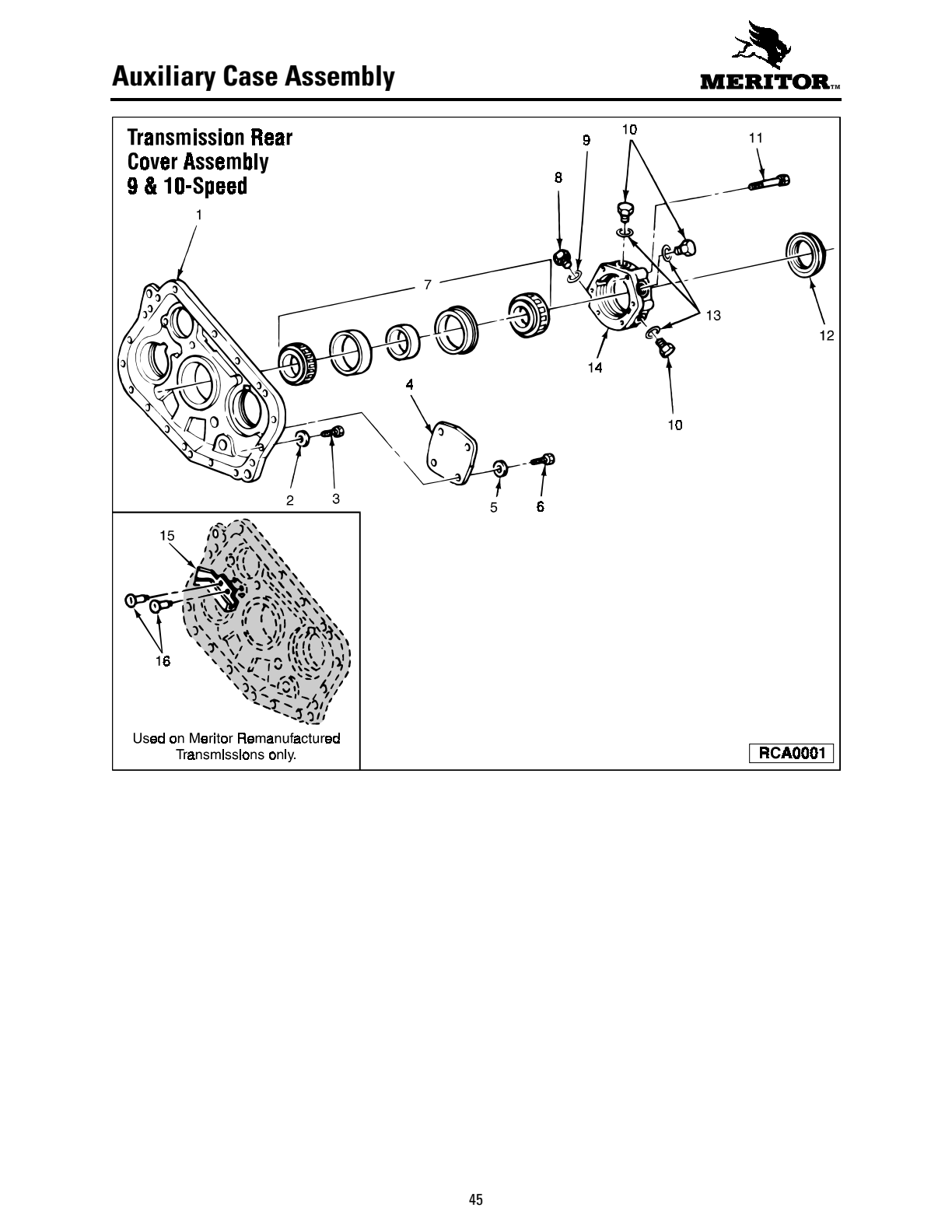

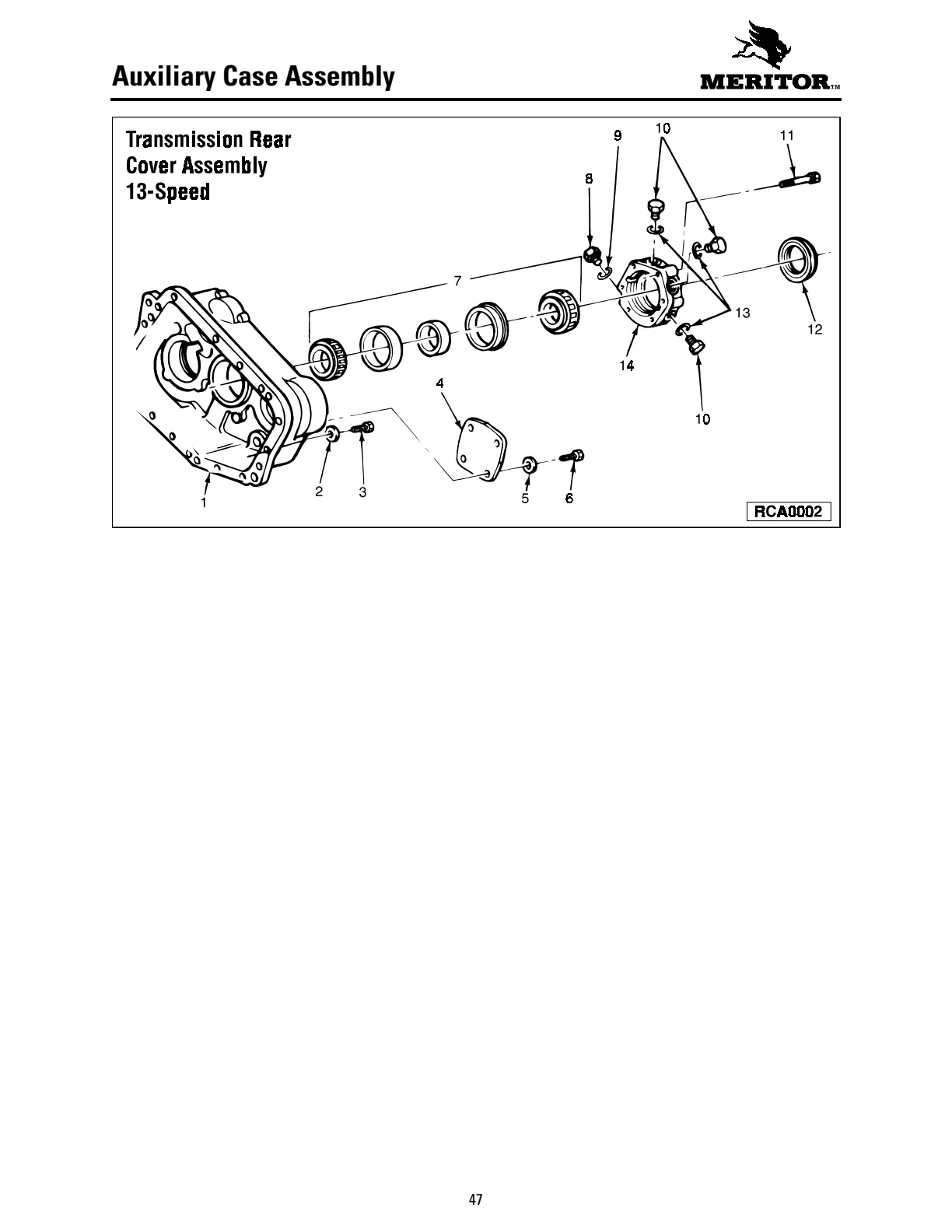

Auxiliary Case Assembly
Click a number on the diagram to highlight that part below.

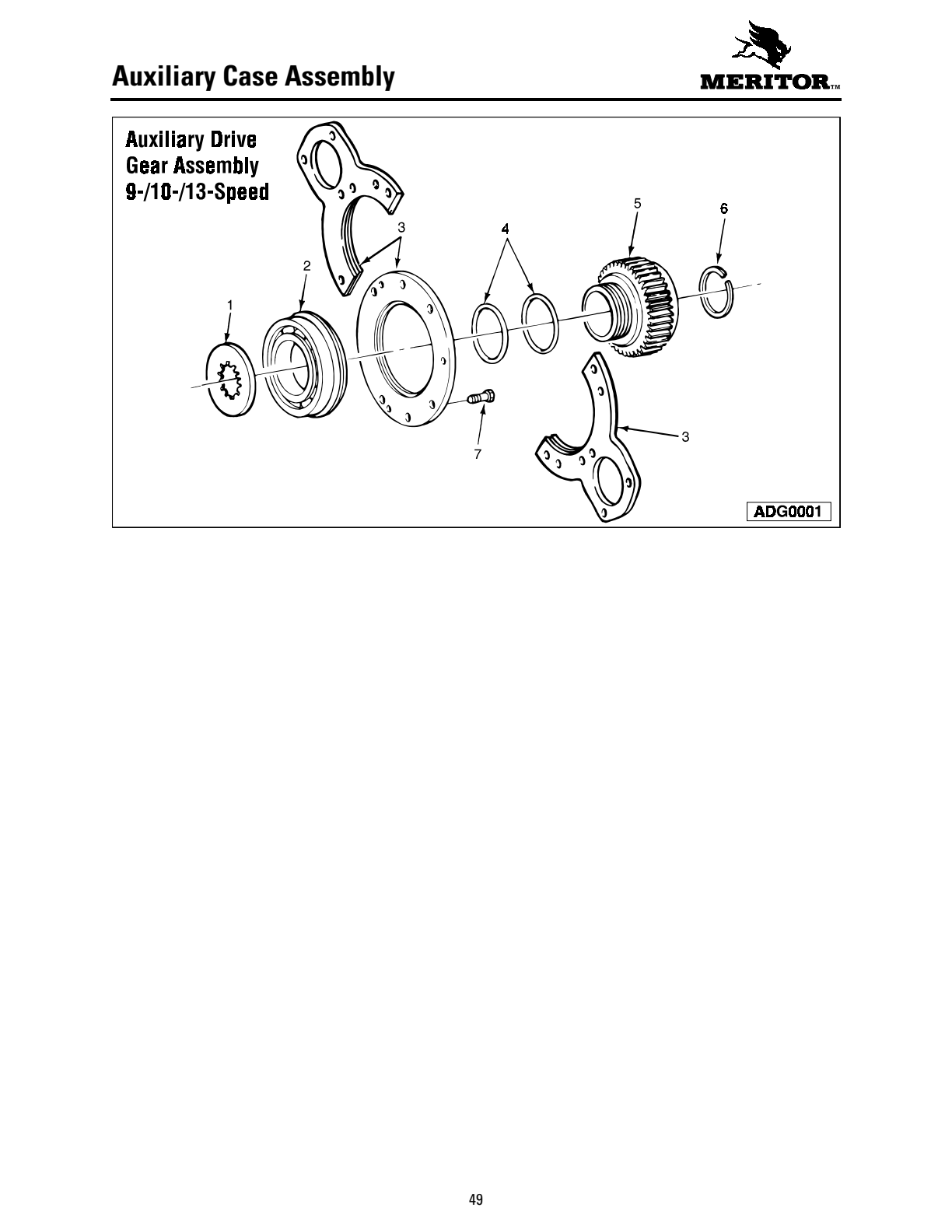

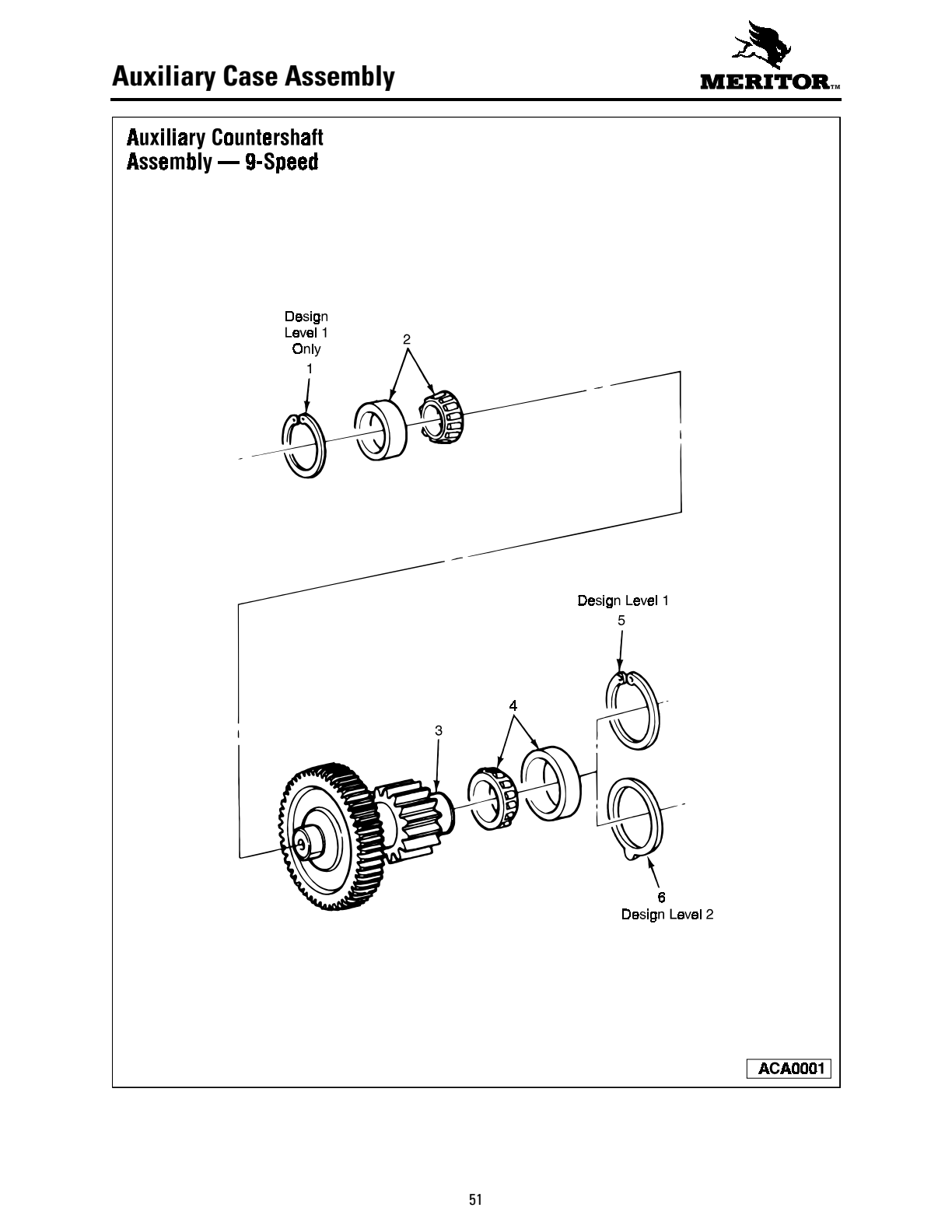

| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3293B1016 | Cover, Rear 9, 115, 125 Only | 1 | — | Call for availability | |
| 3293Z1014 | Cover, Rear 135, 145 Only | 1 | — | Call for availability | ||
| 3293W1037 | Cover, Rear 9 & 10 115, 125 (replaced By 3293-Z-1066) | NLA | — | Call for availability | ||
| 3293Z1066 | Cover, Rear 9 & 10 115, 125 (c-ratio 10-Speed Uses 3293-A-1067 For All Models) | 1 | — | Call for availability | ||
| 3293X1038 | Cover, Rear 9 & 10 135, 145, 155, 165 (sn: LB93021753 & Below) (replaced By 3293-A-1067) | NLA | — | Call for availability | ||
| 3293A1067 | Cover, Rear 9 & 10 135, 145, 155, 165 (sn: LB93021754 & Above) All Models C-ratio 10-Speed | 1 | $656.86 | Add to Cart | ||
| 2 | 1229B1666 | Flat Wshr 5299, 5300, 5369, 5386 | 18 | — | Call for availability | |
| 3 | S2612A1 | Bolt/capscrew, Replaced By S -2612-A-2 | NLA | — | Call for availability | |
| S2612A2 | Bolt/capscrew, 3/8"-16UNC-2A X 1 -1/2" | 18 | — | Call for availability | ||
| 4 | 3266G1151 | Cover, Replaced By 3266-D -1278 | NLA | — | Call for availability | |
| 3266D1278 | Cover, Bearing Aux., Countershaft Rear 9 & 10 | 2 | $182.72 | Add to Cart | ||
| 5 | 1229B1666 | Flat Wshr, (bearing Cover) 5299, 5300, 5369, 5386 | 8 | — | Call for availability | |
| 6 | S2681 | Bolt/capscrew, Replaced By S -268-2 | NLA | — | Call for availability | |
| S2682 | Bolt/capscrew, (aux. Countershaft Bearing Cover) | 8 | — | Call for availability | ||
| 7 | A1228K1207 | Bearing Assy, Output 9, 115, 125 Only 5200, 5220, | 1 | $261.81 | Add to Cart | |
| A1228M1209 | Bearing Assy, Output 135, 145 Only 5203, 5221 5239, 5381 | 1 | $1,099.36 | Add to Cart | ||
| A1228G1307 | Bearing Assy, Output 9 & 10 115, 125 5356, 5359, | 1 | $1,584.14 | Add to Cart | ||
| A1228H1308 | Bearing Assy, Output 9 & 10 135, 145, 155 5357, 5358, 5361 5383 , | 1 | $699.34 | Add to Cart | ||
| 8 | A1850R18 | Plug Assy, (mechanical Speedometer) | 1 | $20.03 | Add to Cart | |
| 9 | 5X1092 | O -ring | 1 | $82.20 | Add to Cart | |
| 10 | A1250H1126 | Plug Assy, (elec Speedo) W/o -ring | 3 | $72.44 | Add to Cart | |
| 11 | S2624A1 | Bolt/capscrew, Replaced By S -2624-A-2 | NLA | $37.80 | Add to Cart | |
| S2624A2 | Bolt/capscrew, 3/8"-16 Unc -2A X 2-3/4" (rear Retainer) | 6 | — | Call for availability | ||
| 12 | A1205M2223 | Oil Seal Assy, (replaced By A1 -1205-W-2467, Order KIT5365) | NLA | $87.47 | Superseded by KIT5389Add to Cart | |
| A1205W2311 | Oil Seal Assy, (replaced By A1 -1205-W-2467, 5200, 5203, Order KIT5365) 5221 5238, , | NLA | $87.47 | Superseded by KIT5389Add to Cart | ||
| A11205W2467 | Oil Seal Assy, Order KIT5365 5365 | 1 | $87.47 | Superseded by KIT5389Add to Cart | ||
| 13 | 1205T1268 | O -ring (elect Speedo) 5356, 5357, , 5359, 5360, | 3 | $147.00 | Add to Cart | |
| 14 | 3105D1096 | Retainer, (replaced By 3105-T-1190) | NLA | — | Call for availability | |
| 3105K1181 | Retainer, (replaced By 3105-T-1190) | NLA | — | Call for availability | ||
| 3105T1190 | Retainer, Output Bearing 115, 125 | 1 | — | No longer available — call for replacement | ||
| 3105L1182 | Retainer, (replaced By 3105-Q-1135) | NLA | — | Call for availability | ||
| 3105Q1135 | Retainer, Output Bearing 135, 145 | 1 | — | Call for availability | ||
| 3105U1191 | Retainer, Output Bearing 115, 125, 135, 145, 155, 165 | 1 | $5,600.22 | Add to Cart | ||
| 15 | 3221X1012 | Oil Trough | 1 | — | Call for availability | |
| 16 | 19X1126 | Pin | 2 | — | Call for availability | |
| 1 | 3293D1018 | Cover, Rear | 1 | — | Call for availability | |
| 3293V1036 | Cover, Rear (replaced By 3293-B -1068) | NLA | — | Call for availability | ||
| 3293B1068 | Cover, Rear | 1 | $666.98 | Add to Cart | ||
| 6 | S268A1 | Bolt/capscrew, Replaced By S -268-A-2 | NLA | — | Call for availability | |
| S268A2 | Bolt/capscrew, (aux. Countershaft Bearing Cover) | 8 | — | Call for availability | ||
| 7 | A1228M1209 | Bearing Assy, (output) 5203, 5221 5239, 5381 | 1 | $1,099.36 | Add to Cart | |
| 14 | 3105Q1135 | Retainer, Output Bearing Note: If Electronic Speedometer Pickup Is Nonadjustable It May Not Work On Current Production Retainer. See Oem Dealer For Correct Speedometer Pickup If . Mechanical Speedometer Is Used, The Retainer Requires 1225-Z-1170 Bushing . | 1 | — | Call for availability | |
| 1 | 42X1250 | Thrust Wshr | 1 | $71.65 | Add to Cart | |
| 2 | A1228H1204 | Bearing Assy, (ball) 5200, 5203, 5221 5238, , 5356, 5357, 5359, 5360, 5380, 5381 5383, 5384 | 1 | $230.97 | Add to Cart | |
| 3 | 3105Z1092 | Retainer, Rear Main Bearing S/n LB93017864 & Below. Uses 6 S -268-1 Bolts. | 1 | $73.47 | Add to Cart | |
| 3105Y1195 | Retainer, Rear Main Bearing S/n LB93017865 & Above Uses 10 S -268-1 Bolts. . | 2 | — | No longer available — call for replacement | ||
| 4 | 5X1069 | O -ring | 2 | $64.88 | Add to Cart | |
| 5 | 3892P5190 | Aux Gear, Drive (38T) Replaced By 3892-K-5315 | NLA | — | Call for availability | |
| 3892R5296 | Aux Gear, Drive (38T) Replaced By 3892-K-5315 | NLA | $1,179.09 | Superseded by KIT5396Add to Cart | ||
| 3892K5315 | Aux Gear, Drive (38T) 115, 125, 9 & 10 “a” Ratio Only, 5295, 5296, Use 3892-W-5483 For “c ” Ratio 5348, 5351 . | 1 | $1,179.09 | Superseded by KIT5396Add to Cart | ||
| 3892X5094 | Aux Gear, Drive (38T) Replaced By 3892-L-5316 | NLA | — | Call for availability | ||
| 3892Q5295 | Aux Gear, Drive (38T) Replaced By 3892-L-5316 | NLA | $478.63 | Superseded by KIT5397Add to Cart | ||
| 3892L5316 | Aux Gear, Drive (38T) 135, 145, 155, 9 & 10 “a” Ratio 5297, 5298, Only, Use 3892-W-5483 For “c ” Ratio 5350, 5352, . 5354, 5355 | 1 | $478.63 | Superseded by KIT5397Add to Cart | ||
| 3892W5483 | Aux Gear, Drive (42T) 10, 115, 125, 135, 145, 155, 165, “c ” Ratio Only. | 1 | $709.14 | Superseded by KIT5399Add to Cart | ||
| 3892P5294 | Aux Gear, Replaced By 3892-M -5317 | NLA | — | Call for availability | ||
| 3892M5317 | Aux Gear, Drive (44T) 13 O/d 5301 5346 , | 1 | $817.67 | Superseded by KIT5398Add to Cart | ||
| 6 | 1229W4339 | Snap Ring 5200, 5203, 5220, 5221 5239, 5324, 5363, 5367, 5381 5382, , | 1 | $73.20 | Add to Cart | |
| 7 | S2681 | Bolt/capscrew, Replaced By S -268-2 | NLA | — | Call for availability | |
| 1 | 1229H4168 | Snap Ring, Replaced By 1229-C-4657 5324, 5380, | NLA | $309.68 | Superseded by 1229C4657Add to Cart | |
| 1229C4657 | Snap Ring 5200, 5203, 5220, 5221 5239, 5324, | 2 | $309.68 | Add to Cart | ||
| 2 | A1228X1350 | Bearing Assy, (26/18T) Requires 3892-L-5394 M/s 5380, 5381 Gear, 1st | 2 | $159.72 | Add to Cart | |
| A1228S1345 | Bearing Assy, Countershaft Rear Bearing 5239, 5356, S/n LB93017864 & Below, Uses 6 S -268-1 Bolts 5358, 5359, 5361 5383, , | 2 | $149.17 | Add to Cart | ||
| 3 | 3297Z1092 | Countershaft, Cup & Cone (main Countershaft Front) | NLA | — | Call for availability | |
| 3297H1256 | Countershaft, (aux.) Replaced By 3297 -h -1256. Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | — | Call for availability | ||
| 3297G1073 | Countershaft, (aux.) Replaced By 3297 -F-1254. Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | NLA | — | Call for availability | ||
| 3297F1254 | Countershaft, (aux.) 135, 145 Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | — | Call for availability | ||
| 3297S1267 | Countershaft, (aux.) 115, 125 Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | $688.23 | Add to Cart | ||
| 3297U1269 | Countershaft, (aux.) 135, 145, 155 Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | $472.35 | Add to Cart | ||
| 4 | A1228Y1351 | Bearing Assy, Cup & Cone (rear) 5380, 5381 | 2 | $170.13 | Add to Cart | |
| A1228U1347 | Bearing Assy, Cup & Cone (rear) 5356, 5357, 5359, 5360, 5383, 5384 | 2 | $173.62 | Add to Cart | ||
| 5 | 1229D4294 | Snap Ring, Replaced By Item 6, Use KIT5331 . | AR | — | Call for availability | |
| 6 | 1229N4538 | Spacer Washer, Cup & Cone (front) | AR | — | Call for availability | |
| 1229P4540 | Spacer Washer, Aux. Countershaft Selective 5331 (6.563 Mm Green) - | AR | — | Call for availability | ||
| 1229Q4541 | Spacer Washer, Aux. Countershaft Selective 5331 (6.696 Yellow) Mm - | AR | — | Call for availability | ||
| 1229R4542 | Spacer Washer, Aux. Countershaft Selective 5331 (6.828 Mm White) - | AR | — | Call for availability | ||
| 1229S4543 | Spacer Washer, Aux. Countershaft Selective 5331 (6.690 Purple) Mm - | AR | — | Call for availability | ||
| 1229T4544 | Spacer Washer, Aux. Countershaft Selective 5331 (7 .092 Mm Orange) - | AR | — | Call for availability | ||
| 1229U4545 | Spacer Washer, Aux. Countershaft Selective 5331 (7 .224 Mm White/blue) - | AR | — | Call for availability | ||
| 1229V4546 | Spacer Washer, Aux. Countershaft Selective 5331 (7 .356 Mm White/green) - | AR | — | Call for availability | ||
| 1229W4547 | Spacer Washer, Aux. Countershaft Selective 5331 (7 .488 Mm White/yellow) - | AR | — | Call for availability | ||
| 1229X4548 | Spacer Washer, Aux. Countershaft Selective 5331 (7 .620 Mm White/purple) - | AR | — | Call for availability | ||
| 1229Y4549 | Spacer Washer, Aux. Countershaft Selective 5331 (7 .752 Mm White/orange) - | AR | — | Call for availability | ||
| 3 | 3297Y1143 | Countershaft, (aux.) Replaced By 3297 -g -1255. Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | NLA | — | Call for availability | |
| 3297G1255 | Countershaft, (aux.) 135, 145 Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | — | Call for availability | ||
| 3297G1099 | Countershaft, (aux.) Replaced By 3297 -d -1252. Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | NLA | — | Call for availability | ||
| 3297D1252 | Countershaft, (aux.) 115, 125 Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | — | Call for availability | ||
| 3297Q1265 | Countershaft, (aux.) 115, 125 Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | $448.78 | Add to Cart | ||
| 3297W1271 | Countershaft, (aux.) 135, 145, 155 Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | — | No longer available — call for replacement | ||

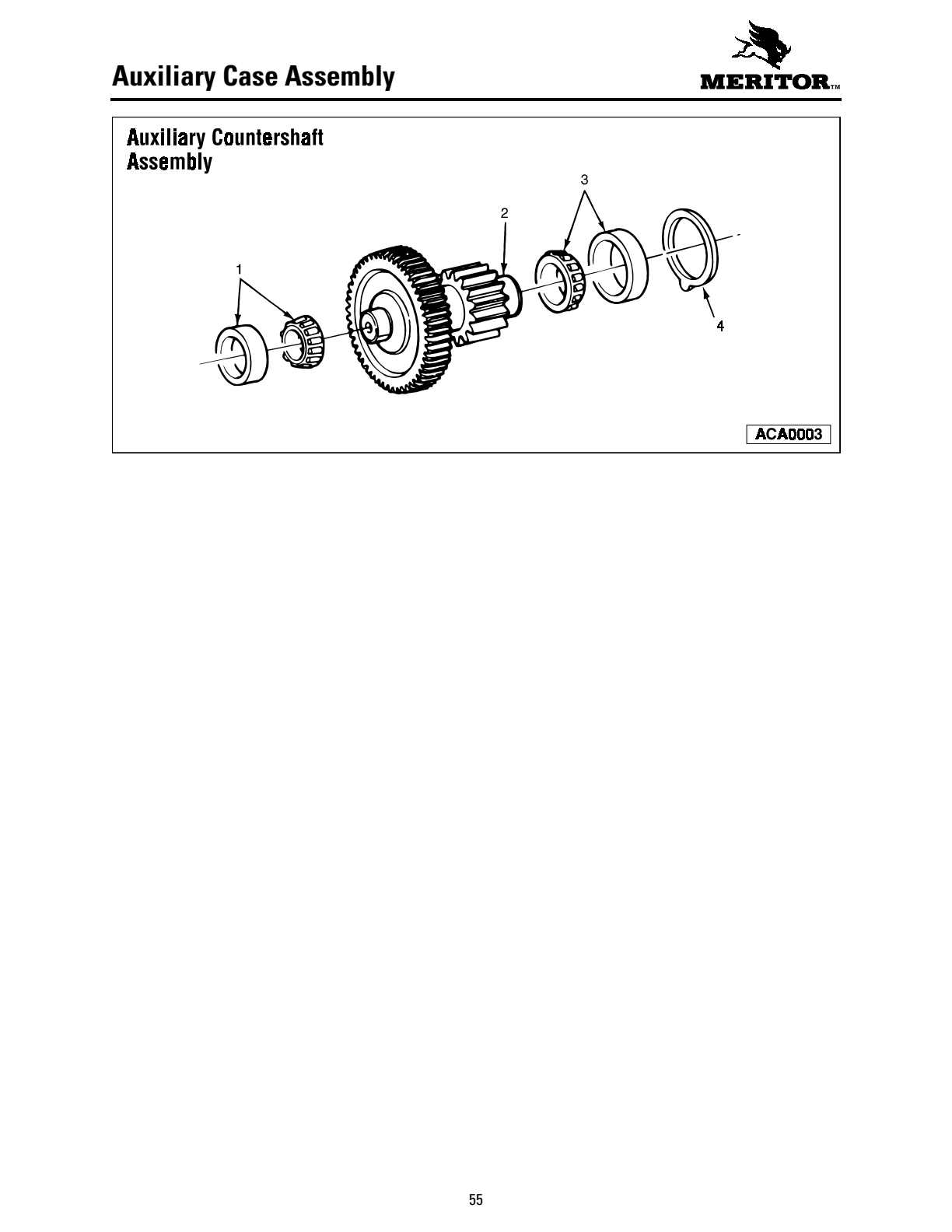

| 1 | A1228S1345 | Bearing Assy, Cup & Cone (front) 5239, 5356, 5358, 5359, 5361 5383, , | 2 | $149.17 | Add to Cart | |
| 2 | 3297T1320 | Countershaft, (aux.) 115, 125, “a” Ratio Only. Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | $1,083.34 | Add to Cart | |
| 3297J1284 | Countershaft, (aux.) 135, 145, “a” Ratio Only. Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | — | No longer available — call for replacement | ||
| 3297L1390 | Countershaft, (aux.) 115, 125, 135, 145, 155, 165, “c ” Ratio Only. Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | $1,135.10 | Add to Cart | ||
| 3 | A1228U1347 | Bearing Assy, Cup & Cone (rear) 5356, 5357, 5359, 5360, 5383, 5384 | 2 | $173.62 | Add to Cart | |
| 4 | 1229N4538 | Spacer Washer, Aux. Countershaft Selective (6.431 Mm Blue) - | AR | — | Call for availability | |

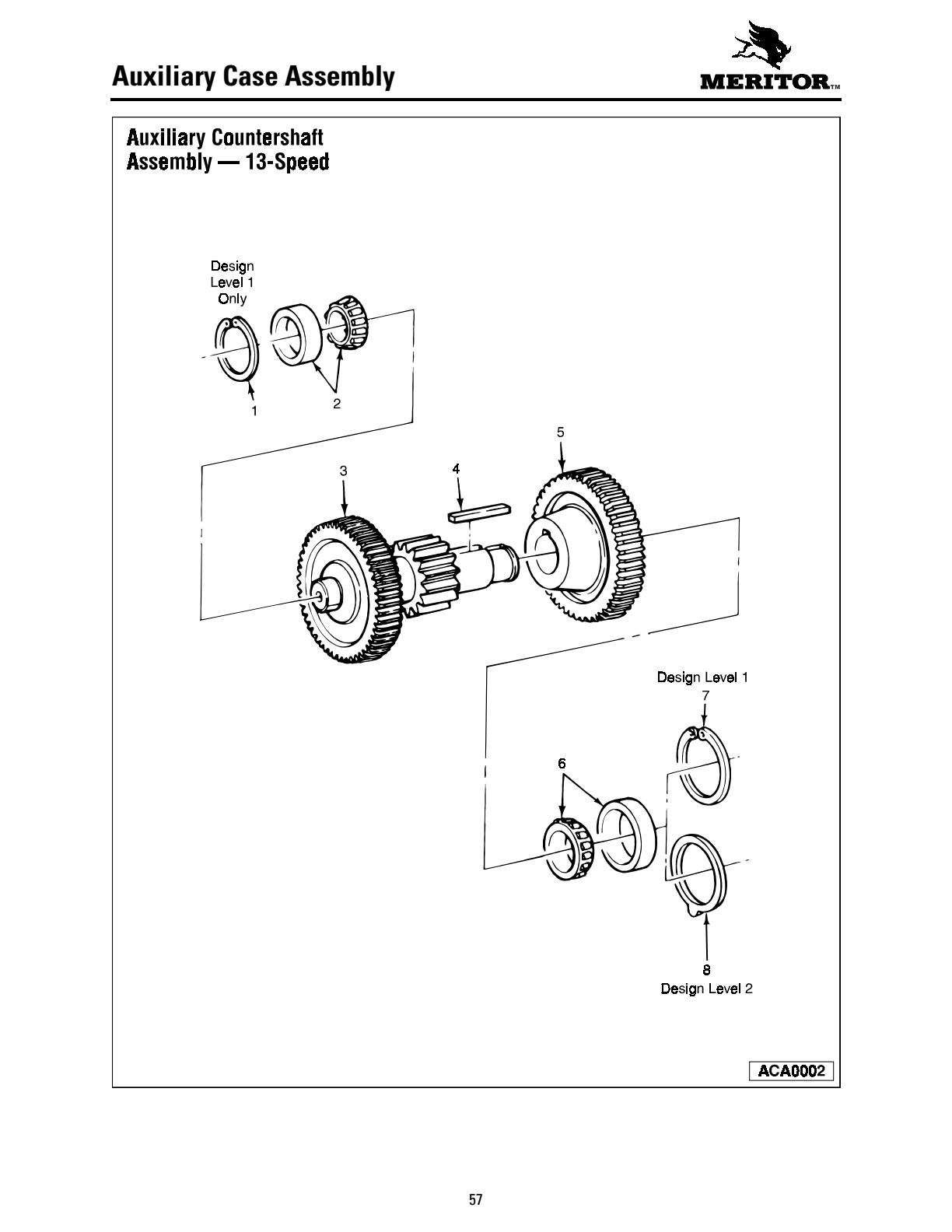

| 2 | A1228Q1265 | Bearing Assy, Replaced By A-1228-U -1373 | NLA | — | Call for availability | |
| A1228U1373 | Bearing Assy, Cup & Cone (front) 5382 | 2 | $385.98 | Add to Cart | ||
| 3 | 3297P1082 | Countershaft, Auxiliary (46/16T) Replaced By 3297 -E-1253 | NLA | — | Call for availability | |
| 3297E1253 | Countershaft, Auxiliary (46/16T) Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | — | Call for availability | ||
| 3297Y1273 | Countershaft, Auxiliary (46/16T) Note: Auxiliary Countershafts Should Be Replaced In Sets Only. | 2 | $2,177.49 | Add to Cart | ||
| 4 | 16X1009 | Key | 2 | — | No longer available — call for replacement | |
| 5 | 3892L5082 | C/s Gear, Splitter (53T) | 2 | — | No longer available — call for replacement | |
| 6 | A1228Y1351 | Bearing Assy, Cup & Cone (rear) 5380, 5381 | 2 | $170.13 | Add to Cart | |
| 7 | 1229D4294 | Snap Ring Replaced By Item 8, Use KIT5331 , . | AR | — | Call for availability | |
| 8 | 1229N4538 | Spacer Washer, Aux. Countershaft Selective (6.431 Mm Blue) - | AR | — | Call for availability | |
| 1 | 2258Z1144 | Spring 5200, 5203, 5221 5238, , 5270, 5289, 5357, 5358, 5360, 5361 | 3 | $185.00 | Add to Cart | |
| 2 | A3203Z1014 | Synchro Assy, (high) 5270, 5289 | 1 | $1,200.39 | Superseded by KIT5289Add to Cart | |
| 3 | 3107S1111 | Collar 5289 | 1 | $1,200.39 | Superseded by KIT5289Add to Cart | |
| 4 | A3203R1006 | Synchro Assy, (low) 5270, 5289 | 1 | $1,200.39 | Superseded by KIT5289Add to Cart | |
| 1 | 3297P1056 | O/p Shaft, 115, 125 | 1 | — | Call for availability | |
| 3297J1076 | O/p Shaft, 135, 145 | 1 | — | No longer available — call for replacement | ||
| 3297Y1247 | O/p Shaft, 115, 125 | 1 | — | No longer available — call for replacement | ||
| 3297C1251 | O/p Shaft, 135, 145 Replaced By 3297 -V-1322 | NLA | — | Call for availability | ||
| 3297V1322 | O/p Shaft, 135, 145, 155 | 1 | $836.76 | Add to Cart | ||
| 2 | 1244R2046 | Spacer | 1 | — | Call for availability | |
| 1244W2103 | Spacer, (output Shaft) | 1 | $38.46 | Add to Cart | ||
| 3 | 1244N2094 | Spacer, 135, 145 Only | 1 | $46.15 | Add to Cart | |
| 1244X2104 | Spacer, (output Bearing) | 1 | $66.16 | Add to Cart | ||
| 4 | 1244F1852 | Spacer | 1 | — | Call for availability | |
| 5 | 3892Q5009 | Aux Gear, Low (40T) 115, 125 | 1 | — | Call for availability | |
| 3892E5075 | Aux Gear, Low (40T) 135, 145 | 1 | — | Call for availability | ||
| 3892G5311 | Aux Gear, Low (40T) 115, 125 | 1 | $557.68 | Add to Cart | ||
| 3892E5309 | Aux Gear, Low (40T) 135, 145, 155 | 1 | $703.89 | Add to Cart | ||
| 6 | 1229Y4211 | Snap Ring 5200, 5203, 5221 5324 , | 1 | $90.12 | Add to Cart | |
| 7 | 42X1221 | Thrust Wshr | 1 | — | No longer available — call for replacement | |
| 8 | 1244Z1820 | Flat Wshr, 135, 145, 155 Only. No Longer Used, Use 1227 -T-1554, Flanged Nut. | NLA | $66.54 | Add to Cart | |
| 9 | 1227W1375 | Nut, (yoke) Replaced By 1227 -T-1554 | NLA | $66.54 | Superseded by 1227T1554Add to Cart | |
| 1227T1554 | Nut, Flanged (yoke) | 1 | $66.54 | Add to Cart | ||
| 5 | 3892D5152 | Aux Gear, Low (44T) 115, 125 | 1 | $577.40 | Add to Cart | |
| 3892V5222 | Aux Gear, Low (44T) 135, 145 | 1 | — | Call for availability | ||
| 3892Y5329 | Aux Gear, Low (44T) 115, 125 | 1 | $627.58 | Add to Cart | ||
| 3892A5331 | Aux Gear, Low (44T) 135, 145, 155 | 1 | — | No longer available — call for replacement | ||
| 1 | 3297Y1247 | O/p Shaft, 115, 125 | 1 | — | No longer available — call for replacement | |
| 2 | 1244W2103 | Spacer, (output Shaft) | 1 | $38.46 | Add to Cart | |
| 3 | 1244X2104 | Spacer, (output Bearing) | 1 | $66.16 | Add to Cart | |
| 5 | 3892P5346 | Aux Gear, Low (58T) 135, 145, 155 | 1 | $939.94 | Add to Cart | |
| 3892W5353 | Aux Gear, Low (58T) 115, 125 | 1 | $419.23 | Add to Cart | ||

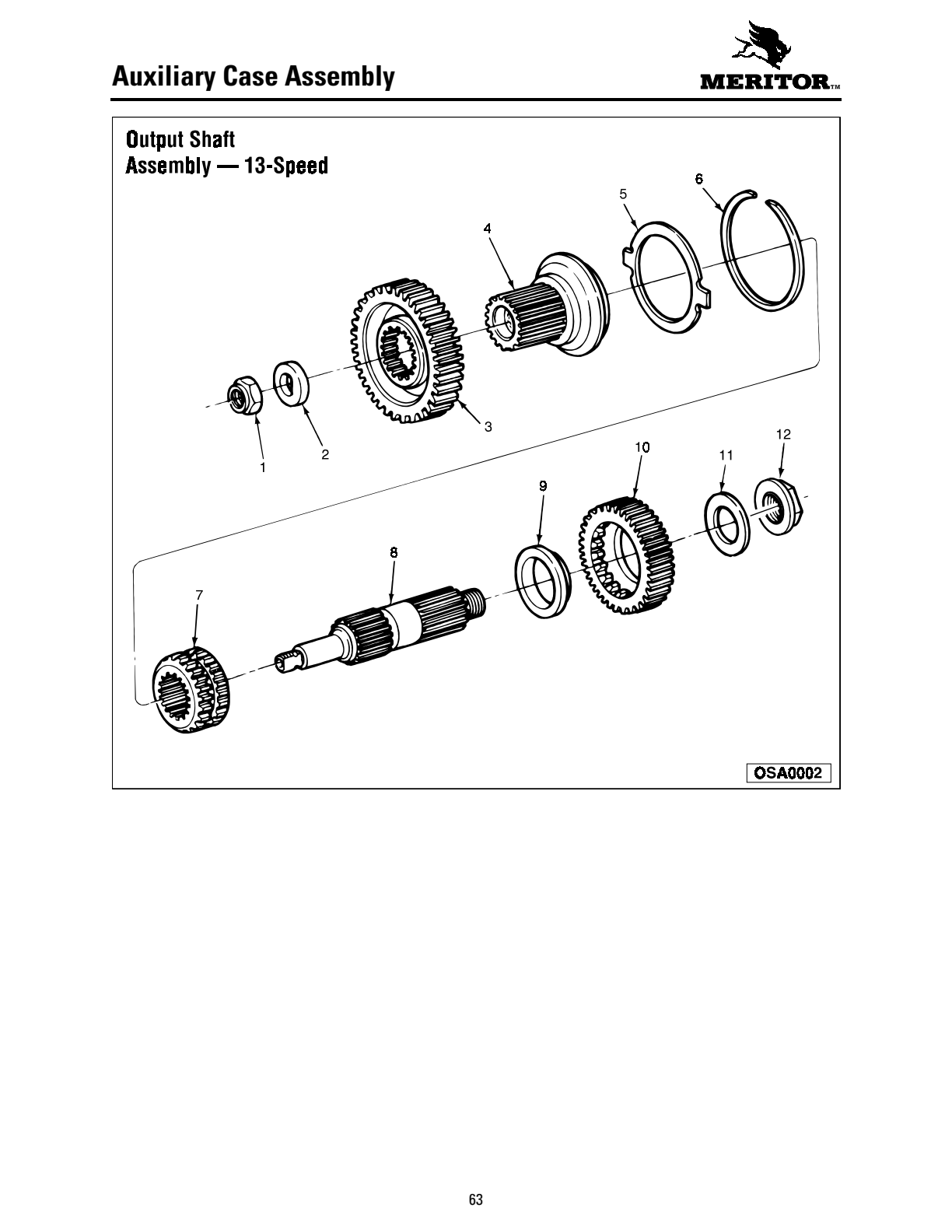

| 1 | 1227A1405 | Nut | 1 | $45.08 | Add to Cart | |
| 2 | 1229U4233 | Thrust Wshr, Use 1229-V-4494 | NLA | — | Call for availability | |
| 1229V4494 | Thrust Wshr, (only For 3297 -Z-1222 Shaft) 5302 | 1 | $128.84 | Add to Cart | ||
| 3 | 3892J5080 | Aux Gear, (low) 23T | 1 | — | No longer available — call for replacement | |
| 4 | 3107U1087 | Aux Drive Cplg Replaced By 3107 -u -1191 5302 , . | NLA | — | Call for availability | |
| 3107U1191 | Aux Drive Cplg Use Service Kit 5302. , | 1 | $575.04 | Add to Cart | ||
| 5 | 1229T4232 | Thrust Wshr 5302 | 1 | $72.21 | Add to Cart | |
| 6 | 1229V4234 | Snap Ring 5238, 5239, 5358, 5361 | 1 | $84.20 | Add to Cart | |
| 7 | 3107R1084 | Collar, Replaced By 3107 -T-1190 | NLA | — | Call for availability | |
| 3107M1131 | Collar, Replaced By 3107 -T-1190 5302 | NLA | $2,214.95 | Superseded by 3107T1190Add to Cart | ||
| 3107T1190 | Collar, Use Service Kit 5302. | 1 | $2,214.95 | Add to Cart | ||
| 8 | 3297M1079 | O/p Shaft, Use 3297 -Z-1222 | NLA | — | Call for availability | |
| 3297Z1222 | O/p Shaft, (requires 1229-V-4494 Washer) | 1 | $1,067.93 | Add to Cart | ||
| 9 | 1244L1988 | Spacer | 1 | $225.80 | Add to Cart | |
| 10 | 3892G5077 | Aux Gear, (splitter) Replaced By 3892-Q-5581 5302 | NLA | $760.42 | Superseded by 3892Q5581Add to Cart | |
| 3892Q5581 | Aux Gear, (splitter) Use Service Kit 5302. | 1 | $760.42 | Add to Cart | ||
| 11 | 1244Z1820 | Flat Wshr, No Longer Used Use 1227 -T-1554. , | NLA | $66.54 | Add to Cart | |
| 12 | 1227W1375 | Nut, Replaced By 1227 -T-1554 | NLA | $66.54 | Superseded by 1227T1554Add to Cart | |

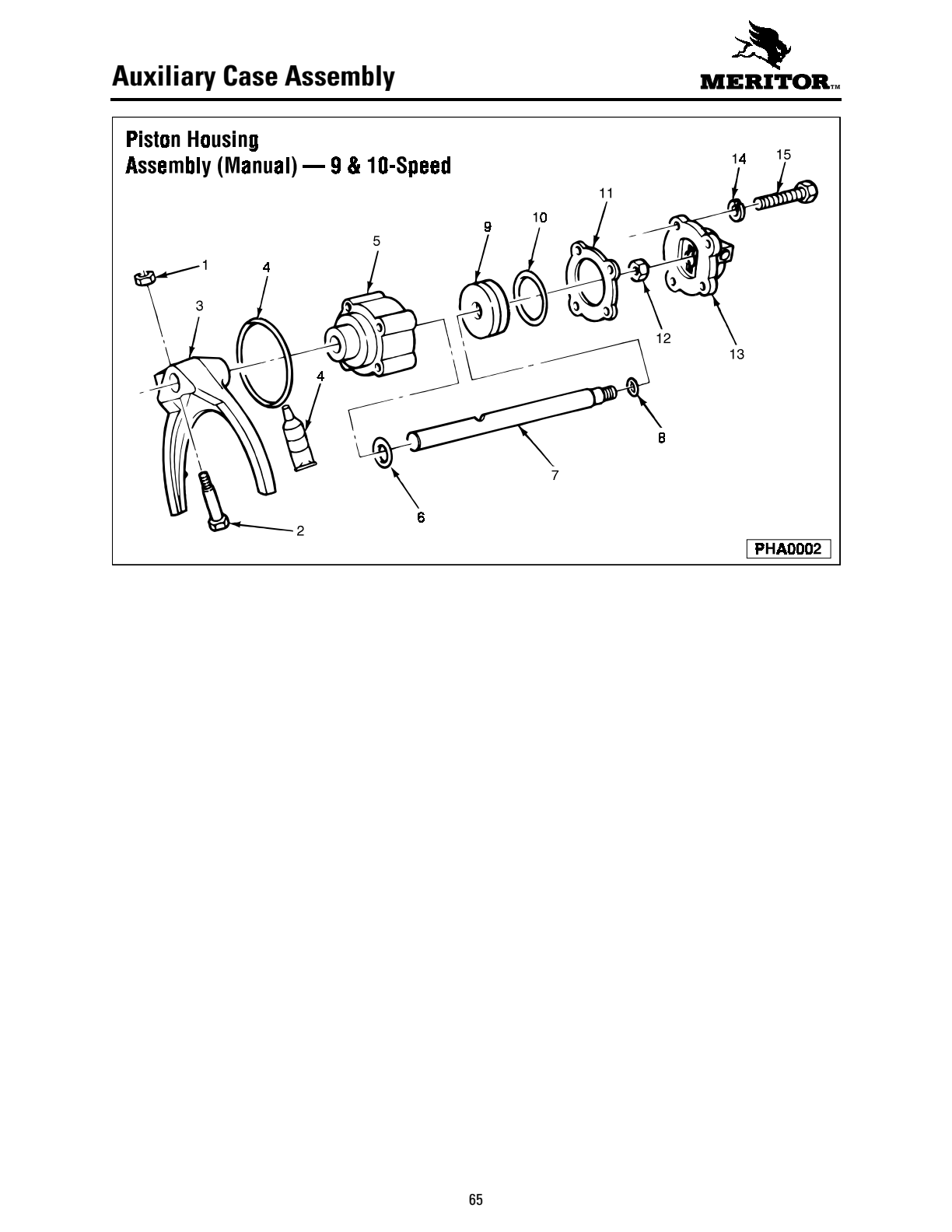

| 1 | 1229V4286 | Snap Ring, Use NL-25-1 5200, 5203, 5221 5238, , | NLA | $34.80 | Add to Cart | |
| NL251 | Lock Nut, (requires 10-X-1534 Bolt) | 1 | — | Call for availability | ||
| 2 | 43X1168 | Pin, Use 10-X-1534 Bolt | NLA | — | Call for availability | |
| 10X1534 | Bolt/capscrew, (requires NL-25-1 Nut) | 1 | $880.32 | Add to Cart | ||
| 3 | 3296Q1161 | Shift Fork, (high/low) Replaces 3296-P -1108 | 1 | $379.14 | Add to Cart | |
| 4 | 5X1068 | O -ring Use 2297 -A-7021 Sealant , | NLA | — | Call for availability | |
| 2297A7021 | Seal Kit, (sealant) | 1 | — | Call for availability | ||
| 5 | 3280E8767 | Piston Hsg, Use KIT5336 For Design Level 1 115 & 5255 , 125. Use KIT5337 For Design Level 1 135 & 145. , | NLA | — | Call for availability | |
| 3280M9217 | Piston Hsg, Use KIT5334 For Design Level 2, 115 & 5334, 5335 125. Use KIT5335 For Design Level 2, 135 Through 165. | 1 | — | No longer available — call for replacement | ||
| 6 | 5X1065 | O -ring | 1 | $54.20 | Add to Cart | |
| 7 | 2244E1071 | Shift Shaft, 115, 125 Only, 9-3/8", Order Kit 5334 Or | 1 | — | Call for availability | |
| 2244D1122 | Shift Shaft, 115, 125 Only, 9-1/2" 5334, 5336 | 1 | $43.72 | Add to Cart | ||
| 2244T1060 | Shift Shaft, 135, 145, 155, 165 Only, 9-3/4", Order Kit 5335 Or 5337 | 1 | — | Call for availability | ||
| 2244E1123 | Shift Shaft, 135, 145, 155, 165 Only, 9-7/8" 5335, 5337 | 1 | $341.40 | Add to Cart | ||
| 8 | 5X1083 | O -ring | 1 | $11.10 | Add to Cart | |
| 9 | 2230B1094 | Piston, (range Shift) Replaced By A-2230-X-1194 5241 5255 , | NLA | — | Call for availability | |
| A2230X1194 | Piston Assy, (include 5X-1083 O -ring) 5334, 5335, | 1 | $227.44 | Add to Cart | ||
| 10 | 5X1066 | O -ring | 1 | $15.30 | Add to Cart | |
| 11 | 2208K1051 | Gasket 5200, 5203, 5221 5250, , 5335, 5337, 5357, 5359, | 1 | $47.90 | Add to Cart | |
| 12 | NL171 | Nut | 1 | — | Call for availability | |
| 13 | 3266N1314 | Cover 5334, 5335, | 1 | $385.29 | Add to Cart | |
| 14 | 1229B1666 | Flat Wshr 5299, 5300, 5369, 5386 | 4 | — | Call for availability | |
| 15 | S2624A1 | Bolt/capscrew, Replaced By S -2624-A-2 | NLA | $37.80 | Add to Cart | |

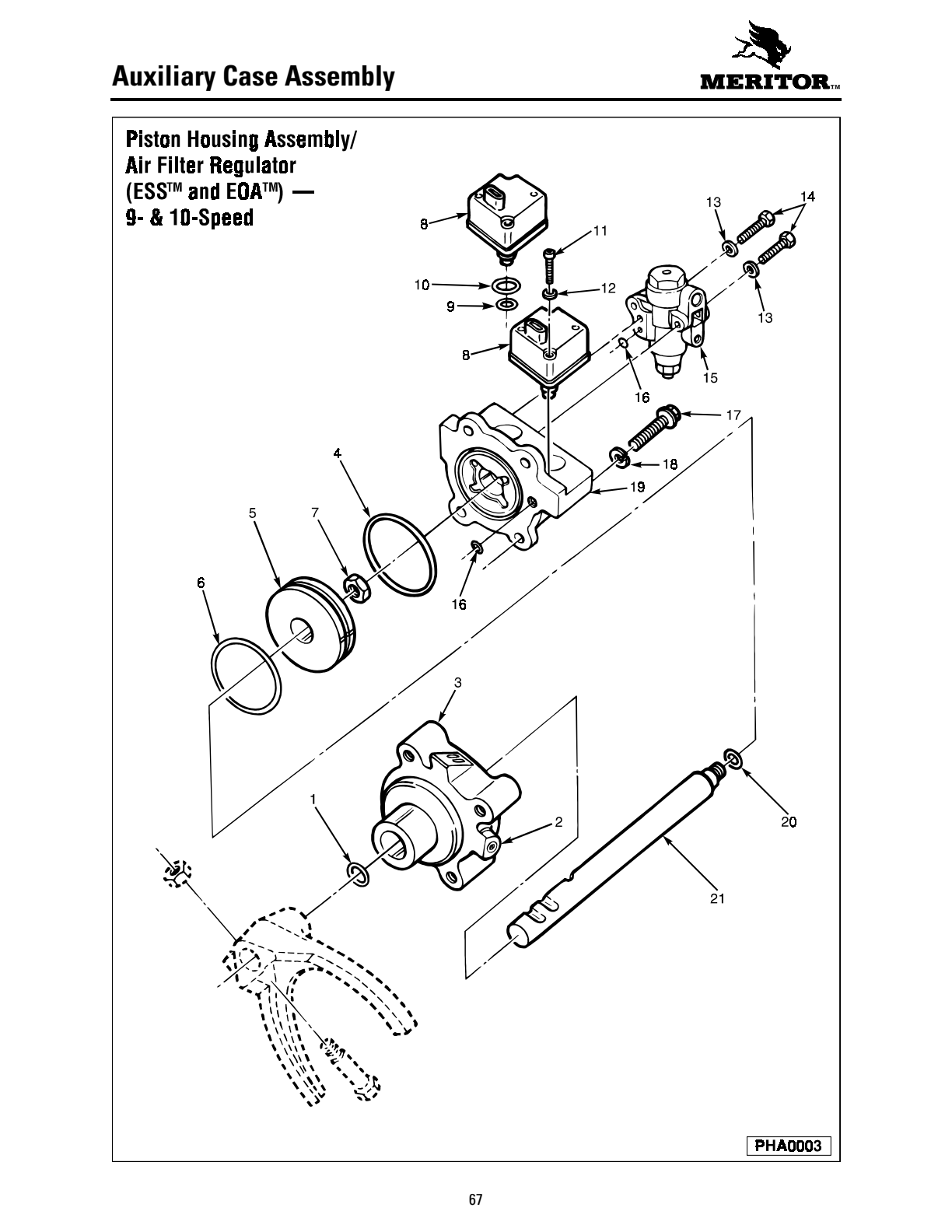

| 1 | 5X1065 | O -ring | 1 | $54.20 | Add to Cart | |
| 2 | P42ZS | Plug Diagnostic Port , | 3 | $16.40 | Add to Cart | |
| 3 | 3280D9390 | Piston Hsg, (cast) | 1 | $2,221.77 | Add to Cart | |
| 4 | 5X1217 | O -ring (range Piston Hsg Cover Seal) , . | 1 | $21.38 | Add to Cart | |
| 5 | A2230X1194 | Piston Assy, (include 5x-1083 O -ring) 5334, 5335, | 1 | $227.44 | Add to Cart | |
| 6 | 5X1066 | O -ring (piston) , | 1 | $15.30 | Add to Cart | |
| 7 | NL171 | Nut | 1 | — | Call for availability | |
| 8 | A3280F9392 | Solenoid Assy, (includes 5X-1207 And 5X-1092 O -rings) | 2 | $289.73 | Add to Cart | |
| 9 | 5X1207 | O -ring Solenoid , | 2 | $8.62 | Add to Cart | |
| 10 | 5X1092 | O -ring Solenoid , | 2 | $82.20 | Add to Cart | |
| 11 | 10X1623 | Screw, Solenoid/piston Hsg Cover . | 4 | $12.28 | Add to Cart | |
| 12 | WA43Z | Flat Wshr Flat Wshr | 4 | — | No longer available — call for replacement | |
| 14 | S2416A1 | Bolt/capscrew | 2 | — | No longer available — call for replacement | |
| 15 | A3280G9393 | Filter/reg Assy, Air (not Interchangeable With 13-Speed) | 1 | $286.86 | Add to Cart | |
| 16 | 5X1205 | O -ring | 2 | $16.28 | Add to Cart | |
| 17 | S2624A1 | Bolt/capscrew, Replaced By S -2624-A-2 | NLA | $37.80 | Add to Cart | |
| 18 | 1229B1666 | Flat Wshr 5299, 5300, 5369, 5386 | 4 | — | Call for availability | |
| 19 | 3266R1370 | Cover, Range Piston Hsg . | 1 | $295.00 | Add to Cart | |
| 20 | 5X1083 | O -ring | 1 | $11.10 | Add to Cart | |
| 21 | 2244A1145 | Shift Shaft, Range Shift 115, 125 | 1 | $106.06 | Add to Cart | |
| 2244B1146 | Shift Shaft, Range Shift 135, 145, 155 | 1 | $2,068.78 | Add to Cart | ||

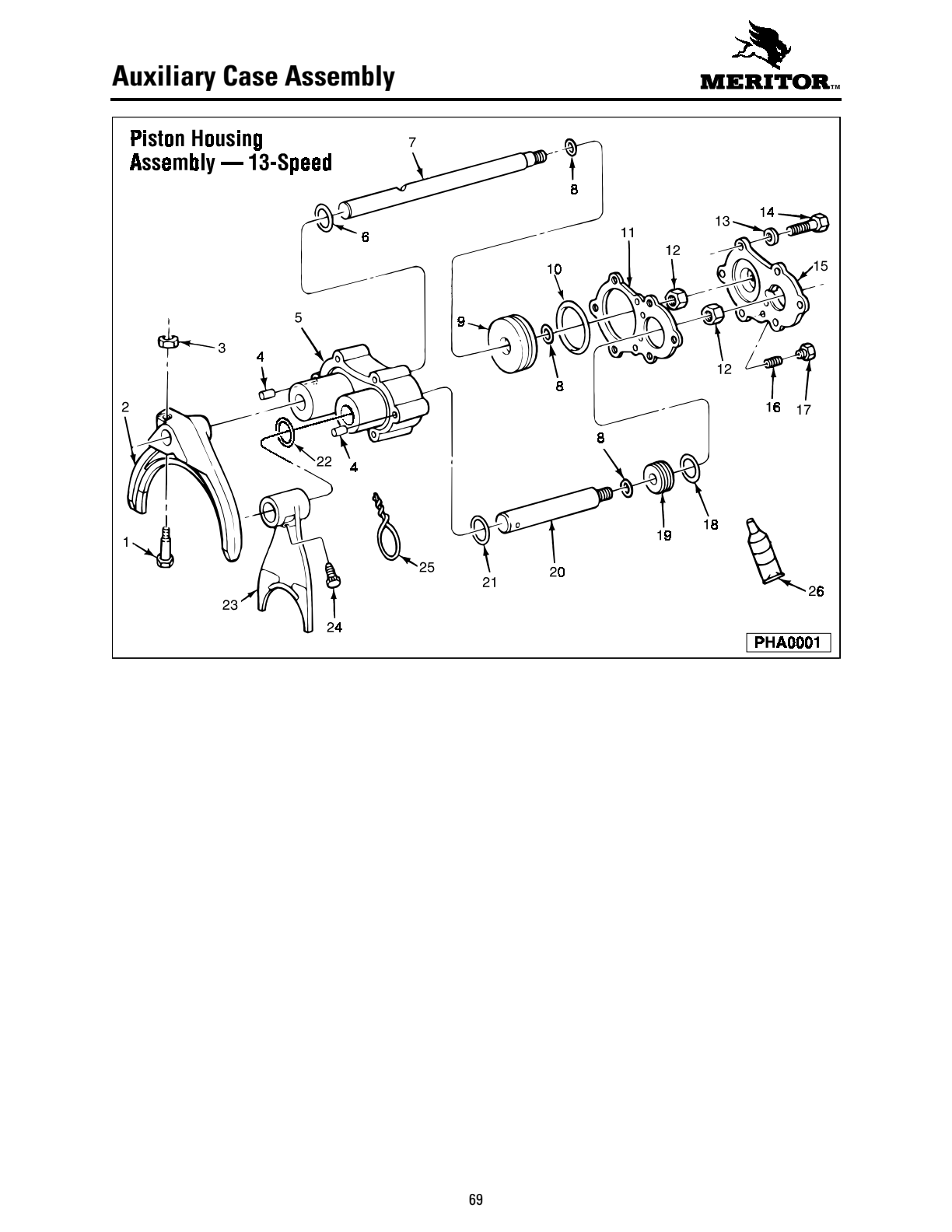

| 1 | 43X1168 | Pin, Use 10-X-1534 Bolt | NLA | — | Call for availability | |
| 2 | 3296Q1161 | Shift Fork, (high/low) Replaces 3296-P -1108 | 1 | $379.14 | Add to Cart | |
| 3 | 1229V4286 | Snap Ring, Use NL-25-1 5200, 5203, 5221 5238, , | NLA | $34.80 | Add to Cart | |
| 4 | 1246N482 | Dowel | 2 | — | No longer available — call for replacement | |
| 5 | A3280J8772 | Hsg Assy, Replaced By A-3280-N -9296 5241 | NLA | — | Call for availability | |
| A3280N9296 | Hsg Assy | 1 | — | No longer available — call for replacement | ||
| 7 | 2244C1069 | Shift Shaft, Replaced By 2244-C-1121 | NLA | — | Call for availability | |
| 2244C1121 | Shift Shaft, (high/low) 12-1/8" | 1 | $185.00 | Add to Cart | ||
| 11 | 3208S1059 | Gasket 5238, 5239, 5241 5358, , | 1 | $51.10 | Add to Cart | |
| 13 | 1229B1666 | Flat Wshr 5299, 5300, 5369, 5386 | 6 | — | Call for availability | |
| 14 | S2628A1 | Bolt/capscrew, Replaced By S -2628-A-2 | NLA | — | Call for availability | |
| S2628A2 | Bolt/capscrew, 3/8"-16 X 3.5" | 6 | — | Call for availability | ||
| 15 | A3266U1165 | Cover Assy 5241 | 1 | $121.23 | Add to Cart | |
| 16 | A2297K5965 | Valve Assy, (cartridge) 5238, 5239, 5302, 5358, | 1 | — | No longer available — call for replacement | |
| 17 | A1250S1137 | Plug Assy, (includes O -ring) | 1 | $104.30 | Add to Cart | |
| 18 | 5X1081 | O -ring | 1 | $91.00 | Add to Cart | |
| 19 | 2230K1103 | Piston, (splitter) Replaced By A-2230-Y-1195 5241 | NLA | — | Call for availability | |
| A2230Y1195 | Piston Assy, (includes 5X-1081 & 5X-1083 O -rings) | 1 | $95.70 | Add to Cart | ||
| 20 | 2244J1076 | Shift Shaft, (splitter) 5-13/16" | 1 | — | No longer available — call for replacement | |
| 21 | 5X1133 | O -ring | 1 | $80.10 | Add to Cart | |
| 22 | 1205X2494 | Oil Seal | 1 | $30.12 | Add to Cart | |
| 23 | 3296D1122 | Shift Fork, (splitter) 5302 | 1 | $647.70 | Add to Cart | |
| 24 | 26X1011 | Set Screw 5302 | 1 | $81.16 | Add to Cart | |
| 25 | LW1910 | Lock Wire, (procure Locally) | 1 | — | Call for availability | |
| 26 | 2297A7021 | Seal Kit, (loctite Master Gasket #00203) | AR | — | Call for availability |
Top Cover
Click a number on the diagram to highlight that part below.

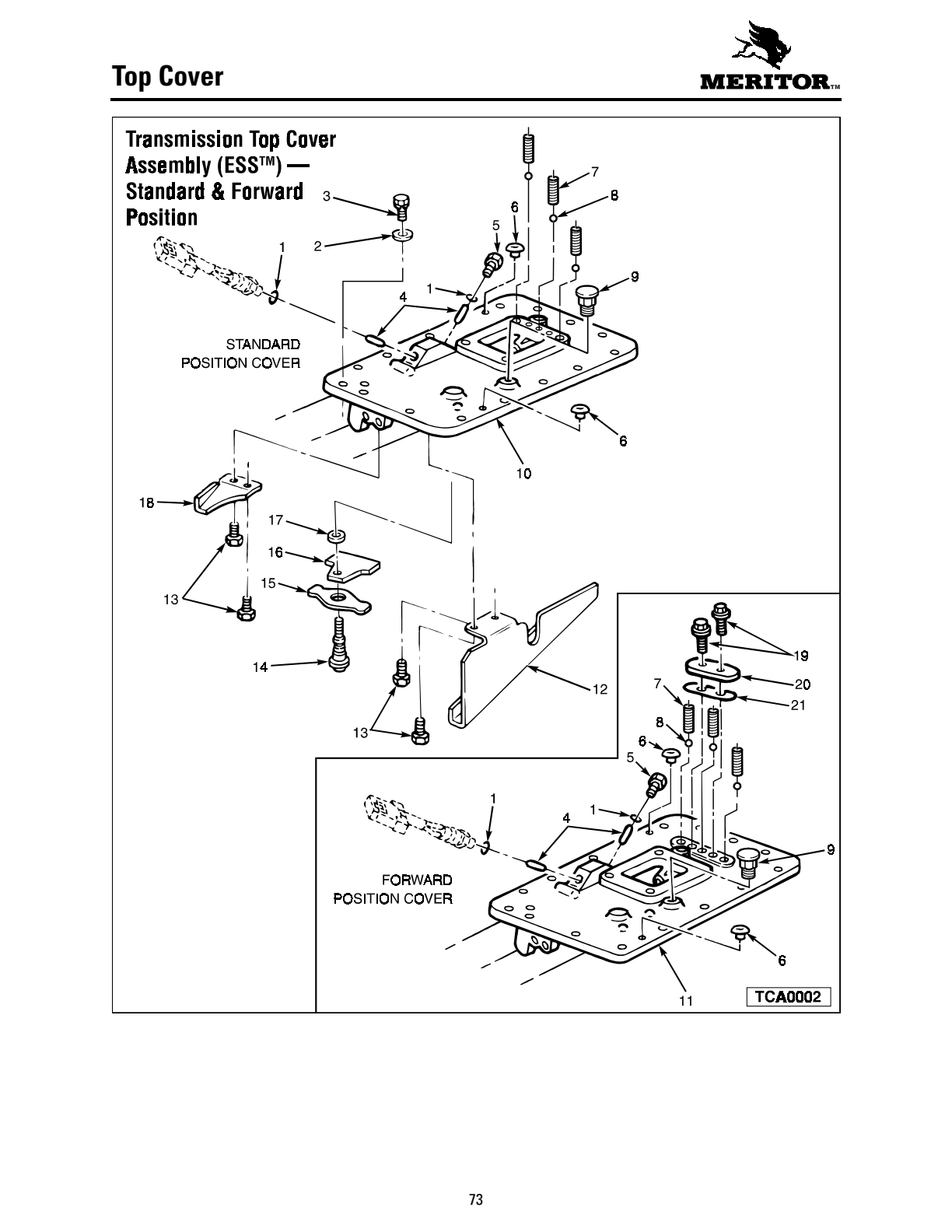

| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S244A1 | Bolt/capscrew, Replaced By S -244-A-2 | NLA | — | No longer available — call for replacement | |
| S244A2 | Bolt/capscrew, 1/4"-20 Unc -2A X 1/2" | 4 | — | Call for availability | ||
| 2 | 2205W1011 | Oil Scoop | 1 | — | Call for availability | |
| 3 | 3293Q1005 | Cover, (std .) Use A1 -3293-L-1078 | NLA | — | Call for availability | |
| 3293V1062 | Cover, (std .) Use A1 -3293-L-1078 | NLA | — | Call for availability | ||
| 3293L1078 | Cover, (std .) | 1 | — | Call for availability | ||
| 3293V1010 | Cover, (fwd) Use 3293-N -1080 | NLA | — | Call for availability | ||
| 3293X1064 | Cover, (fwd) Use A1 -3293-N -1080 | NLA | — | Call for availability | ||
| 3293N1080 | Cover, (fwd) | 1 | — | Call for availability | ||
| 3293K1025 | Cover, (fwd X-bar) Use A-3293-Y-1065 | NLA | — | Call for availability | ||
| 3293Y1065 | Cover, (fwd X-bar) Use A1 -3293-P-1082 | NLA | — | Call for availability | ||
| 3293P1082 | Cover, (fwd X-bar) | 1 | — | Call for availability | ||
| 3293L1026 | Cover, (std X-bar) Use A1 -3293-M -1079 . | NLA | — | Call for availability | ||
| 3293W1063 | Cover, Low (44T) 115, 125 | NLA | — | Call for availability | ||
| 3293M1079 | Cover, Low (44T) 135, 145 | 1 | $601.82 | Add to Cart | ||
| A13293Q1005 | Cover Assy, Low (44T) 115, 125 | NLA | — | Call for availability | ||
| A3293V1062 | Cover Assy, (output Bearing) | NLA | — | Call for availability | ||
| A13293L1078 | Cover Assy, (output Shaft) | 1 | — | Call for availability | ||
| A13293V1010 | Cover Assy, (fwd) Replaced By A1 -3293-N -1080 | NLA | — | Call for availability | ||
| A3293X1064 | Cover Assy, (std X-bar) Use 3293-M -1079 . | NLA | — | Call for availability | ||
| A13293N | Cover Assy, (fwd) Includes Shift Forks & Rails | 1 | — | Call for availability | ||
| A13293K1025 | Cover Assy, (fwd X-bar) Replaced By A-3293-Y-1065 | NLA | — | Call for availability | ||
| A3293Y1065 | Cover Assy, (fwd X-bar) Replaced By A1 -3293-P-1082 | NLA | — | Call for availability | ||
| A13293P | Cover Assy, (fwd X-bar) Includes Shift Forks & Rails | 1 | — | Call for availability | ||
| A13293L1026 | Cover Assy, (std X-bar) Replaced By A1 -3293-M -1079 . | NLA | — | Call for availability | ||
| A3293W1063 | Cover Assy, (std X-bar) Replaced By A1 -3293-M -1079 . | NLA | — | Call for availability | ||
| A13293M | Cover Assy, (std X-bar) Includes Shift Forks & Rails . | 1 | — | Call for availability | ||
| 4 | 1229B1666 | Flat Wshr 5299, 5300, 5368, | 16 | — | Call for availability | |
| 5 | S2610A1 | Bolt/capscrew, Replaced By S -2610-A-2 | NLA | — | Call for availability | |
| S2610A2 | Bolt/capscrew, 3/8"-16 Unc X 1 -1/4" Plug | 16 | — | Call for availability | ||
| 7 | A1199P | Breather Assy. | 1 | — | Call for availability | |
| 8 | A1250D | Plug Assy | 2 | — | Call for availability | |
| 9 | 1229C1511 | Flat Wshr, (x-bar Only) | 1 | — | Call for availability | |
| 10 | NL181 | Lock Nut, (x-bar Only) | 1 | — | Call for availability | |
| 11 | 1199X596 | Detent Ball, S/n LB93017311 & Below | 3 | $5.84 | Add to Cart | |
| 2297R6986 | Detent Ball, S/n LB93017312 & Above | 3 | $330.00 | Add to Cart | ||
| 12 | 2258X1142 | Detent Spring (purple) S/n LB93017311 & Below 5200, 5203, 5220, , 5238, 5239, 5291 | 1 | $78.60 | Add to Cart | |
| 2258E1279 | Detent Spring (white) Replaced By 2258-D -1278 , | NLA | $23.20 | Add to Cart | ||
| 2258D1278 | Detent Spring (yellow) S/n LB93017312 & Above 5333, 5362 , | 3 | $100.00 | Add to Cart | ||
| 2258N1184 | Detent Spring Hd (red) 4th/5th Shifter Shaft Only, 5200, 5203, 5220, , S/n LB93017311 & Below 5238, 5239, 5291 | 2 | $100.00 | Superseded by 2258D1278Add to Cart | ||
| 13 | 43X1169 | Pin | 1 | $246.88 | Add to Cart | |
| 14 | A1250H | Plug Assy | 1 | — | Call for availability | |
| 15 | 43X1165 | Pin | 1 | $49.20 | Add to Cart | |
| 16 | 3780E239 | O -ring (x-bar Only) , | 1 | $119.20 | Add to Cart | |
| 17 | 1244J2090 | Spacer, (x-bar Only) Obsolete | NLA | $18.53 | Add to Cart | |
| 18 | 2247H1100 | Lever, (x-bar Only) Replaced By 2247 -F-1462 | NLA | $146.16 | Superseded by 2247F1462Add to Cart | |
| 2247F1462 | Lever, (x-bar Only) Replaces 2247 -h -1100 | 1 | $146.16 | Add to Cart | ||
| 19 | 2244R1084 | Guide Pin, (x-bar Only) | 1 | — | No longer available — call for replacement | |
| 20 | 3221U1009 | Oil Scoop | 1 | — | Call for availability | |
| 21 | 10X1446 | Special Screw, (forward Only) | 2 | $130.60 | Add to Cart | |
| 22 | 2205A1015 | Cover Plate, (forward Only) | 1 | $238.20 | Add to Cart | |
| 23 | 2208G1047 | Gasket, (forward Only) 5291 5362 , | 1 | $25.50 | Add to Cart | |
| 1 | 5X1091 | O -ring | 2 | — | No longer available — call for replacement | |
| 2 | 1229B1666 | Flat Wshr 5299, 5300, 5369, 5386 | 16 | — | Call for availability | |
| 3 | S2610A1 | Bolt/capscrew, Replaced By S -2610-A-2 | NLA | — | Call for availability | |
| 4 | 43X1190 | Pin, Actuator | 2 | $75.04 | Add to Cart | |
| 5 | A1250H1126 | Plug Assy, (includes 5X-1091 O -ring) | 1 | $72.44 | Add to Cart | |
| A1250U1269 | Plug Assy, Includes 5X-1091 Optionally Available To . Replace A-1250-H -1126. Has Low-profile Head With Socket Hex Drive For Clearance To RH Drive Remotes . | 1 | — | Call for availability | ||
| 6 | 1250Q1625 | Plug (for Jack Screw Holes) , | 2 | — | Call for availability | |
| 7 | 2258D1278 | Detent Spring 5333, 5362 | 3 | $100.00 | Add to Cart | |
| 8 | 2297R6986 | Detent Ball | 3 | $330.00 | Add to Cart | |
| 9 | A1199P1394 | Breather Assy. | 1 | — | Call for availability | |
| 10 | A3293G1073 | Cover Assy, Top (standard X-bar) | 1 | — | Call for availability | |
| A3293F1072 | Cover Assy, Top (standard) | 1 | — | Call for availability | ||
| 11 | A3293K1077 | Cover Assy, Top (forward X-bar) | 1 | — | Call for availability | |
| A3293J1076 | Cover Assy, Top (forward) | 1 | — | Call for availability | ||
| 12 | 3221U1009 | Oil Scoop | 1 | — | Call for availability | |
| 13 | S244A1 | Bolt/capscrew, Replaced By S -244-A-2 | NLA | — | No longer available — call for replacement | |
| 14 | 2244R1084 | Guide Pin, (x-bar Only) | 1 | — | No longer available — call for replacement | |
| 15 | 2247H1100 | Lever, (x-bar Only) Replaced By 2247 -F-1462 | NLA | $146.16 | Superseded by 2247F1462Add to Cart | |
| 16 | 1244J2090 | Spacer, (x-bar Only) Obsolete | NLA | $18.53 | Add to Cart | |
| 17 | 3780E239 | O -ring (x-bar Only) , | 1 | $119.20 | Add to Cart | |
| 18 | 2205W1011 | Oil Scoop | 1 | — | Call for availability | |
| 19 | 10X1446 | Special Screw, (forward Only) | 2 | $130.60 | Add to Cart | |
| 20 | 2205A1015 | Cover Plate, (forward Only) | 1 | $238.20 | Add to Cart | |
| 21 | 2208G1047 | Gasket, (forward Only) 5291 5362 , | 1 | $25.50 | Add to Cart | |
| 3 | S2610A2 | Bolt/capscrew, 3/8"-16 Unc X 1 -1/4" | 16 | — | Call for availability | |
| 10 | A3293V1088 | Cover Assy, Top (standard X-bar) | 1 | — | Call for availability | |
| A3293U1087 | Cover Assy, Top (standard) | 1 | — | Call for availability | ||
| 11 | A3293X1090 | Cover Assy, Top (forward X-bar) | 1 | — | Call for availability | |
| A3293W1089 | Cover Assy, Top (forward) | 1 | — | Call for availability | ||
| 13 | S244A2 | Bolt/capscrew, 1/4"-20 Unc -2A X 1/2" | 4 | — | Call for availability | |
| 17 | 2205W1011 | Oil Scoop | 1 | — | Call for availability | |
| 18 | 10X1446 | Special Screw, (forward Only) | 2 | $130.60 | Add to Cart | |
| 19 | 2205A1015 | Cover Plate, (forward Only) | 1 | $238.20 | Add to Cart | |
| 20 | 2208G1047 | Gasket, (forward Only) 5291 5362 , | 1 | $25.50 | Add to Cart | |

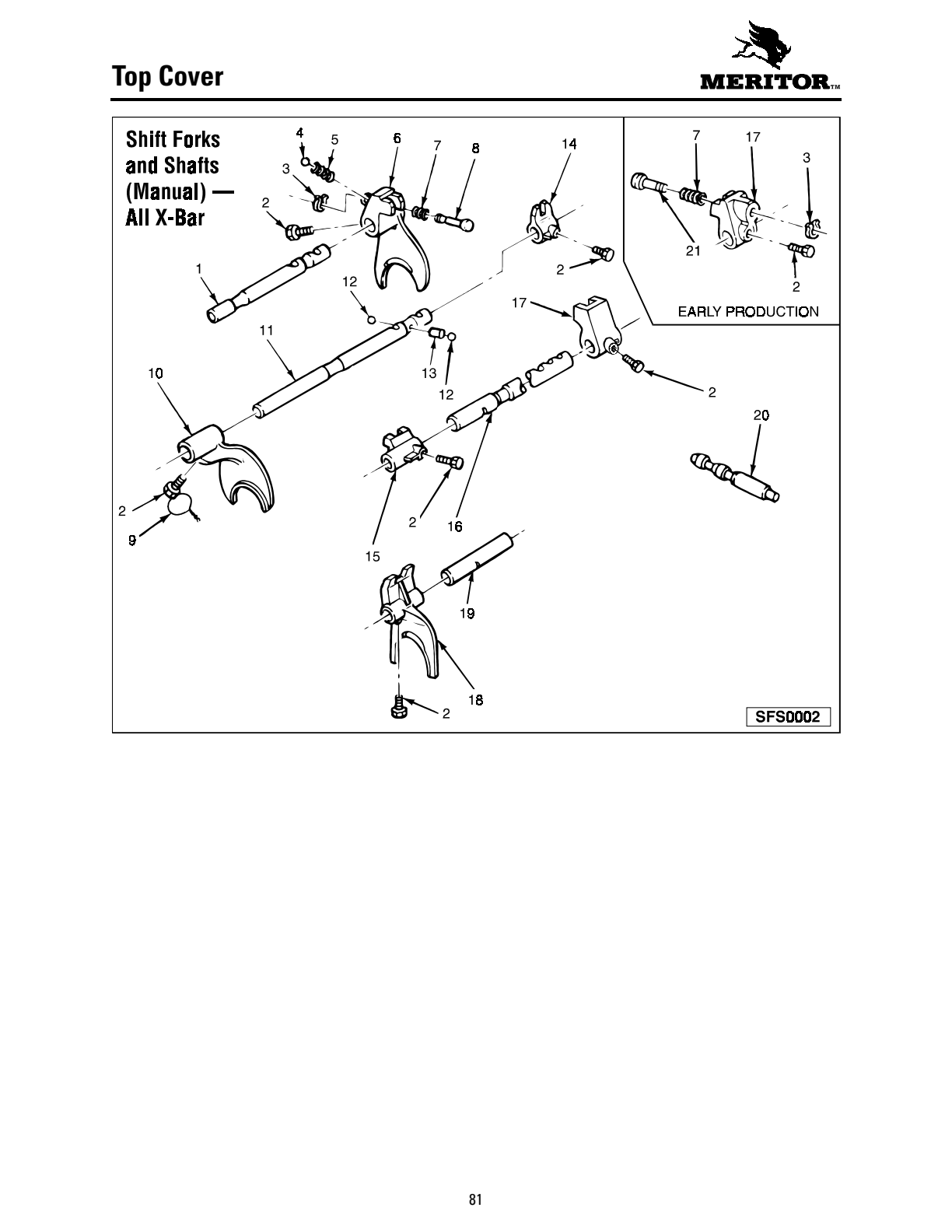

| 1 | 2244W1115 | Shift Shaft, (1st/Rev) Use KIT5333 For 5309, 5333 S/n LB930173121 & Below. Use KIT5309 For Shift Rails Only. Use KIT5333 For Shift Rails And 5/16" Air Lines. | 1 | $51.97 | Add to Cart | |
| 2244J1128 | Shift Shaft, S/n LB93017312 & Above | 1 | $25.16 | Add to Cart | ||
| 2 | 26X1011 | Set Screw, Note: Requires Loctiteh 242 (meritor 5302 Part No 2297 -E-4295, 50 Ml Tube), Or Equivalent And . Lockwire . | 5 | $81.16 | Add to Cart | |
| 3 | 1229V4286 | Snap Ring 5200, 5203, 5221 5238, , | 1 | $34.80 | Add to Cart | |
| 4 | 1898H34 | Lock Ball | 1 | $148.00 | Add to Cart | |
| 5 | 2258Y1143 | Spring | 1 | $23.32 | Add to Cart | |
| 6 | A3296M1131 | Shift Fork Assy, (1st/Rev) Fwd Cover | 1 | — | Call for availability | |
| A3296F1124 | Shift Fork Assy, (1st/Rev) Std Cover | 1 | — | Call for availability | ||
| 7 | 2258A1145 | Spring | 1 | $24.04 | Add to Cart | |
| 8 | 3280L8774 | Plunger, (1st/Rev) | 1 | $147.88 | Add to Cart | |
| 9 | 1254A53 | Lock Wire, Replaced By 1254-P -1030 5309 | NLA | — | Call for availability | |
| 1254P1030 | Lock Wire 5333 | 5 | — | No longer available — call for replacement | ||
| 10 | 3296H1126 | Shift Fork, (2nd/3rd) | 1 | $321.38 | Add to Cart | |
| 11 | 2244X1116 | Shift Shaft, (2nd/3rd) Use KIT5333 For S/n LB93017311 & Below. | NSS | — | Call for availability | |
| 2244K1129 | Shift Shaft, S/n LB93017312 & Above | 1 | $424.59 | Add to Cart | ||
| 12 | 2297R5764 | Ball, (shift Interlock) | 2 | $40.90 | Add to Cart | |
| 13 | 43X1184 | Pin, (interlocking) | 1 | $386.20 | Add to Cart | |
| 14 | 2245X1064 | Sleeve, (2nd/3rd) Fwd Cover | 1 | $51.30 | Add to Cart | |
| 2245T1060 | Sleeve, (2nd/3rd) Std Cover | 1 | $139.56 | Add to Cart | ||
| 15 | 3296K1129 | Shift Fork, (4th/5th) | 1 | $330.58 | Add to Cart | |
| 16 | 2244Y1117 | Shift Shaft, (4th/5th) Use KIT5333 For S/n LB93017311 & Below. | NSS | — | Call for availability | |
| 2244L1130 | Shift Shaft, S/n LB93017312 & Above | 1 | $44.57 | Add to Cart | ||
| 17 | 2245V1062 | Sleeve, Use 2245-P-1134 | NLA | — | Call for availability | |
| 2245P1134 | Sleeve, (4th/5th) | 1 | — | No longer available — call for replacement | ||
| 18 | 2244S1059 | Shift Shaft, (neutral Check) | 1 | $66.07 | Add to Cart | |
| 19 | 3280M8775 | Plunger, Use 2245-P -1134 Sleeve | NLA | — | Call for availability | |
| 20 | 2258A1145 | Spring Use 2245-P -1134 Sleeve , | NLA | $24.04 | Add to Cart | |
| 21 | 1229V4286 | Snap Ring, Use 2245-P-1134 Sleeve 5200, 5203, 5221 5238, , | NLA | $34.80 | Add to Cart | |
| 1 | 2244U1139 | Shift Shaft, (1st & Rev.) | 1 | — | Call for availability | |
| 11 | 2244V1140 | Shift Shaft, (2nd & 3rd) | 1 | — | Call for availability | |
| 16 | 2244W1141 | Shift Shaft, (std .) Replaced By A1 -3293-L-1078 | 1 | — | Call for availability | |
| 17 | 2245P1134 | Sleeve, (std .) Includes Shift Forks & Rails | 1 | — | No longer available — call for replacement | |
| 18 | 2244Y1143 | Shift Shaft, (2nd/3rd) Std Cover | 1 | $843.05 | Add to Cart | |
| 19 | 2258D1330 | Spring Neutral Checkshaft , | 1 | — | Call for availability | |
| 20 | 1250W1271 | Plug Expansion , | 1 | $202.40 | Add to Cart | |

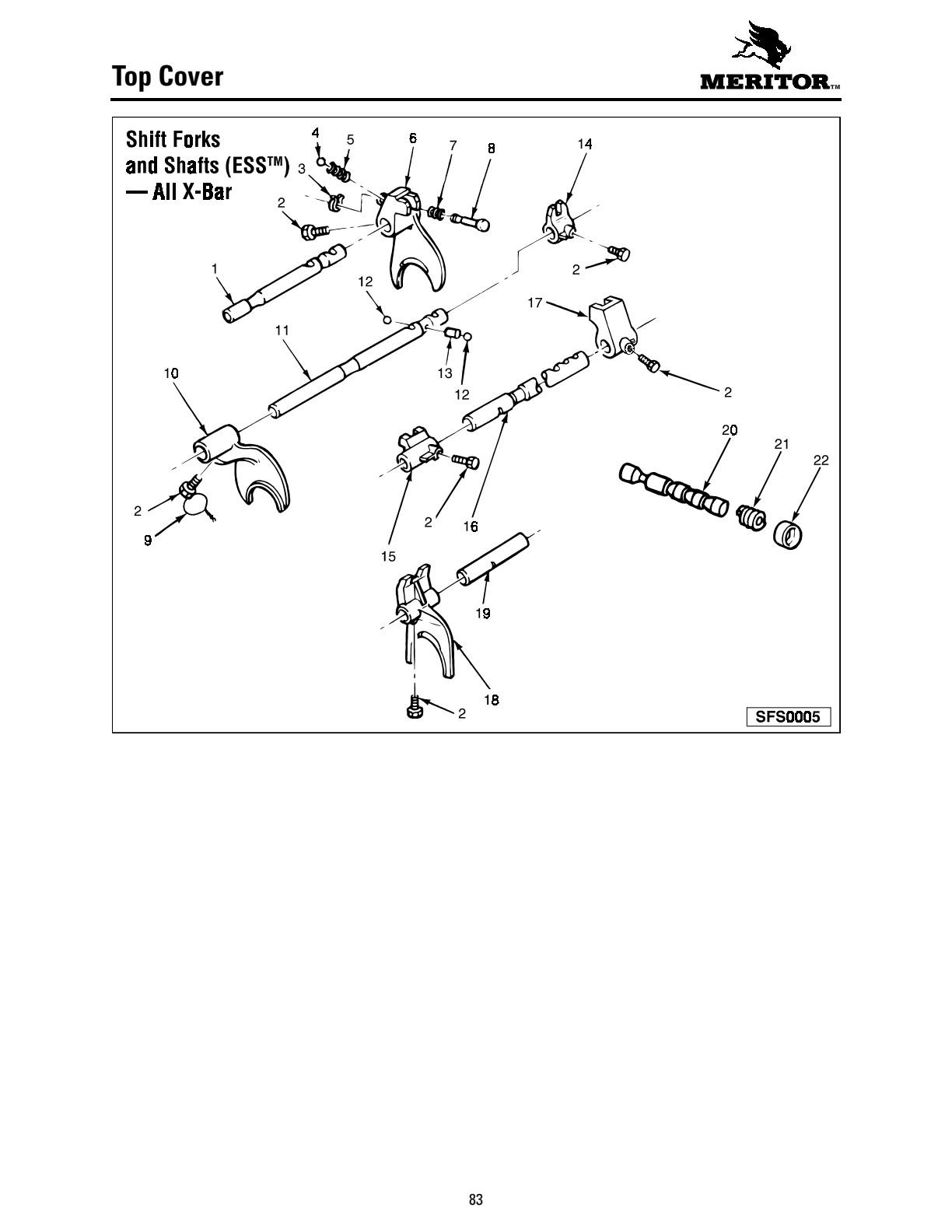

| 1 | 2244J1128 | Shift Shaft, (lo/rev) | 1 | $25.16 | Add to Cart | |
| 9 | 1254P1030 | Lock Wire 5333 | 5 | — | No longer available — call for replacement | |
| 11 | 2244K1129 | Shift Shaft, (1st/2nd) | 1 | $424.59 | Add to Cart | |
| 16 | 2244L1130 | Shift Shaft, (3rd/4th) | 1 | $44.57 | Add to Cart | |
| 18 | 2244K1155 | Shift Shaft, Neutral Check | 1 | — | No longer available — call for replacement | |

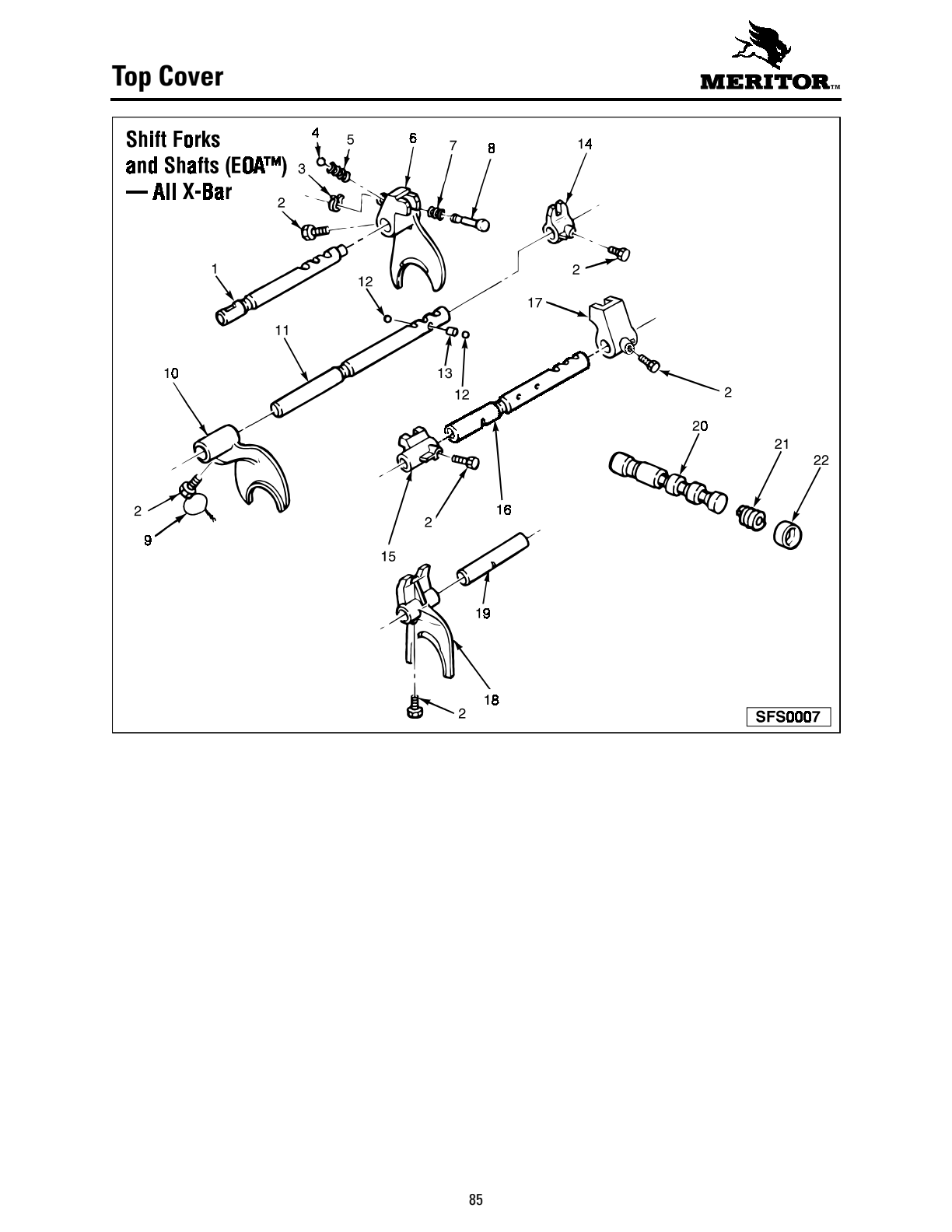

| 6 | 3296F1124 | Shift Fork, (1st/Rev), Std Cover | 1 | $644.00 | Add to Cart | |
| 3296M1131 | Shift Fork, (1st/Rev), Fwd Cover | 1 | $129.76 | Add to Cart | ||
| 14 | 2245T1060 | Sleeve, (2nd/3rd) Std Cover | 1 | $139.56 | Add to Cart | |
| 2245X1064 | Sleeve, Shifter (2nd/3rd) Fwd Cover | 1 | $51.30 | Add to Cart | ||
| 15 | 2245G1125 | Sleeve, (4th/5th) | 1 | — | No longer available — call for replacement | |
| 16 | 2244T1112 | Shift Shaft, (4th/5th) | 1 | — | Call for availability | |
| 18 | 3296R1136 | Shift Fork, (4th/5th) | 1 | $310.76 | Add to Cart | |
| 19 | 2244Q1083 | Shift Shaft, Use 2244-Y-1117 | NLA | — | Call for availability | |
| 2244Y1117 | Shift Shaft, Use KIT5333 For S/n LB93017311 & Below. | NSS | — | Call for availability | ||
| 20 | 2244S1059 | Shift Shaft, (neutral Check) | 1 | $66.07 | Add to Cart | |
| 21 | 3280M8775 | Plunger, Use 2245-P -1134 Sleeve | NLA | — | Call for availability | |
| 19 | 2244Y1117 | Shift Shaft, Use KIT5333 For S/n LB93017311 & Below. | NSS | — | Call for availability | |
| 20 | 2244Y1143 | Shift Shaft, Neutral Check | 1 | $843.05 | Add to Cart | |
| 21 | 2258D1330 | Spring Neutral Checkshaft , | 1 | — | Call for availability | |
| 22 | 1250W1271 | Plug Expansion , | 1 | $202.40 | Add to Cart | |
| 20 | 2244K1155 | Shift Shaft, Neutral Check | 1 | — | No longer available — call for replacement |
Air System
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 43X1181 | Pin, (actuator) | 1 | $56.10 | Add to Cart | |
| 2 | 2258V1166 | Spring 5371 5385 , | 1 | $235.00 | Add to Cart | |
| 3 | 5X1151 | O -ring | 1 | $183.00 | Add to Cart | |
| 4 | 2245H1126 | Sleeve, Replaced By 2245-B -1198, Use KIT5385. | NLA | — | Call for availability | |
| 2245U1165 | Sleeve, Replaced By 2245-B -1198, Use KIT5385. 5371 | NLA | — | Call for availability | ||
| 2245B1198 | Sleeve 5280, 5385 | 1 | $133.88 | Add to Cart | ||
| 5 | 5X1134 | O -ring | 1 | $52.50 | Add to Cart | |
| 6 | 2208M1053 | Gasket 5200, 5203, 5221 5238, , 5280, 5371 | 1 | $10.50 | Add to Cart | |
| 7 | KIT5294 | Service Kit | 2 | $448.66 | Superseded by KIT5385Add to Cart | |
| 8 | P12ZS | Plug | 1 | $20.36 | Add to Cart | |
| 9 | A3280Y8761 | Valve Assy, (order KIT5385) Lock Wshr | 1 | $448.66 | Superseded by KIT5385Add to Cart | |
| 11 | 10X1532 | Special Screw, 1/4"-20 X 1 -1/2" Allen Head | 4 | $157.00 | Add to Cart | |
| 1 | A3280X9072 | Filter/reg Assy, (9- & 10-Speed Only) Includes Housing | 1 | $163.10 | Add to Cart | |
| A3280Y9073 | Filter/reg Assy, (13-Speed Only) Includes Housing | 1 | $336.57 | Add to Cart | ||
| 2 | 5X1135 | O -ring (order Kit 5290) , | NSS | — | Call for availability | |
| 3 | 5X1096 | O -ring (order Kit 5290) , | NSS | — | Call for availability | |
| 4 | 2297A6163 | Filter, (order Kit 5290) 5290 Flat Wshr | NSS | — | Call for availability | |
| 6 | S2416A1 | Bolt/capscrew | 2 | — | No longer available — call for replacement | |
| 7 | 5X1084 | O -ring (13-Speed Only) , | 1 | $17.60 | Add to Cart | |
| 1 | 2296T1034 | Tubing (exhaust) (5/32" O .d X 50' Long Yellow) , . - | OPT | — | Call for availability | |
| 2296P1030 | Tubing (exhaust) (1/8" O .d X 50' Long Yellow) , . - | OPT | — | Call for availability | ||
| 2 | 2296R1032 | Tubing (pilot Supply) (5/32" O .d X 50' Long Red) , . - | 1 | — | Call for availability | |
| 2296M1076 | Tubing (pilot Supply) (1/8" O .d X 50' Long Red) , . - | 1 | — | Call for availability | ||
| 3 | 2296S1033 | Tubing (pilot) (5/32" O .d X 50' Long Black) , . - | 1 | — | Call for availability | |
| 2296N1028 | Tubing (pilot) (1/8" O .d X 50' Long Black) , . - | 1 | — | Call for availability | ||
| 4 | A2206J1128 | Connector, 5/32" X 1/8" NPT | 1 | $99.60 | Add to Cart | |
| A2206L1130 | Connector, 1/8" X 1/8" NPT | 1 | $24.63 | Superseded by R970500Add to Cart | ||
| 5 | A2206M1131 | Elbow, 5/32" X 1/8" NPT 90 Degrees | 1 | $67.52 | Add to Cart | |
| A2206P1134 | Elbow, 1/8" X 1/8" NPT 90 Degrees | 1 | $13.18 | Superseded by A2206P1134PHAdd to Cart | ||
| 6 | A2206K1129 | Connector, 1/4" X 1/8" NPT Replaced By A-2206-G -1151 | NLA | $109.44 | Superseded by A2206G1151Add to Cart | |
| A2206G1151 | Connector, 5/16" X 1/8" NPT | 5 | $109.44 | Add to Cart | ||
| 7 | 2296J1024 | Tubing (1/4") Use 2296-H -1074 , | NLA | — | Call for availability | |
| 2296H1074 | Tubing 5/16" O .d X 25" (blue) , . | 1 | $217.08 | Add to Cart | ||
| 8 | 2296L1026 | Tubing (1/4") Use 2296-J -1076 , | NLA | — | Call for availability | |
| 2296J1076 | Tubing 5/16" O .d X 26" (black) , . | 1 | $305.40 | Add to Cart | ||
| 9 | 2296K1025 | Tubing (1/4") Use 2296-K-1077 , | NLA | — | Call for availability | |
| 2296K1077 | Tubing 5/16" O .d X 24" (red) , . | 1 | $132.76 | Add to Cart | ||
| 10 | A2206Q1135 | Elbow, Replaced By A-2206-F-1150 | NLA | $120.88 | Superseded by A2206F1150Add to Cart | |
| A2206F1150 | Elbow, 5/16" X 1/8" NPT 90 Degrees | 1 | $120.88 | Add to Cart | ||
| 11 | 2257C1069 | Clamp, Use 2257 -j -1076 | NLA | — | Call for availability | |
| 2257J1076 | Clamp 5231 5233, , 5257, 5307 | 1 | $527.60 | Add to Cart | ||
| 12 | 2206P1056 | Tube Adapter, Replaced By A-2206-R-1136 | NLA | — | Call for availability | |
| A2206R1136 | Tube Adapter, 5/32" To 1/8" | OPT | — | Call for availability | ||
| 2206C1147 | Elbow, 45 Degrees 5307 | 1 | $29.73 | Add to Cart | ||
| 1 | 2296R1032 | Tubing (pilot Supply) 5/32" O .d X 50' Red , . | 1 | — | Call for availability | |
| 2 | 2296U1035 | Tubing (splitter) 5/32" O .d X 50' Green , . | 1 | — | Call for availability | |
| 2296Q1031 | Tubing (splitter) 1/8" O .d X 50' Green , . | 1 | — | Call for availability | ||
| 3 | 2296T1034 | Tubing (exhaust) 5/32" O .d X 50' Yellow , . | OPT | — | Call for availability | |
| 4 | 2296S1033 | Tubing (pilot) 5/32" O .d X 50' Black , . | 1 | — | Call for availability | |
| 6 | A2206J1128 | Connector, 5/32" X 1/8" NPT | 1 | $99.60 | Add to Cart | |
| 7 | A2206K1129 | Connector, Use A-2206-G -1151 | NLA | $109.44 | Superseded by A2206G1151Add to Cart | |
| 8 | 2296J1024 | Tubing (1/4") Use 2296-L-1078 , | NLA | — | Call for availability | |
| 2296L1078 | Tubing (5/16" O .d X 31 ") Blue , . | 1 | — | No longer available — call for replacement | ||
| 9 | 2296L1026 | Tubing (1/4") Use 2296-M -1079 , | NLA | — | Call for availability | |
| 2296M1079 | Tubing (5/16" X O .d X 28") Black , . | 1 | — | No longer available — call for replacement | ||
| 10 | 2296K1025 | Tubing (1/4") Use 2296-N -1080 , | NLA | — | Call for availability | |
| 2296N1080 | Tubing (5/16" O .d X 28") Red , . | 1 | $99.68 | Add to Cart | ||
| 12 | A2206Q1135 | Elbow, Use A-2206-F-1150 | NLA | $120.88 | Superseded by A2206F1150Add to Cart | |
| 13 | 2206C1147 | Elbow, 45 Degrees 5307 | 1 | $29.73 | Add to Cart |
Controls Shift Knobs (Manual) 9 & 10-Speed
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A3280J9032 | Shift Knob, Replaced By A-3280-F-9366 | NLA | $402.49 | Superseded by A3280F9366Add to Cart | |
| A3280F9366 | Shift Knob, 5/32" Air Lines | 1 | $402.49 | Add to Cart | ||
| A3280H9030 | Shift Knob, Replaced By A-3280-E-9365 | NLA | $521.13 | Superseded by A3280E9365Add to Cart | ||
| A3280E9365 | Shift Knob, 1/8" Air Lines | 1 | $521.13 | Add to Cart | ||
| A3280T9276 | Shift Knob, Replaced By A-3280-J -9370 | NLA | — | Call for availability | ||
| A3280J9370 | Shift Knob, Cruise Control, 1/8" Air Lines | 1 | $936.36 | Add to Cart | ||
| A3280U9277 | Shift Knob, Replaced By A-3280-K-9371 | NLA | — | Call for availability | ||
| A3280K9371 | Shift Knob, Cruise Control, 5/32" Air Lines | 1 | $2,199.11 | Add to Cart | ||
| 2 | 2297Z6526 | Shield, (cap-lens) (replaced By A-2297 -W-7069) | NLA | — | Call for availability | |
| A2297W7069 | Shield, (cap-lens) | 1 | $145.97 | Add to Cart | ||
| 3 | A2297L7058 | Switch Assy, Cruise Control | 1 | — | No longer available — call for replacement | |
| 4 | 2245F1124 | Shroud Skirt, Replaced By 2245-P -1186 , | NLA | — | Call for availability | |
| 2245P1186 | Shroud Skirt (order Item No 1) , . | 1 | — | Call for availability | ||
| 5 | 10X1524 | Special Screw, Replaced By 10X-1625 | NLA | — | Call for availability | |
| 10X1625 | Special Screw, (order Item No 1) . Jam Nut | 1 | — | No longer available — call for replacement |
Controls Shift Knobs (Manual) 13-Speed
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A3280L9034 | Shift Knob, Replaced By A-3280-H -9368 | NLA | — | Call for availability | |
| A3280H9368 | Shift Knob, 5/32" Air Lines | 1 | — | No longer available — call for replacement | ||
| A3280K9033 | Shift Knob, Replaced By A-3280-G -9367 | NLA | — | Call for availability | ||
| A3280G9367 | Shift Knob, 1/8" Air Lines | 1 | — | No longer available — call for replacement | ||
| A3280V9278 | Shift Knob, Replaced By A-3280-L-9372 | NLA | — | Call for availability | ||
| A3280L9372 | Shift Knob, Cruise Control, 1/8" Air Lines | 1 | $761.71 | Add to Cart | ||
| A3280W9279 | Shift Knob, Replaced By A-3280-M -9373 | NLA | — | Call for availability | ||
| A3280M9373 | Shift Knob, Cruise Control, 5/32" Air Lines | 1 | — | No longer available — call for replacement | ||
| 2 | 2297Z6526 | Shield, (cap-lens) (replaced By A-2297 -W-7069) | NLA | — | Call for availability | |
| A2297W7069 | Shield, (cap-lens) | 1 | $145.97 | Add to Cart | ||
| 3 | A2297L7058 | Switch Assy, Cruise Control | 1 | — | No longer available — call for replacement | |
| 4 | 2245F1124 | Shroud Skirt, Replaced By 2245-P -1186 , | NLA | — | Call for availability | |
| 2245P1186 | Shroud Skirt (order Item No 1) , . | 1 | — | Call for availability | ||
| 5 | 10X1524 | Special Screw, Replaced By 10X-1625 | NLA | — | Call for availability | |
| 10X1625 | Special Screw, (order Item No 1) . Jam Nut | 1 | — | No longer available — call for replacement |

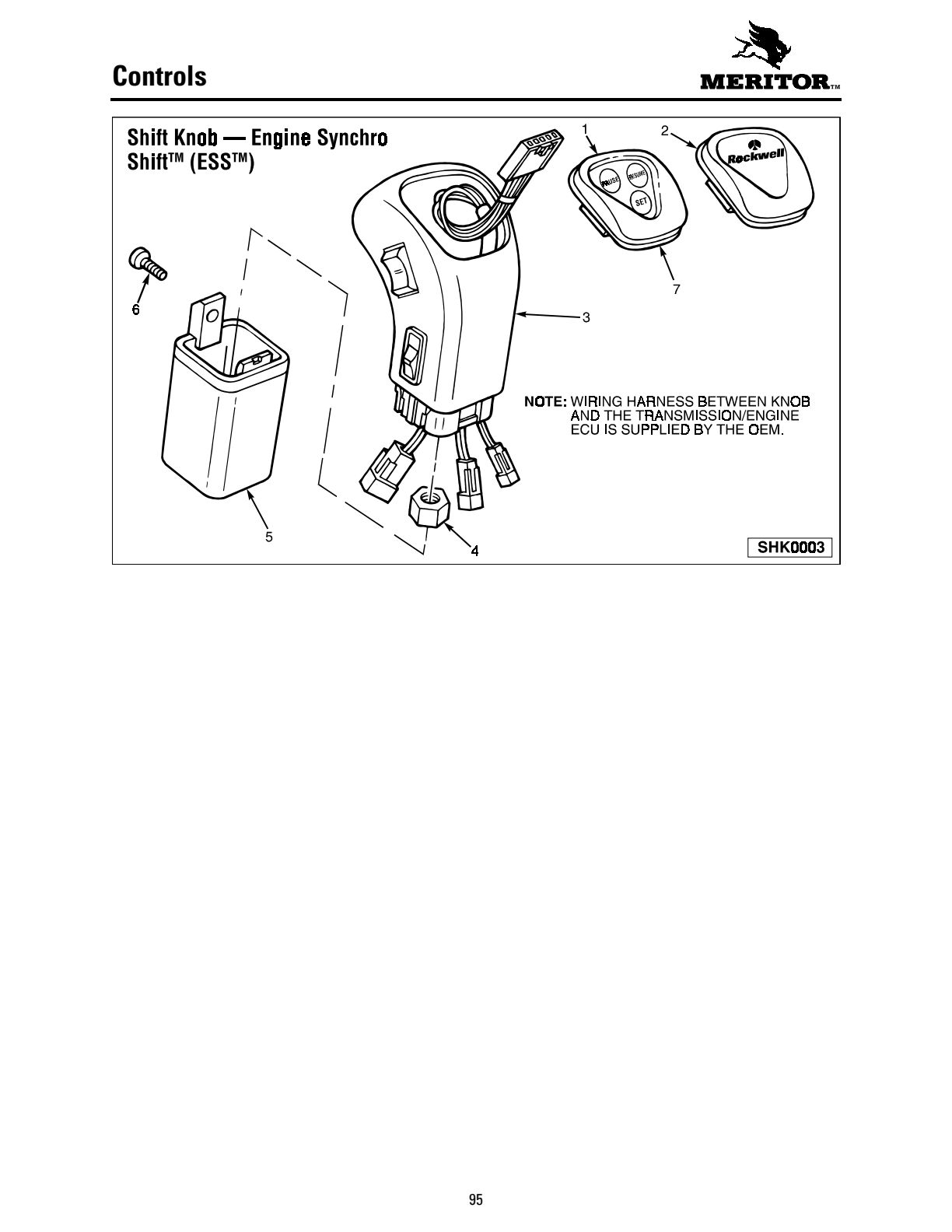

Controls
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A2297L7058 | Switch Assy, Shift-n -cruisetm | 1 | — | No longer available — call for replacement | |
| 2 | A2297K7083 | Shield, Lens Cap | 1 | — | Call for availability | |
| 3 | A3280K9397 | Shift Knob, Esstm (w/o Cruise Control) Includes; 2245-P-1186 & 10X-1625 | 1 | — | No longer available — call for replacement | |
| A3280L9398 | Shift Knob, Esstm (with Cruise Control) Includes; 2245-P-1186 & 10X-1625 Jam Nut | 1 | $922.08 | Add to Cart | ||
| 5 | 2245P1186 | Shroud Skirt , | 1 | — | Call for availability | |
| 6 | 10X1625 | Special Screw | 1 | — | No longer available — call for replacement |

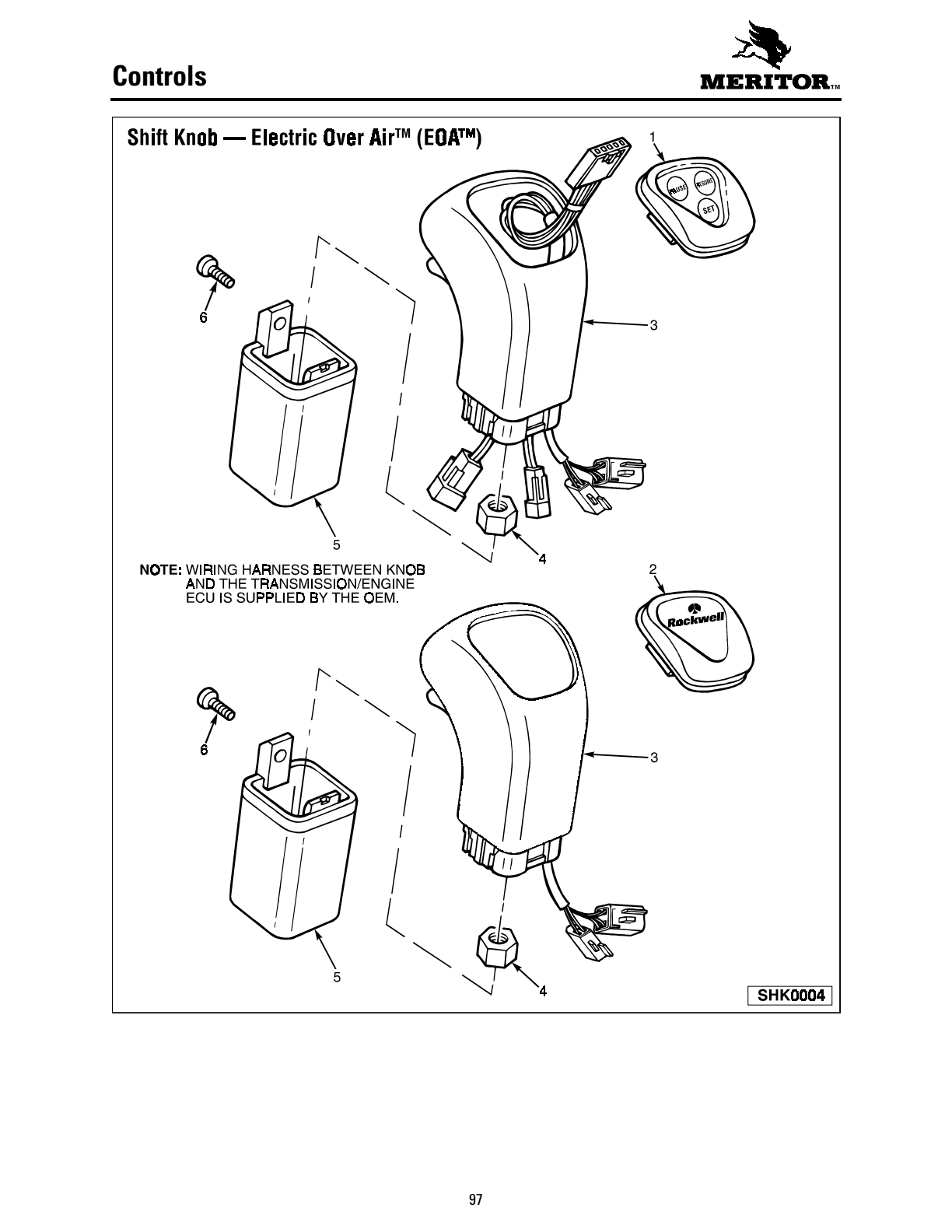

Controls Shift Knob Electric Over Airtm (Eoatm), Available With Optional Shift-N-Cruisetm
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A2297K7083 | Shield, Lens Cap | 1 | — | Call for availability | |
| 2 | A2297L7058 | Switch Assy, Shift-n -cruisetm (optional) | 1 | — | No longer available — call for replacement | |
| 3 | A3280C9467 | Shift Knob, Assembly | 1 | $471.57 | Add to Cart | |
| A3280D9468 | Shift Knob, Assembly, With Shift-n -cruisetm (optional) | 1 | $893.59 | Add to Cart | ||
| A3280E9469 | Shift Knob, Assembly, Volvo Only | 1 | $502.63 | Add to Cart | ||
| A3280F9470 | Shift Knob, Assembly, With Shift-n -cruisetm, Volvo Only (optional) Jam Nut | 1 | $490.35 | Add to Cart | ||
| 5 | 2245P1186 | Shroud Skirt , | 1 | — | Call for availability | |
| 6 | 10X1625 | Special Screw | 1 | — | No longer available — call for replacement |

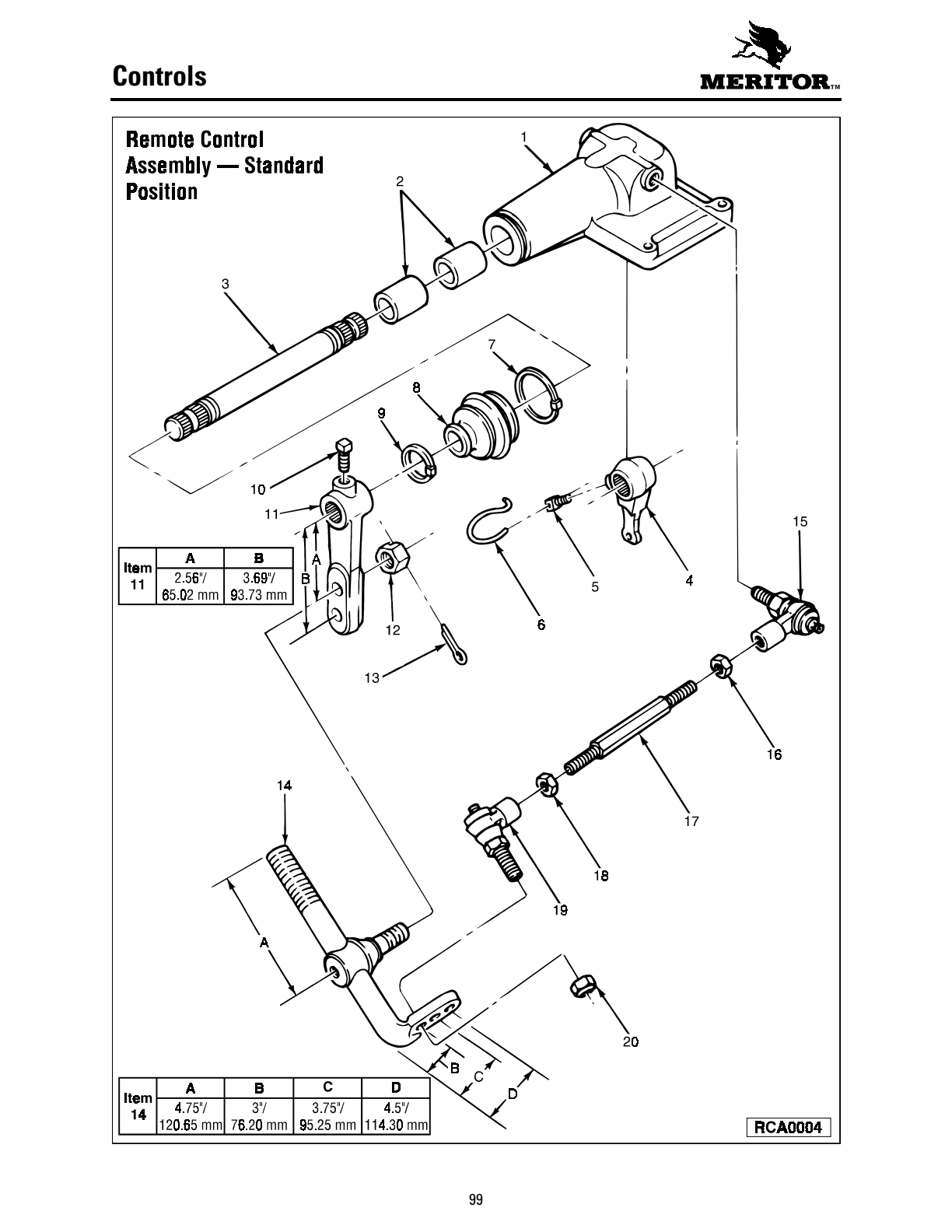

Controls
Click a number on the diagram to highlight that part below.

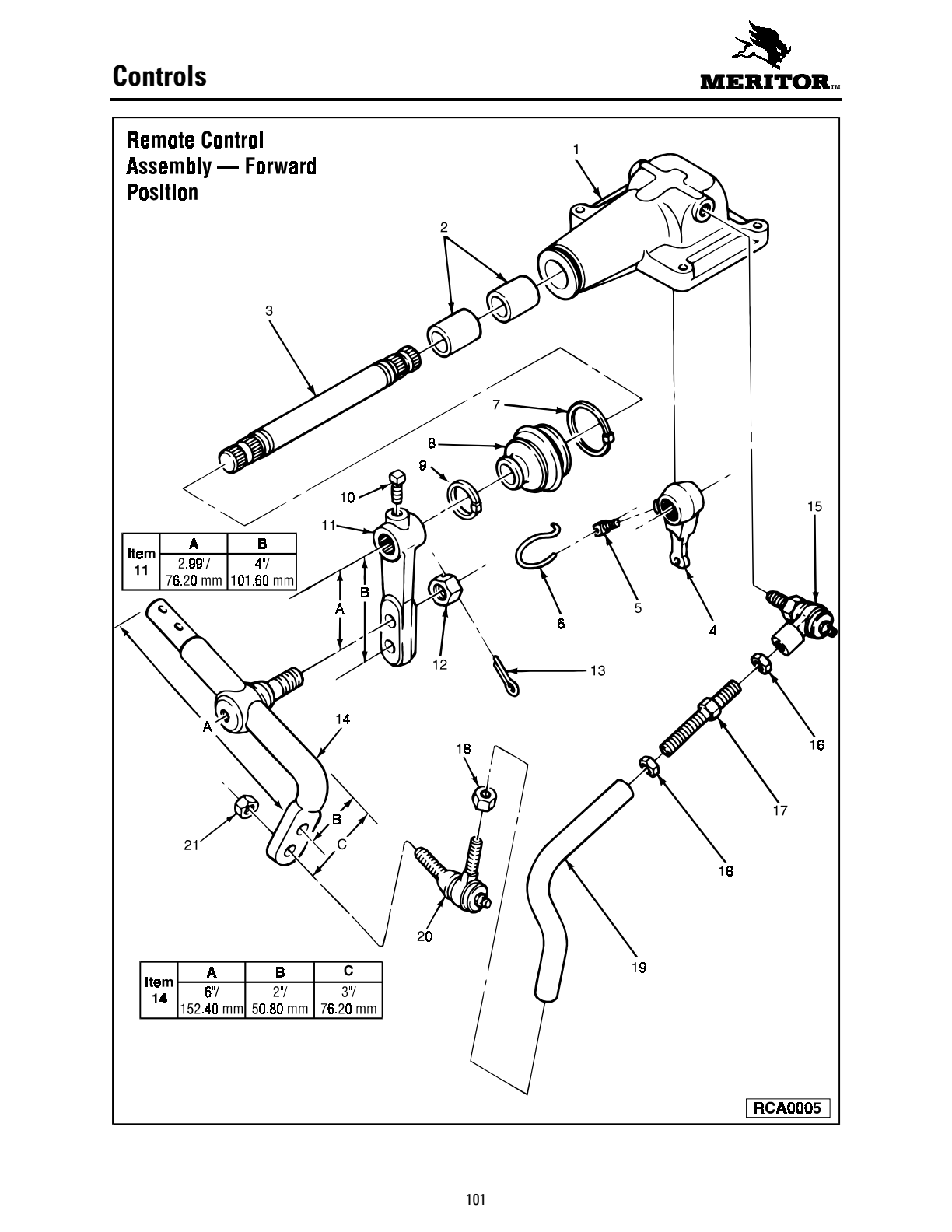

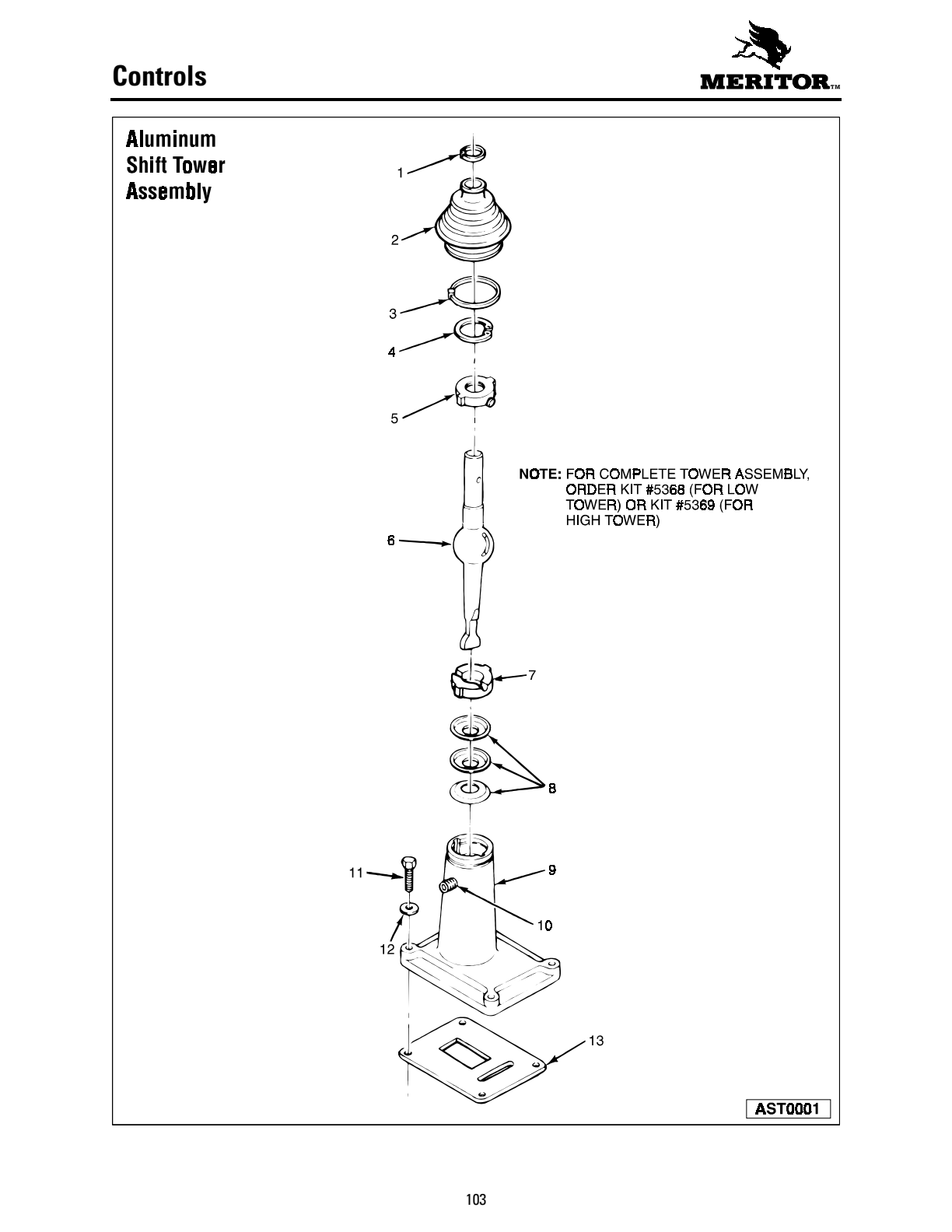

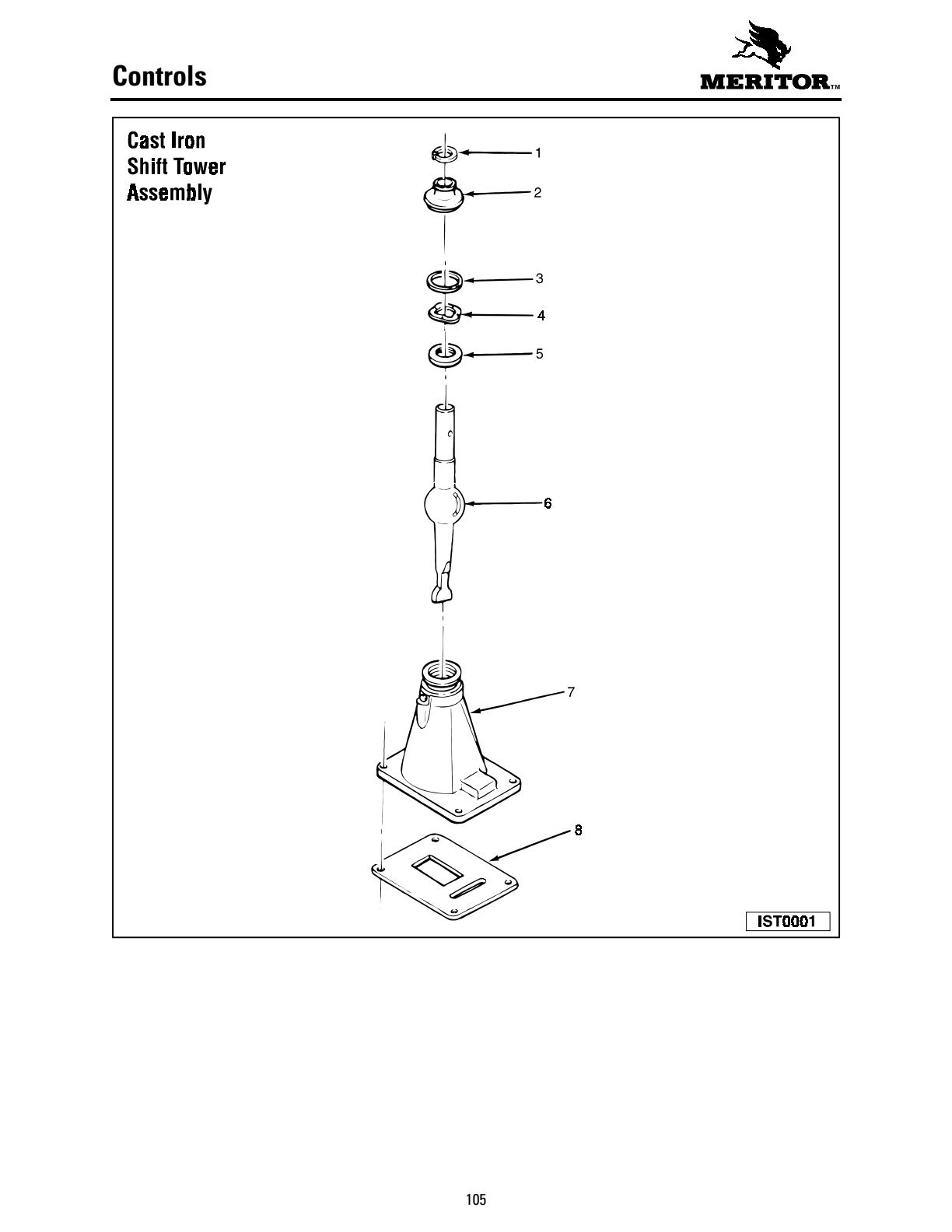

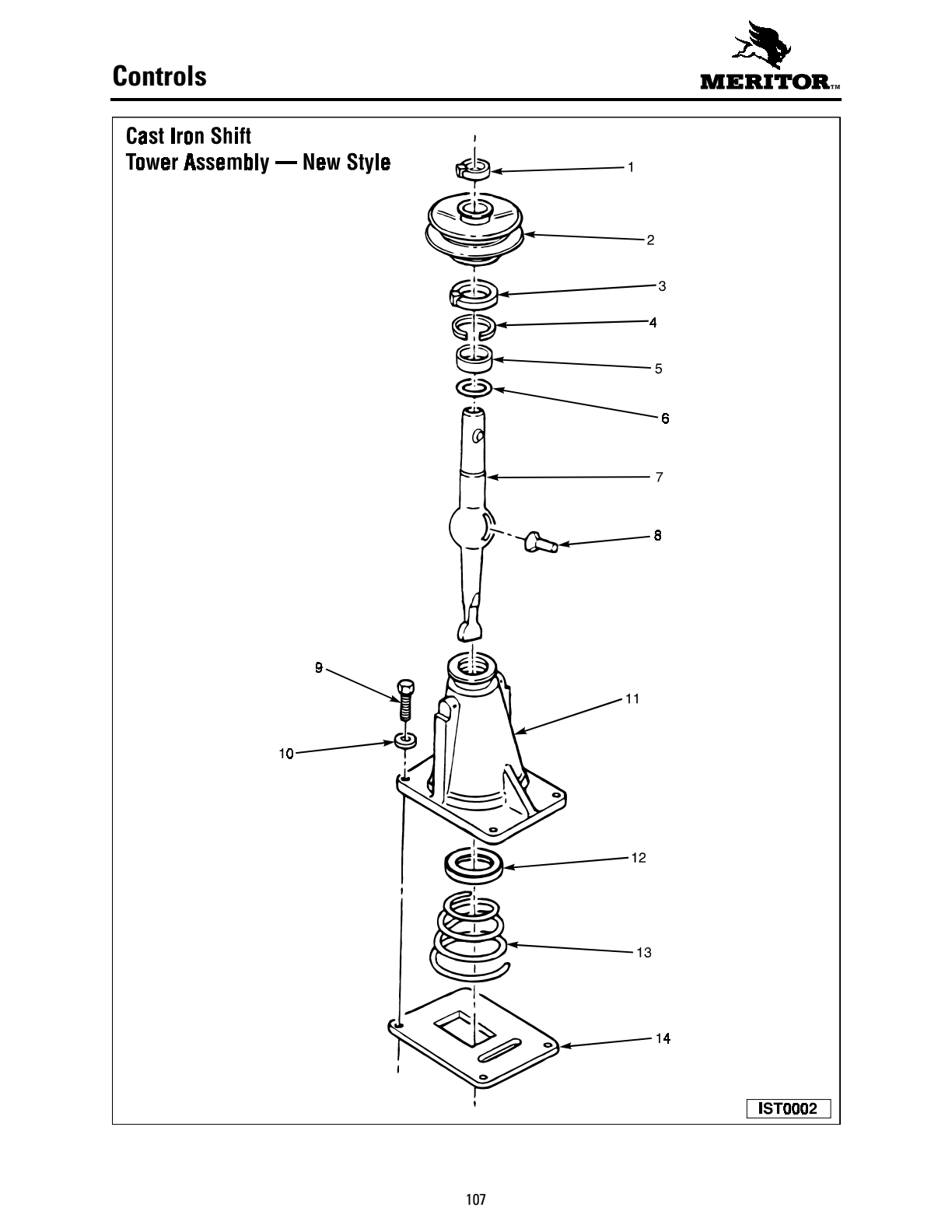

| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3280E8741 | Remote Ctrl Hsg Replaced By A1 -3280-E-8741 , | NLA | — | Call for availability | |
| A13280E8741 | Remote Ctrl Hsg Standard Position , | 1 | $327.51 | Add to Cart | ||
| 2 | 1225P1186 | Bushing | 2 | — | No longer available — call for replacement | |
| 3 | 2244Y1065 | Shift Shaft, 11 -1/4" | 1 | $365.23 | Add to Cart | |
| 4 | 2247K1077 | Inner Shift Lever | 1 | $26.33 | Add to Cart | |
| 5 | 10X1521 | Set Screw | 1 | — | Call for availability | |
| 6 | LW1310 | Lock Wire | 1 | — | Call for availability | |
| 7 | 3237H294 | Strap 5370 | 1 | — | Call for availability | |
| 8 | 2260R1032 | Boot | 1 | $48.33 | Add to Cart | |
| 9 | 3237N66 | Strap, Cable Tie 5326, 5370 | 1 | $24.00 | Add to Cart | |
| 10 | 10X1522 | Set Screw | 1 | $5.25 | Add to Cart | |
| 11 | 2247M1079 | Outer Shift Lever Nut, Replaced By N -18-1 Nut Pin, Cotter | 1 | $82.14 | Add to Cart | |
| 14 | A2247F1098 | Lever Assy, Selection | 1 | — | Call for availability | |
| 15 | A2110M1001 | Ball Socket, Assembly | 1 | — | No longer available — call for replacement | |
| 16 | 1227F1384 | Jam Nut | 1 | — | Call for availability | |
| 17 | 2297B6060 | Rod Adjusting , Jam Nut | 1 | $40.10 | Add to Cart | |
| 19 | A2110N1002 | Ball Socket, Assembly | 1 | — | No longer available — call for replacement | |
| 20 | NL281 | Lock Nut | 1 | — | Call for availability | |
| 1 | 3280G8743 | Remote Ctrl Hsg Forward Position , | 1 | — | Call for availability | |
| 3 | 2244K1077 | Shift Shaft | 1 | — | No longer available — call for replacement | |
| 11 | 2247N1080 | Outer Shift Lever Nut, Replaced By N -18-1 Nut Pin, Cotter | 1 | — | Call for availability | |
| 14 | A2247G1099 | Lever Assy, Selection | 1 | — | Call for availability | |
| 17 | 2297D6062 | Rod Adjusting , Jam Nut | 1 | — | No longer available — call for replacement | |
| 19 | 2297E6063 | Rod Adjusting , | 1 | — | Call for availability | |
| 20 | A2110P1004 | Ball Socket, Assembly | 1 | $129.93 | Add to Cart | |
| 21 | NL281 | Lock Nut | 1 | — | Call for availability | |
| 1 | 3237N66 | Strap 5326, 5370 | 1 | $24.00 | Add to Cart | |
| 2 | 2260V1036 | Boot, Available In Kit Only 5326 | NLA | — | Call for availability | |
| 3 | 3237P68 | Strap, Available In Kit Only 5326 | NSS | $15.48 | Add to Cart | |
| 4 | 1229T1242 | Snap Ring, Available In Kit Only 5326 | NSS | — | Call for availability | |
| 5 | A2214S1111 | Ring Available In Kit Only 5326 , | NSS | — | Call for availability | |
| 6 | 2247V1088 | Lever, (low Tower) Use KIT5368 | NLA | $1,076.13 | Superseded by KIT5368Add to Cart | |
| 2247X1090 | Lever, (high Tower) Use KIT5369 | NLA | $985.78 | Superseded by KIT5369Add to Cart | ||
| 7 | 2214Q1135 | Ring Available In Kit Only 5326 , | NLA | — | Call for availability | |
| 8 | 42X1227 | Spring (belleville) Available In Kit Only 5326 , | NLA | — | Call for availability | |
| 9 | 3280M8671 | Shift Hsg 6.60"/167 .64 Mm Bolt Flange To Top, Use , KIT5369 Cast Iron Shift Tower - | NLA | — | Call for availability | |
| 3280J8122 | Shift Hsg 4.64"/117 .90 Mm Bolt Flange To Top, Use , KIT5368 Cast Iron Shift Tower - Set Screw | NLA | — | Call for availability | ||
| 11 | S2610A1 | Bolt/capscrew, Replaced By S -2610-A-2 | NLA | — | Call for availability | |
| S2610A2 | Bolt/capscrew, 3/8"-16 Unc X 1 -1/4" | 4 | — | Call for availability | ||
| 12 | 1229B1666 | Flat Wshr 5299, 5300, 5369, 5386 | 4 | — | Call for availability | |
| 13 | 3208L1078 | Gasket, Replaced By 3208-N -1080 5326 | NLA | $352.40 | Add to Cart | |
| 3208N1080 | Gasket, (aluminum Tower Only) 5299, 5300, 5368, 5369, | 1 | $66.20 | Add to Cart | ||
| 2 | 2260M1105 | Boot 5370 | 1 | — | Call for availability | |
| 3 | 1229Z4524 | Snap Ring 5370 | 1 | $48.40 | Add to Cart | |
| 4 | 2258F1254 | Spring 5370 | 1 | — | Call for availability | |
| 5 | 2214X1142 | Ring (spacer) 5370 , | 1 | — | Call for availability | |
| 7 | A3280S9145 | Shift Hsg Assy, Replaced By A1 -3280-J -9318 | NLA | — | Call for availability | |
| A13280J9318 | Shift Hsg Assy, (low) 4.64"/117 .90 Mm Bolt Flange To 5368 Top Note: These Towers Use Gasket 3208-N -1080. . | 1 | $1,285.33 | Add to Cart | ||
| A3280U9147 | Shift Hsg Assy, Replaced By A1 -3280-L-9320 | NLA | — | Call for availability | ||
| A13280L9320 | Shift Hsg Assy, (high) 6.60"/167 .70 Mm Bolt Flange To 5369 Top Note: These Towers Use Gasket 3208-N1080. . | 1 | $1,269.25 | Add to Cart | ||
| 8 | 3208N1080 | Gasket, (cast Iron Tower Only) 5299, 5300, 5368, 5369, | 1 | $66.20 | Add to Cart | |
| 2 | 2260B1146 | Boot | 1 | $81.83 | Add to Cart | |
| 3 | 3237H294 | Strap 5370 | 1 | — | Call for availability | |
| 4 | 1229F4660 | Ring Retainer , | 1 | $30.40 | Add to Cart | |
| 5 | 2214V1166 | Ring Inner , | 1 | $72.38 | Add to Cart | |
| 6 | 5X1201 | O -ring | 1 | $135.35 | Add to Cart | |
| 7 | 2247M1313 | Lever, Low | 1 | $627.02 | Add to Cart | |
| 2247G1463 | Lever, Mid | 1 | $372.78 | Add to Cart | ||
| 2247N1314 | Lever, High | 1 | $350.08 | Add to Cart | ||
| 8 | 43X1188 | Pin | 1 | $328.70 | Add to Cart | |
| 9 | S2610A1 | Bolt/capscrew, Replaced By S -2610-A-2 | NLA | — | Call for availability | |
| 10 | 1229B1666 | Flat Wshr 5299, 5300, 5369, 5386 | 1 | — | Call for availability | |
| 11 | A13280J9318 | Shift Hsg Assy, Low 5368 | 1 | $1,285.33 | Add to Cart | |
| A13280T9458 | Shift Hsg Assy, Mid 5386 | 1 | — | Call for availability | ||
| 12 | 3105B1198 | Retainer, Spring | 1 | $171.68 | Add to Cart | |
| 13 | 2258B1328 | Spring | 1 | $90.28 | Add to Cart | |
| 14 | 3208N1080 | Gasket 5299, 5300, 5368, 5369, | 1 | $66.20 | Add to Cart | |

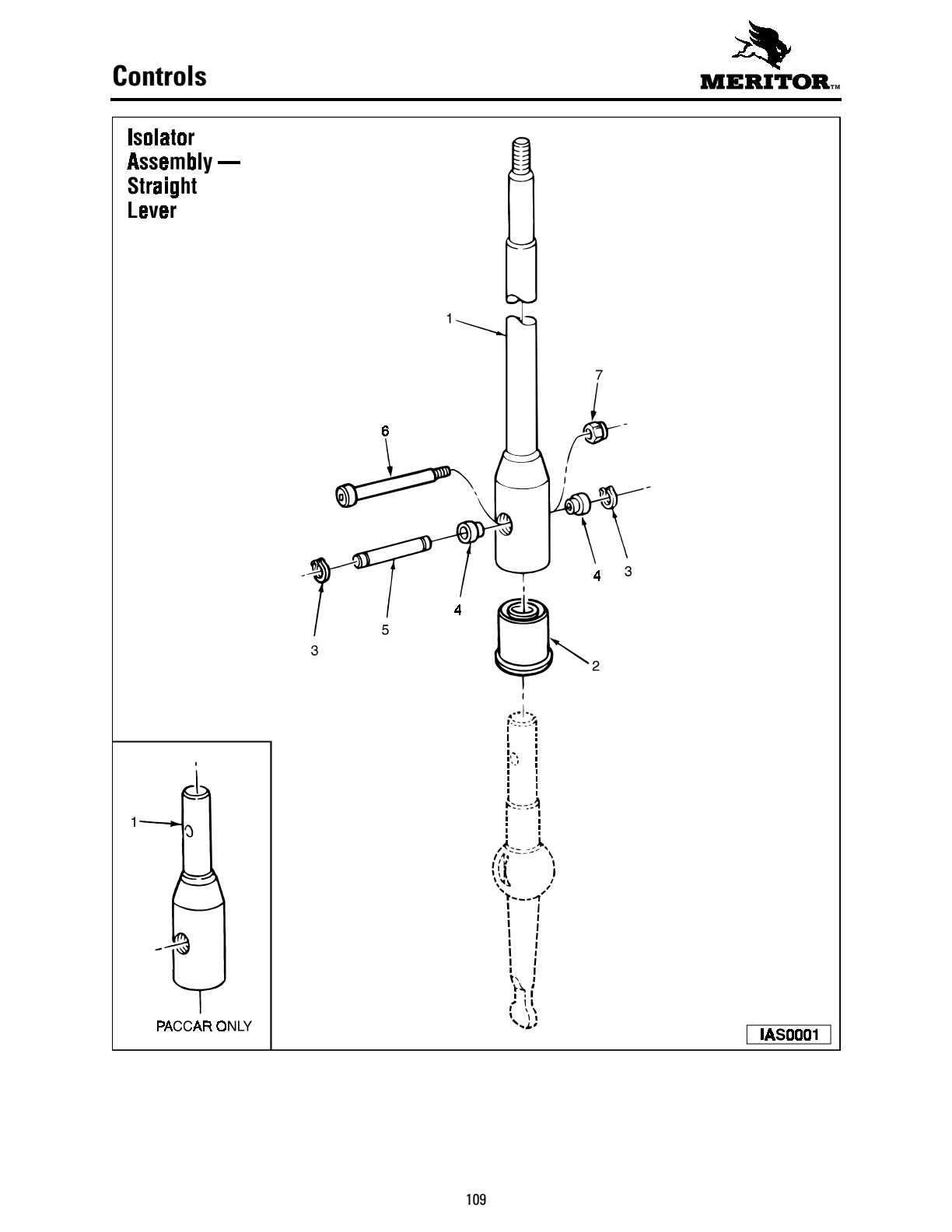

| 1 | A2247X1142 | Lever Assy, (isolated) 24"/60.96 Cm Measure Hole - C/l To Top Note: These Are Straight Shift Levers And May Need To Be Bent To Match Application For . Specific Lever Take Part Number From Level Or See Truck Line Setting Ticket. Includes 2245-J -1076 Sleeve | 1 | $1,544.09 | Add to Cart | |
| A2247T1190 | Lever Assy, (isolated) 32"/81 .28 Cm Measure Hole - C/l To Top Note: These Are Straight Shift Levers And May Need To Be Bent To Match Application For . Specific Lever Take Part Number From Lever Or See Truck Line Setting Ticket. Includes 2245-J -1076 | 1 | $772.99 | Add to Cart | ||
| A3268H1646 | Adapter Assy, (isolated) For Paccar Non -isolated Hollow Lever. Includes 2245-J -1076 | 1 | — | Call for availability | ||
| 2 | 2245J1076 | Sleeve, (isolator Bushing) 5378 | 1 | $77.22 | Add to Cart | |
| 3 | 1229T4336 | Snap Ring, Clip, Use KIT5237 | 1 | — | Call for availability | |
| 4 | 1225B1198 | Bushing 5237, 5378 | 2 | $63.00 | Add to Cart | |
| 5 | 43X1174 | Pin, Use KIT5237 | 1 | — | Call for availability | |
| 6 | 10X1611 | Bolt/capscrew, Use KIT5237 | 1 | $27.76 | Add to Cart | |
| 7 | 1227Q1525 | Nut, Use KIT5237 | 1 | $52.50 | Add to Cart | |
| 1 | A2247S1085 | Lever Assy, (high Tower) 26"/66.04 Cm Measure Center Of Ball To Top Note: These Are Straight Shift Levers And May Need To Be Bent To Match Application . For Specific Lever Take Part Number From Lever Or See Truck Line Setting Ticket. | 1 | — | Call for availability | |
| A32247Q1083 | Lever Assy, (low Tower) 29-1/2"/74.93 Cm Measure Center Of Ball To Top Note: These Are Straight Shift Levers And May Need To Be Bent To Match Application . For Specific Lever Take Part Number From Lever Or See Truck Line Setting Ticket. | 1 | — | Call for availability | ||
| A162247Q1083 | Lever Assy, Obsolete | NLA | — | Call for availability | ||
| 1 | 1229T4336 | Snap Ring, Use KIT5237 | 2 | — | Call for availability | |
| 2 | 1225B1198 | Bushing 5237, 5378 | 2 | $63.00 | Add to Cart | |
| 3 | 2245J1076 | Sleeve, (isolator Bushing) 5378 | 1 | $77.22 | Add to Cart | |
| 4 | 43X1174 | Pin, Use KIT5237 | 1 | — | Call for availability | |
| 5 | A2247Y1143 | Lever Assy, (isolated) 30"/76.20 Cm Measure Hole - C/l To End Note: Requires Bending To Match Application . | 1 | $638.70 | Add to Cart | |
| 1 | A3280J9396 | Switch Assy, Esstm (includes 5X-1091 O -ring) | 1 | — | No longer available — call for replacement | |
| 5X1091 | O -ring | 1 | — | No longer available — call for replacement | ||
| 2 | A2297G7079 | Wire Harness, Assembly, Replaced By A-2297 -u -7197 | NLA | — | Call for availability | |
| A2297U7197 | Wire Harness, Assembly 5372 | 1 | — | Call for availability | ||
| 3 | A3280A9413 | Speedometer Sensor, (includes 1205-T-1268 O -ring) | 1 | — | No longer available — call for replacement | |
| 1205T1268 | O -ring 5356, 5357, 5359, 5360, | 1 | $147.00 | Add to Cart | ||
| 4 | 3280F9392 | Solenoid Assy, (includes 5X-1207 And 5X-1092 O -rings) | 2 | — | Call for availability | |
| 5 | 2257A1223 | Clamp, Wiring Harness, Replaced By 2257 -g -1229 | NLA | — | Call for availability | |
| 2257G1229 | Clip, Wiring Harness 5372 | 6 | — | Call for availability | ||
| 1 | A2297Q7219 | Wire Harness, Transmission | 1 | — | Call for availability | |
| 2 | A3280W9409 | Switch Assy, Eoatm, Neutral Position (includes 5X-1091 O -ring) | 1 | $126.82 | Add to Cart | |
| 3 | 2257G1229 | Clip, Wiring Harness 5372 | 7 | — | Call for availability |
Labels Cab Shift Label (Manual) 9-Speed Transmission Standard
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 2297T6104 | Decal, Cab Shift Label (square) | 1 | $28.59 | Add to Cart | |
| 2 | 2297Z7384 | Decal, Cab Shift Label (oval) | 1 | — | Call for availability |
Labels Cab Shift Label (Manual) 9-Speed Transmission Rmo
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 2297E6167 | Decal, Cab Shift Label (square) | 1 | — | No longer available — call for replacement | |
| 2 | 2297B7386 | Decal, Cab Shift Label (oval) | 1 | — | Call for availability |
Labels Cab Shift Label (Manual) 9-Speed Transmission R Ratio
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 2297X6550 | Decal, Cab Shift Label (square) | 1 | — | Call for availability | |
| 2 | 2297A7385 | Decal, Cab Shift Label (oval) | 1 | — | Call for availability |
Labels Cab Shift Label (Esstm) 9-Speed Transmission Standard
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 2297A7125 | Decal, Cab Shift Label (square) | 1 | $12.69 | Add to Cart | |
| 2 | 2297Q7245 | Decal, Cab Shift Label (oval) | 1 | — | Call for availability |
Labels Cab Shift Label (Esstm) 9-Speed Transmission R Ratio
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 2297C7127 | Decal, Cab Shift Label (square) | 1 | — | Call for availability | |
| 2 | 2297S7247 | Decal, Cab Shift Label (oval) | 1 | — | Call for availability |
Labels Cab Shift Label (Manual) 10-Speed Transmission
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 2297X7252 | Decal, Cab Shift Label (square) | 1 | $55.76 | Add to Cart | |
| 2 | 2297D7388 | Decal, Cab Shift Label (oval) | 1 | — | Call for availability |
Labels Cab Shift Label (Esstm) 10-Speed Transmission
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 2297B7126 | Decal, Cab Shift Label (square) | 1 | $6.80 | Add to Cart | |
| 2 | 2297R7246 | Decal, Cab Shift Label (oval) | 1 | — | Call for availability |
Labels Cab Shift Label (Manual) 13-Speed Transmission
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 2297F6168 | Decal, Cab Shift Label (square) | 1 | $3.57 | Add to Cart | |
| 2 | 2297C7387 | Decal, Cab Shift Label (oval) | 1 | — | Call for availability |
Labels
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | TP90175 | Decal, Caution Pto Operation, Stationary Or - Engaged | 1 | — | Call for availability | |
| 2 | TP93171 | Decal, Caution Selecting The Transmission Range - | 1 | — | Call for availability | |
| 3 | 2297N6904 | Decal, Notice Extended Drain Lubricant - | 1 | — | Call for availability |
Output Yokes
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 21210300762 | Mm 5.62″/142.75 Mm 17NYS40-125A 17N 1710 Fr W/deflector | — | Call for availability | |||
| 23410300762 | Mm 5.75″/146.05 Mm 17N46931X 17N 1710 Fr W/deflector | — | Call for availability | |||
| 1 | 17NYS40125A | Yoke Assy, Full Round | 1 | — | Call for availability | |
| 176NYS4014A | Yoke Assy, Full Round | 1 | — | Call for availability | ||
| 18NYS404A | Yoke Assy, Full Round | 1 | — | Call for availability | ||
| 17N46931X | Yoke Assy, Full Round | 1 | — | Call for availability | ||
| 176NYS444A | Yoke Assy, Full Round | 1 | — | Call for availability | ||
| 18NYS444A | Yoke Assy, Full Round | 1 | — | Call for availability | ||
| 2 | 17TYS40144 | Yoke Assy, Easy Service | 1 | — | Call for availability | |
| 176TYS4014A | Yoke Assy, Easy Service | 1 | — | Call for availability | ||
| 18TYS404A | Yoke Assy, Easy Service | 1 | — | Call for availability | ||
| 17TYS4410A | Yoke Assy, Easy Service | 1 | — | Call for availability | ||
| 176TYS444A | Yoke Assy, Easy Service | 1 | — | Call for availability | ||
| 18TYS444A | Yoke Assy, Easy Service | 1 | — | Call for availability | ||
| 3 | 72NYS4099A | Yoke Assy, Wing Series Permalube | 1 | — | Call for availability | |
| 82NYS4028A | Yoke Assy, Wing Series Permalube | 1 | — | Call for availability | ||
| 85WBYS4034A | Yoke Assy, Wing Series Permalube | 1 | — | Call for availability | ||
| 92NYS4040A | Yoke Assy, Wing Series Permalube | 1 | — | Call for availability | ||
| 85WBYS441A | Yoke Assy, Wing Series Permalube | 1 | — | Call for availability | ||
| 92NYS4422A | Yoke Assy, Wing Series Permalube | 1 | — | Call for availability | ||
| 4 | 20WYS402A | Yoke Assy, Rpl Series Permalube | 1 | — | Call for availability | |
| 25WYS402A | Yoke Assy, Rpl Series Permalube | 1 | — | Call for availability | ||
| 20WYS442A | Yoke Assy, Rpl Series Permalube | 1 | — | Call for availability | ||
| 25WYS442A | Yoke Assy, Rpl Series Permalube | 1 | — | Call for availability | ||
| 5 | 5WCS4040A | Yoke Assy, Companion Flange | 1 | — | Call for availability | |
| 5WCS4041A | Yoke Assy, Companion Flange | 1 | — | Call for availability | ||
| 5WCS443A | Yoke Assy, Companion Flange | 1 | — | Call for availability |
Speedometer Items
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 2297U5897 | Speedo Gear, (drive) 115/125 Only 6T 5259 | 1 | — | Call for availability | |
| 2297Y6057 | Speedo Gear, (drive) 135/145 Only 6T 5260 | 1 | — | No longer available — call for replacement | ||
| 2 | 2245Z1066 | Sleeve 5259, 5260 | 1 | — | No longer available — call for replacement | |
| 3 | 5X1092 | O -ring | 1 | $82.20 | Add to Cart | |
| 4 | 2297V5898 | Speedo Gear, Adjusting 5259 | 1 | — | Call for availability | |
| 2297X6056 | Speedo Gear, (driven) 135/145 Only 14T 5260 | 1 | — | No longer available — call for replacement | ||
| 5 | 1225Z1170 | Bushing | 1 | — | No longer available — call for replacement | |
| 1 | 2297A5903 | Rotor, 115/125 Only 16T | 1 | $98.12 | Add to Cart | |
| 2297Z6058 | Rotor, Rotor (electronic Speedometer) 135/145 Only 16T | 1 | $71.54 | Add to Cart | ||
| 2 | 1205T1268 | O -ring 5356, 5357, 5359, 5360, | 1 | $147.00 | Add to Cart |

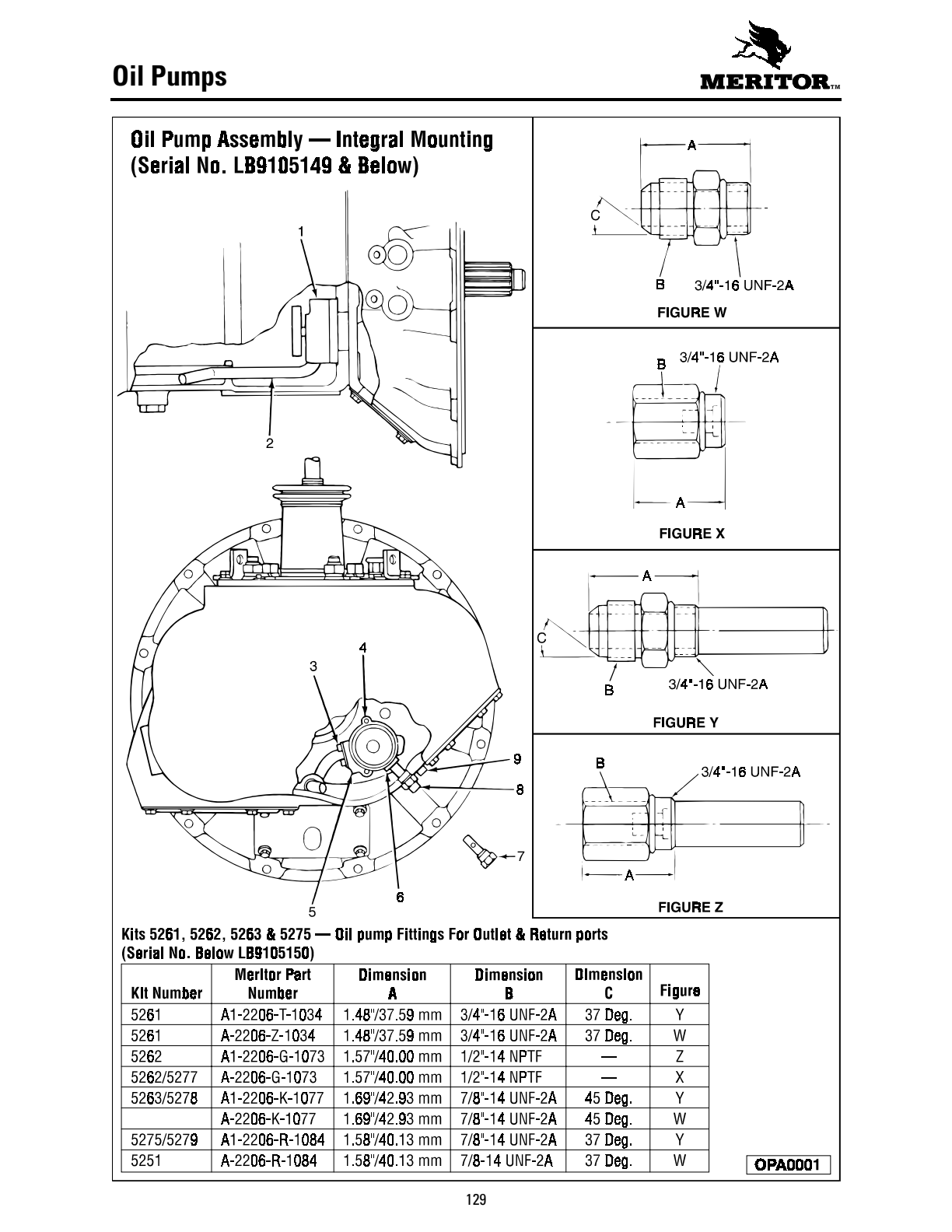

Oil Pumps
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A13303L1026 | Pump Assy, Replaced By A-3303-M -1027 | NLA | — | Call for availability | |
| A3303M1027 | Pump Assy, (includes Drive Gear) | 1 | — | Call for availability | ||
| 2 | A13196G1047 | Piping Assy, (with Screen) | 1 | — | Call for availability | |
| 3 | 10X1459 | Special Screw, 1/4"-20 X 1/2" Allen Head | 1 | — | Call for availability | |
| 4 | 10X1460 | Special Screw, 5/16"-18 X 1 -1/2" Allen Head | 1 | — | Call for availability | |
| 5 | 5X1090 | O -ring | 1 | $65.90 | Add to Cart | |
| 6 | 5X1089 | O -ring | 1 | $73.40 | Add to Cart | |
| 7 | A12206K1051 | Plug Assy, (shipping Only) | OPT | — | Call for availability | |
| 8 | A12206T1034 | Connector, (plug Assembly-case Outlet) 5261 | OPT | — | Call for availability | |
| 9 | A1250H1126 | Plug Assy, (case Return) | OPT | $72.44 | Add to Cart | |
| 10 | 2297J6406 | Plate, (not Pictured) | 1 | — | Call for availability | |
| 11 | 10X1520 | Shroud (for Baffle, Not Pictured) , | 3 | — | Call for availability | |
| 12 | 1829R564 | Lock Wshr, For Baffle (not Pictured) | 3 | — | Call for availability | |
| 1 | 2255Z1118 | Bracket, (for Inlet Suction Tube) | 1 | — | Call for availability | |
| S264A1 | Bolt/capscrew, Replaced By S -264-A-2 | NLA | — | Call for availability | ||
| S264A2 | Bolt/capscrew, 3/8"-16 X 1/2" (for Bracket Not — Pictured) | 1 | — | Call for availability | ||
| 2 | A3196A1067 | Tube Assy, (pipe/suction With Screen) | 1 | $41.75 | Add to Cart | |
| 5X1157 | O -ring (tube Not Pictured) , — | 1 | $40.12 | Add to Cart | ||
| 3 | A3303N1028 | Pump Assy, (includes Drive Gear) | 1 | — | Call for availability | |
| 4 | 10X1532 | Special Screw, 1/4"-20 X 1 -1/2" Allen Head | 3 | $157.00 | Add to Cart | |
| A1250H1126 | Plug Assy, (used In Shipping Not Pictured) - | OPT | $72.44 | Add to Cart | ||
| 5 | 5X1156 | O -ring | 1 | $19.98 | Add to Cart |
Special Service Tools
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3256Z1014 | Seal Driver, Fits All Models. Also Supplied By Kent-moore Tool Co Part No J -39161 ., . . | 1 | $838.74 | Superseded by 3256Z1014AAdd to Cart | |
| 2 | 3256A1015 | Tool, (tubing Cutter) | 1 | — | Call for availability | |
| 3 | 3305W1141 | Retainer Plate, Holding Cover Tool | 1 | $9.44 | Add to Cart | |
| 4 | 3256D1044 | Tool, Countershaft Pusher, Also Supplied By G&w Tool Co Part No G -28 ., . | 1 | $304.11 | Add to Cart | |
| 5 | A3256W1037 | Tool, Bearing Puller, Also Supplied By Kent-moore Tool Co Part No J -41806. ., . | 1 | — | No longer available — call for replacement | |
| 3256A1041 | Tool, Puller Leg Replacement , | 1 | — | Call for availability | ||
| 6 | A3256C1043 | Tool, End Play Checker Assy. Also Supplied By Kent-moore Tool Co Part No J -41335 ., . | 1 | — | Call for availability | |
| 7 | 3256T1060 | Tool, 3/8" Countershaft Adaptor, Also Supplied By Kent-moore Tool Co Part No J -41335-25. ., . | 1 | — | Call for availability | |
| 8 | 3256V1036 | Tool, Digital Protractor, Also Supplied By Kent-moore Tool Co Part No J -38460-A. ., . | 1 | — | Call for availability | |
| 9 | 2297P5840 | Hook, Lifting | 1 | $62.60 | Add to Cart | |
| 10 | 3256Y1013 | Tool, T-handle | 1 | — | Call for availability | |
| 11 | 3256W1063 | Tool, Service, Tube Grip Description Part Of | 1 | — | Call for availability | |
| 1 | 3256B1068 | Tool, Tester, Shift-n -cruisetm | 1 | — | Call for availability |

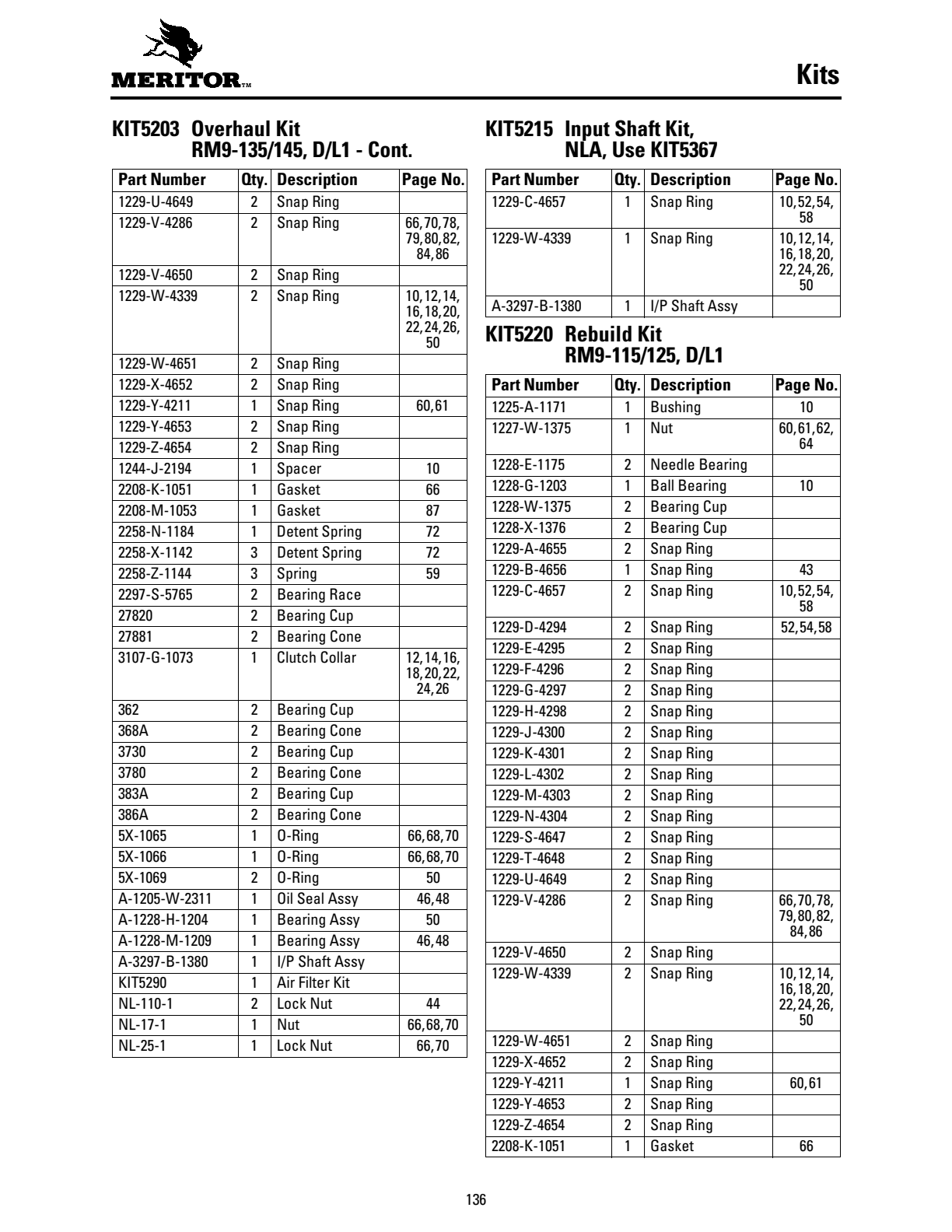

Kits (3/4" Fittings & #8 Hose) Cont. 13-Speed, D/L1 (#8 Hose Adaptable)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 34FITTINGS | Cont. 13-Speed, D/L1 - Page No Part Number Qty. Description Page . 1227 -A-1405 1 Nut 1227 -W-1375 1 Nut 60, 1228-E-1175 2 Needle Bearing 1228-G -1203 1 Ball Bearing 1228-Q-1265 2 Bearing Cup | Number | — | Call for availability | ||
| 8HOSE | 1228-W-1375 2 Bearing Cup Page No 1228-X-1376 2 Bearing Cup . 1229-A-4655 2 Snap Ring 1229-B -4656 2 Snap Ring 1229-C-4657 2 Snap Ring 1229-D -4294 2 Snap Ring 1229-E-4295 2 Snap Ring 1229-F-4296 2 Snap Ring 1229-G -4297 2 Snap Ring 1229-H -4298 2 Snap Ring 87 1229-J -4300 2 Snap Ring 1229-K-4301 2 Snap Ring | Number | — | Call for availability |
Kits Kit5262 Oil Pump Fittings Kit Kit5289 Synchronizer Kit, Incl Collar Kit5263 Oil Pump Fittings Kit Kit5270 Synchronizer Kit Kit5291 Service Kit Detent Springs & Ball, Top Cover Kit5275 Oil Pump Fittings Kit Kit5276 Oil Fittings Kit Kit5292 Service Kit Pin & Plug, Rev. Kit5277 Oil Fittings Kit 1/2"-14 Nptf A-1250-D-1252 2 Plug Assy 72 Kit5293 Service Kit Pin & Plug, Kit5278 Oil Fittings Kit Part Number Qty. Description Page No Kit5279 Oil Fittings Kit Kit5294 Service Kit Slave Valve
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3416UNF | Flare (#8) Switch Page No Part Number Qty. Description Page . 43X-1169 2 Pin Nptf A-1250-D -1252 2 Plug Assy KIT5293 Service Kit Pin & Plug, Page No - . Neutral Switch Part Number Qty. Description Page | Number | — | Call for availability | ||
| 7814UNF | Flare (#10) 43X-1165 1 Pin A-1250-H -1126 1 Plug Assy 46, Page No . 74, KIT5294 Service Kit Slave Valve - | Number | — | Call for availability |

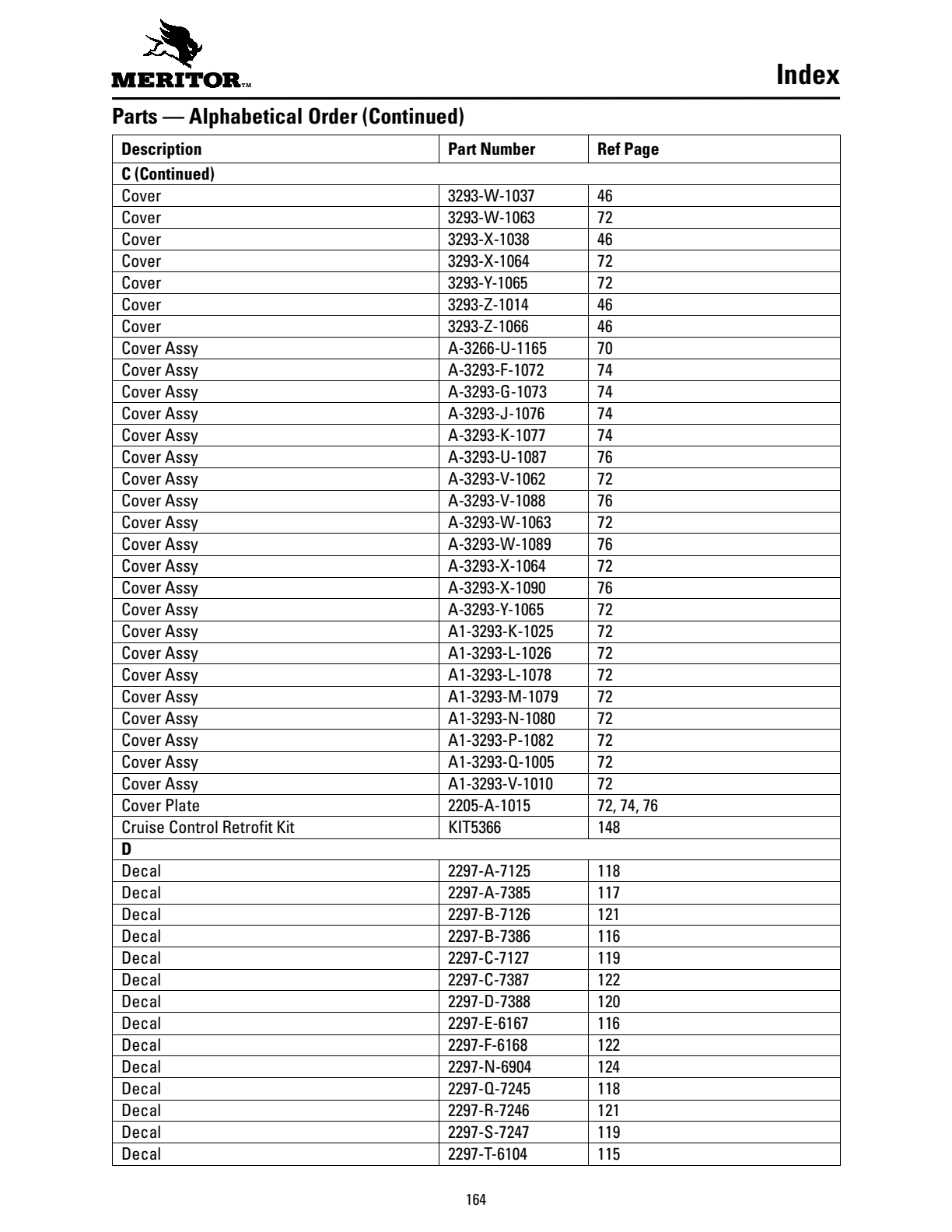

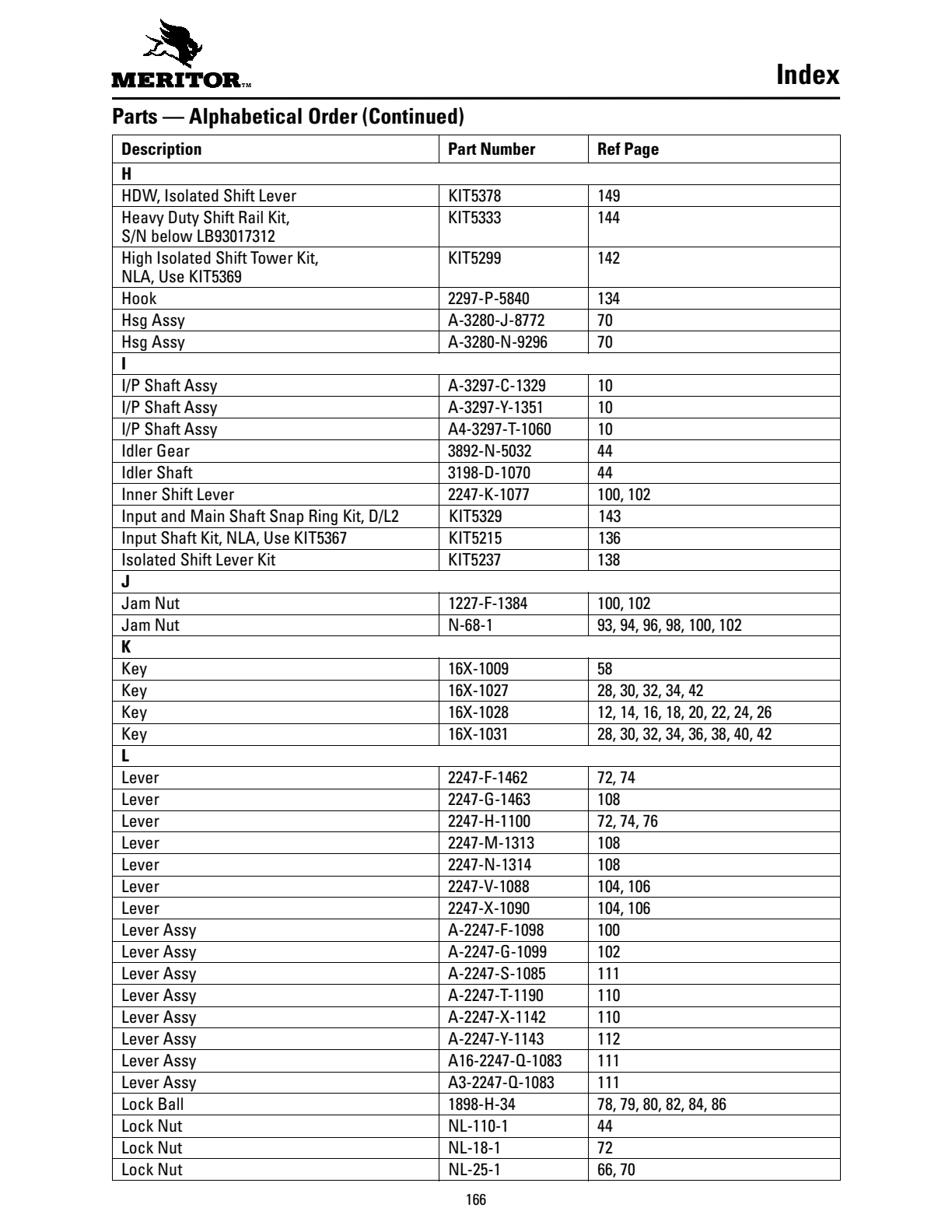

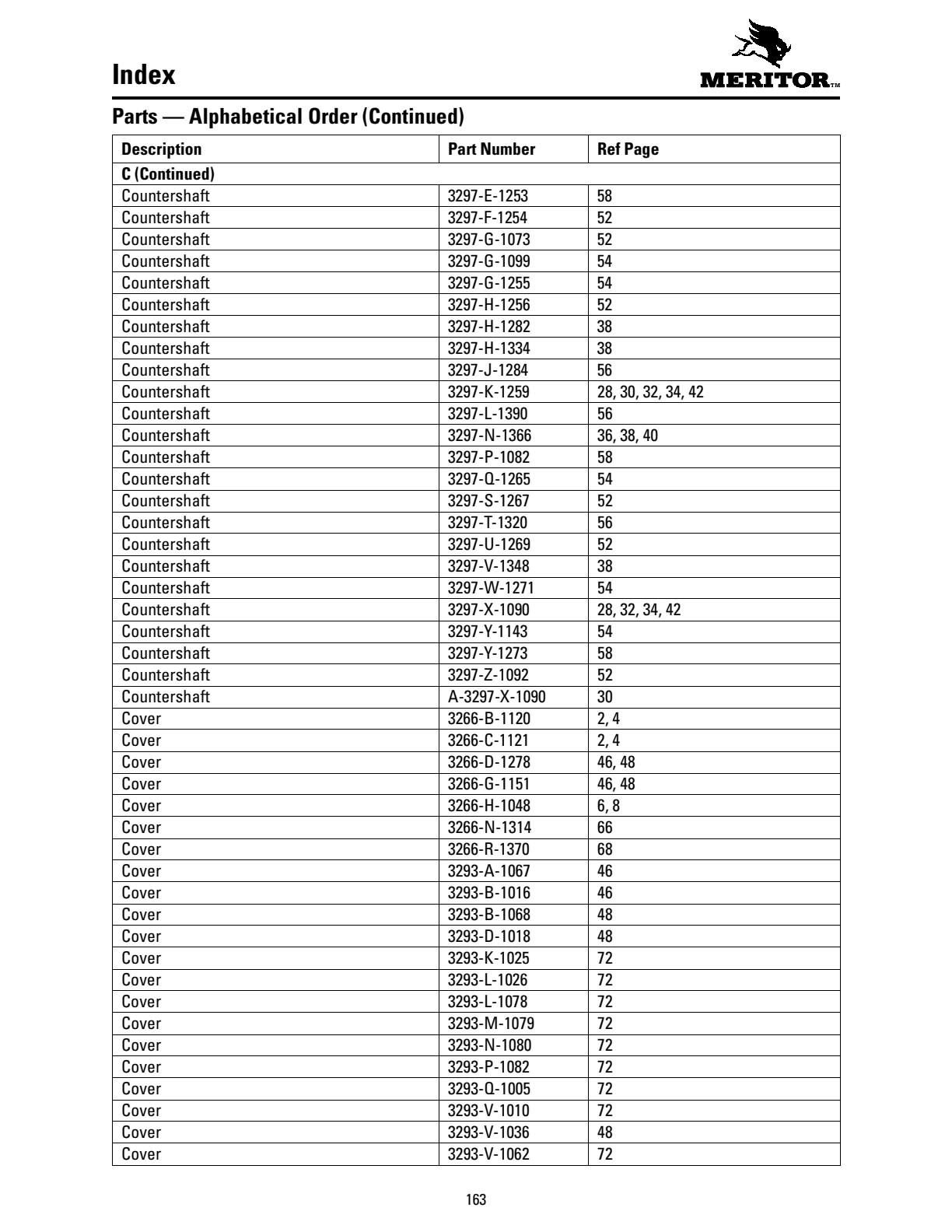

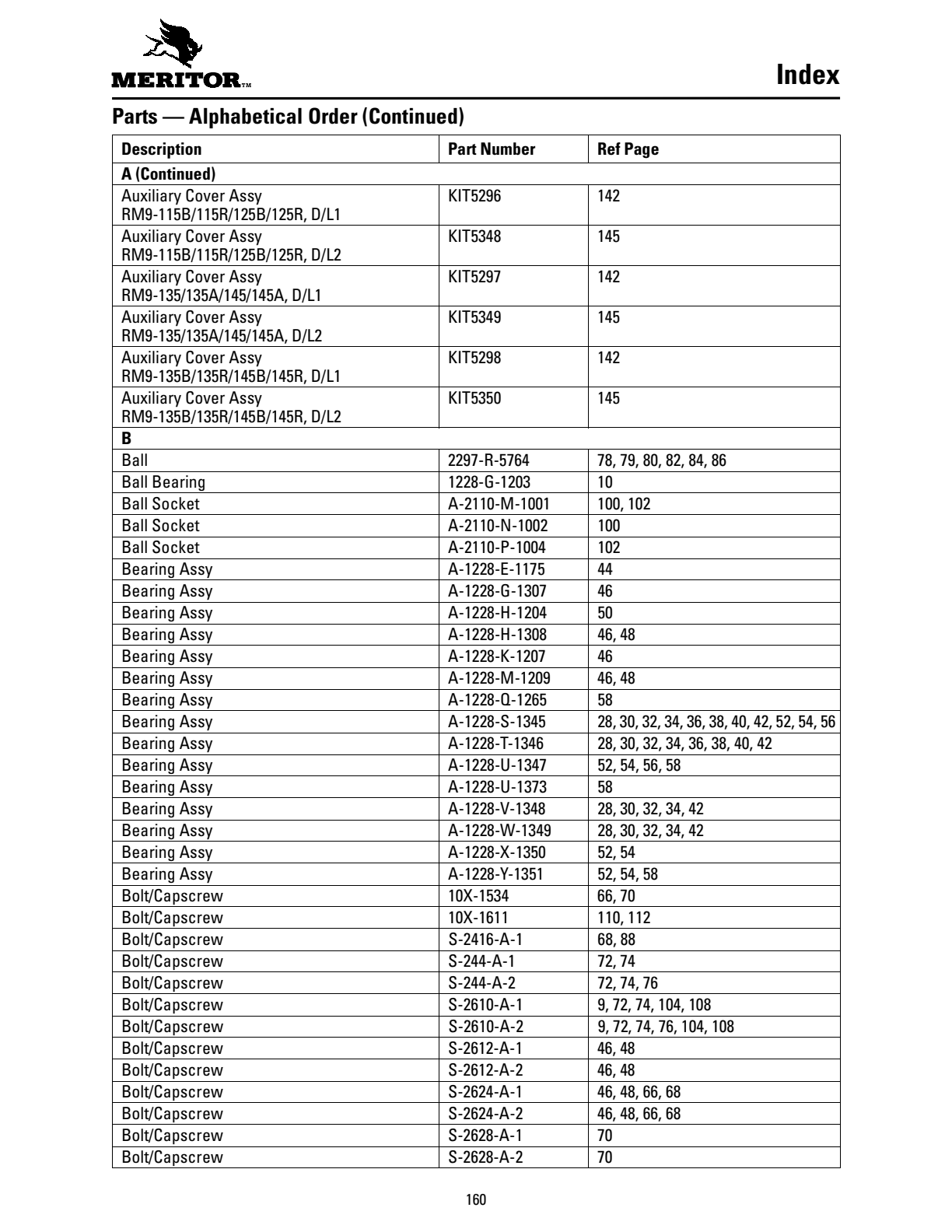

Index Parts Alphabetical Order (Continued)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| KIT5368 | Use | $1,076.13 | Add to Cart | |||
| LINEKIT34 | Hose) KIT5233 138 | — | Call for availability | |||
| LINEKIT78 | Hose) KIT5257 140 3892-B -5150 16 3892-C -5021 12, 14, 16, 18, 26 3892-E -5023 12, 14, 26 3892-E -5231 16 3892-F-5232 10, 12 3892-F-5414 20, 22, 24 3892-G -5025 12, 14, 20, 22, 26 3892-J -5028 12, 26 3892-K-5237 18 3892-L-5030 12, 14, 16, 18, 20, 22, 24, 26 3892-M -5239 18 3892-M -5343 20, 22 3892-M -5395 20, 22 3892-M -5473 10 3892-N -5028 20 3892-N -5344 22 3892-N -5370 20 3892-N -5474 10, 24 3892-P -5242 18 3892-Q-5477 24 3892-R -5478 24 3892-V-5144 10 3892-W-5015 10, 14, 22 3892-X-5146 16 3892-Z-5148 16 2297 -Y-5849 2, 4 3297 -j -1336 12, 14, 16, 18, 20, 22, 24, 26 3297 -X-1116 12, 14, 16, 18, 20, 22, 26 KIT5363 148 KIT5260 140 KIT5259 140 | Gear | — | Call for availability | ||
| KIT34FITTINGS | KIT5231 137 | Cooler | — | Call for availability | ||
| KIT78FITTINGS | KIT5251 140 | Cooler | — | Call for availability | ||
| KIT10HOSE | KIT5252 140 | Filter | — | Call for availability | ||
| KIT8HOSE | KIT5232 138 1199-B -3226 8 1199-H -1620 6, 8 | Filter | — | Call for availability | ||
| KIT1214 | KIT5277 141 | Fittings | — | Call for availability | ||
| KIT3416 | (#8) KIT5276 141 | Fittings | — | Call for availability | ||
| KIT7814 | (#10) KIT5279 141 | Fittings | — | Call for availability | ||
| KIT13SPEED | KIT5238 138 KIT5309 142 KIT5385 151 KIT5326 143 | — | Call for availability | |||
| KITRM13145 | KIT5361 147 | — | Call for availability | |||
| KITRM9115125 | D/L2 KIT5359 146 | — | Call for availability | |||
| KITRM9135145 | KIT5203 135 | — | Call for availability | |||
| KITRM9135145155 | KIT5360 147 19X-1126 46 43X-1158 12, 14, 16, 18, 20, 22, 24, 26, 28, 32, 34, 42 43X-1165 72 43X-1168 66, 70 43X-1169 72 43X-1174 110, 112 43X-1181 87 43X-1184 78, 79, 80, 82, 84, 86 43X-1188 108 43X-1190 74, 76 K-238 100, 102 | — | Call for availability | |||
| SHAFTRM9115125 | KIT5336 144 | Hsg | — | Call for availability | ||
| SHAFTRM9135145 | KIT5337 144 2297 -j -6406 130 1250-Q-1625 74, 76 1250-R -1266 4 1250-W-1271 79, 80, 84, 86 P -12Z-S 87 P -42-Z-S 68 P -46 72 A-1250-D -1252 72 A-1250-H -1126 46, 48, 72, 74, 76, 130, 132 A-1250-J -1128 2, 4 A-1250-P -1186 2, 4 A-1250-S -1137 70 A-1250-U -1269 74, 76 A-1850-R -18 46, 48 A1 -2206-K-1051 130 3280-L-8774 78, 79, 80, 82, 84, 86 3280-M -8775 78, 82 | Hsg | — | Call for availability | ||
| SFTRM9135145155 | KIT5335 144 A-3303-M -1027 130 A-3303-N -1028 132 A1 -3303-L-1026 130 | Hsg | — | Call for availability |
This is the complete factory parts breakdown for the Meritor Transmission MERITOR-ROCKWELL-ZF-10-SPE — every part in the manual, matched to our live inventory. We stock 468 of the 1103 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Transmission Replacements How To Use This Parts Book Input Shaft Assembly Main Case Main Case Input Shaft Bearing Retainer Main Gear Input Shaft Assembly Main Gear Main Shaft Assembly 9-Speed Direct Drive Main Gear Main Shaft Assembly 9-Speed Overdrive “A” Ratio Main Gear Main Shaft Assembly 9-Speed Overdrive “B ” Ratio Main Gear Main Shaft Assembly 9-Speed Overdrive “R ” Ratio Main Gear Main Shaft Assembly 10-Speed Direct Drive Main Gear Main Shaft Assembly 10-Speed Overdrive “A” Ratio Main Gear Main Shaft Assembly 10-Speed Overdrive “C ” Ratio Main Gear Main Shaft Assembly 13-Speed Overdrive Main Gear Main Countershaft Assembly 9-Speed Direct Drive Main Gear Main Countershaft Assembly 9-Speed Overdrive “A” Ratio Main Gear Main Countershaft Assembly 9-Speed Overdrive “B ” Ratio Main Gear Main Countershaft Assembly 9-Speed Overdrive “R ” Ratio Main Gear Main Countershaft Assembly 10-Speed Direct Drive Main Gear Main Countershaft Assembly 10-Speed Overdrive “A” Ratio Main Gear Main Countershaft Assembly 10-Speed Overdrive “C” Ratio Main Gear Main Countershaft Assembly 13-Speed Overdrive Main Gear Auxiliary Case Assembly Top Cover Air System Controls Shift Knobs (Manual) 9 & 10-Speed Controls Shift Knobs (Manual) 13-Speed Controls Controls Shift Knob Electric Over Airtm (Eoatm), Available With Optional Shift-N-Cruisetm Controls Labels Cab Shift Label (Manual) 9-Speed Transmission Standard Labels Cab Shift Label (Manual) 9-Speed Transmission Rmo Labels Cab Shift Label (Manual) 9-Speed Transmission R Ratio Labels Cab Shift Label (Esstm) 9-Speed Transmission Standard Labels Cab Shift Label (Esstm) 9-Speed Transmission R Ratio Labels Cab Shift Label (Manual) 10-Speed Transmission Labels Cab Shift Label (Esstm) 10-Speed Transmission Labels Cab Shift Label (Manual) 13-Speed Transmission Labels Output Yokes Speedometer Items Oil Pumps Special Service Tools Kits (3/4" Fittings & #8 Hose) Cont. 13-Speed, D/L1 (#8 Hose Adaptable) Kits Kit5262 Oil Pump Fittings Kit Kit5289 Synchronizer Kit, Incl Collar Kit5263 Oil Pump Fittings Kit Kit5270 Synchronizer Kit Kit5291 Service Kit Detent Springs & Ball, Top Cover Kit5275 Oil Pump Fittings Kit Kit5276 Oil Fittings Kit Kit5292 Service Kit Pin & Plug, Rev. Kit5277 Oil Fittings Kit 1/2"-14 Nptf A-1250-D-1252 2 Plug Assy 72 Kit5293 Service Kit Pin & Plug, Kit5278 Oil Fittings Kit Part Number Qty. Description Page No Kit5279 Oil Fittings Kit Kit5294 Service Kit Slave Valve Index Parts Alphabetical Order (Continued)
No parts match that search — try the part number with no dashes.
This is the Rockwell / Meritor Illustrated Parts List (document PB-94134) covering the RMX9-145R transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | RMX9-145R |
| Transmission type | 9-speed, twin-countershaft, heavy duty |
| Document | PB-94134 Illustrated Parts List (Rockwell / Meritor) |
| Length | 203 pages |
| Format | PDF — free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Rockwell / Meritor parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Rockwell / Meritor transmission units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
