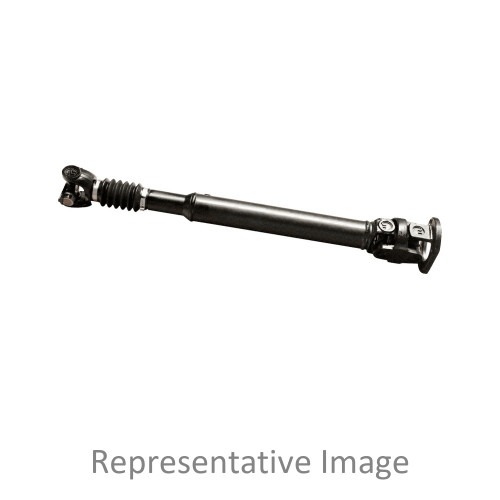

The Dana Spicer SPL170 series drive shaft, part number 170DS55001C-240MR or 170DS55001C240MR, is a welded steel driveline assembly built to SPL170 series specifications. The tube measures 4.96 inches in diameter with a .118-inch wall. Collapsed centerline-to-centerline length is 24.0551 inches (611.0 mm); installed centerline-to-centerline is 26.2205 inches (666 mm). Maximum slip travel is 4.3307 inches (110.0 mm). The shaft ships with two ST-style universal joints already included. Joint angle is rated at 25 degrees. No CV joints and no separate slip assembly are included. Call us to confirm proper fit for your specific application.
Features
SPL170 series welded steel drive shaft assembly
Tube size: 4.96 in. diameter x .118 in. wall (126.0 x 3.00 mm)
Collapsed C/L-to-C/L length: 24.0551 in. (611.0 mm); installed: 26.2205 in. (666 mm)
Maximum slip: 4.3307 in. (110.0 mm); tube length: 9.4488 in. (240.0 mm)
Includes 2 ST-style universal joints; 25-degree joint angle rating
No CV joints; no slip assembly
Tech Specs
- Series SPL170
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 126.0 x 3.00
- Max Slip (MM) 110.0000
- Tube Size (IN) 4.96 x .118
- Max Slip (IN) 4.3307
- Tube Length (MM) 240.0000
- Mid Slip (MM) 55.0000
- Tube Length (IN) 9.4488
- Mid Slip (IN) 2.1654
- CL Yoke To CL Yoke (MM)-COLL 611.0000
- CL Yoke To CL Yoke (IN)-COLL 24.0551
- 1/2 Max Slip (MM) 55.0000
- 1/2 Max Slip (IN) 2.1654
- VMRS 024000000
- Phase (Yes/No) No
- Joint Angle 25
- Unwelded/Welded Assembly Welded
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- U-Joint Style ST
- CL Yoke To CL Yoke (MM)-INST 666
- CL Yoke To CL Yoke (IN)-INST 26.2205
- CV Joints Included No
- Slip Assembly No
