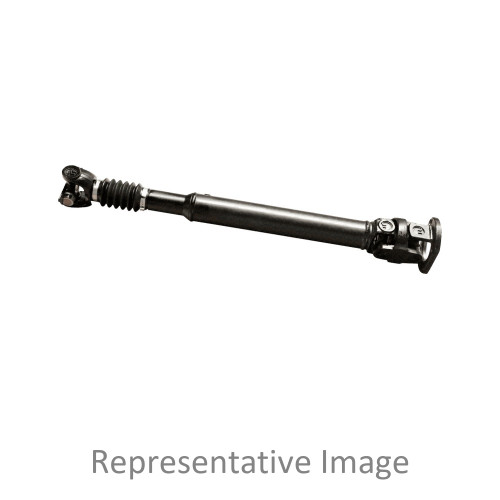

Genuine Dana Spicer Drive Shaft P/N: 140Ds55003-1230M or 140Ds550031230M, Hassle-free returns and top-notch quality! Why wait? Get it today! Authentic Genuine Dana Spicer parts, delivered globally. Need assistance? Our experts have got you covered!
Tech Specs
- Series SPL140
- Shaft Material Steel
- Tube Size (MM) 110.0 x 5.00
- Max Slip (MM) 110.0000
- Tube Size (IN) 4.33 x .197
- Max Slip (IN) 4.3307
- Tube Length (MM) 1230.0000
- Mid Slip (MM) 55.0000
- Tube Length (IN) 48.4252
- Mid Slip (IN) 2.1654
- CL Yoke To CL Yoke (MM) - COLL 1595.0000
- CL Yoke To CL Yoke (IN) - COLL 62.7953
- VMRS 024000000
- Phased (Yes/No) No
- Phased - Degrees 0
- CL Yoke To CL Bearing (MM) 1464.9000
- CL Yoke To End Of Yoke Shaft (IN)-COLL 57.6700
- Joint Angle 25
- Unwelded/Welded Assembly Welded
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- CL Yoke To CL Yoke (MM)-INST 1650.0000
- CL Yoke To CL Yoke (IN)-INST 64.9606
