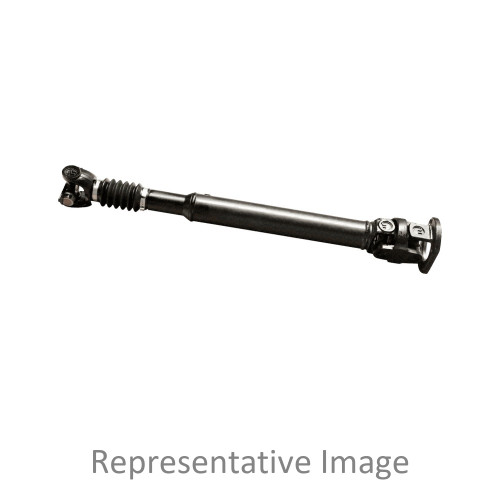

Genuine Dana Spicer Drive Shaft P/N: 350Ds55001-530M or 350Ds55001530M, Genuine parts, premium service! Genuine parts, premium service! From Dana's warehouses to your door, anywhere in the world. Expertise at your fingertips!
Tech Specs
- Series SPL350
- CL Yoke To CL Yoke (MM) - COLL 951.0000
- CL Yoke To CL Yoke (MM)-INST 1006.0000
- Tube Length (MM) 530.0000
- CL Yoke To CL Yoke (IN) - COLL 37.4409
- CL Yoke To CL Yoke (IN)-INST 39.6063
- Joint Angle 27
- Material Steel
- Max Slip (IN) 4.3307
- Max Slip (MM) 110.0000
- Mid Slip (IN) 2.1654
- Mid Slip (MM) 55.0000
- No. of Universal Joint Included 2
- Phased - Degrees 0, 0.0000
- Phased (Yes/No) No
- Shaft Material Steel
- Tube Length (IN) 20.8661
- Tube Size (IN) 5.46 x .167, 5.4600 x 0.1670
- Tube Size (Mm) 138.6 x 4.25, 138.6000 x 4.2500
- Universal Joints Included Yes
- Unwelded/Welded Assembly Unwelded, Welded
