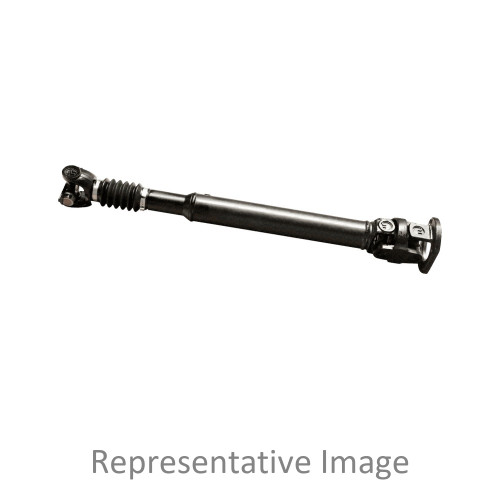

Genuine Dana Spicer Driveshaft P/N: 250Ds55002C-1560M or 250Ds55002C1560M, Repair your vehicle with authentic parts! Get the parts you need for your next repair. Genuine Dana Spicer parts, global reach. Our experts await your call!
Tech Specs
- Series SPL250
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 128.5 x 4.25
- Max Slip (MM) 110.0000
- Tube Size (IN) 5.06 x .167
- Max Slip (IN) 4.3307
- Tube Length (MM) 1560.0000
- Mid Slip (MM) 55.0000
- Tube Length (IN) 61.4173
- Mid Slip (IN) 2.1654
- CL Yoke To CL Yoke (MM) - COLL 1941.0000
- CL Yoke To CL Yoke (IN) - COLL 76.4173
- Material Steel
- VMRS 024000000
- Phased (Yes/No) No
- Phased - Degrees 0
- Joint Angle 25
- Unwelded/Welded Assembly Welded
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- CL Yoke To CL Yoke (MM)-INST 1996.0000
- CL Yoke To CL Yoke (IN)-INST 78.5827
