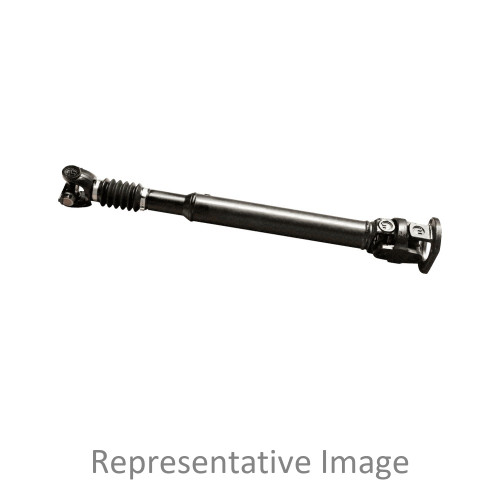

Dana Spicer SPL250 driveshaft, part number 250DS55003C-910M or 250DS55003C910M, is a welded steel drive shaft assembly built around a 130.0 x 5.00 mm tube, equal to 5.12 x 0.197 in. The tube length measures 910.0 mm or 35.83 in., with a mid slip of 55.0 mm and a max slip of 110.0 mm, giving roughly 4.33 in. of slip travel. Centerline yoke to centerline yoke runs 1291.0 mm collapsed and 1346.0 mm installed. It is a non-phased assembly rated to a 25 degree joint angle and ships with two universal joints already included. Call us to confirm proper fit for your application.
Features
Dana Spicer SPL250 series welded steel driveshaft assembly
Tube size 130.0 x 5.00 mm, equal to 5.12 x 0.197 in.
Tube length 910.0 mm or 35.83 in.
Mid slip 55.0 mm, max slip 110.0 mm (about 4.33 in. travel)
Centerline yoke to yoke: 1291.0 mm collapsed, 1346.0 mm installed
Non-phased, 25 degree joint angle, two universal joints included
Tech Specs
- Series: SPL250
- Shaft Material: Steel
- Tube Size: 130.0 x 5.00 mm (5.12 x 0.197 in.)
- Tube Length: 910.0 mm (35.83 in.)
- Mid Slip: 55.0 mm (2.17 in.)
- Max Slip: 110.0 mm (4.33 in.)
- CL Yoke to CL Yoke, Collapsed: 1291.0 mm (50.83 in.)
- CL Yoke to CL Yoke, Installed: 1346.0 mm (52.99 in.)
- Phased: No (0 degrees)
- Joint Angle: 25 degrees
- Assembly: Welded
- Universal Joints Included: Yes (2)
- VMRS: 024000000
