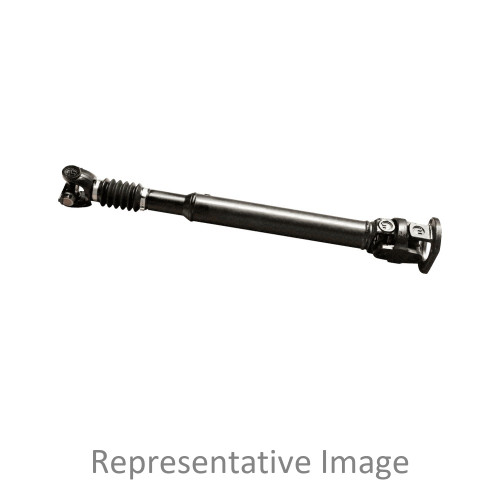

Genuine Dana Spicer Driveshaft P/N: 250Ds55007C-740M or 250Ds55007C740M, Fast shipping and unbeatable prices! Fast shipping and unbeatable prices! Authentic Genuine Dana Spicer parts delivered to every corner of the world. Expert help always ready!
Tech Specs
- Series SPL250
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 128.5 x 4.25
- Max Slip (MM) 110.0000
- Tube Size (IN) 5.12 x .197
- Max Slip (IN) 4.3307
- Tube Length (MM) 740.0000
- Mid Slip (MM) 55.0000
- Tube Length (IN) 29.1339
- Mid Slip (IN) 2.1654
- CL Yoke To CL Yoke (MM) - COLL 1121.0000
- CL Yoke To CL Yoke (IN) - COLL 44.1339
- Material Steel
- VMRS 024000000
- Phased (Yes/No) No
- Phased - Degrees 0
- Joint Angle 25
- Unwelded/Welded Assembly Welded
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- CL Yoke To CL Yoke (MM)-INST 1176.0000
- CL Yoke To CL Yoke (IN)-INST 46.2992
