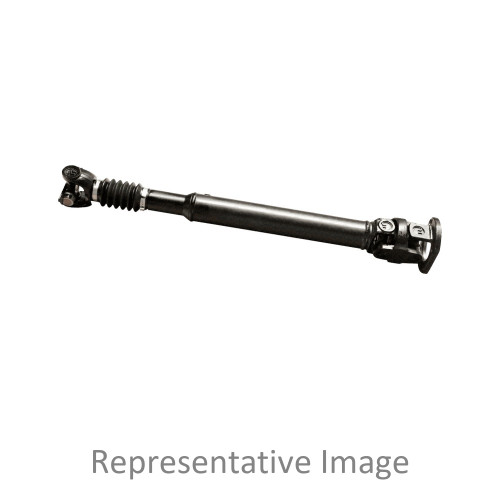

Genuine Dana Spicer Driveshaft P/N: 807383-5226 or 8073835226, Quality meets affordability! Get the parts you need for your next repair. Experience authentic Genuine Dana Spicer parts, shipped worldwide. Our experts are here for you!
Tech Specs
- Series 1810
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 114.3 x 3.40
- Max Slip (MM) 127.0000
- Tube Size (IN) 4.50 x .134
- Max Slip (IN) 5.0000
- Tube Length (MM) 1341.4375
- Mid Slip (MM) 63.5000
- Tube Length (IN) 52.8125
- Mid Slip (IN) 2.5000
- CL Yoke To CL Yoke (MM) - COLL 1773.2400
- CL Yoke To CL Yoke (IN) - COLL 69.8125
- Material Steel
- VMRS 024000000
- Phased (Yes/No) No
- Phased - Degrees 0
- Joint Angle 30
- Unwelded/Welded Assembly Welded
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- CL Yoke To CL Yoke (MM)-INST 1836.7400
- CL Yoke To CL Yoke (IN)-INST 72.3125
