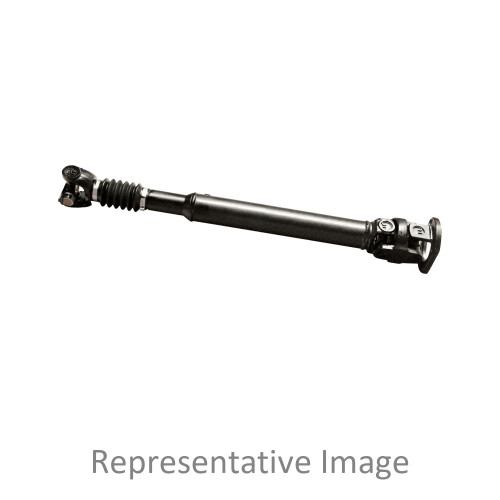

Genuine Dana Spicer Driveshaft 8105 P/N: 810588-4600R or 8105884600R, Exclusive parts, unbeatable prices! Order now and experience quality! Experience global delivery of Dana's genuine parts. We're here to help anytime!
Tech Specs
- Series 1710
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 103.9 x 4.57
- Max Slip (MM) 98.6000
- Tube Size (IN) 4.09 x .180
- Max Slip (IN) 3.8800
- Tube Length (MM) 1168.4000
- Mid Slip (MM) 49.3000
- Tube Length (IN) 46.0000
- Mid Slip (IN) 1.9410
- CL Yoke To CL Yoke (MM)-COLL 1524.1000
- CL Yoke To CL Yoke (IN)-COLL 60.0039
- VMRS 024000000
- Phase (Yes/No) No
- Phased - Degrees 0
- Joint Angle 21
- Unwelded/Welded Assembly Welded
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- U-Joint Style HR
- CL Yoke To CL Yoke (MM)-INST 1573.4000
- CL Yoke To CL Yoke (IN)-INST 61.9449
