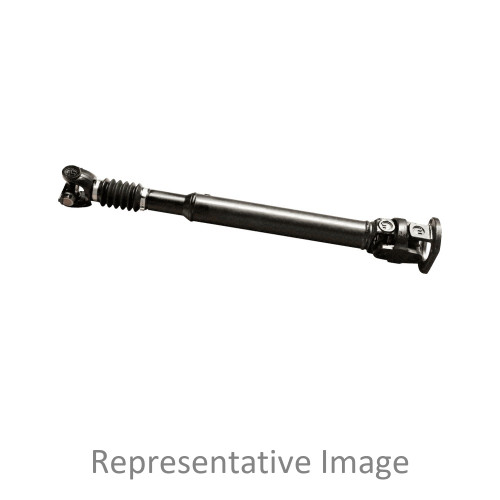

Genuine Dana Spicer Driveshaft - driveline part P/N: 810588-5106 or 8105885106. For help on parts, availability or questions, please call and we'd love to help.
This product has been superseded and is no longer available. If ordered, you will receive 8105885108.
Tech Specs
- Series 1710
- Shaft Material Steel
- Tube Size (MM) 103.9 x 4.57
- Max Slip (MM) 98.6000
- Tube Size (IN) 4.09 x .180
- Max Slip (IN) 3.8800
- Tube Length (MM) 1301.7500
- Mid Slip (MM) 49.3000
- Tube Length (IN) 51.2500
- Mid Slip (IN) 1.9410
- CL Yoke To CL Yoke (MM) - COLL 1657.4500
- CL Yoke To CL Yoke (IN) - COLL 65.2539
- VMRS 024000000
- Phased (Yes/No) No
- Phased - Degrees 0
- CL Yoke To CL Bearing (MM) 1589.1500
- Joint Angle 21
- Unwelded/Welded Assembly Welded
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- CL Yoke To CL Yoke (MM)-INST 1706.7500
- CL Yoke To CL Yoke (IN)-INST 67.1949
