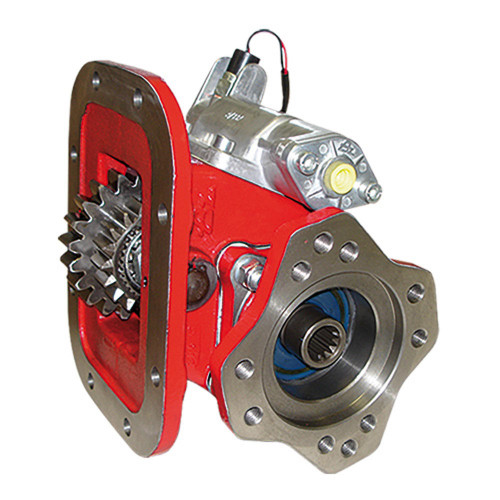

Eaton Bezares PT4100XCN012IB or 4100XCN012IB is a heavy-duty eight-bolt power take-off with a 1310 companion flange on the output, from the Bezares 4100 range. Instead of a pump pad, the output takes a 1310 series driveshaft, for driving equipment mounted away from the PTO. The PTO itself mounts to an eight-bolt transmission opening. Listed dimensions are 13 in. high, 18 in. wide and 12 in. long. Check the flange series on your driveshaft before ordering; a 1310 and a 1410 flange will not bolt together. A genuine Eaton Bezares part from Pro Gear and Transmission.
Features
Eaton Bezares PTO assembly, part number PT4100XCN012IB or 4100XCN012IB
Eight-bolt transmission mount
Heavy-duty (HD) Bezares 4100 range
1310 companion flange output for a driveshaft
Dimensions 13 in. high x 18 in. wide x 12 in. long
Tech Specs
- Part number: PT4100XCN012IB or 4100XCN012IB
- Brand: Eaton Bezares
- Part type: Power take-off (PTO) assembly
- Mount: 8-bolt
- Duty: Heavy-duty (HD)
- Output: 1310 companion flange
- Height: 13 in.
- Width: 18 in.
- Length: 12 in.
- Unit of measure: Each
