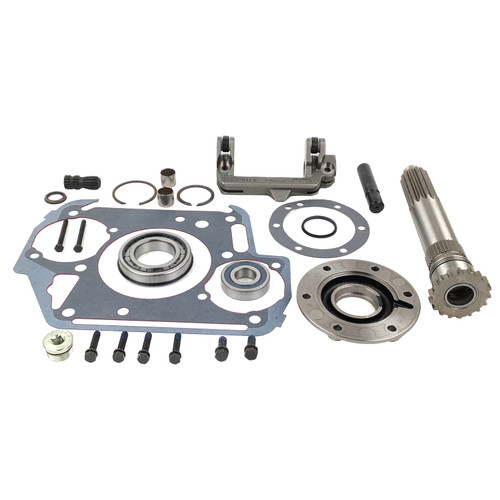

The Eaton K-4263CL or K4263CL is a Clutch Installation Kit designed for FR series transmissions (1.75 input). This kit consolidates the critical hardware needed for a proper clutch install into a single part number, covering the input shaft assembly, input shaft bearing, pilot bushing, front bearing cover, seal, snap rings, yoke, and gasket kit. The K-3453 gasket kit and S-2790 input shaft assembly are included, along with instruction letter L-3092 to guide installation. Sourced directly from Eaton, this is a genuine OEM kit sold by Pro Gear and Transmission. Call us to confirm this kit fits your specific transmission configuration before ordering.
Features
Genuine Eaton OEM Clutch Installation Kit, part number K-4263CL or K4263CL
Designed for FR series transmissions with 1.75 input
Includes S-2790 input shaft assembly and 4308451 input shaft bearing
Includes 5566505 pilot bearing and 4304724 seal
Includes 4 bushings (p/n 12815), two snap rings, and front bearing cover
K-3453 gasket kit and L-3092 instruction letter included in kit
Tech Specs
- Part Number: K-4263CL
- Alternate Part Number: K4263CL
- OEM Cross Reference: SCK-4263CL
- Application: FR Series Transmissions (1.75 input)
- Kit Contents: S-2790 Input Shaft Assembly, 4308451 Input Shaft Bearing, 5566505 Pilot Bearing, 12815 Bushing x4, 16980 Snap Ring x1, 4303362 Snap Ring x1, 4304724 Seal, 20552 Front Bearing Cover, 85533 Yoke CL REL 105-C-137, K-3453 Gasket Kit, L-3092 Instruction Letter
- Unit of Measure: Each
