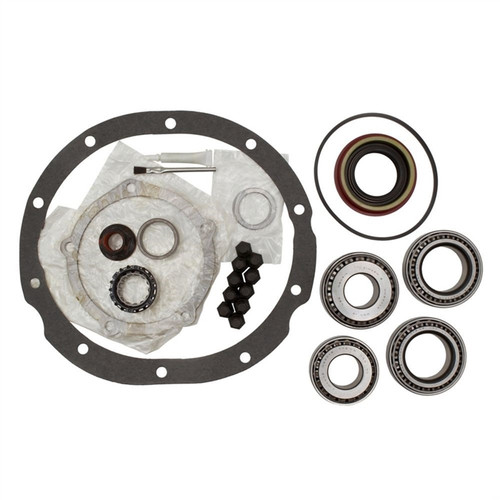

The Eaton Detroit Locker differential installation kit K-C9.25SF or KC925SF is a complete rebuild kit for the Chrysler 9.25 in. solid front axle application. Engineered for Eaton unit 914A643, it covers the major consumables needed during a locker install: Timken carrier bearings, carrier shims, pinion shims, pinion seal, pinion nut, crush sleeve, tail bearing, head bearing, ring gear bolts, axle seals, thread locking compound, gear marking compound, and RTV gasket maker. The axle features a 29-spline pinion, 33-spline axle shafts, and a 12-bolt ring gear with standard rotation. Note: cover gasket and axle bearings are not included. Call us to confirm proper fit for your application.
Features
Fits Chrysler 9.25 in. solid front axle, for Eaton unit 914A643
Timken carrier bearings included
29-spline pinion, 33-spline axle shafts, 12-bolt ring gear with standard rotation
Includes carrier shims, pinion shims, crush sleeve, tail bearing, and head bearing
Includes pinion seal, pinion nut, ring gear bolts, axle seals, thread locking compound, gear marking compound, and RTV gasket maker
Cover gasket and axle bearings are NOT included
Tech Specs
- Axle Description: Chrysler 9.25 in. Solid Front
- For Eaton Unit: 914A643
- Pinion Spline Count: 29
- Axle Spline Count: 33
- Ring Gear Bolts: 12
- Cover Bolts: 12
- Ring Gear Rotation: Standard
- Bearing Brand: Timken
- Carrier Bearings Included: Yes
- Carrier Shims Included: Yes
- Pinion Shims Included: Yes
- Pinion Seal Included: Yes
- Pinion Nut Included: Yes
- Crush Sleeve Included: Yes
- Tail Bearing Included: Yes
- Head Bearing Included: Yes
- Ring Gear Bolts Included: Yes
- Axle Seals Included: Yes
- Thread Locking Compound Included: Yes
- Gear Marking Compound Included: Yes
- RTV Gasket Maker Included: Yes
- Cover Gasket Included: No
- Axle Bearings Included: No
