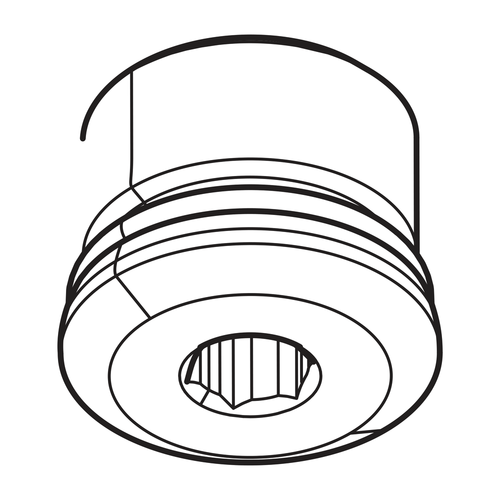

Eaton Fuller EAHD10004394 is the Oil Fill, Check, Drain Plug for the Eaton Endurant HD automated transmission, a Zero Leak design with an M18x1.5 thread. It is a Rear Housing part: Eaton lists three per Rear Housing Kit in both the Single PTO version (K-4713) and the Dual PTO version (K-4714), and one in the Rail E Detent Kit K-4376. Eaton's field service specification for this plug is 24.5 - 29.5 N-m. A genuine Eaton part from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Interchanges:
- E22-1008
- HFEAHD10004394
Features
Eaton description: Oil Fill, Check, Drain Plug (M18x1.5), Zero Leak design
Service area: Rear Housing
Rear Housing (Single PTO) Kit K-4713, qty 3
Rear Housing (Dual PTO) Kit K-4714, qty 3
Rail E Detent Kit K-4376, qty 1
Field service specification: 24.5 - 29.5 N-m
Tech Specs
- Thread Size: M18x1.5
- Design: Zero Leak
- Unit of Measure: Each
- Application: Eaton Endurant Automatic Transmission Case Plug
Used in this Eaton Fuller model
