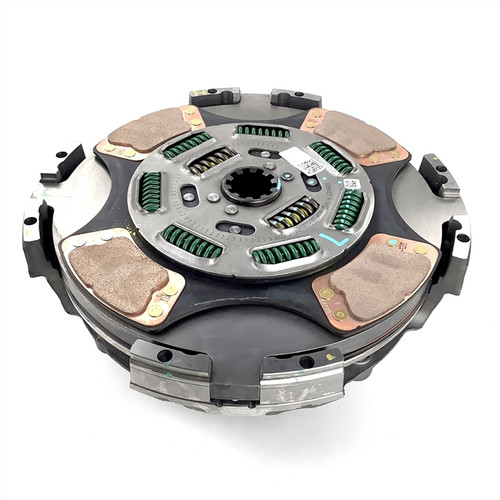

The Eaton EverTough clutch assembly, part number 108034-61B or 10803461B, is a 14-inch heavy-duty unit built for manual transmission applications. It carries a 1000 ft-lb torque rating and uses a ceramic facing material across 3 friction pads on 2 discs, with a torsional spring rate of 534 ft-lb per degree and 8 damper springs. The input shaft is a 2.00-inch, 10-spline configuration, and hydraulic linkage is not required. Rated at the top tier of Eaton's portfolio, this is a genuine Eaton EverTough part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Shipped on pallet.
Features
14-inch clutch size rated at 1000 ft-lb torque
Ceramic facing material with 3 friction pads across 2 discs
2.00-inch, 10-spline input shaft
8 damper springs; torsional spring rate of 534 ft-lb per degree
Manual transmission application; no hydraulic linkage required
Eaton EverTough portfolio, top-tier rating
Tech Specs
- CLUTCH SIZE: 14 in
- TORQUE RATING: 1000 ft-lb
- INPUT SHAFT SIZE: 2.00 in - 10 spline
- FACING MATERIAL: Ceramic
- FRICTION PAD COUNT: 3
- NUMBER OF DISCS: 2
- DAMPER SPRING COUNT: 8
- TORSIONAL SPRING RATE: 534 ft-lb per degree
- TRANSMISSION TYPE: Manual
- HYDRAULIC LINKAGE: No
- PRE-DAMPER: No
- MODEL CODE: EverTough
- PORTFOLIO RATING: Best
