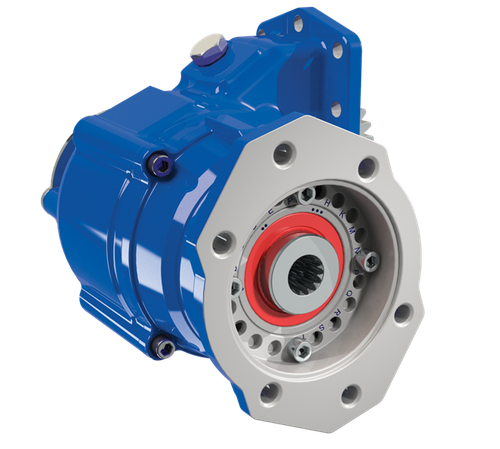

The Muncie A30-A1007-MX3IIPX or A30A1007MX3IIPX is a 10-bolt constant drive power take-off from Muncie's A30 Series, designed for Allison 3000 and 4000 Series transmissions. The rotatable pump flange gives you flexibility in hydraulic pump positioning, while extended-length PTO mounting fasteners and increased installation clearance simplify the fit-up process. Tapered roller bearings extend PTO service life, and the increased output shaft diameter handles higher drivetrain loads. Gear geometry is optimized to keep noise levels down. Three housing arrangements and compatibility with the EX Drive shaft extension make this unit adaptable across multiple vocational truck configurations. Call us to confirm proper fit for your specific application.
Features
10-bolt constant drive mount for Allison 3000 and 4000 Series transmissions
Rotatable pump flange for flexible hydraulic pump positioning
Tapered roller bearings for increased PTO service life
Increased output shaft diameter for greater load capacity
Three housing arrangements to suit multiple installation configurations
Compatible with EX Drive shaft extension
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
