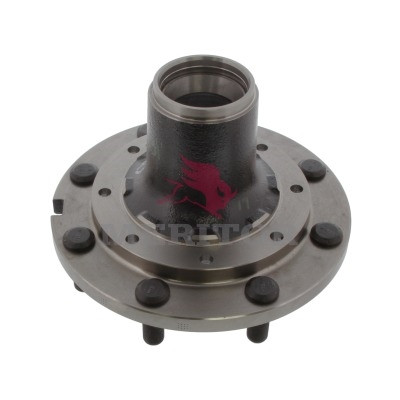

05-16095-001 Meritor Assembly - Front Hub / Stud

Meritor Assembly-Frt Hub/Stud P/N: 05-16095-001 or 0516095001. Genuine Meritor - Rockwell OEM brake parts, brake calipers, brake chambers, brake dust shields, brake shoes, brake foot valves, and more. Genuine Meritor parts are just a click or call away.

Non returnable item

Features

Tone Ring:N
Axle Series:Ford F53
Fully Dressed:No
Hub Style:Conventional
Axle Application:Steer
Hub Type:Hub only
Base Part Number:16095
GAWR (lb):9000
Wheel Stud Hole:.904/.906 in.
IBS to Outer Surface:4.38/4.28 in.
Wheel Stud Pattern:08
IBS to OBS:3.40/3.36 in.
Outer Cup:3720
Wheel Stud Bolt Circle Diameter:10.827 in.
Outer Cone:3782
Hub Cap Pattern:06
Hub Cap Bolt Thread:5/16-18 UNC-3B
Inner Bearing Surface (IBS) to Mounting Face:5.68 in.
Hub Cap Bolt Circle Diameter:4.50 in.
Inner Cup:HM212011
Disc Bolt Pattern:10
Brake Type:Bosch Hydraulic
Disc Bolt Circle Diameter:7.25 in.
Disc Bolt Size:9/16-12 UNC-2B
VMRS Code:018-004-004
Flange Outer Diameter:13.50 in.
Rotor Pilot Diameter:6.00/5.997 in.
Wheel Pilot Diameter:8.685/8.693 in.
Wheel Stud:09-001988
