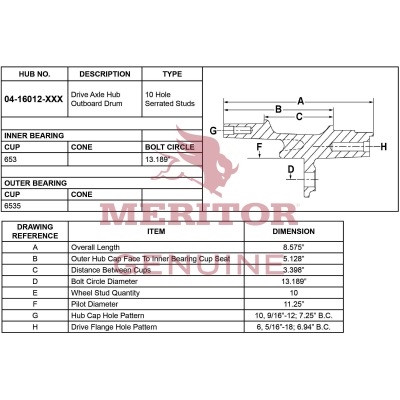

04-16012-002 Meritor Assembly - Rear Hub

Meritor Assembly-Rear Hub P/N: 04-16012-002 or 0416012002. Genuine Meritor - Rockwell OEM brake parts, brake calipers, brake chambers, brake dust shields, brake shoes, brake foot valves, and more. Genuine Meritor parts are just a click or call away.

Features

Tone Ring:N
Axle Series:61000
Fully Dressed:No
Axle Application:Drive
Hub Type:Hub only
Hub Style:Conventional
Base Part Number:16012
Outer Cone:663
Drum Position:Outboard
IBS to Outer Surface:7.055 in.
Wheel Stud Pattern:10
GAWR (lb):28700
Drum Bolt Pattern:10
Wheel Stud Hole:.904/.906 in.
Drum Bolt Size:.904/.906 in.
Wheel Stud Bolt Circle Diameter:13.189 in.
Drum Bolt Circle Diameter:13.189 in.
Oil Seal:A1205L1546
Outer Cup:6535
Inner Cup:653
Inner Bearing Surface (IBS) to Mounting Face:0.737 in.
Inner Cone:6580
IBS to OBS:3.928/3.948 in.
Brake Type:Drum
DriveStud Bolt Circle Dia:7.25 in.
VMRS Code:018-002-001
Drive Stud Pattern:10
Drive Stud Thread:9/16-12 UNC-2B
Drive Flange Stud:4-X-1612
Drum Pilot Diameter:11.246/11.249 in.
Flange Outer Diameter:14.961 in.
Wheel Pilot Diameter:11.055/11.047 in.
Wheel Stud:09-002004
