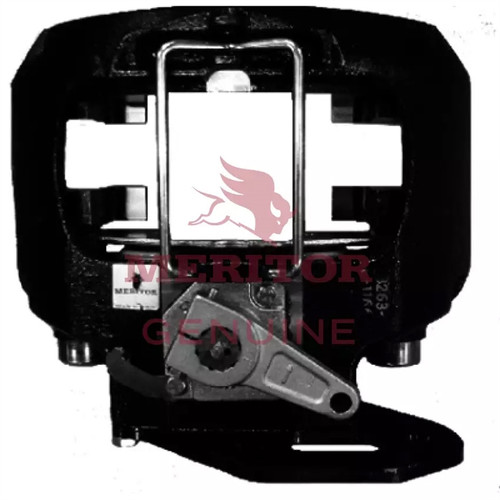

The Meritor EX225L267XX000 is a left-hand air disc brake caliper for the EX225L model line. It mounts axially with a 12-degree brake chamber angle and uses a dual-piston design across an 8.50-inch pad length. The carrier features 6 mounting holes sized M20 x 2.0, and the distance A-B measures 2-15/16 in. The housing carries an optimized design with an adjuster plug and no beam on the pad carrier between mounting surfaces. FMSI number 1370 applies. Compatible disc pads include KIT2252L2CG, KIT2252LCM7400, and ED1370S; the related hardware kit is KIT225270. Call us to confirm proper fit for your application before ordering.
A refundable core charge of $462.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
Left-hand (LH) caliper for the Meritor EX225L air disc brake model
Axial mount with 12-degree brake chamber angle
Dual-piston design with 8.50 in. pad length
6 carrier mounting holes, M20 x 2.0 thread size
Distance A-B: 2-15/16 in.
Optimized housing with adjuster plug; no beam on pad carrier between mounting surfaces
Tech Specs
- Model: EX225L
- Left or Right: Left
- Mount Type: Axial
- Brake Chamber Angle: 12 degrees
- Chamber Position: Axial
- Number of Pistons: 2
- Pad Length: 8.50 in.
- Carrier Mounting Holes: 6
- Mounting Hole Size: M20 x 2.0
- Distance A-B: 2-15/16 in.
- FMSI: 1370
- Related Disc Pad Numbers: KIT2252L2CG; KIT2252LCM7400; ED1370S
- Related Hardware Kit: KIT225270
- Related Core Group: BC224
- Related Core Number: XM3035
- OEM: Meritor
- Pads Included: No
- Notes: Optimized housing with adjuster plug; no beam on pad carrier between mounting surfaces
