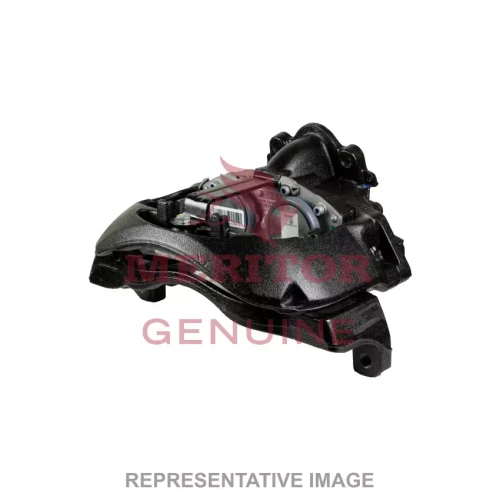

The Meritor EX225L243CG000 is a left-hand service caliper for the EX225L air disc brake model, sold without pads and without brake chamber. It uses a radial carrier mount with four M20 x 1.5 mounting holes and a twin-piston design. The brake chamber mounts at an axial 12-degree angle. Distance A-B measures 1-9/16 in., and compatible disc pads (FMSI 1370, pad length 8.50 in.) are available separately under pad kit numbers KIT2252L2CG or ED1370S. Note that the old-style housing has an adjuster cap that protrudes past the chamber mount face. Related hardware kit KIT225270 is available. Core group BC224, related core number XM3039. Confirm fit for your axle and chassis configuration before ordering, or call us to verify the correct caliper for your application.
A refundable core charge of $462.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
Meritor EX225L model, left-hand (driver-side) application
Radial carrier mount with 4 x M20 x 1.5 mounting holes
Twin-piston caliper design
Axial brake chamber mount at 12-degree angle
Distance A-B: 1-9/16 in.; compatible pad length 8.50 in. (FMSI 1370)
Sold as service caliper only - pads and brake chamber not included
Tech Specs
- Model: EX225L
- Side: Left (driver side)
- Mount Type: Radial
- Carrier Mounting Holes: 4
- Mounting Hole Size: M20 x 1.5
- Number of Pistons: 2
- Chamber Mount: Axial, 12 degrees
- Distance A-B: 1-9/16 in.
- Pad Length: 8.50 in.
- FMSI: 1370
- Application: Service Caliper - Less Pads, Less Brake Chamber
- Related Disc Pad Numbers: KIT2252L2CG; ED1370S
- Related Hardware Kit: KIT225270
- Related Core Group: BC224
- Related Core Number: XM3039
- OEM: Meritor
- Note: Old-style housing has adjuster cap that protrudes past the chamber mount face
