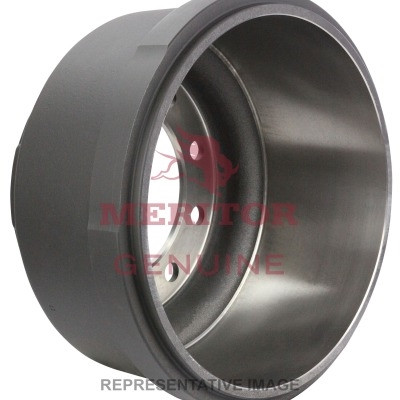

Meritor part number 03-123366-002 or 03123366002 is a cast unbalanced brake drum for heavy-duty disc wheel applications. The drum measures 15.00 in. in brake diameter with a 4.00 in. brake width and a 4.56 in. brake surface width. Overall depth is 8.85 in. and pilot diameter is 8.78 in. The 10-bolt pattern uses a 0.94 in. bolt hole diameter on an 11.25 in. bolt circle. Mounting is outboard, drum type is AD, and the rated axle capacity is 13,200 lbs. Call us to confirm proper fit for your axle configuration before ordering.
Features
Brake diameter: 15.00 in.; brake width: 4.00 in.; brake surface width: 4.56 in.
Drum type: AD, cast unbalanced construction
Wheel type: Disc, outboard mounting
10 bolt holes at 0.94 in. diameter on an 11.25 in. bolt circle
Pilot diameter: 8.78 in.; overall depth: 8.85 in.
Rated axle capacity: 13,200 lbs.
Tech Specs
- Brake Diameter: 15.00 in.
- Brake Width: 4.00 in.
- Brake Surface Width: 4.56 in.
- Overall Depth: 8.85 in.
- Pilot Diameter: 8.78 in.
- Drum Type: AD
- Drum Construction: Cast Unbalanced
- Drum Mounting: Outboard
- Wheel Type: Disc
- Bolt Hole Number: 10
- Bolt Hole Diameter: 0.94 in.
- Bolt Circle Diameter: 11.25 in.
- Axle Capacity: 13,200 lbs.
- VMRS Code: 013-017-006
