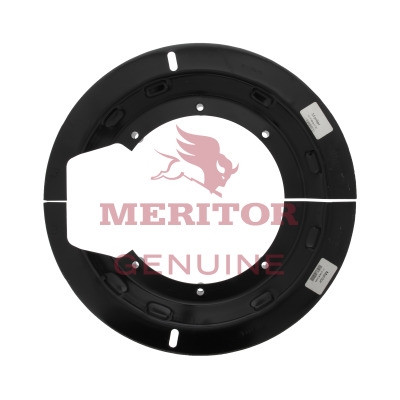

The Meritor A2-3236W2701 or A23236W2701 is a genuine OEM Dust Shield Assembly designed for Q Plus drum brake systems with a 16.50-inch brake diameter. The assembly ships as a two-piece kit containing components 3236W2701 and 3236F2710, covering both 5.00-inch and 6.00-inch brake shoe widths. The shield mounts via cap screw with four mounting holes and measures 18.12 inches in outer diameter. Lip height is 1.12 inches standard, with optional configurations at 0.62 inches and 0.75 inches. A genuine Meritor part, sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Interchanges:
- 8235A23236W2701
- TDAA23236W2701
Features
Q Plus brake system application, 16.50 in. brake diameter
Covers both 5.00 in. and 6.00 in. brake shoe widths
18.12 in. outer diameter, 4-hole cap screw mount
Lip height: 1.12 in. standard; optional 0.62 in. and 0.75 in. configurations
Kit contains two components: 3236W2701 and 3236F2710
Tech Specs
- Brake Model: Q Plus
- Brake Diameter: 16.50 in.
- Brake Size: 16.50 in. x 5.00 in. and 6.00 in.
- Brake Shoe Width: 5.00 in. and 6.00 in.
- Outer Diameter: 18.12 in.
- Lip Height: 1.12 in. standard; optional 0.62 in. and 0.75 in.
- Number of Mounting Holes: 4
- Mount Type: Cap Screw
- Kit Contents: 3236W2701 and 3236F2710
- VMRS Code: 013-017-000
