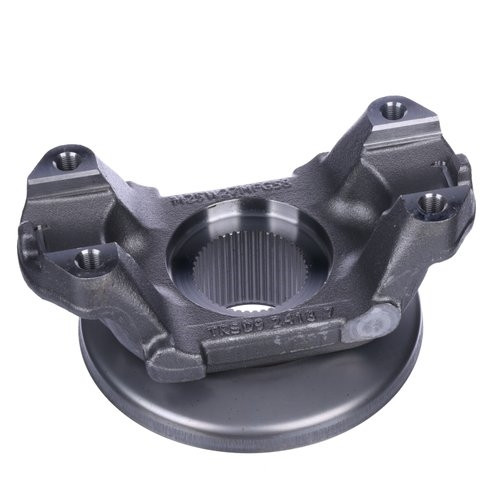

The Meritor RPL25 series end yoke, part number 25WYS38-13A4 or 25WYS3813A4, is a genuine OEM driveline yoke built to the RPL Permalube series standard. Key dimensions include a 2.390 in. spline diameter with 46 splines, a 2.32 in. spline length, and a 3.25 in. hub diameter. The face-to-end measurement is 4.73 in., and the yoke spans 8.38 in. across the nibs. Bearing cap diameter is 2.06 in., and the part accommodates a 30-degree joint angle. Pair it with U-joint kit CP25RPLS and hardware kit KIT RPL 25 20. Deflector DEFR64-10 is the specified companion deflector. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Interchanges:
- 21335250
- 3893573C91
- 823525WYS3813A4
- HR25WYS3813A4
- TDA25WYS3813A4
Features
RPL25 (RPL Permalube) series driveline end yoke
46-spline, 2.390 in. spline diameter, 2.32 in. spline length
3.25 in. hub diameter, 8.38 in. dimension across nibs
4.73 in. face-to-end measurement, 2.06 in. bearing cap diameter
30-degree joint angle capacity
Paired with U-joint kit CP25RPLS and hardware kit KIT RPL 25 20; deflector DEFR64-10
Tech Specs
- Series: RPL25 (RPL Permalube)
- Spline Diameter: 2.390 in.
- Number of Splines: 46
- Spline Length: 2.32 in.
- Hub Diameter: 3.25 in.
- Face To End: 4.73 in.
- Yoke Dimension Across Nibs: 8.38 in.
- Bearing Cap Diameter: 2.06 in.
- Counter Bore Depth: 0.14 in.
- Joint Angle: 30 degrees
- U-Joint Kit: CP25RPLS
- Hardware Kit: KIT RPL 25 20
- Deflector: DEFR64-10
