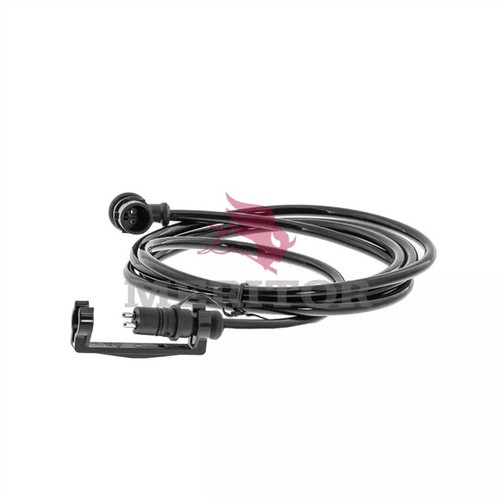

The Meritor M9557120180 is a 2-pole wheel speed sensor extension cable designed to connect wheel-end ABS sensors to the ECU. The cable measures 1.8 meters (5.91 ft.) in length and has a 6.2 mm diameter. It uses a DIN 2-pin male connector on one end and a DIN 2-pin female connector on the other, providing a direct, properly keyed extension in the existing sensor wiring harness. This is a genuine Meritor part sold by Pro Gear and Transmission. Not sure this is your part? Give us a call to confirm proper fit for your application.
Features
DIN 2-pin male-to-female extension cable
1.8m (5.91 ft.) cable length
6.2 mm cable diameter
Two-wire construction connects wheel-end speed sensors to ECU
Part number M9557120180
Tech Specs
- Sensor Type: DIN 2 PIN MALE
- Connector Type: DIN 2 PIN FEMALE
- Length (Metric): 1.8 m
- Length: 5.91 ft.
- Type: 2 pole wheel speed sensor extension cable Male to Female
- Notes: Two-wire extension cable that connects the wheel end sensors to the ECU
- Cable Diameter: 6.2 mm
