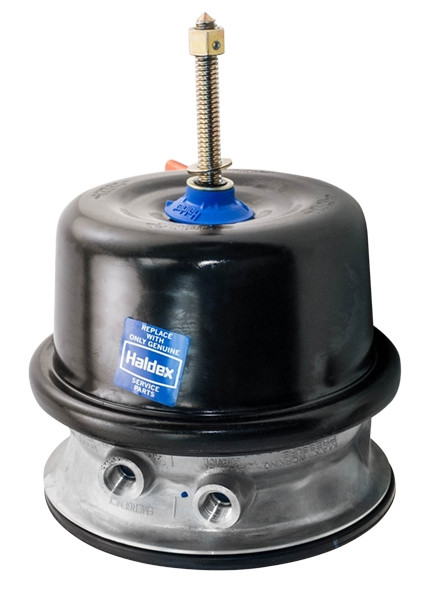

Genuine Midland Haldex Chamber brake parts P/N: LPP3030LK, we offer the best service in the industry with years of expert knowledge! Call us if you have questions.
Features
3030LifeSeal+
Stroke 3.0"
Piggyback
W/bolted clampband & diaphragm
Tech Specs
- ctuator Type Size 3030
- Stroke Type Long
- Available Stroke 3.0"
- Pushrod Threads N/A
- Weight 14.7"
- A - Length from mounting bracket to end of Spring Housing N/A
- B - Length of Piggyback 7.19"
- C - Dimension at rolled Spring Housing flange 8.19"
- D - Dimension at Service Clampband 9.20"
- E - Stud Spacing N/A
- J - Pushrod Length from face of Service Housing N/A
- K - Distance to Clevis Pin centerline from face of Service Housing N/A
- S1 - Service Clampband position N/A
- Air Port position N/A
