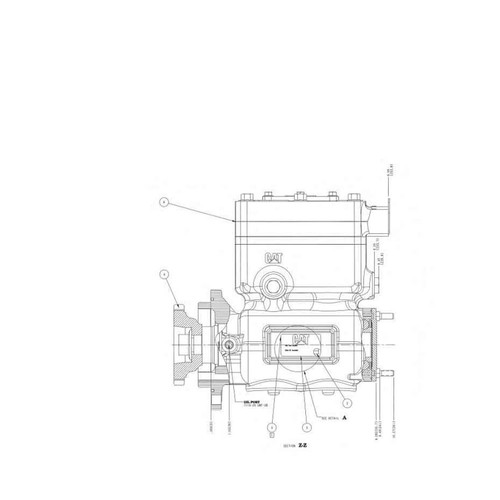

The Midland Haldex EL365152X is a remanufactured EL365 series air compressor designed for Caterpillar C15 engines, 2007 and later. It uses a 3-hole flange mount configuration with rear head rotation and right block rotation. The unit is naturally aspirated with high air output and supports up to 150 ft-lb of thru-drive torque through its 40-tooth gear. A pressure relief valve (Bendix 801116) is included. Service units are supplied without governors or manifolds. Overall dimensions are 12.22 in. tall, 5.43 in. wide, and 12.11 in. long. Unloader kit RN26KK applies. Cross-references include OEM numbers 10R9393 and N7212FL. Call us to confirm proper fit for your application.
A refundable core charge of $420.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
EL365 series air compressor for Caterpillar C15 engines, 2007 and later
Naturally aspirated with high air output
3-hole flange mount configuration; rear head rotation, right block rotation
40-tooth gear with 150 ft-lb thru-drive torque capacity
Includes Bendix 801116 pressure relief valve
Supplied without governor or manifold; unloader kit RN26KK applies
Tech Specs
- Application: Caterpillar C15 engine, 2007 and later
- Mount Type: 3-hole flange mount
- Head Rotation: Rear
- Block Rotation: Right
- Aspiration: Naturally aspirated
- Thru-Drive Torque: 150 ft-lb
- Gear Teeth: 40
- Overall Height: 12.22 in.
- Overall Width: 5.43 in.
- Overall Length: 12.11 in.
- Pressure Relief Valve Included: Bendix 801116
- Unloader Kit: RN26KK
- Supplied Without: Governor and manifold
