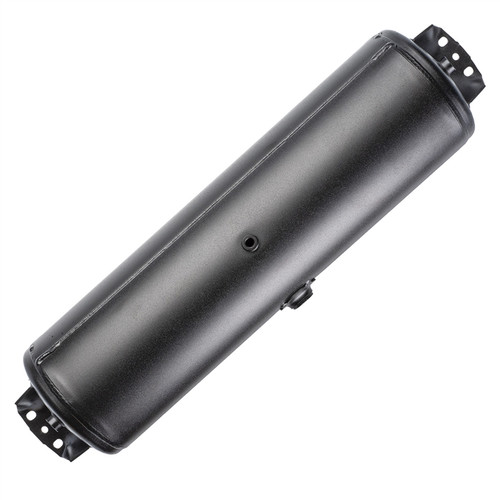

The Midland Haldex 19820 is a saddle-mounted single-compartment air reservoir designed for heavy-duty truck air brake systems. It measures 12 inches in diameter with 29-1/2 inch mounting centers and a total volume of 2865 cubic inches. Two 3/4 inch valve mounting ports with reinforced construction handle the demands of regular service, and the mounting flanges sit above the center line for inverted bracket orientation. Certified to 150 PSI working pressure and conforming to SAE J10B specifications, the tank includes internal and external corrosion protection rated to withstand a 500-hour salt spray test. A 1/4 inch drain port is located in the bottom, and two 3/8 inch charging ports are positioned one on each end. Use of isolator pads is recommended in ABS applications. Call us to confirm proper fit for your vehicle.
All tanks have two 3/8 inch charging ports, one on each end.
Features
12" diameter, 2865 cu. in. single-compartment saddle-mount reservoir
29-1/2" mounting centers, above-center-line flange orientation for inverted bracket mounting
(2) 3/4" reinforced valve mounting ports
Certified to 150 PSI working pressure; conforms to SAE J10B specifications
Internal and external corrosion protection rated to 500-hour salt spray test
1/4" drain port in bottom; two 3/8" charging ports, one on each end
Tech Specs
- Mounting Centers 29-1/2"
- Diameter 12"
- Volume 2865 cu. in.
- Valve Mounting Ports (2) 3/4"
- Mounting Flanges Above Center Line - Inverted Mounting Bracket Orientation
Additional Information
All tanks have 1/4 inch drain port in bottom.All tanks have two 3/8 inch charging ports, one on each end.
