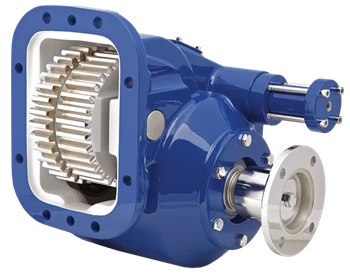

The Muncie 828B-U6809-D1DX or 828BU6809D1DX is an 82 Series power take-off built for high-torque, heavy-duty truck applications. It delivers up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM, making it capable of driving high-volume hydraulic pumps and high-CFM blowers. The double-acting air shift provides positive engagement and disengagement. The cast iron housing is matched with rotatable direct mount flanges, giving technicians flexibility to position the pump for maximum clearance. Seven direct mount pump options cover SAE "B," "BB," "C," and "D" flanges as well as DIN 5462 mounts, and two companion flange output types support both remote pump and mechanical drive setups. Call us to confirm proper fit for your transmission and chassis.
Features
Double-acting air shift for positive engagement and disengagement
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
Seven direct mount pump options: SAE "B," "BB," "C," "D" and DIN 5462 flanges
Two companion flange output types for remote pump or mechanical drives
Rotatable direct mount flanges for pump positioning and clearance
Cast iron housing construction
Tech Specs
- Housing Construction: Cast iron
- Shift Type: Double-acting air shift
- Speed Ratios Available: 8
- Output Shaft Options: 9
- Assembly Arrangements: 2
- Direct Mount Pump Options: 7 (SAE "B," "BB," "C," "D" and DIN 5462)
- Rotatable Pump Flange: Standard
- Intermittent Torque (Speed Ratio 05): 500 lb.ft. / 678 Nm
- Continuous Torque (Speed Ratio 05): 350 lb.ft. / 475 Nm
- Intermittent HP @ 1,000 RPM (Speed Ratio 05): 95 HP / 71 kW
- Intermittent Torque (Speed Ratio 06): 450 lb.ft. / 610 Nm
- Continuous Torque (Speed Ratio 06): 315 lb.ft. / 427 Nm
- Intermittent HP @ 1,000 RPM (Speed Ratio 06): 85 HP / 71 kW
- Intermittent Torque (Speed Ratio 08): 450 lb.ft. / 610 Nm
- Continuous Torque (Speed Ratio 08): 315 lb.ft. / 427 Nm
- Intermittent HP @ 1,000 RPM (Speed Ratio 08): 85 HP / 63 kW
- Intermittent Torque (Speed Ratio 09): 410 lb.ft. / 556 Nm
- Continuous Torque (Speed Ratio 09): 287 lb.ft. / 389 Nm
- Intermittent HP @ 1,000 RPM (Speed Ratio 09): 78 HP / 58 kW
- Intermittent Torque (Speed Ratio 10): 410 lb.ft. / 556 Nm
- Continuous Torque (Speed Ratio 10): 287 lb.ft. / 389 Nm
- Intermittent HP @ 1,000 RPM (Speed Ratio 10): 78 HP / 58 kW
- Intermittent Torque (Speed Ratio 12): 375 lb.ft. / 508 Nm
- Continuous Torque (Speed Ratio 12): 263 lb.ft. / 356 Nm
- Intermittent HP @ 1,000 RPM (Speed Ratio 12): 71 HP / 53 kW
- Intermittent Torque (Speed Ratio 13): 375 lb.ft. / 508 Nm
- Continuous Torque (Speed Ratio 13): 263 lb.ft. / 356 Nm
- Intermittent HP @ 1,000 RPM (Speed Ratio 13): 71 HP / 53 kW
- Intermittent Torque (Speed Ratio 15): 350 lb.ft. / 475 Nm
- Continuous Torque (Speed Ratio 15): 245 lb.ft. / 332 Nm
- Intermittent HP @ 1,000 RPM (Speed Ratio 15): 67 HP / 50 kW
- Intermittent Torque (Speed Ratio 19): 300 lb.ft. / 407 Nm
- Continuous Torque (Speed Ratio 19): 210 lb.ft. / 285 Nm
- Intermittent HP @ 1,000 RPM (Speed Ratio 19): 57 HP / 43 kW
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) |
(285) |
