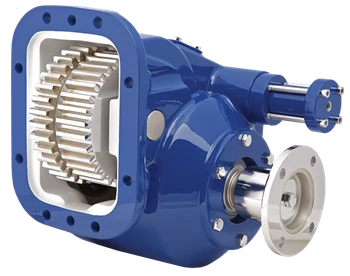

The Muncie 82 Series Power Take-Off, part number 828B-U6812-D1DX or 828BU6812D1DX, is a cast-iron PTO built for high-torque vocational applications. It uses a double-acting air shift for positive engagement and disengagement, and the series supports eight speed ratios and nine output shaft options. At the 05 speed ratio, intermittent torque reaches 500 lb.ft. with 95 HP at 1,000 RPM; continuous torque is rated at 350 lb.ft. for that ratio. Two companion flange output types cover remote pump and mechanical drive installations. Seven direct-mount pump options include S.A.E. "B," "BB," "C," and "D" flanges, plus DIN 5462 mounts. Rotatable direct-mount flanges let you position the pump for maximum clearance in tight installations. Available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Double-acting air shift for positive engagement and disengagement
Cast-iron housing construction
Up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (speed ratio 05)
Seven direct-mount pump flange options: S.A.E. "B," "BB," "C," "D," and DIN 5462
Rotatable direct-mount flanges for pump positioning and clearance
Eight speed ratios and nine output shaft options available in the 82 Series
Tech Specs
- Housing construction: Cast iron
- Shift type: Double-acting air shift
- Speed ratios available (82 Series): 8
- Output shaft options (82 Series): 9
- Assembly arrangements: 2
- Rotatable pump flange: Standard
- Direct-mount pump flange options: S.A.E. "B," "BB," "C," "D," and DIN 5462
- Companion flange output types: 2
- Intermittent torque at speed ratio 05: 500 lb.ft. (678 Nm)
- Continuous torque at speed ratio 05: 350 lb.ft. (475 Nm)
- Intermittent HP at speed ratio 05 at 1,000 RPM: 95 HP (71 kW)
- Intermittent torque at speed ratio 06: 450 lb.ft. (610 Nm)
- Continuous torque at speed ratio 06: 315 lb.ft. (427 Nm)
- Intermittent HP at speed ratio 06 at 1,000 RPM: 85 HP (71 kW)
- Intermittent torque at speed ratio 08: 450 lb.ft. (610 Nm)
- Continuous torque at speed ratio 08: 315 lb.ft. (427 Nm)
- Intermittent HP at speed ratio 08 at 1,000 RPM: 85 HP (63 kW)
- Intermittent torque at speed ratio 09: 410 lb.ft. (556 Nm)
- Continuous torque at speed ratio 09: 287 lb.ft. (389 Nm)
- Intermittent HP at speed ratio 09 at 1,000 RPM: 78 HP (58 kW)
- Intermittent torque at speed ratio 10: 410 lb.ft. (556 Nm)
- Continuous torque at speed ratio 10: 287 lb.ft. (389 Nm)
- Intermittent HP at speed ratio 10 at 1,000 RPM: 78 HP (58 kW)
- Intermittent torque at speed ratio 12: 375 lb.ft. (508 Nm)
- Continuous torque at speed ratio 12: 263 lb.ft. (356 Nm)
- Intermittent HP at speed ratio 12 at 1,000 RPM: 71 HP (53 kW)
- Intermittent torque at speed ratio 13: 375 lb.ft. (508 Nm)
- Continuous torque at speed ratio 13: 263 lb.ft. (356 Nm)
- Intermittent HP at speed ratio 13 at 1,000 RPM: 71 HP (53 kW)
- Intermittent torque at speed ratio 15: 350 lb.ft. (475 Nm)
- Continuous torque at speed ratio 15: 245 lb.ft. (332 Nm)
- Intermittent HP at speed ratio 15 at 1,000 RPM: 67 HP (50 kW)
- Intermittent torque at speed ratio 19: 300 lb.ft. (407 Nm)
- Continuous torque at speed ratio 19: 210 lb.ft. (285 Nm)
- Intermittent HP at speed ratio 19 at 1,000 RPM: 57 HP (43 kW)
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) |
(285) |
