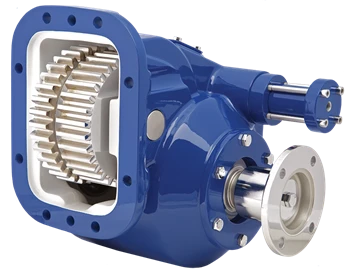

The Muncie 82 Series Power Take-Off, part number 828B-U6809-G3IX or 828BU6809G3IX, is engineered for heavy-duty applications demanding high torque output. The cast iron housing supports up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM at the most aggressive speed ratio, making it a capable choice for high-volume hydraulic pumps and high-CFM blowers. Engagement and disengagement are handled by a double-acting air shift for positive, reliable actuation. Eight speed ratio options and nine output shaft configurations are available across two assembly arrangements. Seven direct-mount pump flange options cover S.A.E. B, BB, C, and D, plus DIN 5462 mounts, and all direct-mount flanges are rotatable to maximize clearance in tight installations. Call us to confirm proper fit and configuration for your application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (speed ratio 05)
Seven direct-mount pump flange options: S.A.E. B, BB, C, D, and DIN 5462
Rotatable direct-mount flanges for maximum pump clearance
Eight speed ratios and nine output shaft options across two assembly arrangements
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
