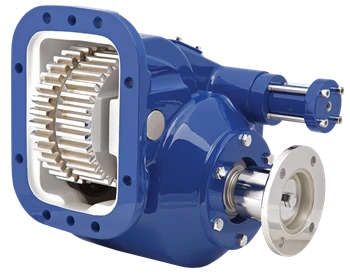

The Muncie 828S-KIT10-L1DX or 828SKIT10L1DX is an 82 Series Power Take-Off built for high-torque, heavy-duty applications. It features double-acting air shift for positive engagement and disengagement, and a cast iron housing. At speed ratio 05, the unit delivers up to 95 H.P. and 500 lb.ft. intermittent torque at 1,000 RPM, making it capable of driving high-volume hydraulic pumps and high-CFM blowers. Seven direct-mount pump options cover S.A.E. "B," "BB," "C," and "D" flanges plus DIN 5462 mounts. Rotatable direct-mount flanges let you position the pump for maximum clearance. Nine output shaft options and two assembly arrangements give installers flexibility across a wide range of chassis configurations. Call us to confirm proper fit for your application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM (speed ratio 05)
Seven direct-mount pump flange options: S.A.E. "B," "BB," "C," "D," and DIN 5462
Rotatable direct-mount flanges for pump positioning and clearance
Nine output shaft options across 8 available speed ratios
Tech Specs
- Housing Construction: Cast Iron
- Shift Type: Double-Acting Air Shift
- Speed Ratios Available: 8
- Output Shaft Options: 9
- Assembly Arrangements: 2
- Direct-Mount Pump Flange Options: 7 (S.A.E. "B," "BB," "C," "D"; DIN 5462)
- Rotatable Pump Flange: Standard
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
