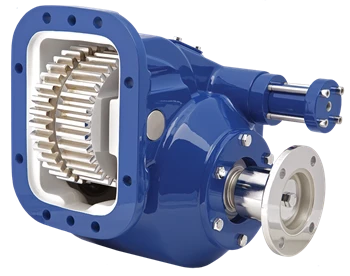

The Muncie 828S-KIT10-L3CX is a heavy-duty 82 Series Power Take-Off built for high-torque hydraulic and mechanical drive applications. It delivers up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM at speed ratio 05, making it a capable choice for high-volume pumps and high-CFM blowers. The double-acting air shift provides positive engagement and disengagement. The cast iron housing supports seven direct-mount pump options including S.A.E. "B," "BB," "C," and "D" flanges, plus DIN 5462 mounts. Rotatable direct-mount flanges let you position the pump for maximum clearance in tight installations. Eight speed ratios and nine output shaft options allow configuration flexibility. Also referenced as 828SKIT10L3CX and MU828SKIT10L3CX. Call us to confirm proper fit for your application.
Features
Double-acting air shift for positive engagement and disengagement
Up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (speed ratio 05)
Seven direct-mount pump flange options: S.A.E. B, BB, C, D, and DIN 5462
Rotatable direct-mount flanges for pump positioning and clearance
Cast iron housing construction
Eight available speed ratios and nine output shaft options
Tech Specs
- Series: Muncie 82 Series
- Shift Type: Double-acting air shift
- Housing: Cast iron
- Direct-Mount Pump Flanges: S.A.E. B, BB, C, D; DIN 5462
- Speed Ratios Available: 8
- Output Shaft Options: 9
- Assembly Arrangements: 2
- Rotatable Pump Flange: Standard
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
